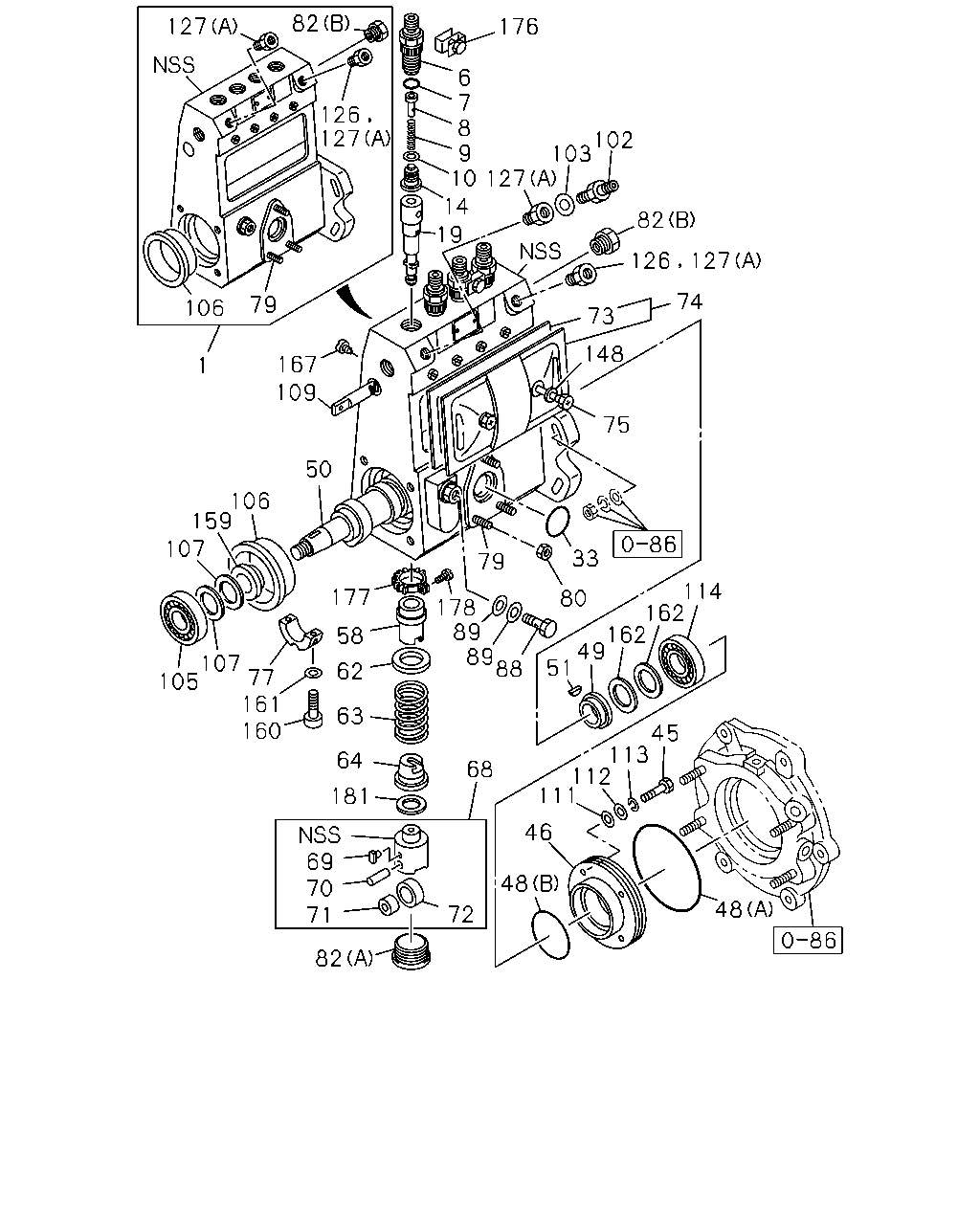

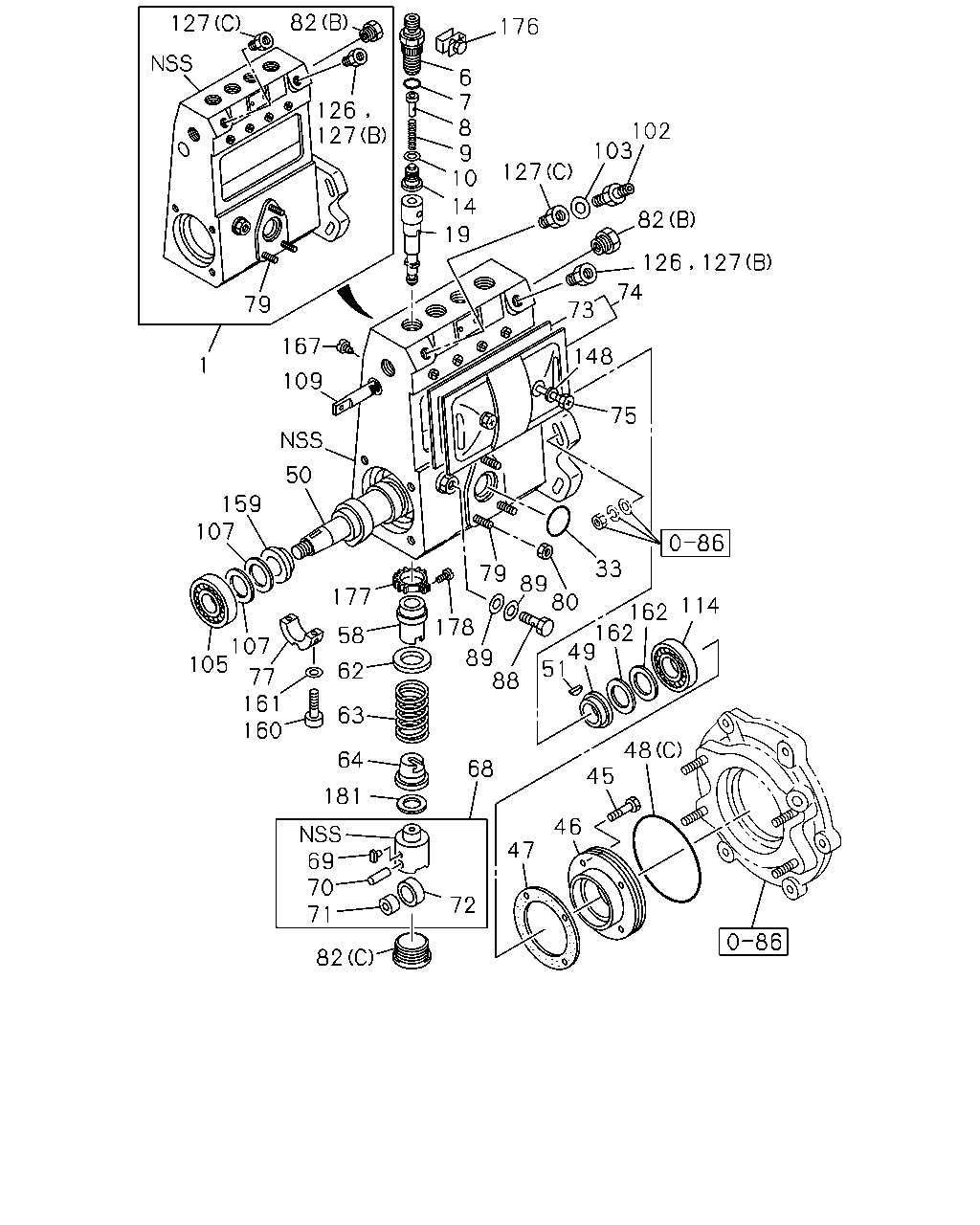

0-80 — INJECTION PUMP (#36981) — 513 parça

82 127 176 6 7 8 9 10 126 127 102 103 127 14 82 1 126 127 74 79 106 73 148 167 109 1 75 50 106 159 107 33 79 114 162 162 49 51 177 80 178 89 89 88 58 107 77 105 161 160 62 63 45 113 112 111 64 68 181 46 69 70 71 48 48 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97137-799-0	01	1	-
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: I = 8-97385-476-0, 97385476	8-97166-107-0	01	1	-
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97185-010-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15644-009-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15644-017-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94367-330-0	04	1	-
7	03.306 GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-09623-052-0	04	1	-
7	03.306 GASKET; HOLDER,DELIVERY VLV ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-046-0	04	1	-
8	03.302 STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15649-005-0	04	1	-
8	03.302 STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97083-335-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15634-011-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15643-003-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-803-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-103-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15649-001-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94247-716-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-401-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-802-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94362-694-0	04	1	-
33	03.904 GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-058-0	01	1	-
45	03.302 BOLT; FRT COVER TO HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15619-282-0	04	1	-
45	03.302 BOLT; FRT COVER TO HSG ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97085-000-0	04	1	-
46	03.300 COVER; FRT,PUMP HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-047-0	01	1	-
46	03.300 COVER; FRT,PUMP HSG ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-999-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (B) ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-076-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97026-918-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (A) ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97085-113-0	01	1	-
49	03.306 RING; FRT BRG,CM/SHF ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-004-0	01	1	-
49	03.306 RING; FRT BRG,CM/SHF ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-990-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97026-916-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97084-988-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97185-012-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-009-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94239-370-0	01	1	-
58	03.330 SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-058-0	04	1	-
58	03.330 SLEEVE; CONT,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81231-523-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-022-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81235-015-0	04	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15634-007-0	04	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94387-977-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-023-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81235-021-0	04	1	-
68	03.300 TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15622-009-0	04	1	-
68	03.300 TAPPET; CM/SHF,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97214-450-0	04	1	-
69	03.300 GUIDE; TAPPET,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-018-0	04	1	-
69	03.300 GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15619-041-0	04	1	-
70	03.300 PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15622-006-0	04	1	-
70	03.300 PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81215-185-0	04	1	-
71	03.300 BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-162-0	04	1	-
71	03.300 BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-001-0	04	1	-
72	03.300 ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15622-003-0	04	1	-
72	03.300 ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-010-0	04	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-94386-596-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-94171-109-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97166-109-0	01	1	-
75	03.330 SCREW; COVER TO HSG 00.015 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-003-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94313-276-0	02	1	-
77	03.306 BEARING; CM/SHF CENTER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-264-0	02	1	-
77	03.306 BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-014-0	02	1	-
79	03.302 STUD; FUEL FEED PUMP TO HSG 03.901 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81215-115-0	03	1	-
80	03.901 NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-94171-110-0	03	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.302, (B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-073-0	01	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.901, (A) ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-160-0	04	1	-
82	03.306 PLUG; HSG,INJ PUMP (C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15619-136-0	04	1	-
88	01.531 BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-092-0	01	1	-
89	01.531 GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15719-093-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-13260-001-1	01	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-290-0	01	1	-
103	03.332 GASKET; OVERFLOW VLV,INJ PUMP 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-09630-085-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-002-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-003-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-09800-038-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP 03.300, NSK ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-00090-677-0	01	1	-
106	03.306 RING; HSG,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-159-0	01	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-007-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-008-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-105-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15639-088-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15619-039-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-015-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-016-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-017-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-018-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-019-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-020-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-038-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-090-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-033-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-049-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-050-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-051-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-052-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-053-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-054-0	AR	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15637-002-0	01	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97214-451-0	01	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97224-410-0	01	1	-
111	03.306 GASKET; FRT COVER FIX ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-024-0	04	1	-
112	03.302 SHIM; FRT COVER FIX ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97085-001-0	04	1	-
113	03.302 WASHER; LK,FRT COVER TO HSG ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-94128-928-0	04	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-002-0	01	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-003-0	01	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-989-0	01	1	-
126	03.302 ADAPTER; EYE BOLT,PUMP HSG ASM PART: E = 8-97212-102-0, 97212102	1-15619-190-0	01	1	-
126	03.302 ADAPTER; EYE BOLT,PUMP HSG 03.318 ASM PART: B = 8-97203-381-0, 97203381	1-15629-057-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302, (C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15619-035-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302, (A) ASM PART: D = 8-97212-101-0, 97212101, I = 8-97385-476-0, 97385476	1-15619-190-0	02	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302, (A) ASM PART: E = 8-97212-102-0, 97212102	1-15619-190-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.318, (B) ASM PART: A = 8-97203-380-0, 97203380, C = 8-97203-383-0, 97203383	1-15629-057-0	01	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81215-144-0	02	1	-
159	03.306 RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-004-0	01	1	-
159	03.306 RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-047-0	01	1	-
160	03.330 SCREW; CENTER BRG,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-017-0	04	1	-
160	03.330 SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-88410-066-0	04	1	-
161	03.306 GASKET; SCREW,CENTER BRG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-043-0	04	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-007-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-008-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-105-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-991-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-992-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-993-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-994-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-995-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-996-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-997-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-998-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97121-620-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-049-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-050-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-051-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-052-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-053-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-054-0	AR	1	-
167	03.330 BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-003-0	01	1	-
176	03.302 PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15625-001-0	02	1	-
177	03.330 PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-057-0	04	1	-
178	03.320 SCREW; PINION,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-003-0	04	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-001-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-002-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-003-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-004-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-005-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-007-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-008-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-009-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-010-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-011-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-012-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-013-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-015-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-025-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-026-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-027-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-034-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-035-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-036-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-037-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-106-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-107-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-108-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-109-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-110-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-042-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-043-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-044-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-045-0	AR	1	-

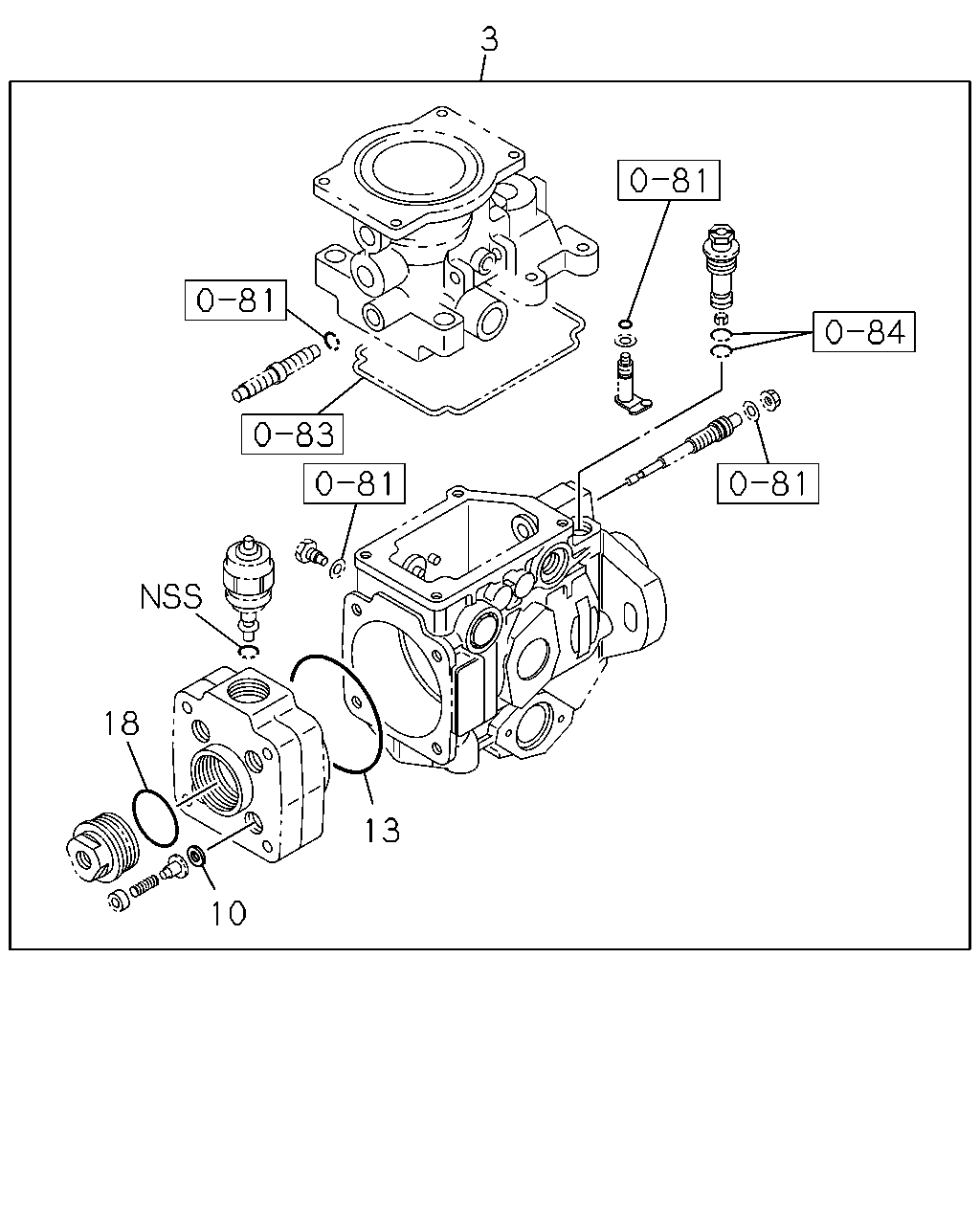

3 18 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94228-545-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-103-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15649-001-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-527-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-637-0	01	1	-

82 127 176 6 7 8 9 10 126 127 102 103 127 14 82 19 126 127 74 79 73 167 148 1 109 75 50 159 107 33 79 89 80 177 114 162 162 49 51 178 58 107 105 89 88 62 77 161 160 63 48 45 64 68 181 46 69 70 71 47 72 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97137-799-0	01	1	-
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: I = 8-97385-476-0, 97385476	8-97166-107-0	01	1	-
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97185-010-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15644-009-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15644-017-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94367-330-0	04	1	-
7	03.306 GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-09623-052-0	04	1	-
7	03.306 GASKET; HOLDER,DELIVERY VLV ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-046-0	04	1	-
8	03.302 STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15649-005-0	04	1	-
8	03.302 STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97083-335-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15634-011-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15643-003-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-803-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-103-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15649-001-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94247-716-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-401-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-802-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94362-694-0	04	1	-
19	03.330 PLUNGER ASM; INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97083-334-0	04	1	-
19	03.330 PLUNGER ASM; INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97121-619-0	04	1	-
19	03.330 PLUNGER ASM; INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97185-011-0	04	1	-
33	03.904 GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-058-0	01	1	-
45	03.302 BOLT; FRT COVER TO HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15619-282-0	04	1	-
45	03.302 BOLT; FRT COVER TO HSG ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97085-000-0	04	1	-
46	03.300 COVER; FRT,PUMP HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-047-0	01	1	-
46	03.300 COVER; FRT,PUMP HSG ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-999-0	01	1	-
47	03.306 SHIM; FRT COVER,INJ PUMP HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97083-337-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (B) ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-076-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97026-918-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (A) ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97085-113-0	01	1	-
49	03.306 RING; FRT BRG,CM/SHF ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-004-0	01	1	-
49	03.306 RING; FRT BRG,CM/SHF ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-990-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-97026-916-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97084-988-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97185-012-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-009-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94239-370-0	01	1	-
58	03.330 SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-058-0	04	1	-
58	03.330 SLEEVE; CONT,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81231-523-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-022-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81235-015-0	04	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15634-007-0	04	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94387-977-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-023-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81235-021-0	04	1	-
68	03.300 TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15622-009-0	04	1	-
68	03.300 TAPPET; CM/SHF,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97214-450-0	04	1	-
69	03.300 GUIDE; TAPPET,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-018-0	04	1	-
69	03.300 GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15619-041-0	04	1	-
70	03.300 PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15622-006-0	04	1	-
70	03.300 PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81215-185-0	04	1	-
71	03.300 BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-162-0	04	1	-
71	03.300 BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-001-0	04	1	-
72	03.300 ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15622-003-0	04	1	-
72	03.300 ROLLER; TAPPET,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-010-0	04	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-94386-596-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-94171-109-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97166-109-0	01	1	-
75	03.330 SCREW; COVER TO HSG 00.015 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-003-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94313-276-0	02	1	-
77	03.306 BEARING; CM/SHF CENTER,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-264-0	02	1	-
77	03.306 BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-014-0	02	1	-
79	03.302 STUD; FUEL FEED PUMP TO HSG 03.901 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81215-115-0	03	1	-
80	03.901 NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-94171-110-0	03	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.302, (B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-073-0	01	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.901, (A) ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-160-0	04	1	-
82	03.306 PLUG; HSG,INJ PUMP (C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15619-136-0	04	1	-
88	01.531 BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-092-0	01	1	-
89	01.531 GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15719-093-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-13260-001-1	01	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-290-0	01	1	-
103	03.332 GASKET; OVERFLOW VLV,INJ PUMP 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-09630-085-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-002-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-003-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-09800-038-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP 03.300, NSK ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-00090-677-0	01	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-007-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-008-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-105-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15639-088-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15619-039-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-015-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-016-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-017-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-018-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-019-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-020-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-038-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15629-090-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-033-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-049-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-050-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-051-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-052-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-053-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-054-0	AR	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15637-002-0	01	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-97214-451-0	01	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97224-410-0	01	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-002-0	01	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-003-0	01	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-989-0	01	1	-
126	03.302 ADAPTER; EYE BOLT,PUMP HSG ASM PART: E = 8-97212-102-0, 97212102	1-15619-190-0	01	1	-
126	03.302 ADAPTER; EYE BOLT,PUMP HSG 03.318 ASM PART: B = 8-97203-381-0, 97203381	1-15629-057-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302, (C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15619-035-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302, (A) ASM PART: D = 8-97212-101-0, 97212101, I = 8-97385-476-0, 97385476	1-15619-190-0	02	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302, (A) ASM PART: E = 8-97212-102-0, 97212102	1-15619-190-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.318, (B) ASM PART: A = 8-97203-380-0, 97203380, C = 8-97203-383-0, 97203383	1-15629-057-0	01	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81215-144-0	02	1	-
159	03.306 RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-004-0	01	1	-
159	03.306 RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-047-0	01	1	-
160	03.330 SCREW; CENTER BRG,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-017-0	04	1	-
160	03.330 SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-88410-066-0	04	1	-
161	03.306 GASKET; SCREW,CENTER BRG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-043-0	04	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-007-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-008-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15629-105-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-991-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-992-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-993-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-994-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-995-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-996-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-997-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97084-998-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-97121-620-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-049-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-050-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-051-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-052-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-053-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81225-054-0	AR	1	-
167	03.330 BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-003-0	01	1	-
176	03.302 PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15625-001-0	02	1	-
177	03.330 PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81225-057-0	04	1	-
178	03.320 SCREW; PINION,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-003-0	04	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-001-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-002-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-003-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-004-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-005-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-007-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-008-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-009-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-010-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-011-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-012-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-013-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-015-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-025-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-026-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-027-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-034-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-035-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-036-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-037-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-106-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-107-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-108-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-109-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	5-15619-110-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-042-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-043-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-044-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	9-81235-045-0	AR	1	-

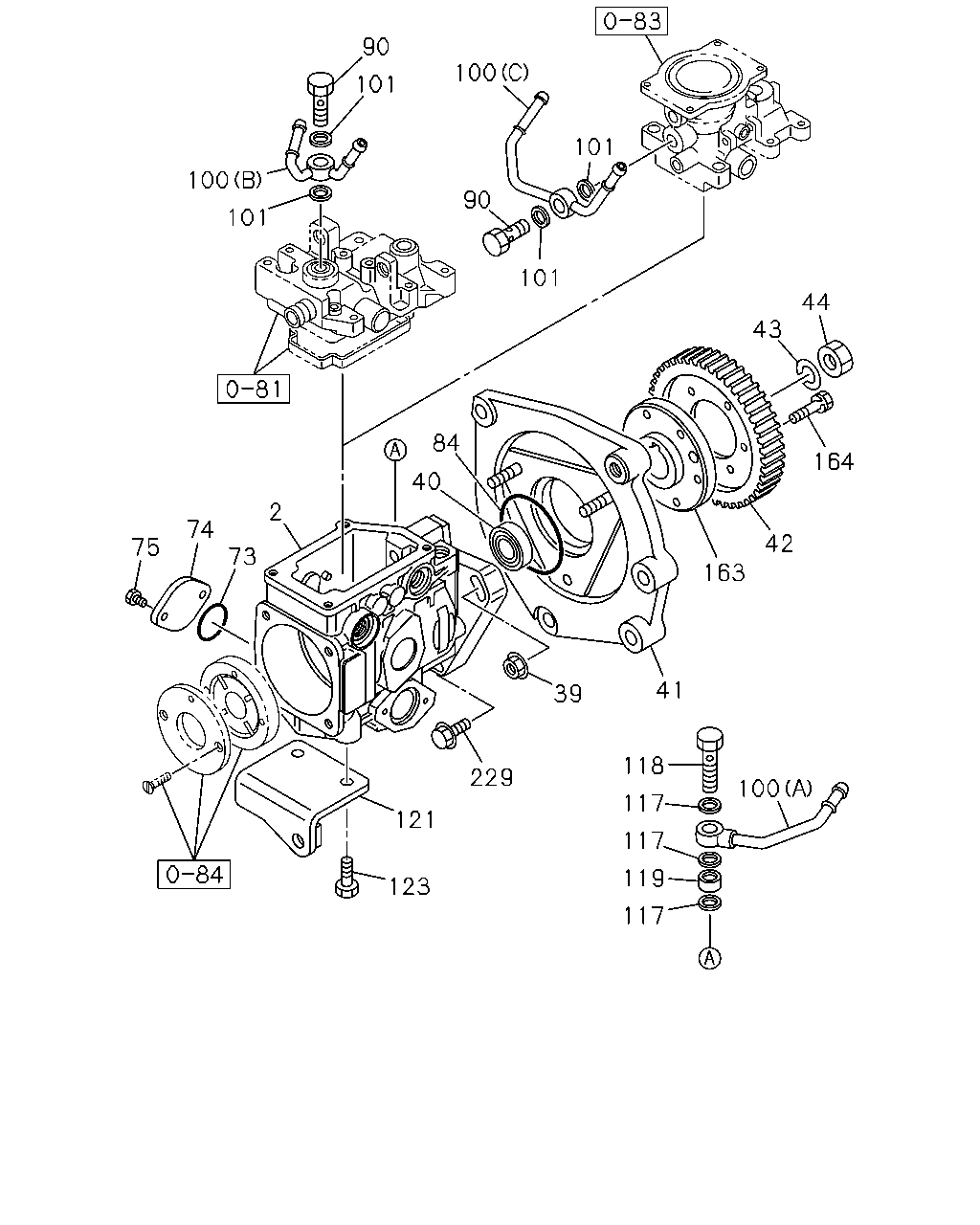

90 100 101 101 100 90 101 101 44 43 84 164 40 2 74 42 75 73 163 41 39 118 229 100 117 121 117 119 123 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: F = 8-97223-104-1, 97223104, H = 8-97324-405-1, 97324405	8-97332-323-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: G = 8-97223-105-1, 97223105	8-97332-325-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97117-806-1	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP 03.340, Z=70 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97089-848-4	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94226-554-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94226-565-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	8-94386-596-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102	8-94171-109-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97125-525-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: I = 8-97385-476-0, 97385476	8-97166-109-0	01	1	-
75	03.330 SCREW; COVER TO HSG 00.015 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-003-0	02	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94313-276-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94247-722-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97144-333-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: F = 8-97223-104-1, 97223104, H = 8-97324-405-1, 97324405	8-97168-225-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97227-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: G = 8-97223-105-1, 97223105	8-97227-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97249-545-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97202-330-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-662-0	01	1	-
121	03.306 BRACKET; INJ PUMP HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97168-222-0	01	1	-
123	03.306 BOLT; BRKT TO HSG ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97168-227-0	02	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97118-337-0	01	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M6X20 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	9-01910-620-0	06	1	-
229	03.330 BOLT; BRKT ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97049-904-0	01	1	-

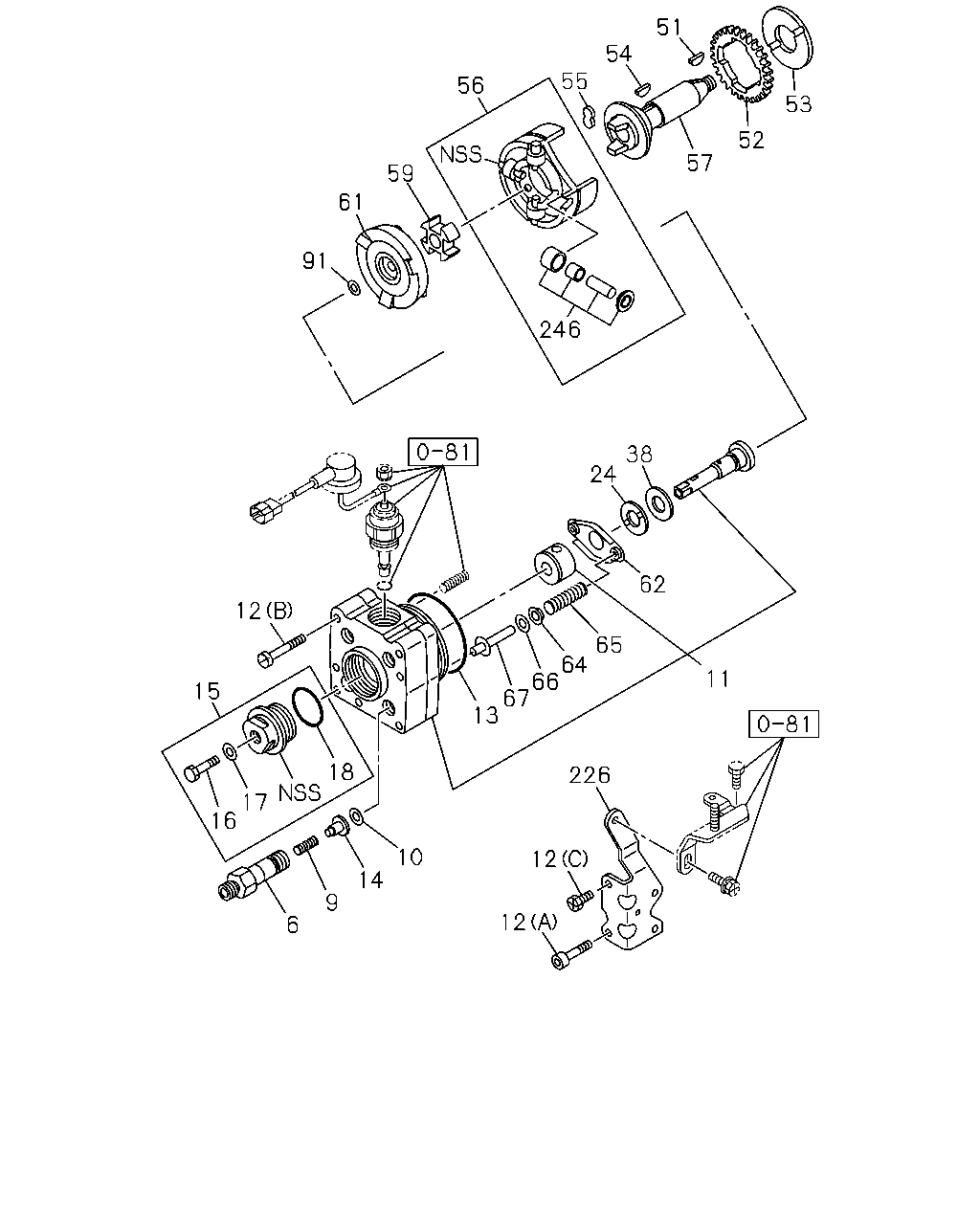

51 54 55 56 53 52 57 59 61 91 246 38 24 62 12 65 64 66 67 13 11 15 18 226 17 16 10 12 14 9 12 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15644-009-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	5-15644-017-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94367-330-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15634-011-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15643-003-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-803-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-103-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	1-15649-001-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97125-529-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (A) ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94242-278-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP 03.308, (C) ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94313-264-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-527-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15619-401-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-802-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94362-694-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97160-592-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94174-818-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-808-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-514-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15629-009-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	5-83539-024-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-484-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94169-528-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97168-215-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-759-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-761-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97168-216-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-022-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81235-015-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: D = 8-97212-101-0, 97212101, E = 8-97212-102-0, 97212102, I = 8-97385-476-0, 97385476	1-15639-023-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383	9-81235-021-0	04	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-816-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: F = 8-97223-104-1, 97223104	8-97332-324-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97185-285-0	02	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-94227-578-0	AR	1	-
226	03.330 BRACKET; DISTR HEAD ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97168-221-0	01	1	-
246	03.300 ROLLER KIT; INJ PUMP ASM PART: F = 8-97223-104-1, 97223104, G = 8-97223-105-1, 97223105, H = 8-97324-405-1, 97324405	8-97163-172-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
