◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶
0-66 — GENERATOR (#36980) — 51 parça
çizim 21115
24
BalonParca AdiParca NoAdetTipApplied Date
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573 		8-97131-532-0 01 1 -
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: E = 8-97351-574-1, 97351574 		8-97249-336-0 01 1 -

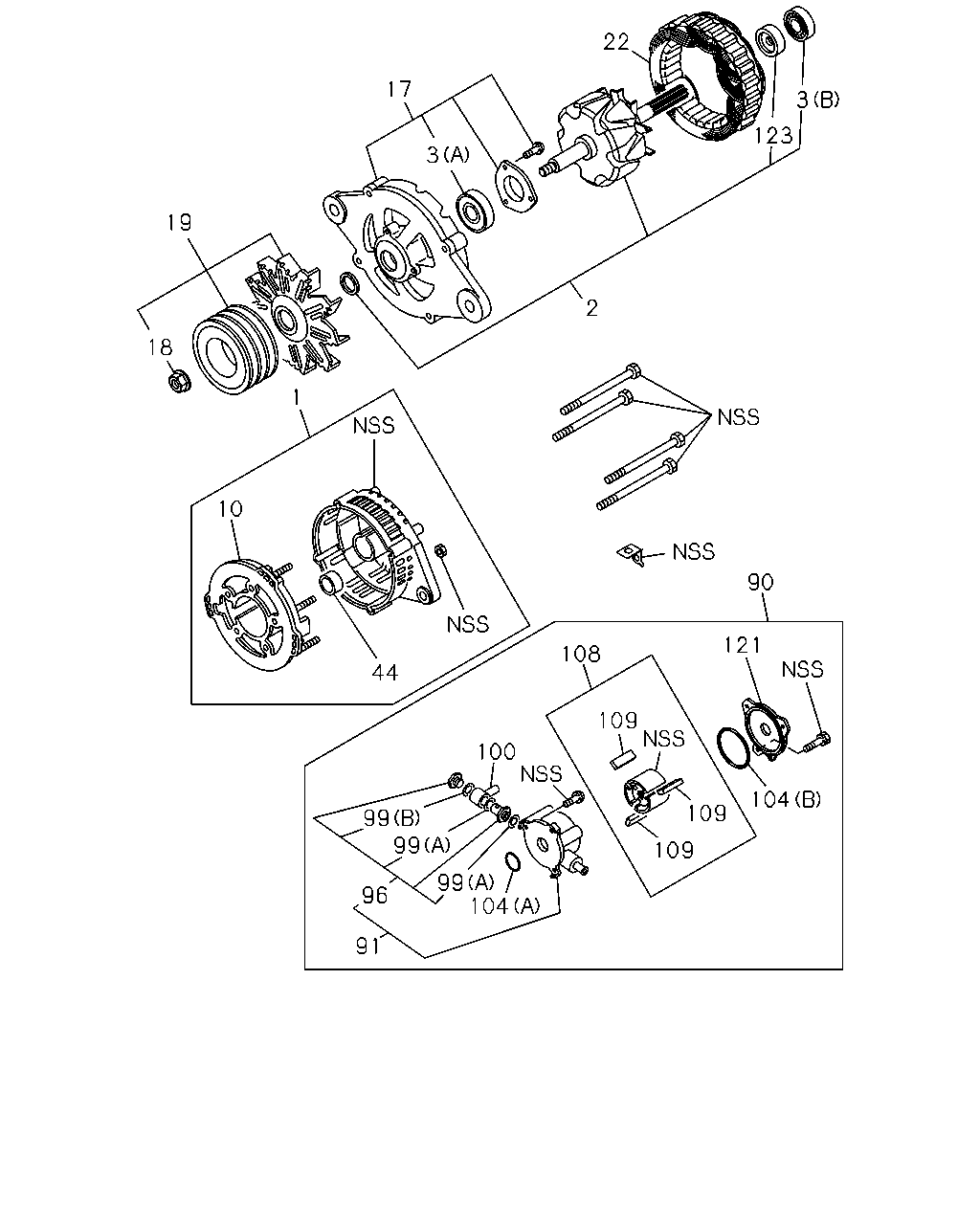

çizim 74627
22 17 3 123 3 19 2 18 1 10 90 121 108 44 109 100 104 109 99 99 109 99 104 96 91
BalonParca AdiParca NoAdetTipApplied Date
1 02.297 COVER ASM; RR,GEN
ASM PART: E = 8-97351-574-1, 97351574 		8-97249-332-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: C = 8-97351-572-1, 97351572 		8-97253-370-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: A = 8-97186-551-1, 97186551 		8-97253-370-0 01 1 -
1 02.297 COVER ASM; RR,GEN
ASM PART: D = 8-97351-573-0, 97351573 		8-97302-702-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: B = 8-97300-353-0, 97300353 		8-97302-702-0 01 1 -
2 02.279 ROTOR; GEN
ASM PART: A = 8-97186-551-1, 97186551 		8-97148-104-1 01 1 -
2 02.279 ROTOR; GEN
ASM PART: E = 8-97351-574-1, 97351574 		8-97249-330-0 01 1 -
2 02.279 ROTOR; GEN
ASM PART: B = 8-97300-353-0, 97300353, D = 8-97351-573-0, 97351573 		8-97302-700-0 01 1 -
2 02.279 ROTOR; GEN
ASM PART: C = 8-97351-572-1, 97351572 		8-97351-705-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: C = 8-97351-572-1, 97351572 		8-97062-744-0 01 1 1209-
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97062-744-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: C = 8-97351-572-1, 97351572 		8-97148-112-0 01 1 -1007
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-97186-551-1, 97186551 		8-97148-112-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: B = 8-97300-353-0, 97300353 		8-97161-473-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: E = 8-97351-574-1, 97351574 		8-97161-473-0 01 1 -1006
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353 		8-97248-128-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: C = 8-97351-572-1, 97351572 		8-97248-128-0 01 1 -1208
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: E = 8-97351-574-1, 97351574 		8-98146-442-0 01 1 1007-
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: D = 8-97351-573-0, 97351573 		8-98146-442-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: C = 8-97351-572-1, 97351572 		8-98159-457-0 01 1 1008-
10 02.319 RECTIFIER; GEN
ASM PART: D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97249-333-0 01 1 -1208
10 02.319 RECTIFIER; GEN
ASM PART: B = 8-97300-353-0, 97300353 		8-97249-333-0 01 1 -
10 02.319 RECTIFIER; GEN
ASM PART: C = 8-97351-572-1, 97351572 		8-97253-577-0 01 1 -1208
10 02.319 RECTIFIER; GEN
ASM PART: A = 8-97186-551-1, 97186551 		8-97253-577-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-97186-551-1, 97186551 		8-97148-111-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: E = 8-97351-574-1, 97351574 		8-97249-334-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: B = 8-97300-353-0, 97300353, D = 8-97351-573-0, 97351573 		8-97302-703-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: C = 8-97351-572-1, 97351572 		8-97351-706-0 01 1 -
18 02.274 NUT; PULLEY,GEN
ASM PART: B = 8-97300-353-0, 97300353, D = 8-97351-573-0, 97351573 		8-97083-293-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: B = 8-97300-353-0, 97300353, D = 8-97351-573-0, 97351573 		8-97083-292-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: A = 8-97186-551-1, 97186551, C = 8-97351-572-1, 97351572 		8-97148-113-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: E = 8-97351-574-1, 97351574 		8-97249-335-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: A = 8-97186-551-1, 97186551, C = 8-97351-572-1, 97351572 		8-97192-850-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: E = 8-97351-574-1, 97351574 		8-97249-331-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: B = 8-97300-353-0, 97300353, D = 8-97351-573-0, 97351573 		8-97302-701-0 01 1 -
44 02.298 SEAL; RR COVER,GEN
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-94156-589-0 01 1 -
90 03.280 PUMP ASM; VAC,GEN
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353 		8-97148-114-1 01 1 -
90 03.280 PUMP ASM; VAC,GEN
ASM PART: C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97351-707-0 01 1 -
91 03.280 BODY; VAC PUMP
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97148-117-0 01 1 -
96 03.280 VALVE ASM; VAC PUMP
02.307 ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97148-118-0 01 1 -
99 03.280 GASKET; VAC PUMP
(A), ID=18 OD=24 ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		5-19679-002-0 02 1 -
99 03.280 GASKET; VAC PUMP
(B), ID=12 OD=24 ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		5-19679-003-0 01 1 -
100 03.280 CONNECTOR; VAC PUMP
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353 		8-97083-303-0 01 1 -
104 03.280 GASKET; FRT COVER,VAC PUMP
04.830, (A) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-94156-608-0 01 1 -
104 03.280 GASKET; FRT COVER,VAC PUMP
(B) ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97083-304-0 01 1 -
108 03.280 ROTOR; VAC PUMP
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97148-115-1 01 1 -
109 03.280 VANE; VAC PUMP
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97083-298-0 03 1 -
121 02.297 COVER; RR,VAC PUMP
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97148-116-0 01 1 -
123 02.291 GUIDE; BRUSH
ASM PART: A = 8-97186-551-1, 97186551, B = 8-97300-353-0, 97300353, C = 8-97351-572-1, 97351572, D = 8-97351-573-0, 97351573, E = 8-97351-574-1, 97351574 		8-97062-644-0 01 1 -
