◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#36978) — 67 parça

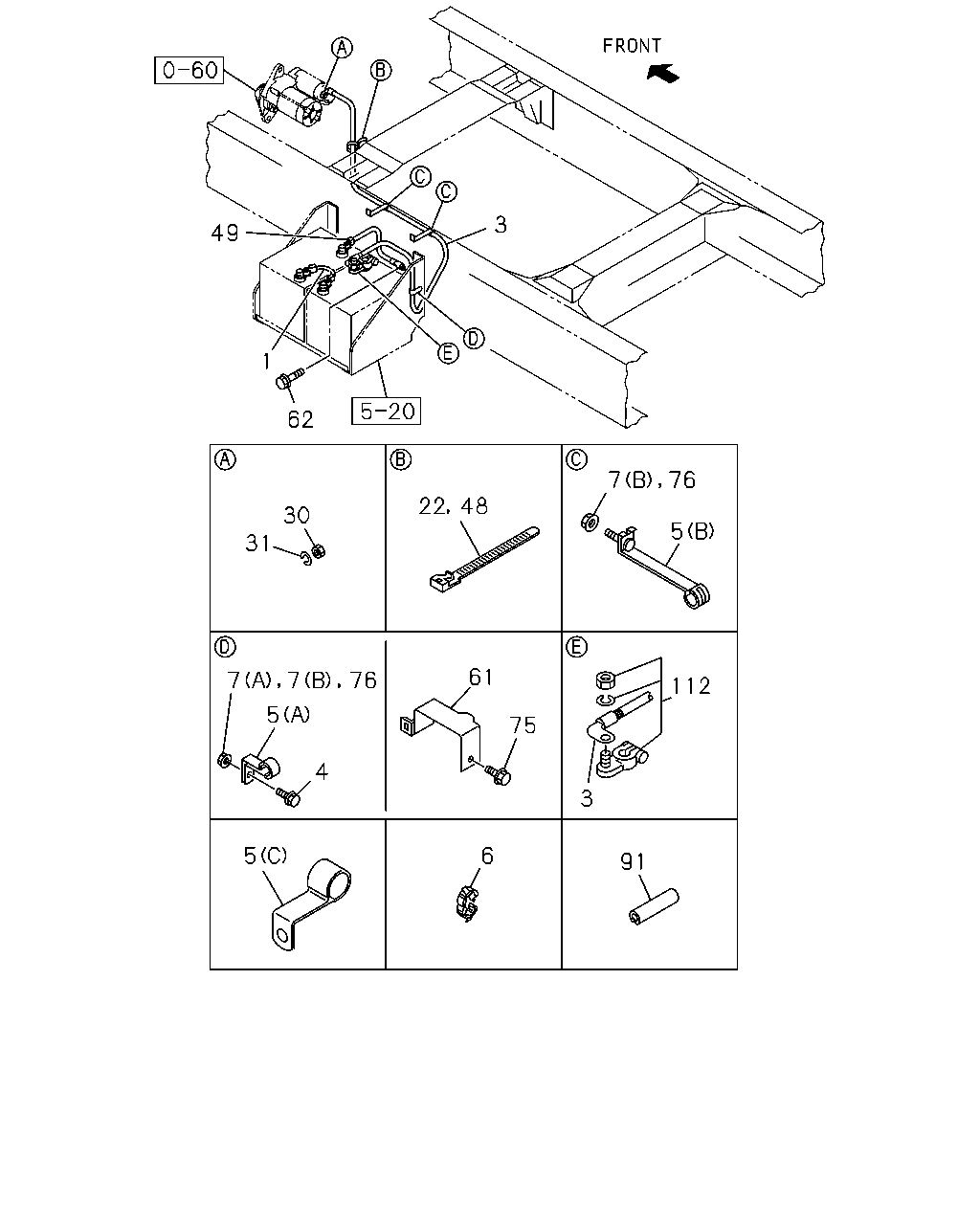

çizim 75572
3 49 1 62 22 48 30 5 31 61 7 112 5 75 4 3 5 6 91 7 76 7 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0211- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> 		8-97357-101-0 01 1 0211-0302 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> 		8-97352-486-1 01 1 0303-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 		8-97377-770-0 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-709-1 01 1 0211-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 		8-97350-709-1 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 		8-97377-769-0 01 1 0502- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97377-768-0 01 1 0502- ● ●
4 02.559 BOLT; BATTERY CABLE
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0211 ● ●
4 02.559 BOLT; BATTERY CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ●
4 02.559 BOLT; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
4 02.559 BOLT; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
4 02.559 BOLT; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0211-0501 ● ●
4 02.559 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0502-0512 ● ●
4 02.559 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0601- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0211-0303 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 0211-0211 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> 03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 0211-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 03.483 (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 0502- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ> 03.430 (A) ID=13 H=15 L=25 		1-09700-888-0 01 1 0211-0501 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) (A) ID=13 L=32 		9-09525-265-0 01 1 0502-0502 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 01 1 0502- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 01.166 (A) ID=13 L=40 		9-09525-276-0 02 1 0502-0502 ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97028-508-2 03 1 0502- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=20X2 H=25 L=45 		1-09701-252-0 03 1 0502- ● ●
6 02.343 GROMMET; BATTERY CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 0502- ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0211-0303 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0211 ● ●
7 02.343 NUT; (+) CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0303 ● ●
7 02.343 NUT; (+) CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0304-0501 ● ●
7 02.343 NUT; (+) CABLE
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0502 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
7 02.343 NUT; (+) CABLE
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
7 02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B) 03.162 L=140 		5-09707-031-1 05 1 0502-0502 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 03.162 L=140 		5-09707-031-1 01 1 0502- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0211-0512 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0211-0603 ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0211-0506 ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507- ● ●
48 02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 01 1 0502- ● ●
48 02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250 		5-09707-030-1 02 1 0502- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=200 		8-97231-243-1 01 1 0211-0501 ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHTTYPE<7KJ> L=200 		8-97231-243-1 01 1 0502- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=300 		8-97230-536-1 01 1 0502- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS(V4B) L=1600 		8-97350-718-0 01 1 0502-0502 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=1500 		8-98008-834-0 01 1 0502- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> L=1640 		8-98008-833-0 01 1 0502- ● ●
61 02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97369-198-1 01 1 0502-0502 ● ●
61 02.333 BRACKET; BATTERY CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97369-198-1 01 1 0502- ● ●
61 02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97369-198-1 01 1 0502- ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 0211- ● ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0502 ● ●
75 02.333 BOLT; BRKT
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0502-0512 ● ●
75 02.333 BOLT; BRKT
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
75 02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0502 ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) 04.594 M6 FLANGE 		0-91150-106-0 03 1 0502-0602 ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603- ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
91 02.183 PROTECTOR; HARNESS
MINI BUS CHASSIS(V4B) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=200 		8-97011-735-0 01 1 0502- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97356-925-1 01 1 0211- ● ●
