◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#36977) — 133 parça
çizim 22374
10 46 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0211- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0211- ● ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 0211-0501 ● ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●

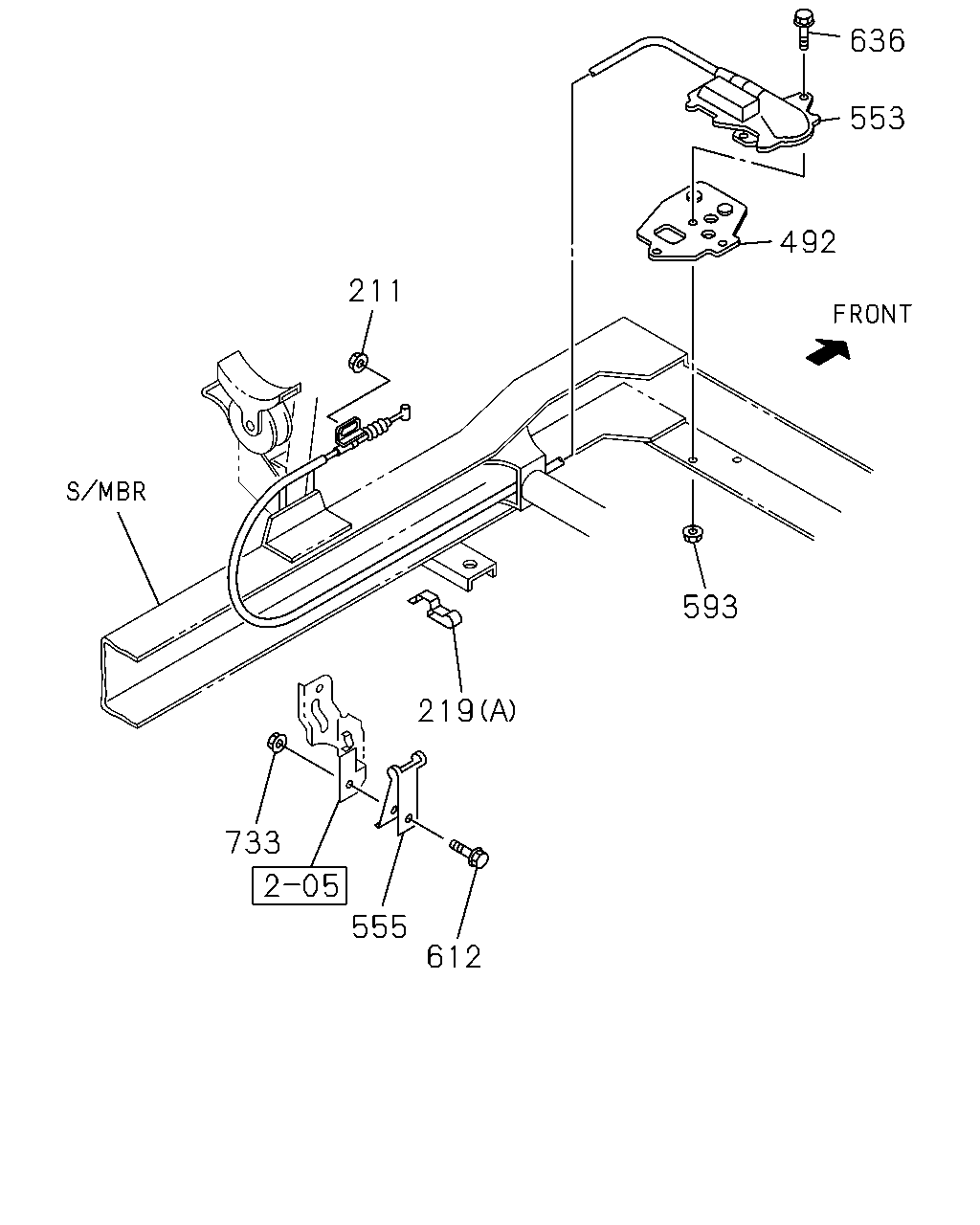

çizim 75555
636 553 492 211 593 219 733 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ●
211 02.343 NUT; CABLE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0502- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 0502- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0502- ● ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.485 		8-97113-497-1 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 0502- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97127-037-0 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0502- ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97255-068-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0502- ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-069-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0502-0502 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0502- ● ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-039-2 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0502- ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
593 02.483 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ● ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0211-0501 ●
612 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 16.585 M8X20 		1-09981-468-0 01 1 0211-0501 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0502- ● ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
636 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
733 02.343 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

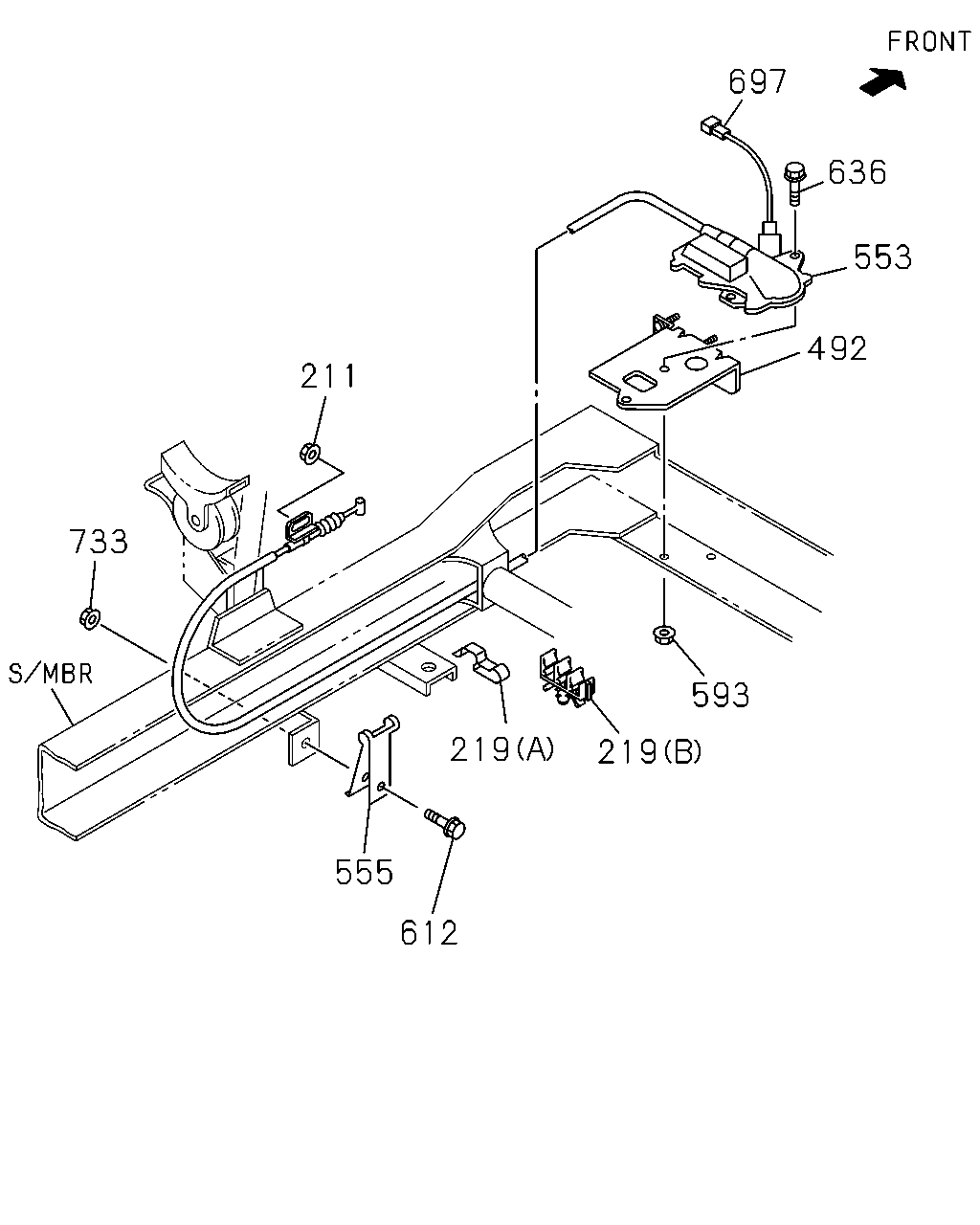

çizim 75584
697 636 553 492 211 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
211 02.343 NUT; CABLE FIX
04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ●
211 02.343 NUT; CABLE FIX
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 0502- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 0502- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0211-0501 ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0502- ● ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.485 		8-97113-497-1 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 0502- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97127-037-0 01 1 0211-0501 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 0502- ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97255-068-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0502- ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-069-0 01 1 0211-0501 ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0502-0502 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> 		8-97255-069-0 01 1 0502- ● ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-039-2 01 1 0211-0501 ●
555 03.485 BRACKET; ENG STOP 8-97119-039-2 01 1 0502- ● ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
593 02.483 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ● ●
593 02.483 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0211-0501 ●
612 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 16.585 M8X20 		1-09981-468-0 01 1 0211-0501 ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 0502- ● ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
636 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ●
636 02.510 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0211-0501 ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97126-038-0 01 1 0211-0501 ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 0502- ● ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
733 02.343 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
733 02.343 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

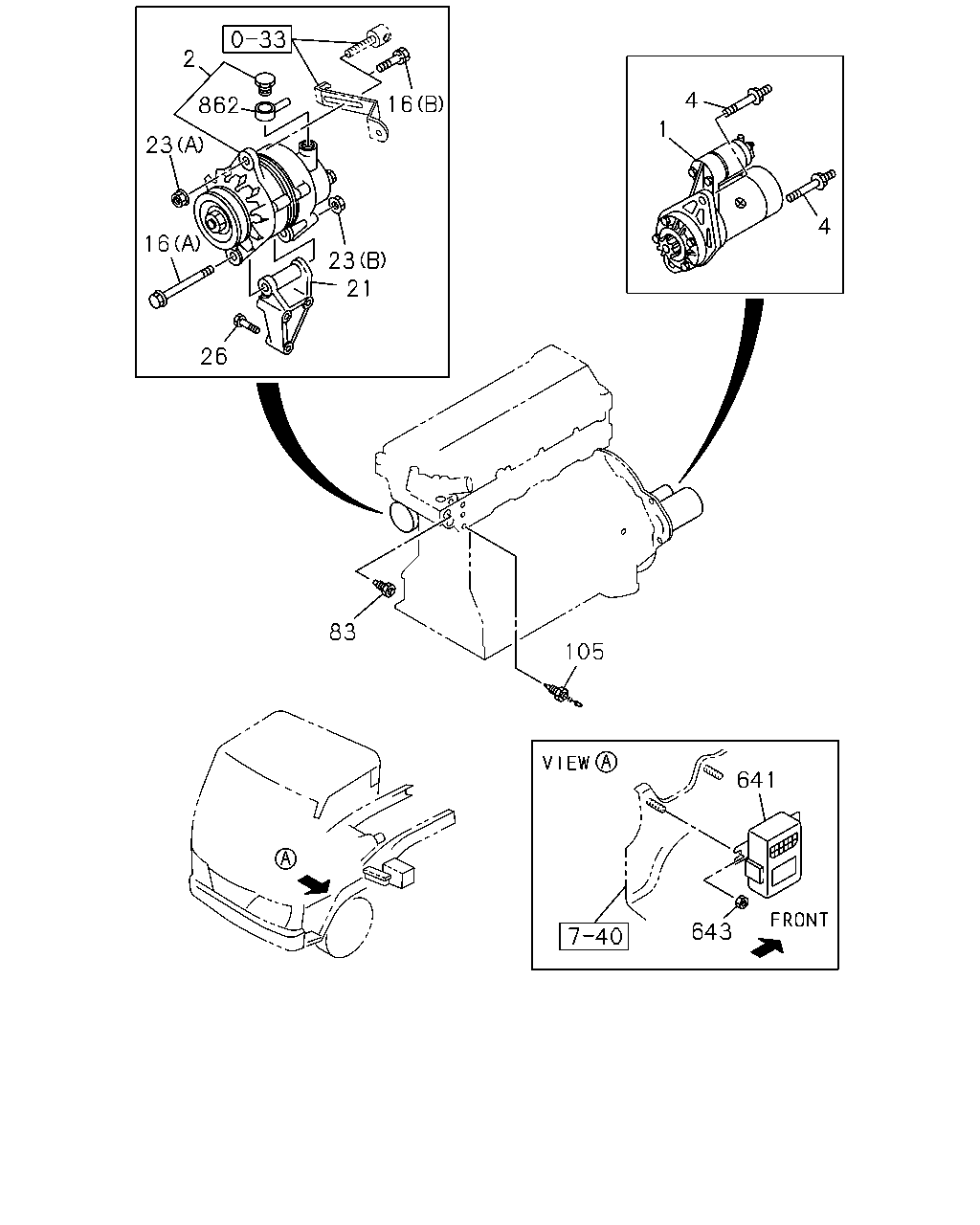

çizim 75606
2 4 16 862 1 23 4 16 23 21 26 83 105 641 643
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0211- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0211-1006 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97300-353-0 01 1 0211-0304 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0305-0305 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) EXC. IDENTIFICATION LABEL FOR KD<6UT> 24V 60A HITACHI 		8-97351-573-0 01 1 0306-0308 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI 		8-97351-573-0 01 1 0309- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97186-551-1 01 1 0211-0304 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0305-0305 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATIONLABEL FOR KD<6UT> 24V 50A HITACHI 		8-97351-572-0 01 1 0306-0308 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI 		8-97351-572-0 01 1 0309-0501 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 24V 50A HITACHI 		8-97351-572-1 01 1 0502- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) IDENTIFICATION LABEL FOR KD<6UT> 24V 60A 		8-97300-353-0 01 1 0306-0308 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97186-551-1 01 1 0306-0308 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-0 01 1 0502-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 0510- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0211- ● ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0211- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0211- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0211- ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0211-0602 ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0211-0512 ● ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0211-0512 ● ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211- ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0211- ● ●
641 02.510 TIMER; QOS 8-97215-648-0 01 1 0211-0301 ● ●
641 02.510 TIMER; QOS 8-97361-318-0 01 1 0302- ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ●
643 02.510 NUT; TIMER,QOS
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0305-0305 ● ●
862 02.313 CONNECTOR; GEN
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97351-626-0 01 1 0306-0308 ● ●
862 02.313 CONNECTOR; GEN 8-97351-626-0 01 1 0309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
