Isuzu WW
▶
TRUCKS
▶
NPR
▶
51356 - NPR/NQR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶
0-56 — EMISSION SYSTEM
(#36975) — 16 parça
Tümü
A - 4HG1 ENG
B - 4HF1-S ENG
◀

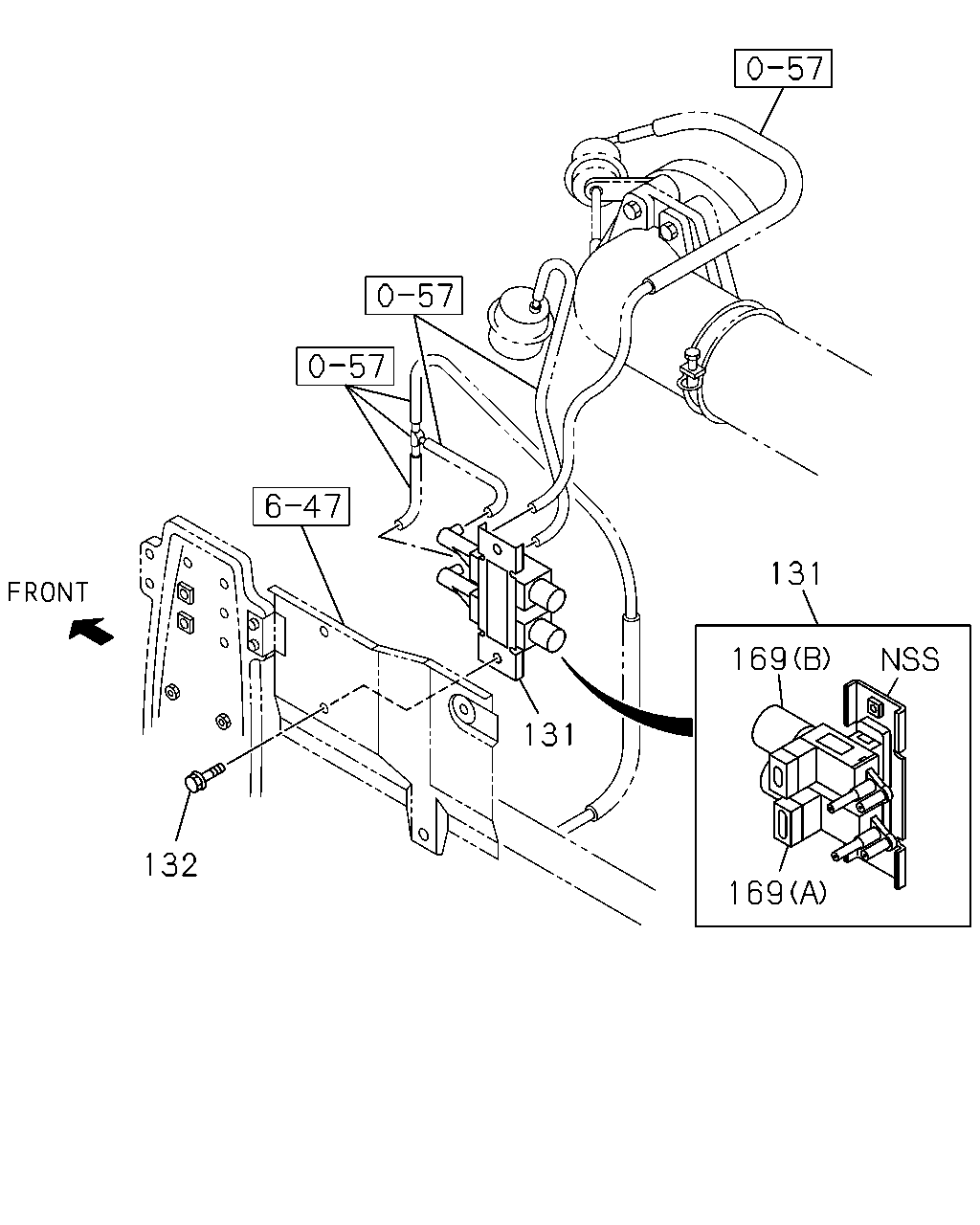

[056A] EXC.AIR CONDITIONER MANUAL CONT (8 parça)

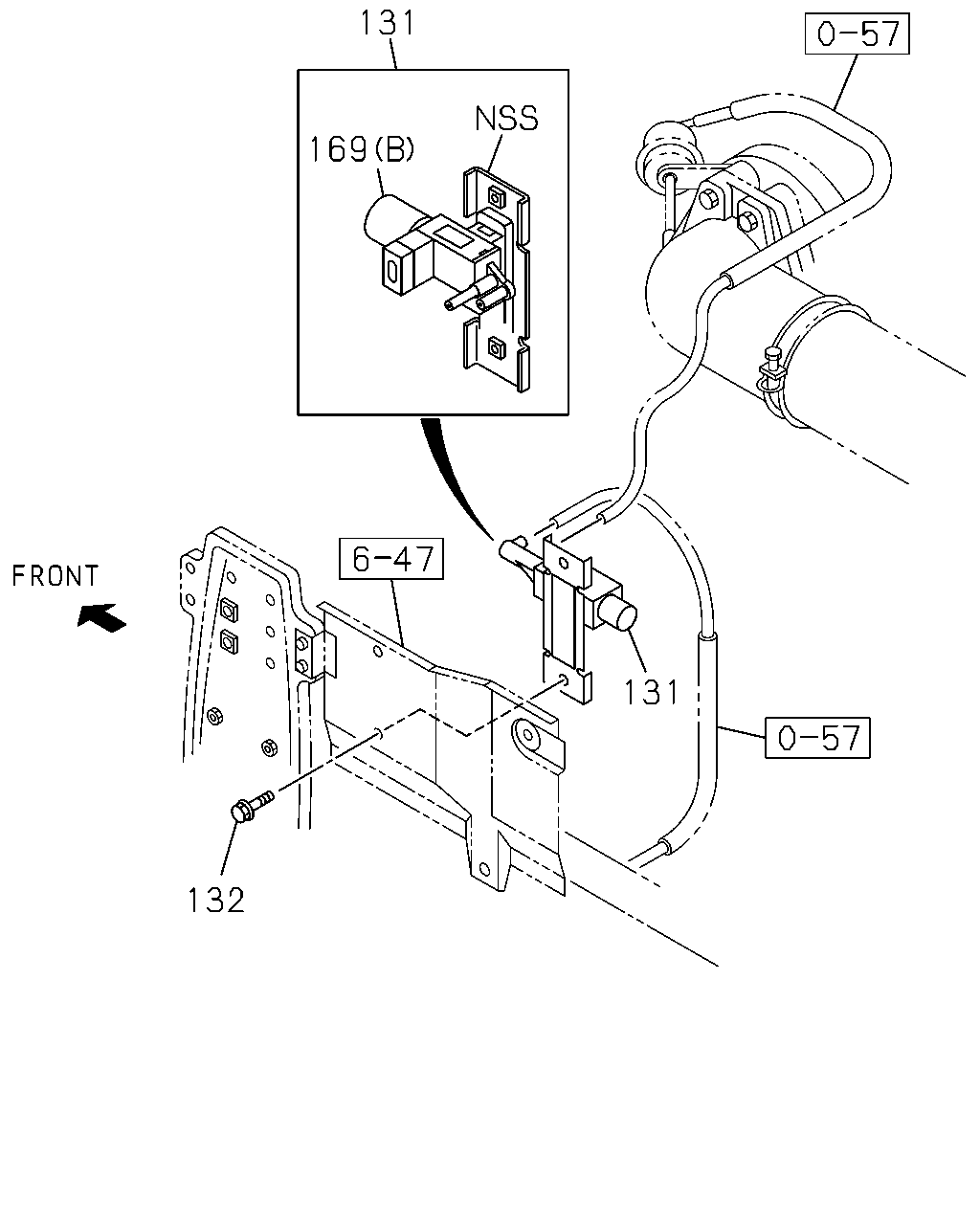

[056A] AIR CONDITIONER MANUAL CONT (8 parça)
▶
131
169
131
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
0211-
●
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
0211-
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0306-0507
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)
8-97012-878-0
01
1
0211-
●
●
169
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B)
8-97021-705-1
01
1
0211-
●
●
131
169
131
132
169
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
0211-
●
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
0211-
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE
0-28080-612-0
02
1
0211-0305
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE
0-28680-620-0
02
1
0306-0507
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE
0-28680-625-0
02
1
0508-0512
●
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
0601-
●
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)
8-97012-878-0
01
1
0211-
●
●
169
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B)
8-97021-705-1
01
1
0211-
●
●
