Isuzu WW
▶
TRUCKS
▶
NPR
▶
51356 - NPR/NQR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶
0-41 — FUEL FILTER AND BRACKET
(#36970) — 38 parça
Tümü

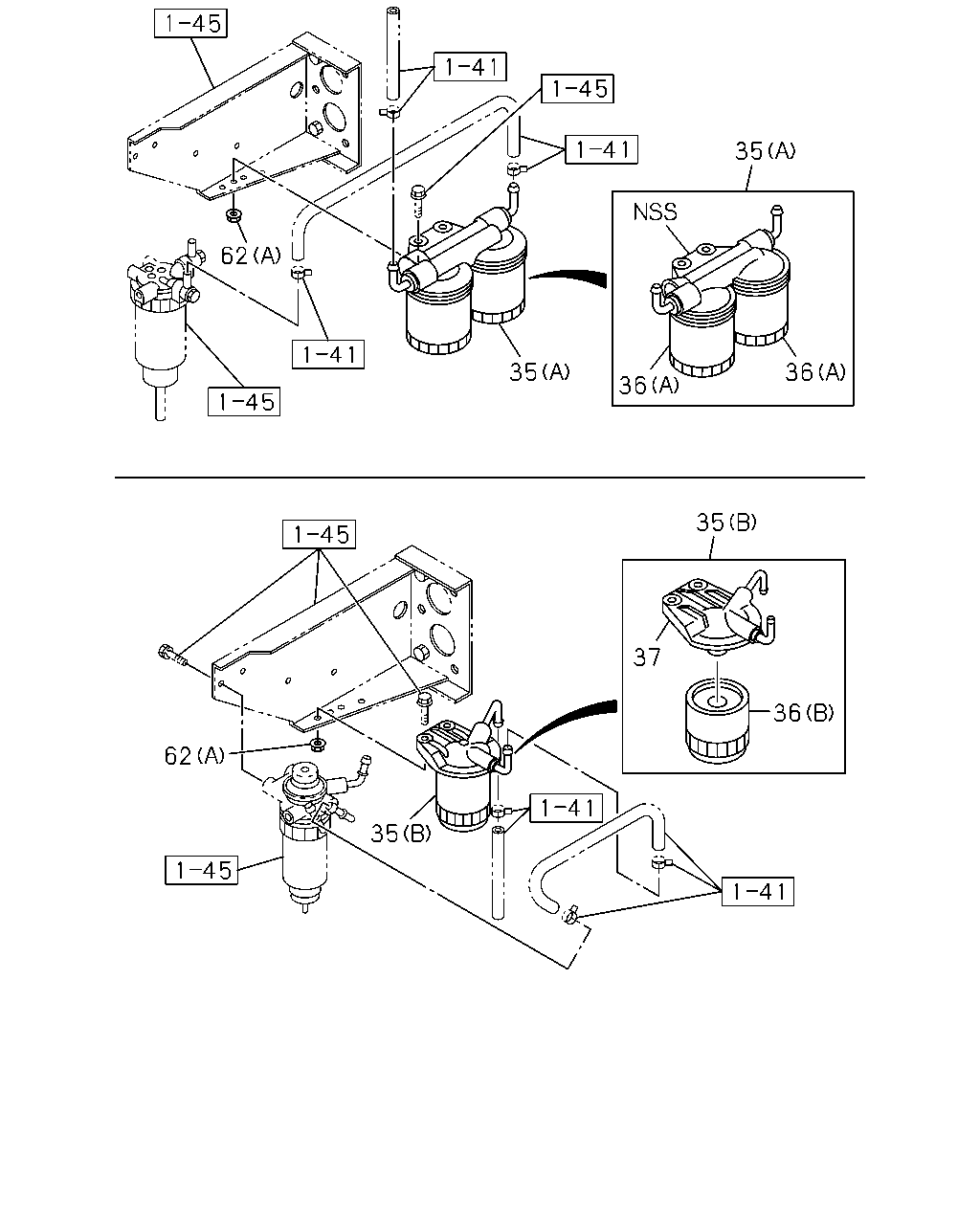

A - 4HG1 ENG

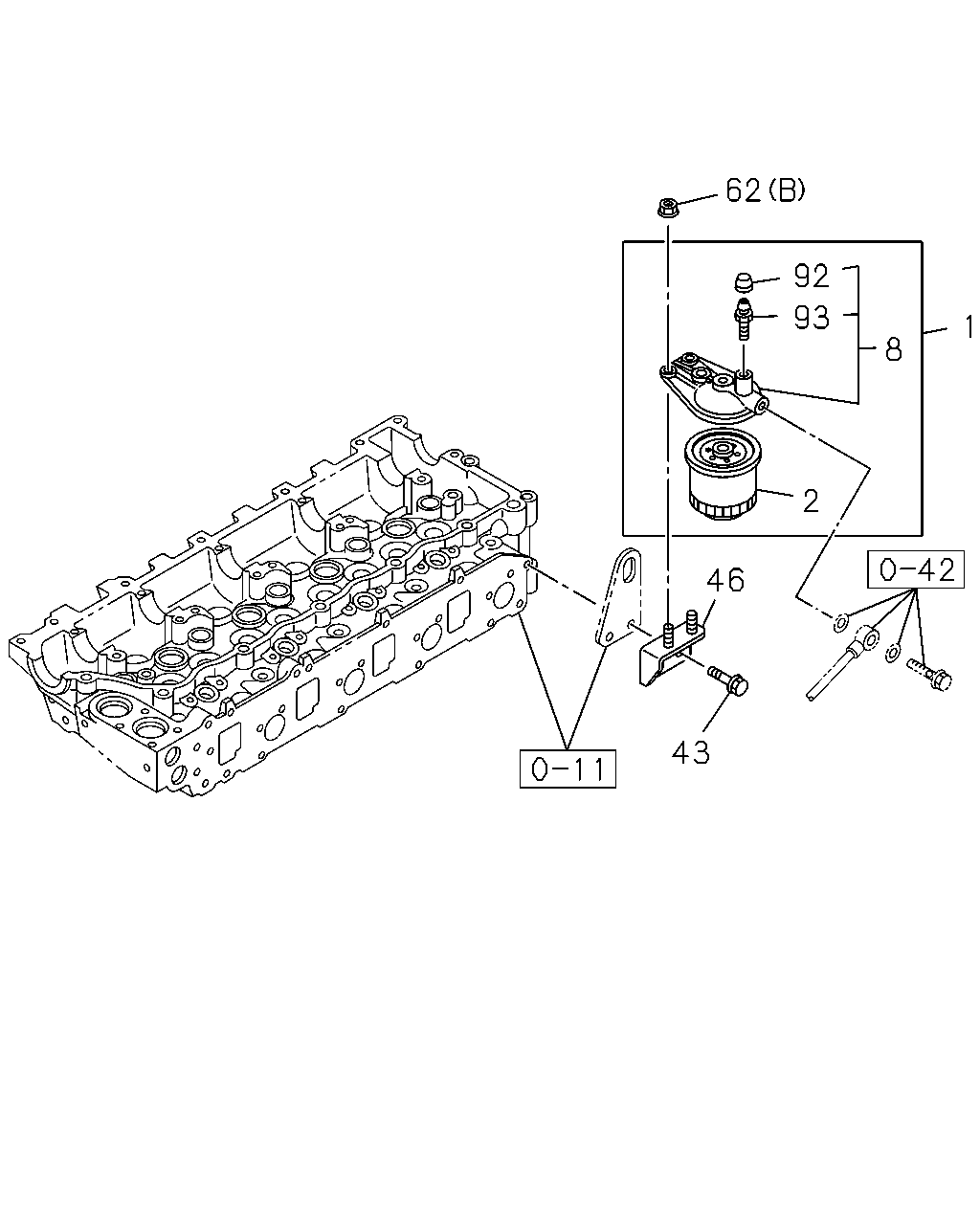

B - 4HF1-S ENG
◀
[041A] FUEL FILTER DUAL (18 parça)
[041A] FUEL FILTER (20 parça)
▶
35
62
35
36
36
35
37
36
62
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
35
03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (A)
8-97070-864-0
01
1
0211-0212
●
●
35
03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (A)
8-97070-864-0
01
1
0301-0501
●
●
35
03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)
8-97070-865-0
01
1
0301-0505
●
●
35
03.890 FILTER ASM; SUB FUEL
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)
8-98006-454-0
01
1
0506-
●
●
35
03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02> (A)
8-97070-864-0
01
1
0502-
●
●
36
03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) 01.836 (A)
8-94144-613-0
02
1
0211-0212
●
●
36
03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 01.836 (A)
8-94144-613-0
02
1
0301-0401
●
●
36
03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)
8-94246-908-0
01
1
0301-0505
●
●
36
03.890 ELEMENT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) (B)
8-97916-993-2
01
1
0506-
●
●
36
03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER "NON BOX TYPE"<N02> 01.836 (A)
8-94144-613-0
02
1
0502-
●
●
37
03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B)
8-97363-518-0
01
1
0301-0505
●
●
37
03.890 COVER; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B)
8-97917-558-0
01
1
0506-
●
●
62
03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0211-0501
●
●
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0502-0602
●
●
62
03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
0603-
●
●
62
03.895 NUT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
0211-0501
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
0502-0602
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
62
92
93
1
8
2
46
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.890 FILTER ASM; FUEL
EXC. ENGINE POWER N-SPEC(7QV)
8-97171-451-2
01
1
0211-0501
●
●
1
03.890 FILTER ASM; FUEL
8-97171-451-2
01
1
0502-
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-549-1
01
1
0211-0501
●
●
2
03.890 ELEMENT KIT; FUEL FILTER
8-97172-549-1
01
1
0502-
●
●
8
03.890 COVER; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-543-1
01
1
0211-0501
●
●
8
03.890 COVER; FUEL FILTER
8-97172-543-1
01
1
0502-
●
●
43
03.890 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE
0-28181-228-0
02
1
0211-0501
●
●
43
03.890 BOLT; BRKT
00.029 M12X28 FLANGE
0-28181-228-0
02
1
0502-
●
●
46
03.890 BRACKET
EXC. ENGINE POWER N-SPEC(7QV)
8-94313-323-1
01
1
0211-0501
●
●
46
03.890 BRACKET
8-94313-323-2
01
1
0502-
●
●
62
03.895 NUT; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0211-0501
●
●
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0502-0602
●
●
62
03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
0603-
●
●
62
03.895 NUT; FUEL FILTER
FUEL TANK 100 LITTER "NON BOX TYPE"<N02> FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
0211-0501
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
0502-0602
●
●
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
92
03.417 CAP; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-548-0
01
1
0211-0501
●
●
92
03.417 CAP; FUEL FILTER
8-97172-548-0
01
1
0502-
●
●
93
03.890 CONNECTOR; FUEL FILTER
EXC. ENGINE POWER N-SPEC(7QV)
8-97172-546-1
01
1
0211-0501
●
●
93
03.890 CONNECTOR; FUEL FILTER
8-97172-546-1
01
1
0502-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
