◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10695 - LV233(THAI) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#3697) — 17 parça

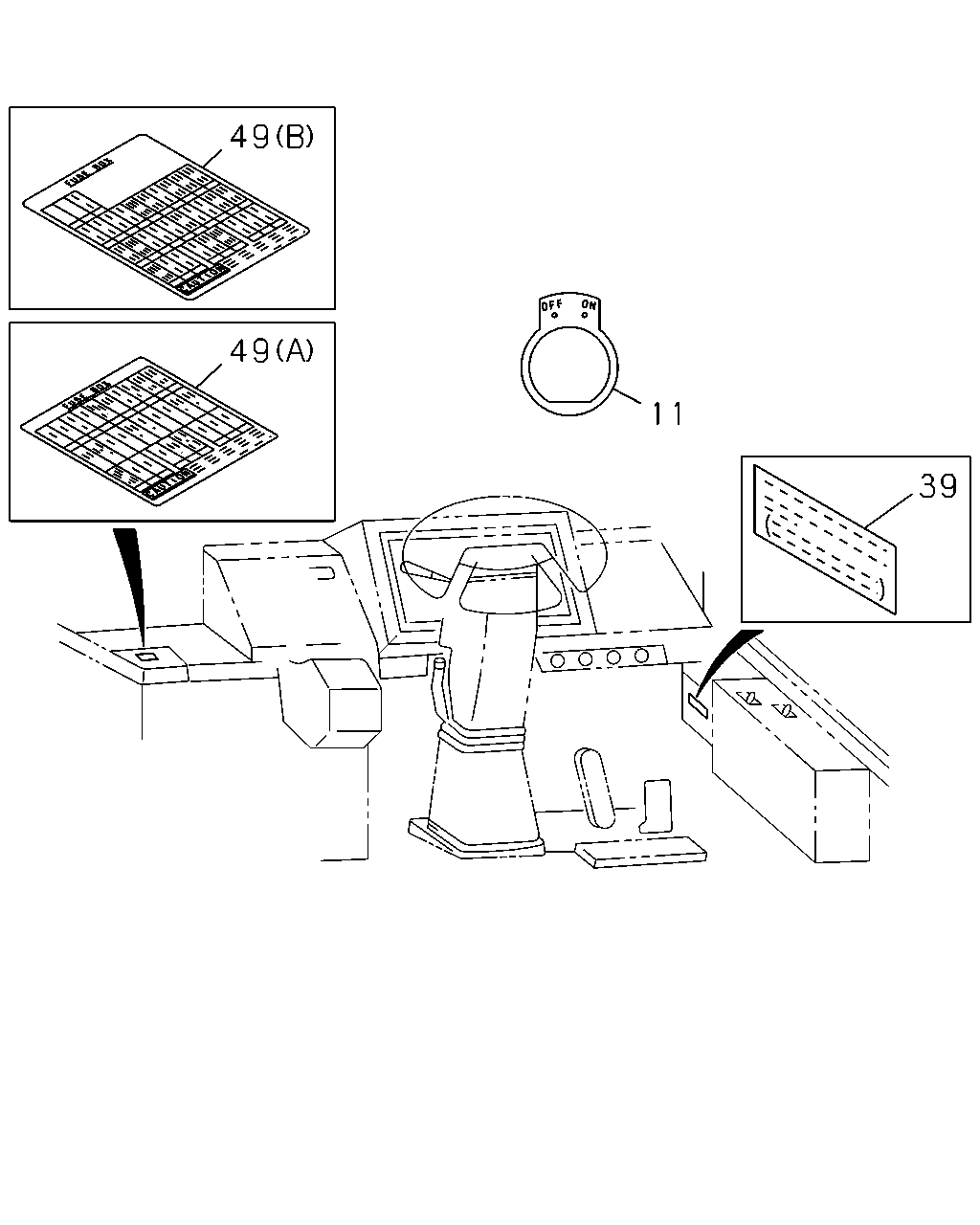

çizim 36596
4 49 11 39
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> 		1-85886-841-0 01 1 9712-
11 PLATE; NAME
INTAKE HEATER<SL2> 		1-85877-118-0 01 1 9712-
39 PLATE; CAUTION,ENG STOP 1-85888-186-0 01 1 9712-
49 PLATE; CAUTION,FUSE BOX
(A) 		1-85888-530-1 01 1 9712-9712
49 PLATE; CAUTION,FUSE BOX
(B) 		1-85877-951-0 01 1 9801-
228 PLATE; CAUTION,AIR DRYER 1-85887-934-0 01 1 9712-
çizim 37666
124 132 127 4 126 69 138 69
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> 		1-85886-841-0 01 1 9712-
69 PLATE; CAUTION,STARTER SW
(A) 		1-85887-447-0 01 1 9712-
69 PLATE; CAUTION,STARTER SW
(B) 		1-85888-184-0 01 1 9712-
124 PLATE; CAUTION,INTAKE HEATER
INTAKE HEATER<SL2> 		1-85887-040-0 01 1 9712-
126 PLATE; CAUTION,BATTERY RELAY SW 1-85887-130-0 01 1 9712-
127 PLATE; CAUTION,OIL PRESSURE METER 1-85888-185-0 01 1 9712-
132 PLATE; CAUTION,GENERATOR 1-85888-532-0 01 1 9712-
138 PLATE; NAME,JUNCTION 1-85888-951-1 01 1 9712-9906
138 PLATE; NAME,JUNCTION 1-85878-246-0 01 1 9905-9906
138 PLATE; NAME,JUNCTION 1-85878-246-0 02 1 9907-
228 PLATE; CAUTION,AIR DRYER 1-85887-934-0 01 1 9712-
