◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#36969) — 153 parça
çizim 74581
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97119-812-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 0211- ●
32 03.332 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0211- ● ●
33 03.332 NOZZLE; INJ
ENGINE POWER N-SPEC(7QV) 		8-97174-114-0 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-810-0 04 1 0211-0501 ●
33 03.332 NOZZLE; INJ 8-97119-810-0 04 1 0502- ●
33 03.332 NOZZLE; INJ 8-97119-809-0 04 1 0211- ●
34 03.330 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0211- ● ●
35 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0211- ● ●
43 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 8-94329-555-0 04 1 0211- ● ●
44 03.330 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0211- ● ●
46 03.330 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0211- ● ●
58 03.332 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.10 		8-97027-432-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.20 		8-97027-433-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.30 		8-97027-434-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.40 		8-97027-435-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.50 		8-97027-436-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.52 		8-97027-437-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.54 		8-97027-438-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.56 		8-97027-439-0 AR 1 0211- ● ●
140 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.58 		8-97027-440-0 AR 1 0211- ● ●
146 03.332 SPACER; NOZZLE 8-94344-439-0 04 1 0211- ● ●

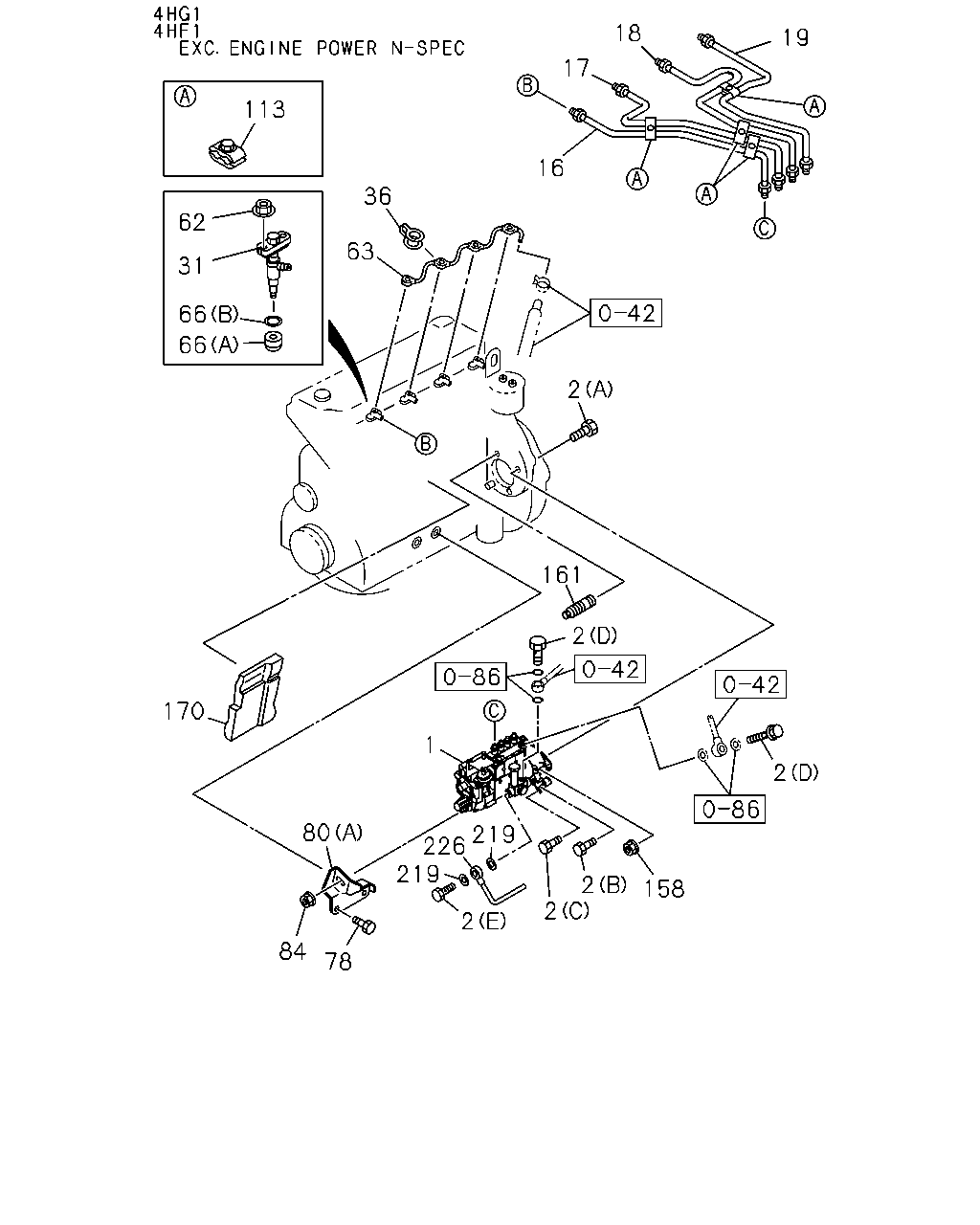

çizim 75490
18 19 17 113 16 36 62 63 31 66 66 2 161 2 170 1 2 219 226 219 80 2 2 158 2 84 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0512 ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0512 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ● ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ● ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ● ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ● ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97119-812-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 0211- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0211- ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0602 ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0211- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0211- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211- ● ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0512 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ●
84 03.330 NUT; BRKT TO BRKT
EXC. ENGINE POWER N-SPEC(7QV) 08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ● ●
84 03.330 NUT; BRKT TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ● ●
84 03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97213-050-0 04 1 0211-0501 ● ●
113 03.162 CLIP; INJ PIPE 8-97213-050-0 04 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0602 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0910 ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ●
170 03.332 INSULATOR; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 		8-97130-296-0 01 1 0211-0501 ● ●
170 03.332 INSULATOR; INJ PUMP 8-97130-296-0 01 1 0502- ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0211-0501 ● ●
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0502- ● ●
226 03.163 PIPE; FUEL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97203-567-0 01 1 0211-0501 ● ●
226 03.163 PIPE; FUEL 8-97203-567-0 01 1 0502- ● ●

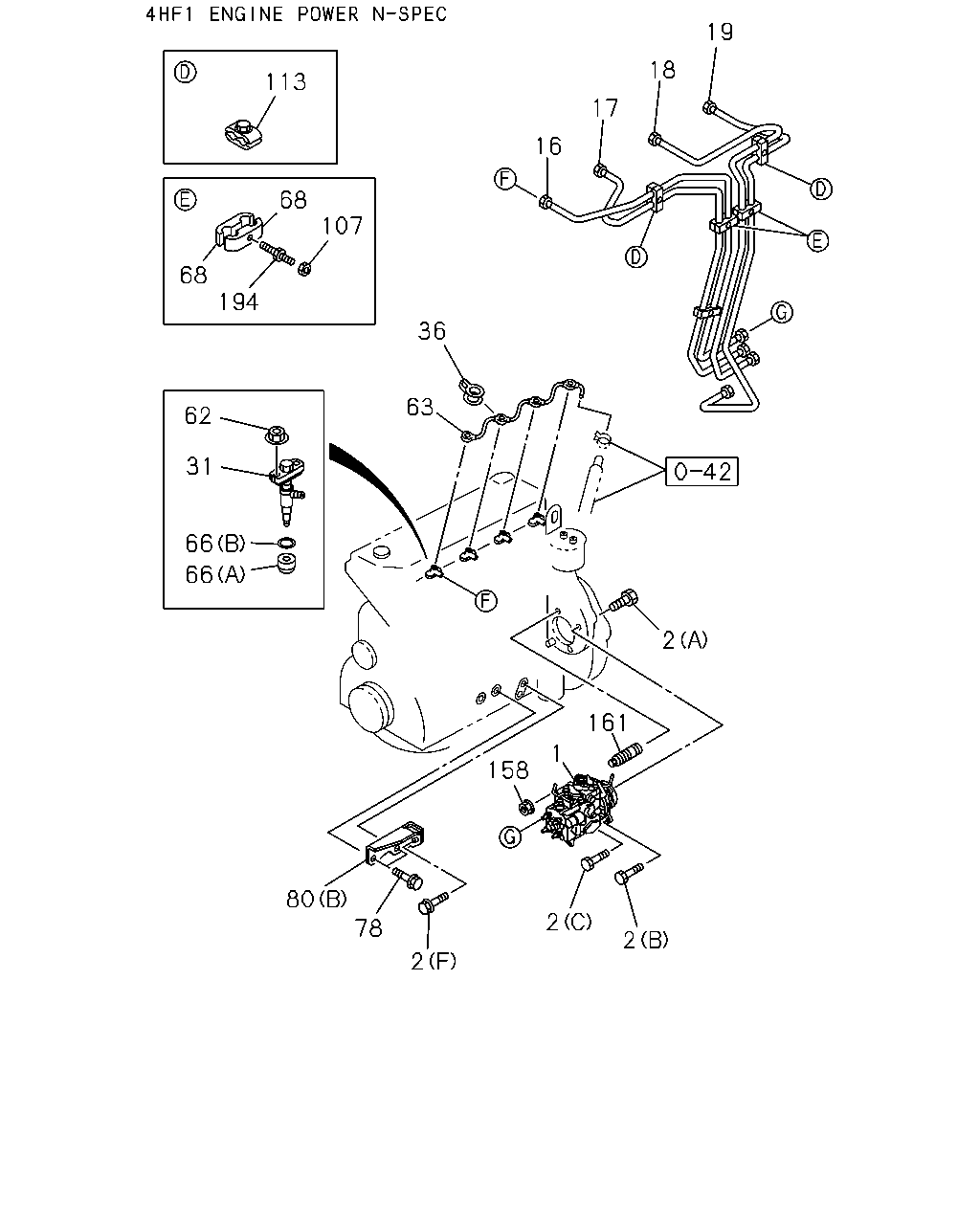

çizim 75607
19 18 113 17 16 68 107 68 194 36 63 62 31 66 66 2 161 1 158 80 78 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-105-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97223-104-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), ENGINE POWER N-SPEC(7QV) 		8-97203-381-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		8-97203-383-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2),ENGINE POWER N-SPEC(7QV) 		8-97203-380-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97212-101-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), HIGH ALTITUDE COMPENSATOR(EE2) 		8-97212-102-0 01 1 0211- ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97324-405-1 01 1 0211-0501 ●
1 03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97385-476-0 01 1 0502- ●
2 03.330 BOLT; INJ PUMP
ENGINE POWER N-SPEC(7QV) 03.417 (F) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ●
2 03.330 BOLT; INJ PUMP
03.890 (C) M10X70 FLANGE 		0-28181-070-0 01 1 0211-0512 ● ●
2 03.330 BOLT; INJ PUMP
02.277 (C) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0211-0512 ● ●
2 03.330 BOLT; INJ PUMP
00.206 (B) M12X70 FLANGE 		0-28151-270-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28181-290-0 01 1 0211-0512 ● ●
2 03.330 BOLT; INJ PUMP
(A) M12X90 FLANGE 		0-28151-290-0 01 1 0601- ● ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
03.162 (D) M14X27 FLANGE 		1-09675-086-0 02 1 0502- ● ●
2 03.330 BOLT; INJ PUMP
EXC. ENGINE POWER N-SPEC(7QV) 03.162 (E) M14X30 		8-97203-957-0 01 1 0211-0501 ● ●
2 03.330 BOLT; INJ PUMP
03.162 (E) M14X30 		8-97203-957-0 01 1 0502- ● ●
16 03.330 PIPE; INJ NO.1
ENGINE POWER N-SPEC(7QV) 		8-97134-166-1 01 1 0211-0501 ●
16 03.330 PIPE; INJ NO.1
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-374-0 01 1 0211-0501 ● ●
16 03.330 PIPE; INJ NO.1 8-97123-374-0 01 1 0502- ● ●
17 03.330 PIPE; INJ NO.2
ENGINE POWER N-SPEC(7QV) 		8-97134-167-1 01 1 0211-0501 ●
17 03.330 PIPE; INJ NO.2
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-375-0 01 1 0211-0501 ● ●
17 03.330 PIPE; INJ NO.2 8-97123-375-0 01 1 0502- ● ●
18 03.330 PIPE; INJ NO.3
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-106-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-168-0 01 1 0211-0501 ●
18 03.330 PIPE; INJ NO.3
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-376-0 01 1 0211-0501 ● ●
18 03.330 PIPE; INJ NO.3 8-97123-376-0 01 1 0502- ● ●
19 03.330 PIPE; INJ NO.4
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97223-107-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 		8-97134-169-0 01 1 0211-0501 ●
19 03.330 PIPE; INJ NO.4
EXC. ENGINE POWER N-SPEC(7QV) 		8-97123-377-1 01 1 0211-0501 ● ●
19 03.330 PIPE; INJ NO.4 8-97123-377-1 01 1 0502- ● ●
31 03.332 NOZZLE ASM; INJ
ENGINE POWER N-SPEC(7QV) 		8-97174-112-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ
EXC. ENGINE POWER N-SPEC(7QV) 		8-97119-812-0 04 1 0211-0501 ●
31 03.332 NOZZLE ASM; INJ 8-97119-812-0 04 1 0502- ●
31 03.332 NOZZLE ASM; INJ 8-97119-811-0 04 1 0211- ●
36 03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0211- ● ●
62 03.332 NUT; NOZZLE HOLDER
07.633 M8 FLANGE 		0-91150-108-0 08 1 0211-0602 ● ●
62 03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE 		0-91180-108-0 08 1 0603- ● ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF
HIGH ALTITUDE COMPENSATOR(EE2) ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97145-004-0 01 1 0211-0501 ●
63 03.163 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0211- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0211- ● ●
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0211- ● ●
68 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) 		8-97213-049-0 04 1 0211-0501 ●
78 03.330 BOLT; BRKT TO C/BL
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0211-0512 ● ●
78 03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601- ● ●
80 03.306 BRACKET; PUMP
ENGINE POWER N-SPEC(7QV) (B) 		8-97119-363-1 01 1 0211-0501 ●
80 03.306 BRACKET; PUMP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97136-677-0 01 1 0211-0501 ● ●
80 03.306 BRACKET; PUMP
(A) 		8-97136-677-0 01 1 0502- ● ●
107 03.162 NUT; INJ PIPE CLIP
ENGINE POWER N-SPEC(7QV) 03.671 M5 FLANGE 		8-94178-699-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
ENGINE POWER N-SPEC(7QV) 		8-97213-050-0 02 1 0211-0501 ●
113 03.162 CLIP; INJ PIPE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97213-050-0 04 1 0211-0501 ● ●
113 03.162 CLIP; INJ PIPE 8-97213-050-0 04 1 0502- ● ●
158 03.330 NUT; INJ PUMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0602 ● ●
158 03.330 NUT; INJ PUMP
03.162 M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0211-0212 ● ●
161 03.340 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0301-0910 ● ●
161 03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5 		8-97066-386-1 02 1 0911- ● ●
194 03.162 STUD; INJ PIPE
ENGINE POWER N-SPEC(7QV) 		8-97176-071-0 02 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
