◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51356 - NPR/NQR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#36968) — 27 parça

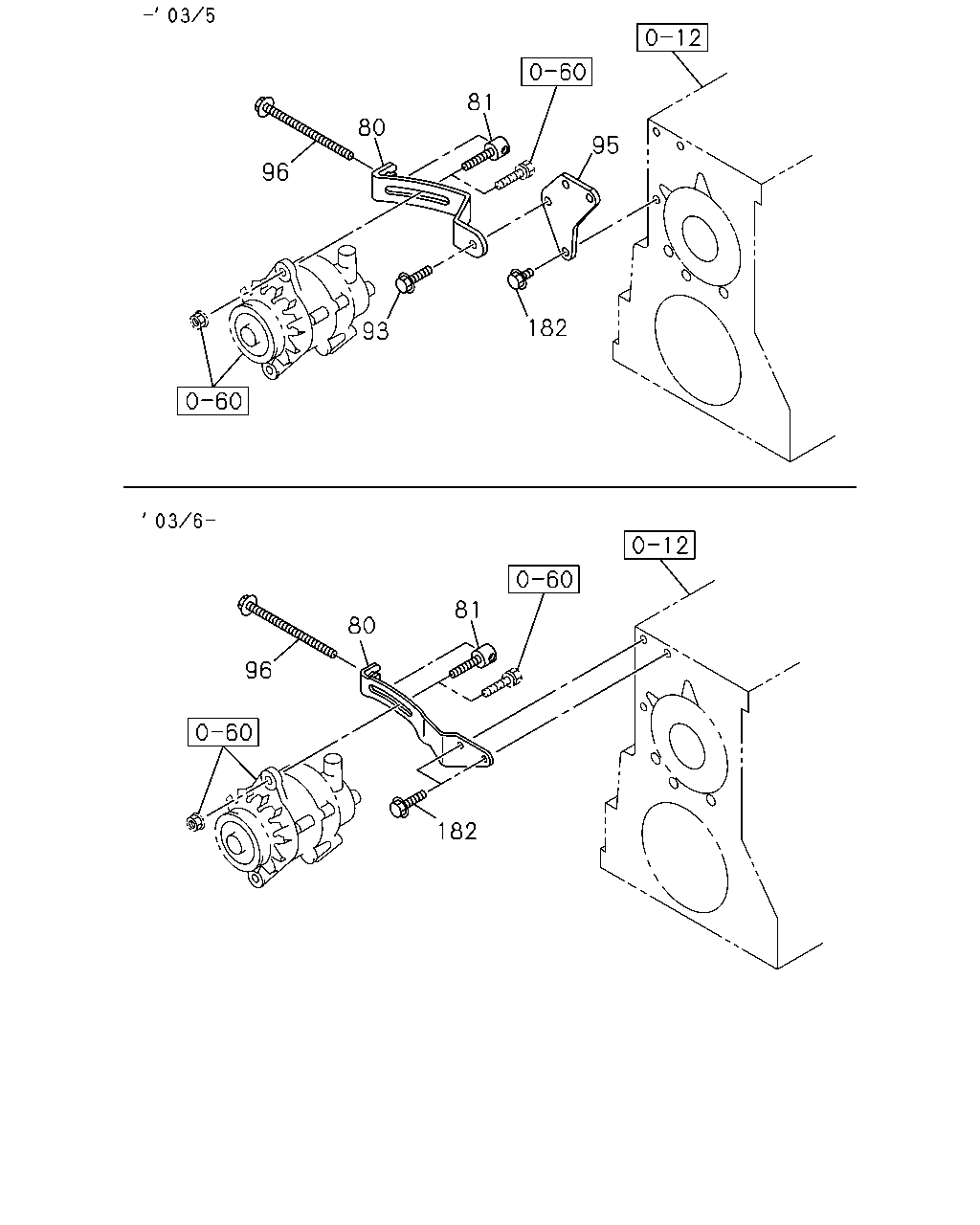

çizim 74582
81 80 95 96 182 93 8 80 96 182
BalonParca AdiParca NoAdetTipApplied Date A B
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0211- ●
80 02.317 PLATE; ADJ 8-97172-415-0 01 1 0211-0305 ● ●
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0306-0501 ● ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 0502-0506 ●
80 02.317 PLATE; ADJ
GENERATOR 24V80A(7YN) 		8-97249-636-0 01 1 0510- ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0211- ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0211-0305 ● ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0211-0305 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0211- ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0211-0305 ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
çizim 74745
13 1 36 8 109 38 24 26 230
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING 8-97129-772-1 01 1 0211- ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 0211- ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0211- ●
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ● ●
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0211- ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 0211- ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0211- ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0211- ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0211- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0211- ● ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 0211- ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
