◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#3696) — 69 parça
çizim 36750
143 23 142 141 24 24 22 1 10 95 92 91 94 93 99 10 97 107 93 106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BREATHER; AIR 1-11740-168-1 01 1 9101-9504 ● ●
1 BREATHER; AIR 1-11740-167-1 01 1 9101-9504 ●
1 BREATHER; AIR 8-94394-859-4 01 1 9505- ●
1 BREATHER; AIR 8-94394-777-1 01 1 9703-9709 ●
1 BREATHER; AIR 8-94394-777-2 01 1 9710- ● ●
10 CLIP; AIR BREATHER
ID=28 		1-09707-124-0 02 1 9101-9504 ● ● ●
22 GROMMET; VENTILATOR
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		8-94104-696-0 01 1 9311-9401 ●
23 HOSE; RUBBER,VENTILATOR PIPE
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> L=246 		1-09360-752-0 01 1 9311-9401 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0812-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> ID=20 		1-09707-084-1 02 1 9311-9401 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9505-9702 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9703-9709 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9710-0811 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0812-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
91 BOLT; AIR BREATHER
M8X22 W/LK&PL WASHER 		0-50140-822-0 02 1 9101-9504 ● ● ●
92 GASKET; AIR BREATHER TO PIPE
ID=38.7 		1-09623-184-0 01 1 9101-9504 ● ● ●
93 PIPE; DRAIN
(B) 		1-11742-028-1 01 1 9101-9504 ● ●
93 PIPE; DRAIN
(A) 		1-11742-027-1 01 1 9101-9504 ●
94 HOSE; BREATHER TO PIPE
L=100 		0-02825-100-0 01 1 9101-9504 ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9505-9702 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9703-9709 ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9710- ● ● ●
95 PROTECTOR; HEAT,RUBBER HOSE 1-14181-175-0 01 1 9101-9504 ● ● ●
97 BRACKET; HOSE 1-11749-098-0 01 1 9101-9504 ● ●
99 BOLT; BRKT TO C/BL
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9101-9504 ● ●
106 BOLT; DRAIN PIPE
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9101-9504 ● ● ●
107 WASHER; PL,DRAIN PIPE
ID=10.5 OD=22 		9-09164-610-0 02 1 9101-9504 ● ● ●
141 DIAPHRAGM ASM 8-94110-111-0 01 1 9101-9310 ● ● ●
141 DIAPHRAGM ASM
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		8-94110-111-0 01 1 9311-9401 ●
142 COVER; PCV 1-14362-002-0 01 1 9101-9310 ● ● ●
142 COVER; PCV
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-14362-002-0 01 1 9311-9401 ●
143 SCREW; PCV COVER
M5X10 PAN-HD 		9-93490-510-0 06 1 9101-9310 ● ● ●
143 SCREW; PCV COVER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> M5X10 PAN-HD 		9-93490-510-0 06 1 9311-9401 ●

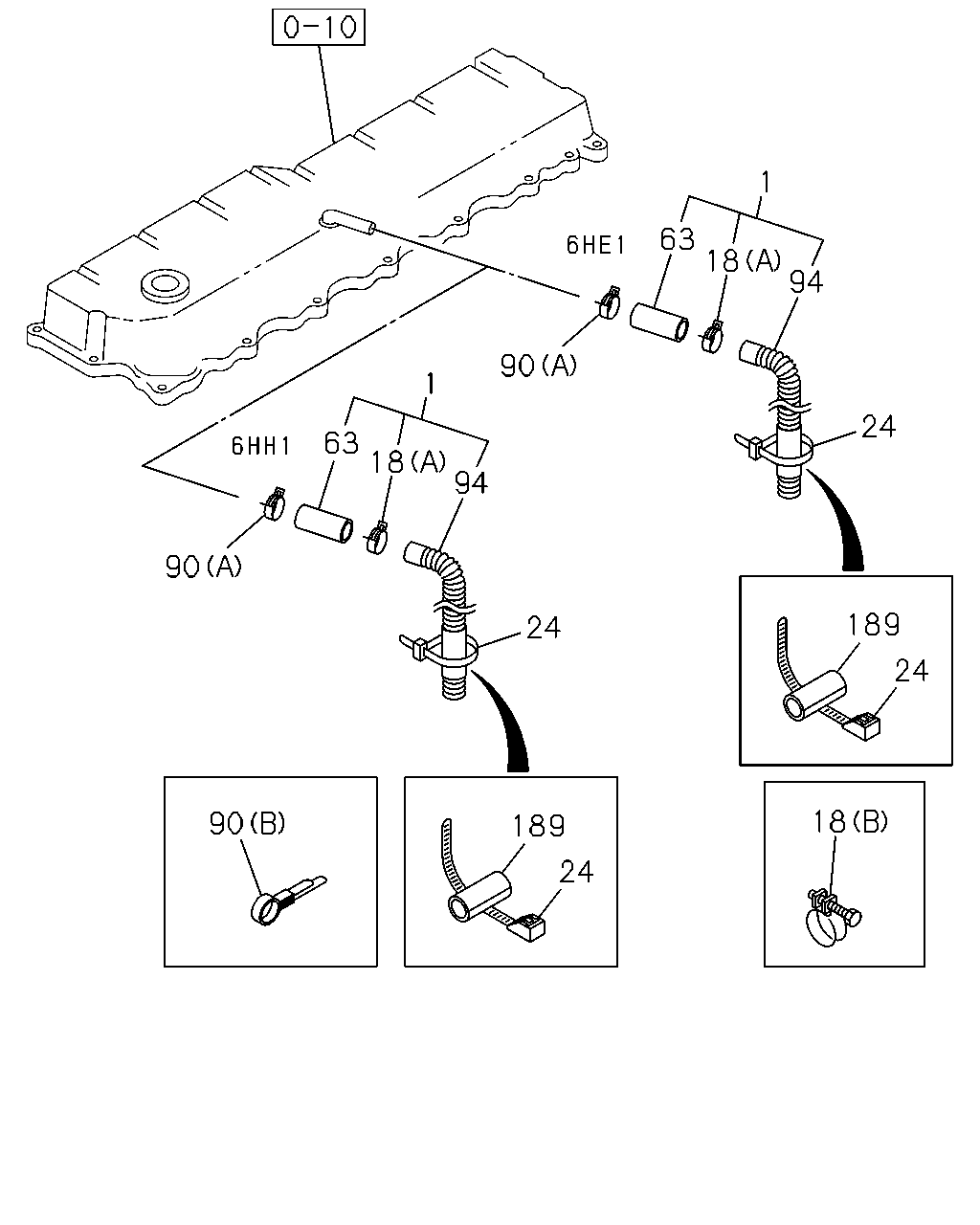

çizim 37141
1 63 18 94 90 1 24 63 18 94 90 189 24 24 18 90 189 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 BREATHER; AIR 1-11740-168-1 01 1 9101-9504 ● ●
1 BREATHER; AIR 1-11740-167-1 01 1 9101-9504 ●
1 BREATHER; AIR 8-94394-859-4 01 1 9505- ●
1 BREATHER; AIR 8-94394-777-1 01 1 9703-9709 ●
1 BREATHER; AIR 8-94394-777-2 01 1 9710- ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9505-9702 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9703-9709 ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=38 		9-09915-041-1 01 1 9710- ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9703-9709 ● ●
18 CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=33.6 		8-94362-518-0 01 1 9710- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 03 1 0812-1205 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 03 1 1206- ●
24 CLIP; RUBBER HOSE,VENTILATOR
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> ID=20 		1-09707-084-1 02 1 9311-9401 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9505-9702 ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-0 02 1 9703-9709 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 9710-0811 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		5-09707-030-1 02 1 0812-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
L=250 		8-98216-430-0 02 1 1206- ● ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02828-070-0 01 1 0704-1005 ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 1006- ●
63 HOSE; RUBBER,AIR BREATHER
L=70 		0-02728-070-0 01 1 9505-9809 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9703-9709 ●
63 HOSE; RUBBER,AIR BREATHER 8-94394-471-0 01 1 9710- ● ●
90 CLIP; RUBBER HOSE
(A) ID=33.6 		8-94362-518-0 01 1 9505-9702 ●
90 CLIP; RUBBER HOSE
(A) ID=33.6 		8-94362-518-0 01 1 9703-9709 ● ●
90 CLIP; RUBBER HOSE
(A) ID=33.6 		8-94362-518-0 01 1 9710- ● ● ●
90 CLIP; RUBBER HOSE
HONG KONG EQUIPMENT<PQ1> (B) ID=33 L=63 		1-09700-807-0 01 1 9601- ●
94 HOSE; BREATHER TO PIPE
L=100 		0-02825-100-0 01 1 9101-9504 ● ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9505-9702 ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9703-9709 ● ●
94 HOSE; BREATHER TO PIPE
L=1100 		8-94394-785-0 01 1 9710- ● ● ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0203 ●
189 SLEEVE; RUBBER
EMISSION PARTS<TCA> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0002-0203 ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0204- ●
