8-50 — AIR CONDITIONING SYSTEM; FRONT (#36955) — 23 parça

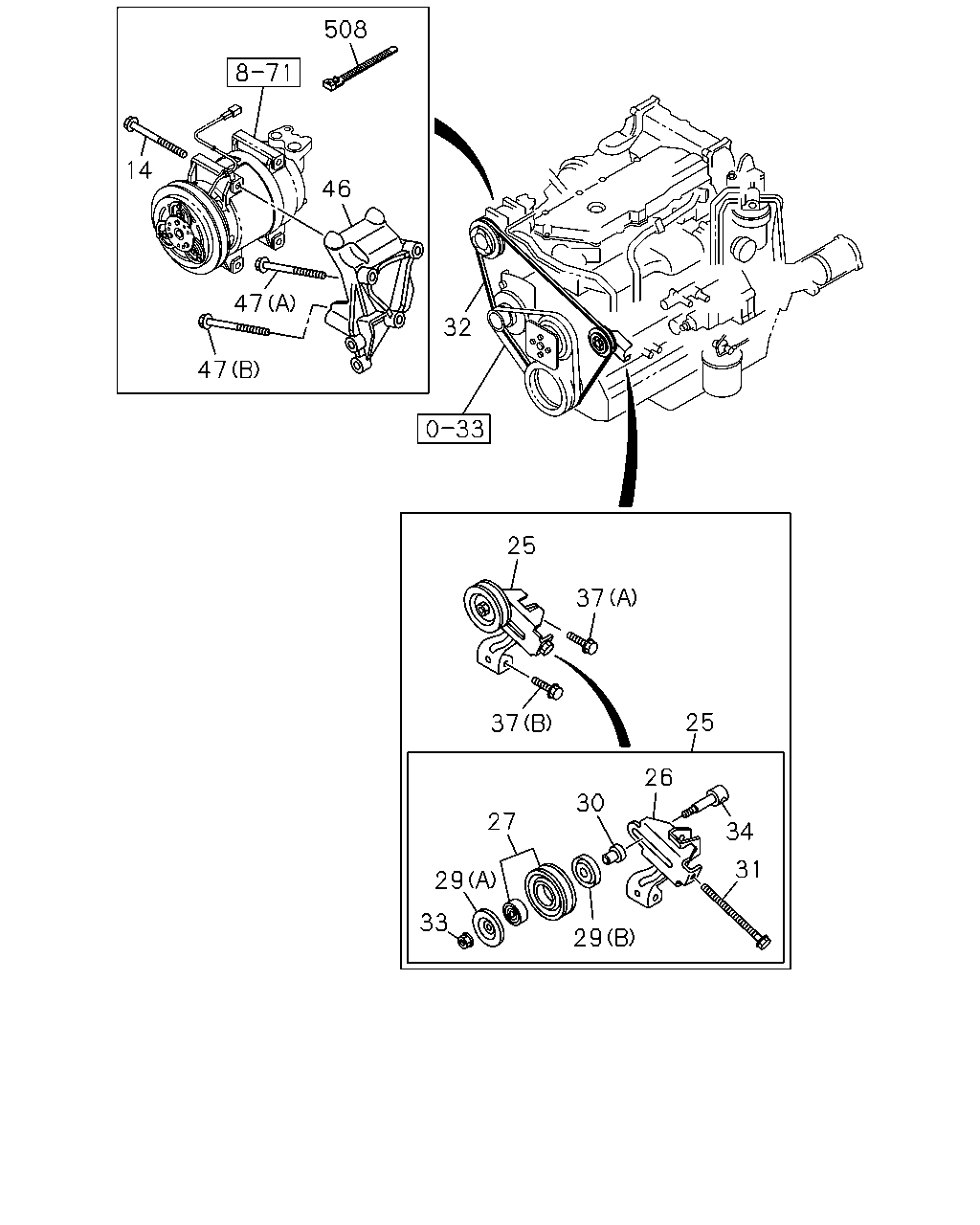

çizim 35816
508 14 46 47 32 47 25 37 25 37 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0710- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 1-GROOVE 		8-97161-198-1 01 1 0710- ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97161-031-1 01 1 0710- ● ●
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97386-869-0 01 1 0710- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A) 		8-97384-114-0 01 1 0710- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B) 		8-97384-115-0 01 1 0710- ● ●
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97384-117-0 01 1 0710- ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97384-113-0 01 1 0710- ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) L=1674 		8-98010-841-0 01 1 0710- ● ●
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97384-118-0 01 1 0710- ● ●
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97384-116-0 01 1 0710- ● ●
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0710- ● ●
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0710- ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.242 		8-98006-515-3 01 1 0710- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 0710- ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 0710- ● ●
508 09.181 CLIP; HARNESS
03.162 L=140 		5-09707-031-1 01 1 0804- ● ●

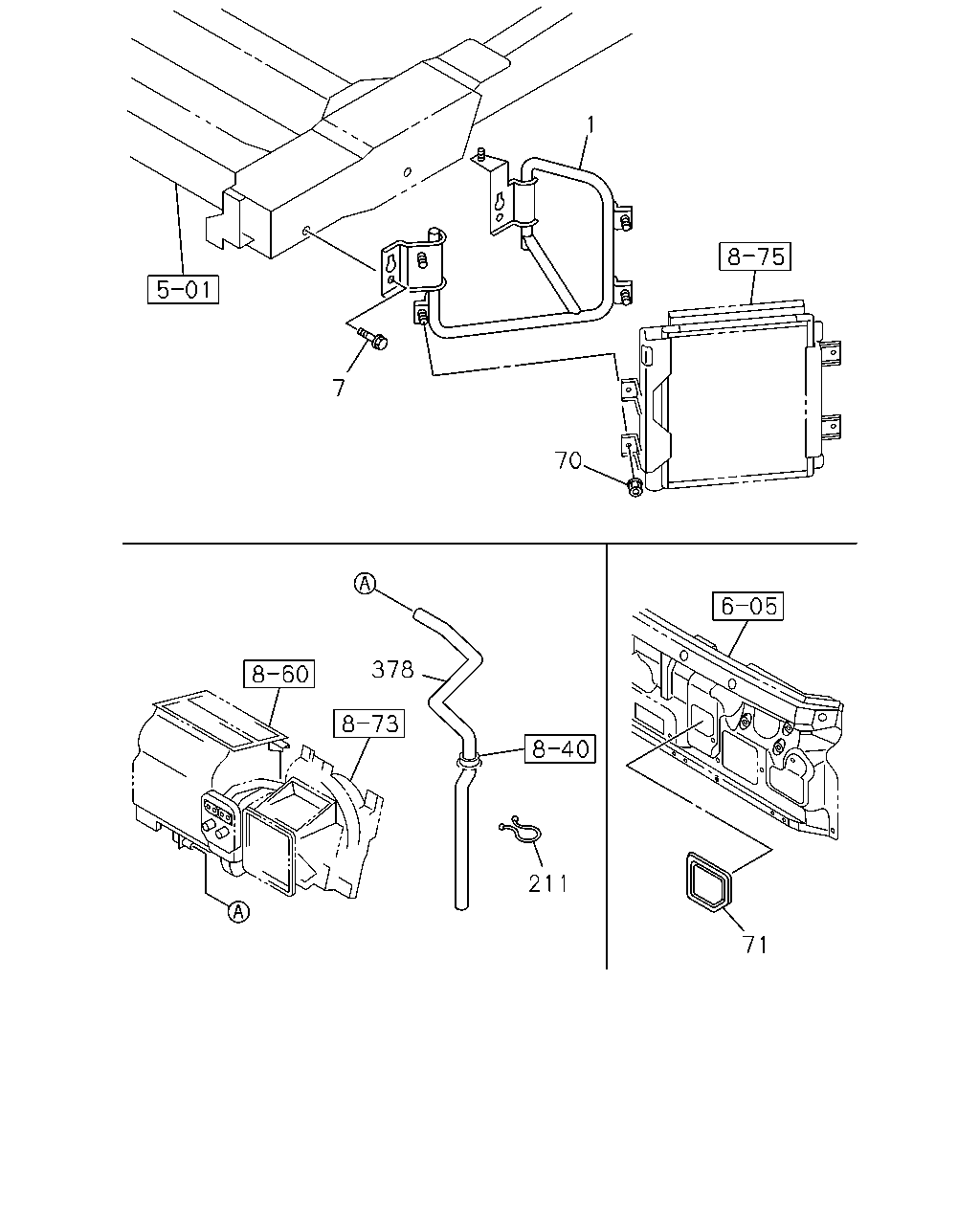

çizim 35819
1 7 70 378 211 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97387-182-0 01 1 0710- ● ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 0710- ● ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
71 09.190 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0710- ● ●
211 09.190 CLIP; HOSE
03.278 		8-94463-508-0 01 1 0710- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-97387-174-2 01 1 0710- ● ●
