8-45 — HEATER PIPING (#36954) — 14 parça

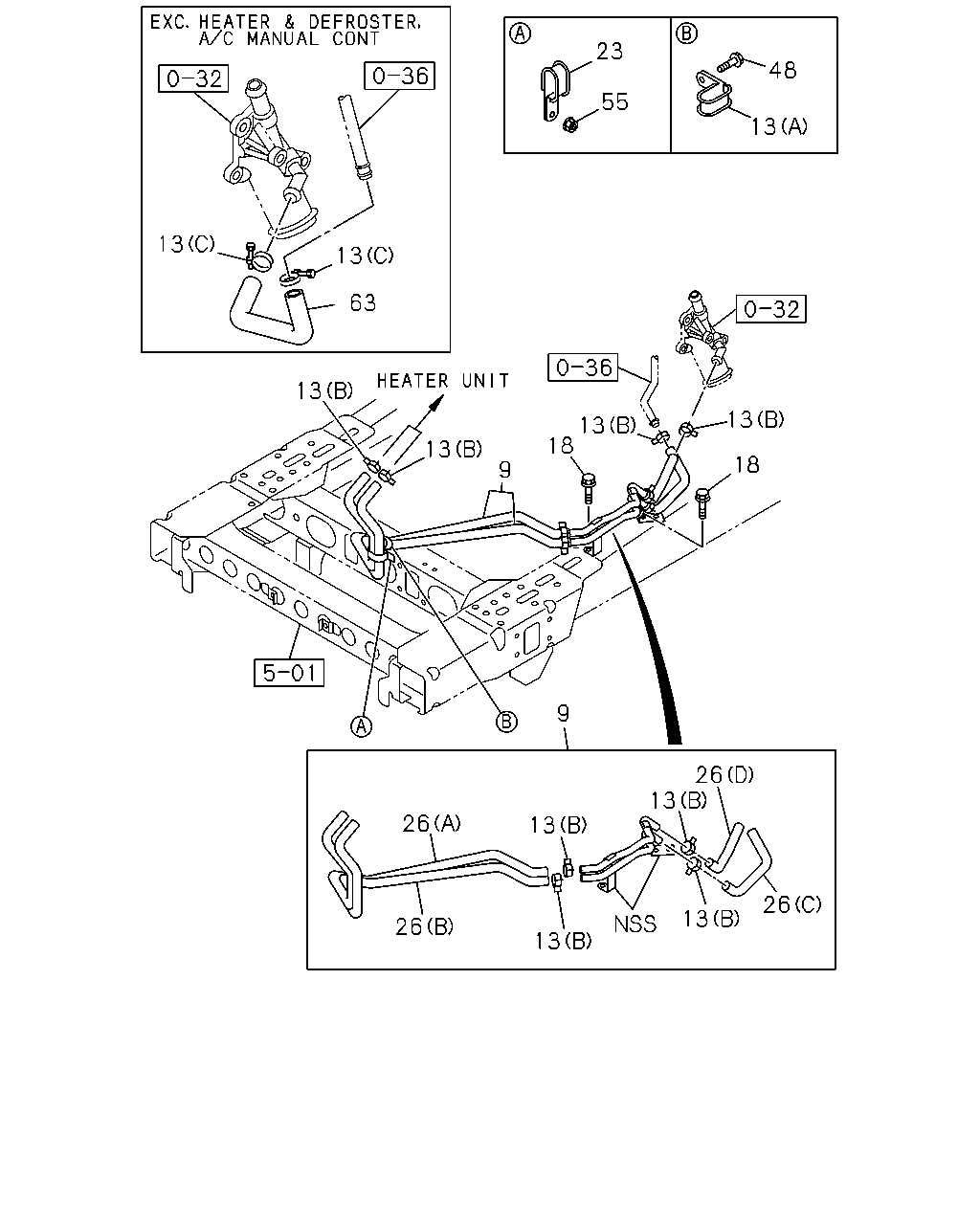

çizim 35837
23 48 55 13 13 13 63 13 13 13 18 13 18 9 9 26 13 26 13 26 13 26 13
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.846 PIPE; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98064-107-1 01 1 0710- ● ●
13 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 03.278 (B) ID=22 		8-97359-141-0 04 1 0710- ● ●
13 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 03.278 (B) ID=22 		8-97359-141-0 04 1 0710- ● ●
13 08.846 CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A) 		8-98029-678-0 01 1 0710- ● ●
13 08.846 CLIP; HTR HOSE
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.166 (C) ID=25 		8-94233-115-0 02 1 0804- ● ●
18 08.866 BOLT; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
23 08.846 CLIP; WATER HOSE,DASH LWR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) B=18 		8-97359-144-0 01 1 0710- ● ●
26 08.846 HOSE; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A) 		8-98050-293-0 01 1 0710- ● ●
26 08.846 HOSE; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B) 		8-98050-294-0 01 1 0710- ● ●
26 08.846 HOSE; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (C) 		8-98050-295-0 01 1 0710- ● ●
26 08.846 HOSE; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (D) 		8-98050-296-0 01 1 0710- ● ●
48 09.262 BOLT; CLIP FIX
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ●
55 08.845 NUT; CLAMP
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
63 08.846 HOSE; WATER
EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.540 		8-94134-250-1 01 1 0804- ● ●
