8-40 — HEATER SYSTEM (#36953) — 74 parça

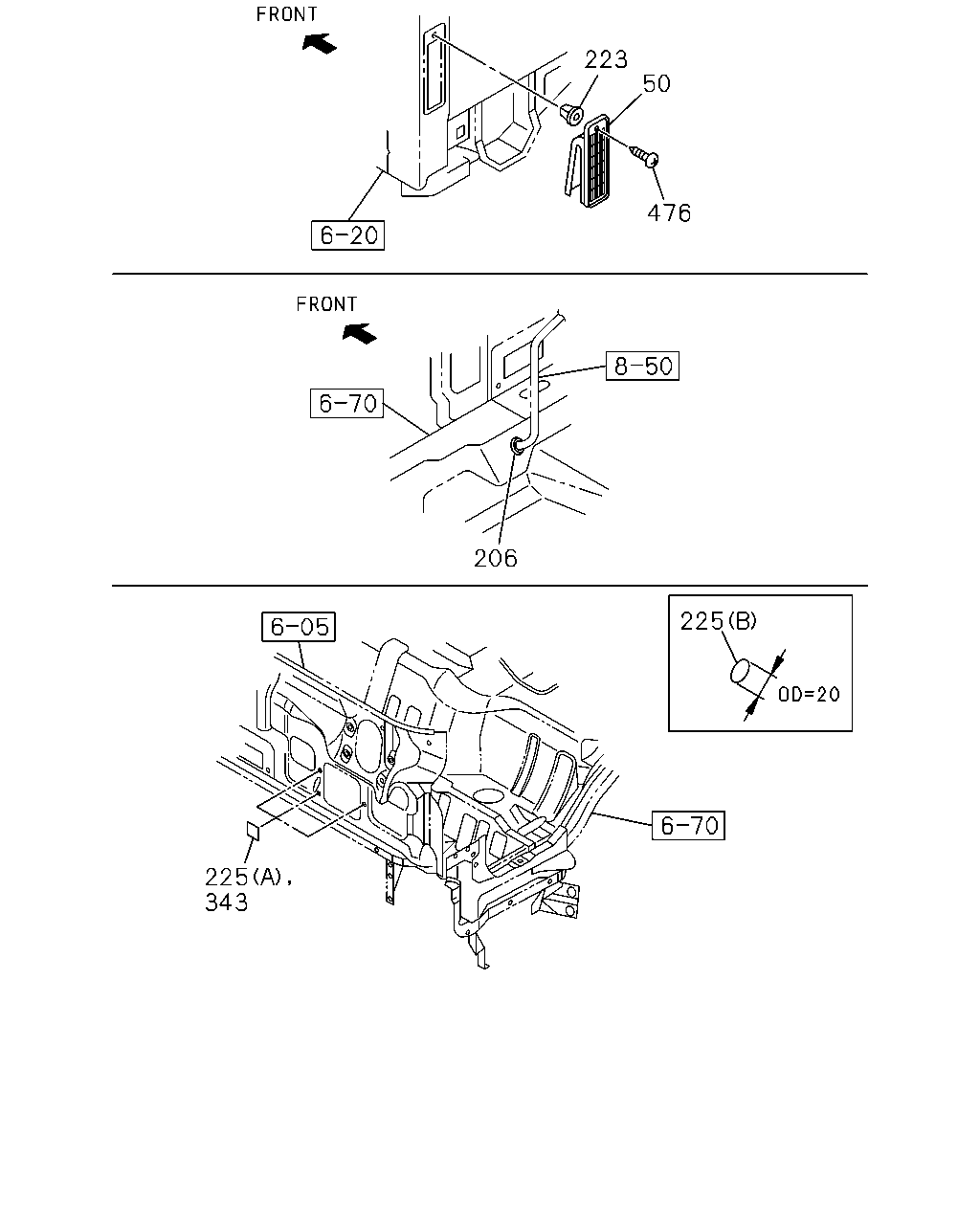

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0710-	●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	0710-		●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0710-	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0710-	●	●
225	08.845 SEAL; WATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-97856-616-0	03	1	0710-	●	●
225	08.845 SEAL; WATER EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0710-	●	●
343	08.845 SEAL; AIR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0710-	●	●
476	09.222 SCREW; VALVE T25 M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0710-	●	●

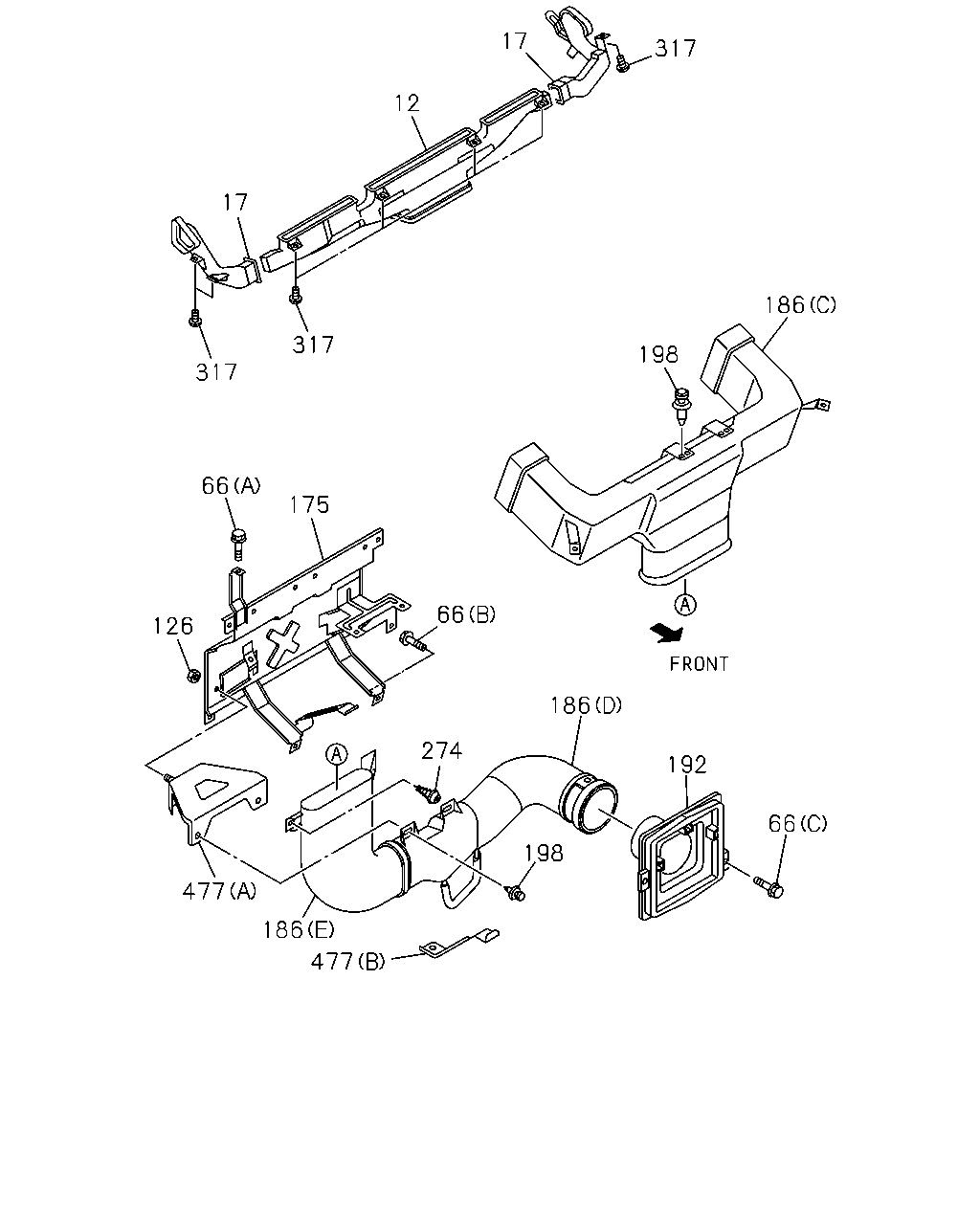

17 317 12 17 186 317 198 317 66 175 66 126 186 274 192 66 198 477 186 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	0710-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97585-469-1	01	1	0710-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97585-475-5	01	1	0710-	●	●
66	08.845 BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0710-	●	●
66	08.845 BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-	●	●
66	08.845 BOLT; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0710-	●	●
126	09.262 NUT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-1001	●	●
126	09.262 NUT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●
126	09.262 NUT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●
175	09.262 BRACKET; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98091-544-5	01	1	0810-	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0710-	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B)	8-97585-486-5	01	1	0710-	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-363-0	01	1	0810-	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0810-	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0810-	●	●
192	09.262 DUCT; RAM AIR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.417	8-98054-386-3	01	1	0810-	●	●
198	09.787 CLIP; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.786	8-98056-059-0	05	1	0710-0802	●	●
198	09.787 CLIP; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	0803-	●	●
274	08.852 SCREW; VENT DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-1101	●	●
274	08.852 SCREW; VENT DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0710-0808	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0710-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-	●	●
477	09.786 BRACKET; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-304-0	01	1	0710-	●	●
477	09.786 BRACKET; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98091-306-0	01	1	0710-0808	●	●
477	09.786 BRACKET; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98132-529-1	01	1	0809-1005	●	●
477	09.786 BRACKET; DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98164-455-0	01	1	1006-	●	●

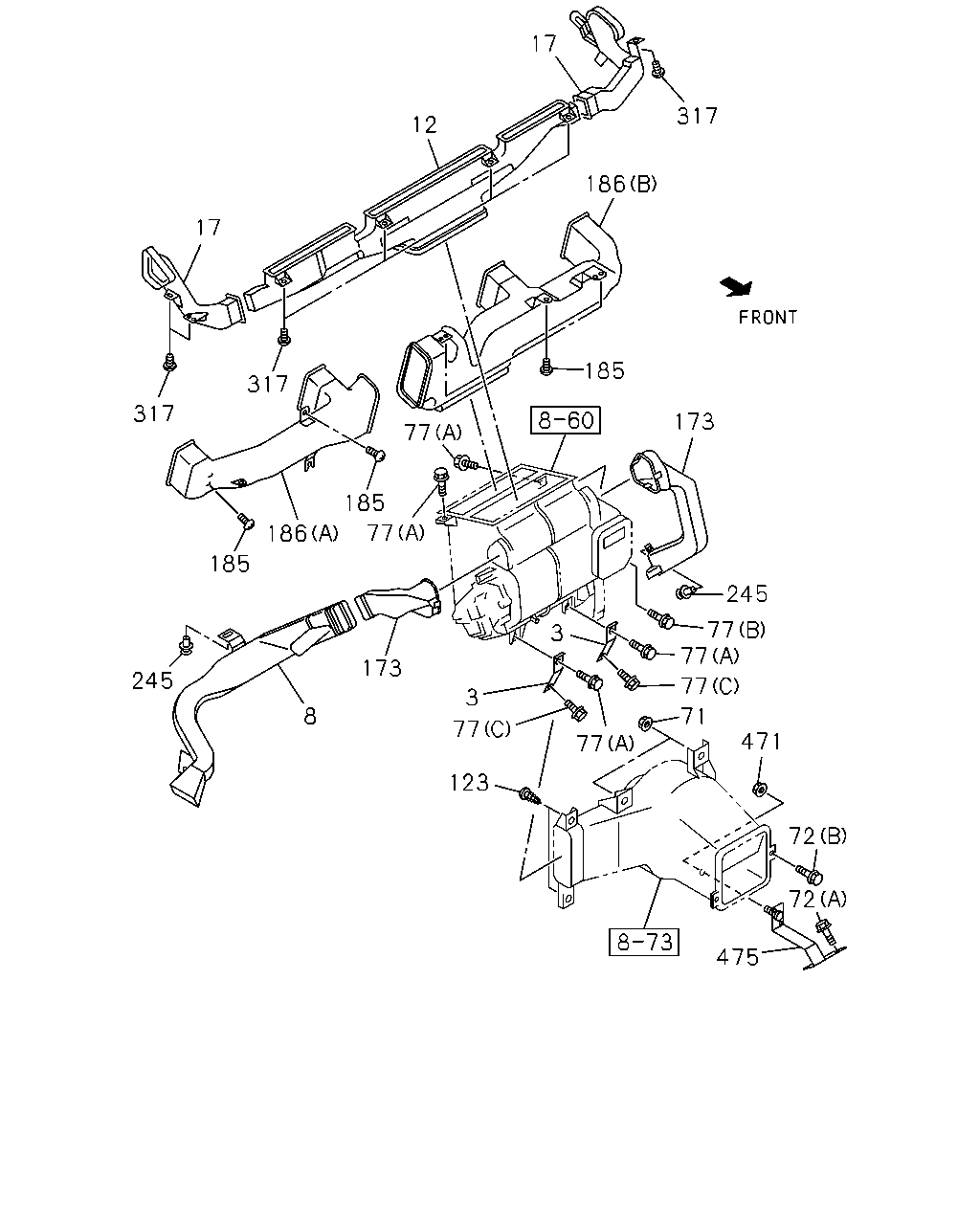

17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 3 173 245 77 3 8 71 77 471 77 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.854 BRACKET; HTR UNIT	8-98082-473-0	02	1	0710-	●	●
3	08.854 BRACKET; HTR UNIT	8-98082-473-0	02	1	0710-	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98084-146-0	01	1	0710-	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-480-4	01	1	0710-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97585-469-1	01	1	0710-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97585-475-5	01	1	0710-	●	●
71	08.845 NUT; BLOWER UNIT TO DASH AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
72	08.857 BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0710-	●	●
72	08.857 BOLT; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0710-	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	0710-	●	●
77	08.845 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0710-	●	●
123	09.786 SCREW; DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-1101	●	●
123	09.786 SCREW; DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●
173	09.786 DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97585-504-3	01	1	0710-	●	●
173	09.786 DUCT; FOOT,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98084-145-0	01	1	0710-	●	●
185	09.262 SCREW; VENT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0710-1003	●	●
185	09.262 SCREW; VENT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101	●	●
185	09.262 SCREW; VENT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0710-	●	●
186	09.786 DUCT; VENTILATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) (B)	8-97585-486-5	01	1	0710-	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-363-0	01	1	0810-	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0810-	●	●
186	09.786 DUCT; VENTILATOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0810-	●	●
245	09.786 CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-98056-059-0	02	1	0710-0802	●	●
245	09.786 CLIP; FOOT DUCT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 09.264	1-09987-144-0	02	1	0803-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0710-0808	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0710-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-	●	●
471	08.866 NUT; BLOWER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
475	09.277 BRACKET; BLOWER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97387-092-2	01	1	0710-	●	●
475	09.277 BRACKET; BLOWER AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) SUSPENSION SEAT<SA3>	8-98165-379-0	01	1	1009-	●

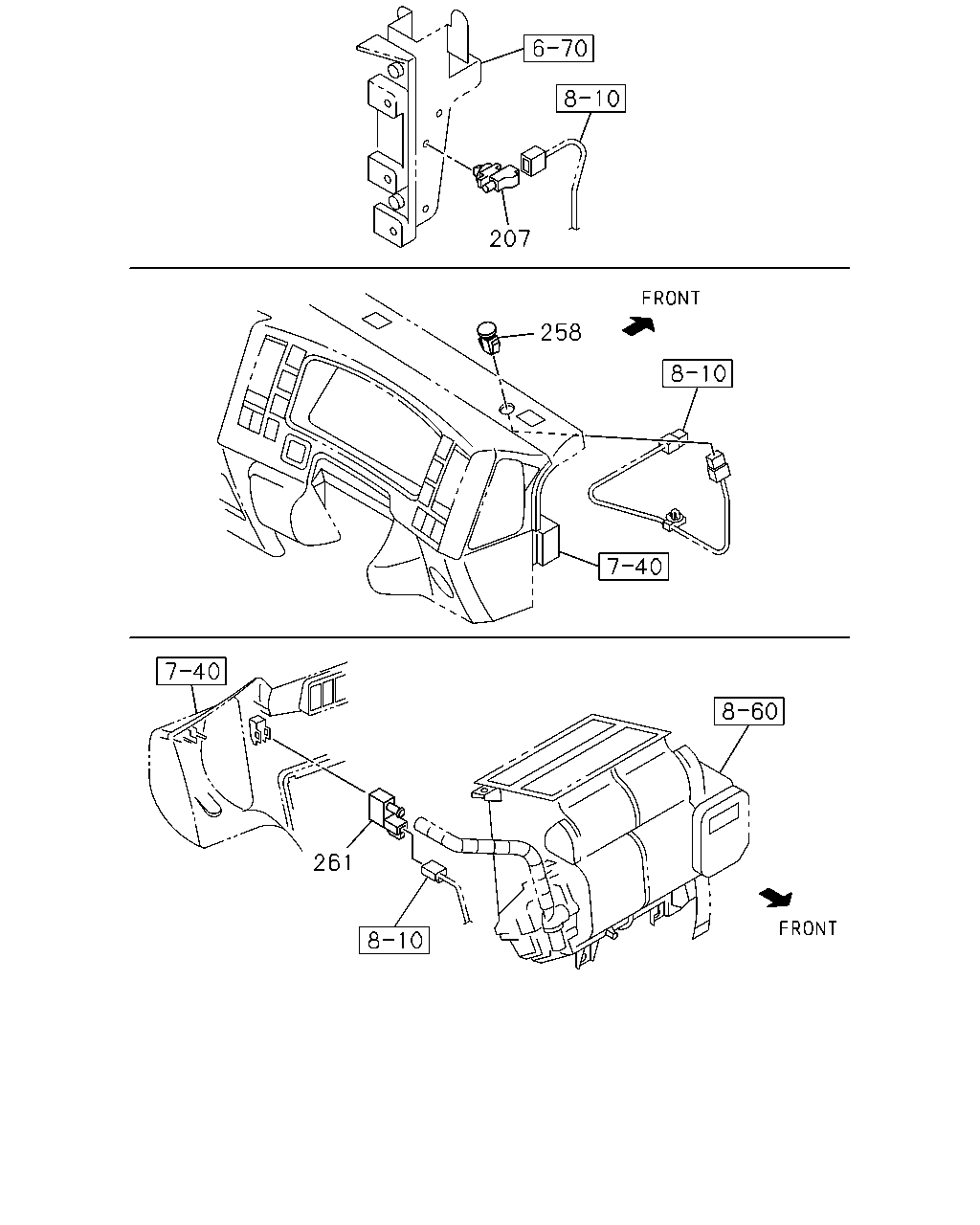

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
207	08.845 SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68) 01.150	8-98008-687-0	01	1	0710-	●	●
258	08.845 SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0710-	●	●
261	08.845 SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0710-	●	●
