Sayfa 0-27 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶

0-27 — EXHAUST MANIFOLD (#3695) — 175 parça

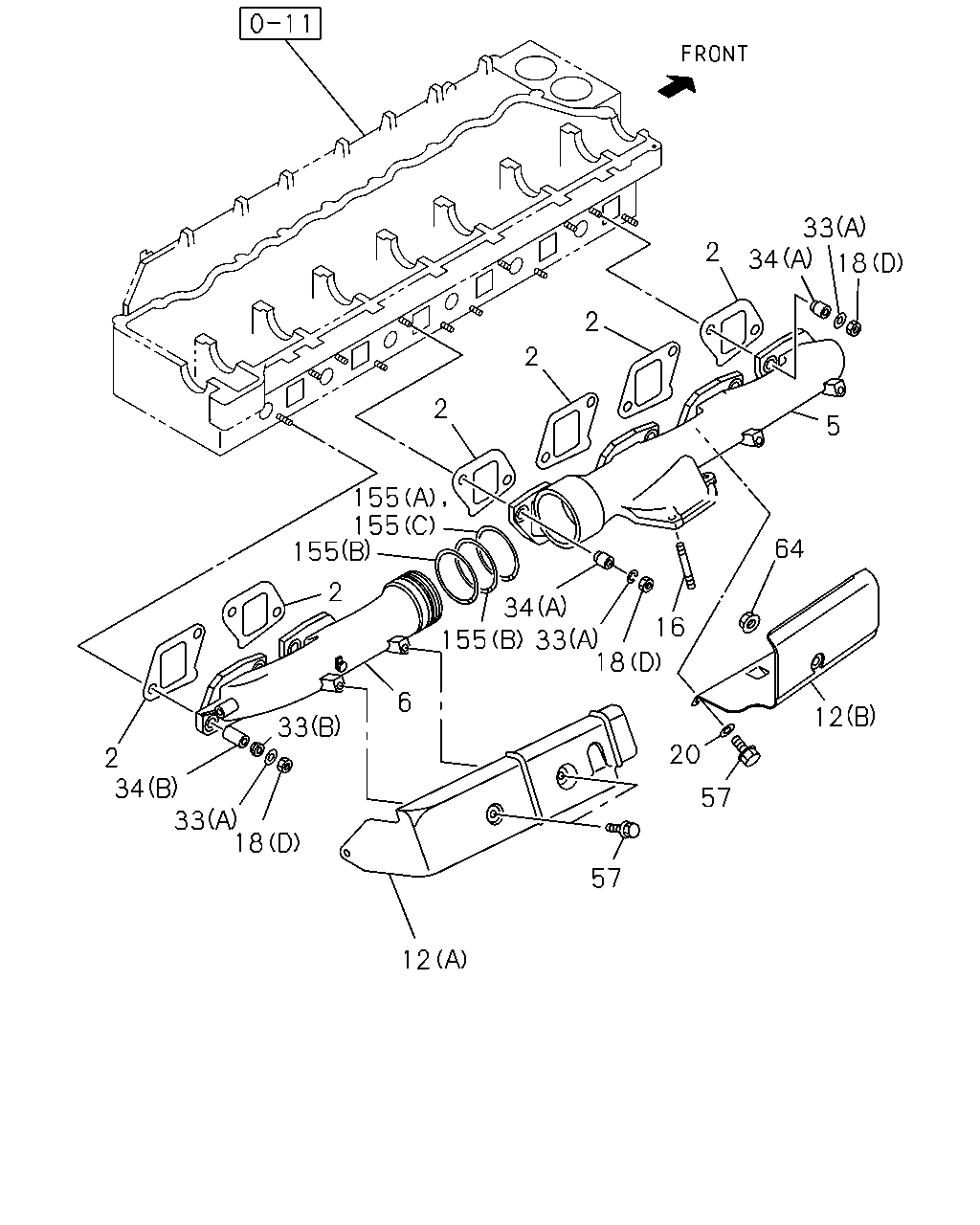

33 2 34 18 2 2 2 5 155 155 155 64 2 34 16 18 6 12 33 20 2 34 33 57 18 57 12 155 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-138-0	06	1	9101-9504	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9505-9702				●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9703-9709				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9710-				●	●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9505-				●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9703-9709					●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9710-0104					●	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-					●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9505-				●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9703-9709					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9710-0104					●	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-					●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-413-1	01	1	9505-9609				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94391-040-0	01	1	9610-9809				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94392-947-0	01	1	9810-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94396-811-0	01	1	9505-				●
16	STUD; EXH PIPE TO MANIF	5-09303-002-1	04	1	9101-9504	●	●
16	STUD; EXH PIPE TO MANIF	9-04731-025-0	04	1	9101-9504			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9505-				●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9703-9709					●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9710-					●	●
18	NUT; EXH MANIF (C) M8 H=12.5	1-09440-040-1	12	1	9101-9504	●	●	●
18	NUT; EXH MANIF (D) M10 FLANGE	0-91150-210-0	12	1	9505-0602				●
18	NUT; EXH MANIF (D) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9703-9709					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9710-0602					●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-					●	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9703-9709					●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9710-1202					●	●
18	NUT; EXH MANIF (A) M10	8-98205-394-0	02	1	1203-					●	●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	01	1	9505-9803				●
20	WASHER; PL,HEAT PROTECTOR ID=10.5 OD=22	9-09160-610-0	02	1	9505-0011				●
33	WASHER; EXH MANIF (C)	1-14149-120-0	12	1	9101-9504	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9505-9702				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9703-9709				●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9710-				●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	02	1	9505-0301				●
34	COLLAR; DIST,EXH MANIF (D) L=44.3	1-14149-170-1	12	1	9101-9504	●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=43	8-94396-406-0	02	1	9505-0301				●
34	COLLAR; DIST,EXH MANIF (B) L=47	1-14149-263-0	02	1	0302-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	10	1	9505-0209				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	10	1	0210-				●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	9703-9709					●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	9710-0209					●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-					●	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	03	1	0204-0408				●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-97378-075-0	03	1	0409-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	07	1	9505-0010				●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	03	1	0011-0203				●
64	NUT; HEAT PROTECTOR M8	9-09110-508-0	03	1	9101-9504	●	●	●
64	NUT; HEAT PROTECTOR M10	9-09110-510-0	02	1	9505-0011				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9703-9709					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9710-0011					●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0012-0602				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9505-0501				●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9505-0501				●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9703-9709					●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9710-0501					●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	01	1	0502-				●	●	●

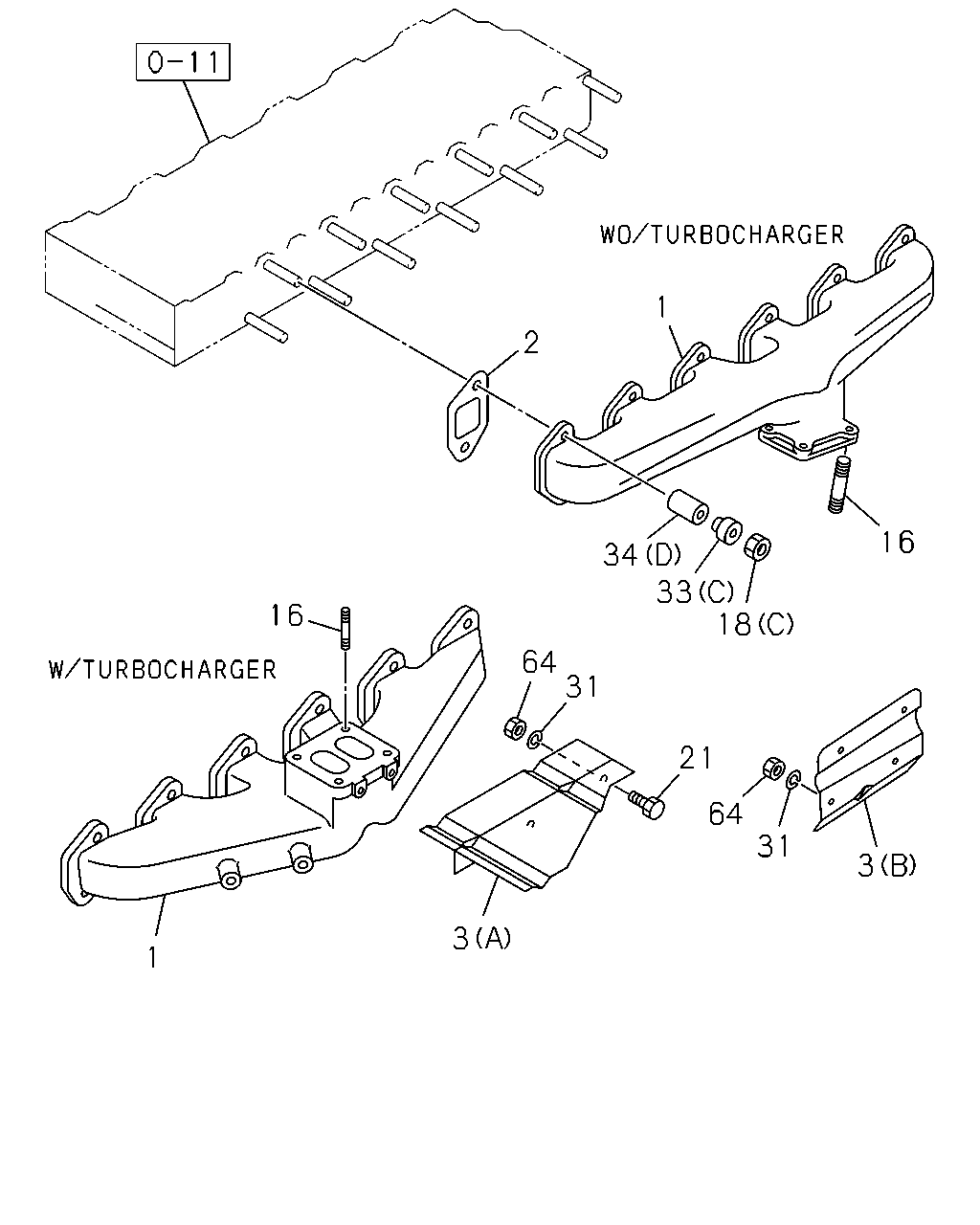

1 2 16 34 33 18 16 64 31 21 64 31 3 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; EXHAUST	1-14141-790-1	01	1	9101-9503	●	●
1	MANIFOLD; EXHAUST	1-14141-901-0	01	1	9504-9504	●	●
1	MANIFOLD; EXHAUST	1-14141-629-2	01	1	9101-9102			●
1	MANIFOLD; EXHAUST	1-14141-715-1	01	1	9103-9504			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-138-0	06	1	9101-9504	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9505-9702				●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9703-9709				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9710-				●	●	●
3	PROTECTOR; HEAT,EXH MANIF (B)	1-14181-145-3	01	1	9101-9504	●	●
3	PROTECTOR; HEAT,EXH MANIF (A)	1-14181-173-1	01	1	9101-9504			●
3	PROTECTOR; HEAT,EXH MANIF (C)	8-94394-385-1	01	1	9703-9709					●
3	PROTECTOR; HEAT,EXH MANIF (C)	8-94394-385-1	01	1	9710-9901					●	●
3	PROTECTOR; HEAT,EXH MANIF (C)	8-94391-582-1	01	1	9902-					●	●
16	STUD; EXH PIPE TO MANIF	5-09303-002-1	04	1	9101-9504	●	●
16	STUD; EXH PIPE TO MANIF	9-04731-025-0	04	1	9101-9504			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9505-				●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9703-9709					●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9710-					●	●
18	NUT; EXH MANIF (C) M8 H=12.5	1-09440-040-1	12	1	9101-9504	●	●	●
18	NUT; EXH MANIF (D) M10 FLANGE	0-91150-210-0	12	1	9505-0602				●
18	NUT; EXH MANIF (D) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9703-9709					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9710-0602					●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-					●	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9703-9709					●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9710-1202					●	●
18	NUT; EXH MANIF (A) M10	8-98205-394-0	02	1	1203-					●	●
21	BOLT; HEAT PROTECTOR M8X14 W/LK WASHER	0-50040-814-0	02	1	9101-9504			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9703-9709					●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9710-0512					●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-					●	●
31	WASHER; LK,HEAT PROTECTOR ID=8.2	9-09150-508-0	03	1	9101-9504	●	●	●
33	WASHER; EXH MANIF (C)	1-14149-120-0	12	1	9101-9504	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9505-9702				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9703-9709				●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9710-				●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	02	1	9505-0301				●
34	COLLAR; DIST,EXH MANIF (D) L=44.3	1-14149-170-1	12	1	9101-9504	●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=43	8-94396-406-0	02	1	9505-0301				●
34	COLLAR; DIST,EXH MANIF (B) L=47	1-14149-263-0	02	1	0302-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	10	1	9505-0209				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	10	1	0210-				●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	9703-9709					●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	9710-0209					●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-					●	●
64	NUT; HEAT PROTECTOR M8	9-09110-508-0	03	1	9101-9504	●	●	●
64	NUT; HEAT PROTECTOR M10	9-09110-510-0	02	1	9505-0011				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9703-9709					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9710-0011					●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0012-0602				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●

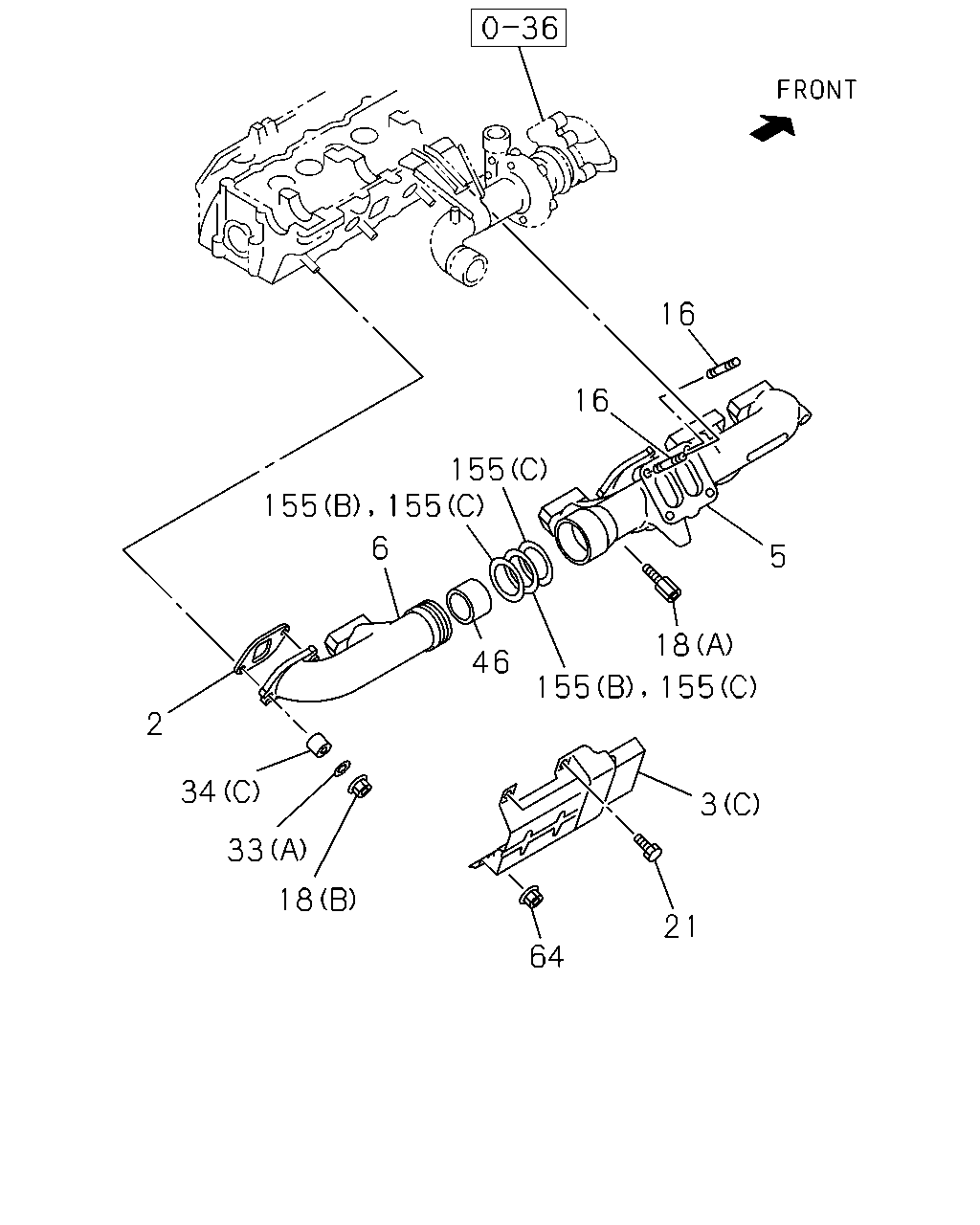

16 16 155 155 155 6 5 18 46 155 155 2 34 3 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-138-0	06	1	9101-9504	●	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9505-9702				●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	9703-9709				●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	9710-				●	●	●
3	PROTECTOR; HEAT,EXH MANIF (B)	1-14181-145-3	01	1	9101-9504	●	●
3	PROTECTOR; HEAT,EXH MANIF (A)	1-14181-173-1	01	1	9101-9504			●
3	PROTECTOR; HEAT,EXH MANIF (C)	8-94394-385-1	01	1	9703-9709					●
3	PROTECTOR; HEAT,EXH MANIF (C)	8-94394-385-1	01	1	9710-9901					●	●
3	PROTECTOR; HEAT,EXH MANIF (C)	8-94391-582-1	01	1	9902-					●	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	9505-				●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9703-9709					●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	9710-0104					●	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-					●	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	9505-				●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9703-9709					●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	9710-0104					●	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-					●	●
16	STUD; EXH PIPE TO MANIF	5-09303-002-1	04	1	9101-9504	●	●
16	STUD; EXH PIPE TO MANIF	9-04731-025-0	04	1	9101-9504			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9505-				●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9703-9709					●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	9710-					●	●
18	NUT; EXH MANIF (C) M8 H=12.5	1-09440-040-1	12	1	9101-9504	●	●	●
18	NUT; EXH MANIF (D) M10 FLANGE	0-91150-210-0	12	1	9505-0602				●
18	NUT; EXH MANIF (D) M10 FLANGE	0-91180-210-0	12	1	0603-				●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9703-9709					●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91150-210-0	10	1	9710-0602					●	●
18	NUT; EXH MANIF (B) M10 FLANGE	0-91180-210-0	10	1	0603-					●	●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9703-9709					●
18	NUT; EXH MANIF (A) M10 L=51	8-94394-991-1	02	1	9710-1202					●	●
18	NUT; EXH MANIF (A) M10	8-98205-394-0	02	1	1203-					●	●
21	BOLT; HEAT PROTECTOR M8X14 W/LK WASHER	0-50040-814-0	02	1	9101-9504			●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9703-9709					●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	9710-0512					●	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-					●	●
33	WASHER; EXH MANIF (C)	1-14149-120-0	12	1	9101-9504	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9505-9702				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9703-9709				●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9710-				●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	02	1	9505-0301				●
34	COLLAR; DIST,EXH MANIF (D) L=44.3	1-14149-170-1	12	1	9101-9504	●	●	●
34	COLLAR; DIST,EXH MANIF (B) L=43	8-94396-406-0	02	1	9505-0301				●
34	COLLAR; DIST,EXH MANIF (B) L=47	1-14149-263-0	02	1	0302-				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	10	1	9505-0209				●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-97250-073-1	10	1	0210-				●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	9703-9709					●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	9710-0209					●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-					●	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9703-9709					●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9710-9802					●	●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	9804-0104					●	●
64	NUT; HEAT PROTECTOR M8	9-09110-508-0	03	1	9101-9504	●	●	●
64	NUT; HEAT PROTECTOR M10	9-09110-510-0	02	1	9505-0011				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9703-9709					●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	9710-0011					●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0012-0602				●	●	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	01	1	9505-0501				●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	9505-0501				●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●	●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9703-9709					●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9710-0501					●	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	01	1	0502-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
