Isuzu WW
▶
TRUCKS
▶
NPS
▶
51410 - NPS(AUST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#36949) — 65 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

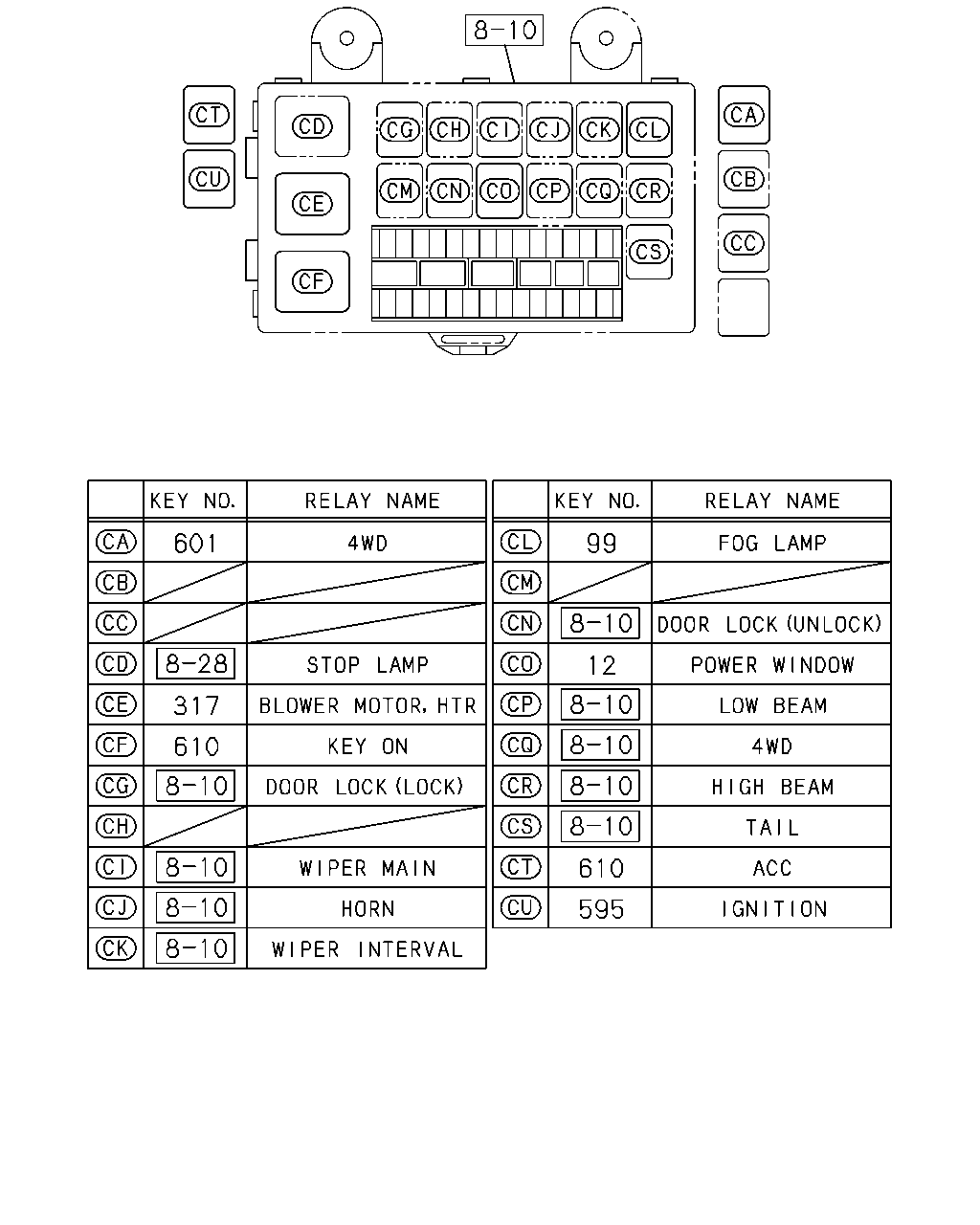

[825A] '12/5- RELAY;CAB HARNESS (8 parça)
[825A] RELAY;FRAME HARNESS (2 parça)

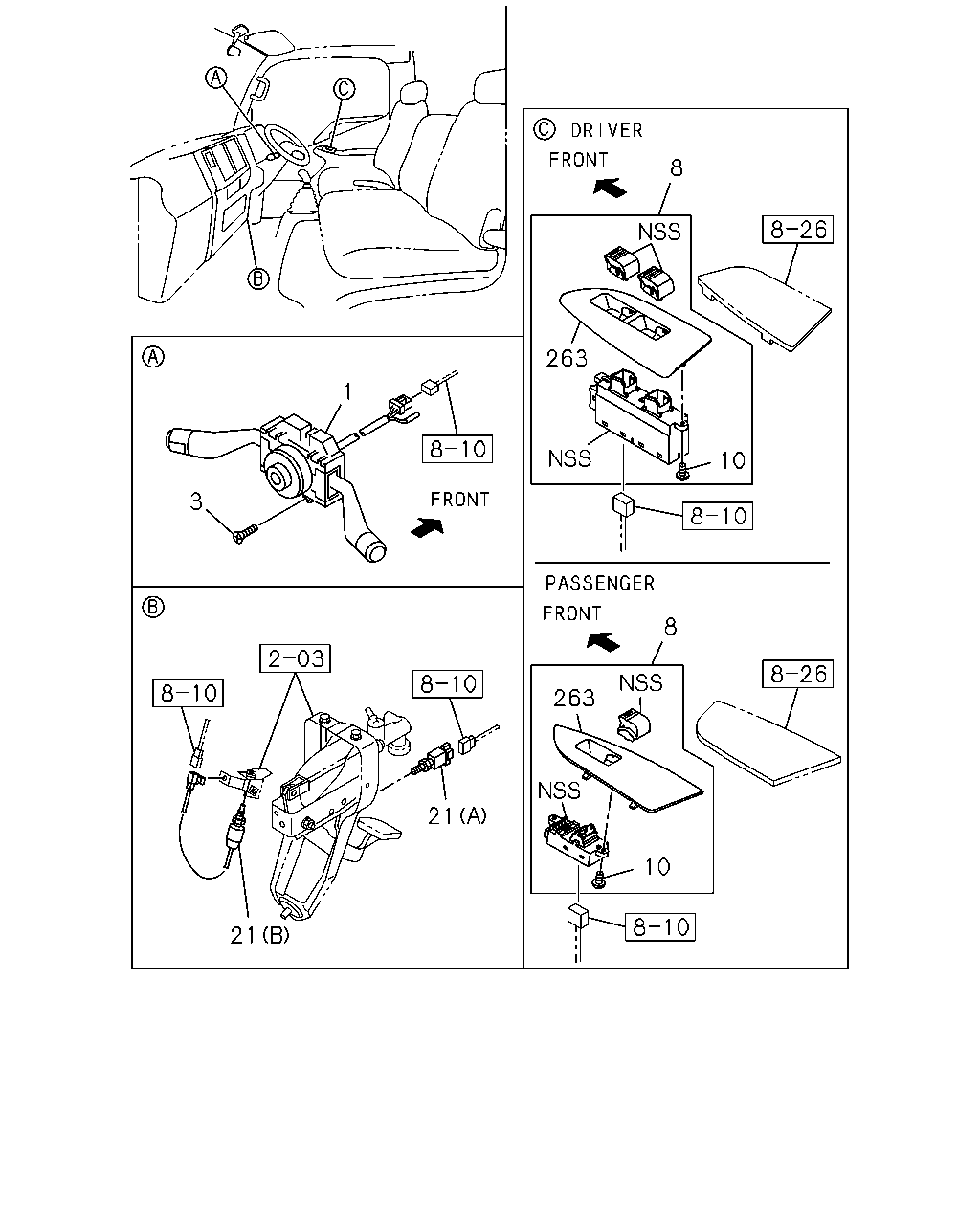

[825A] SWITCH(NO.1) (14 parça)

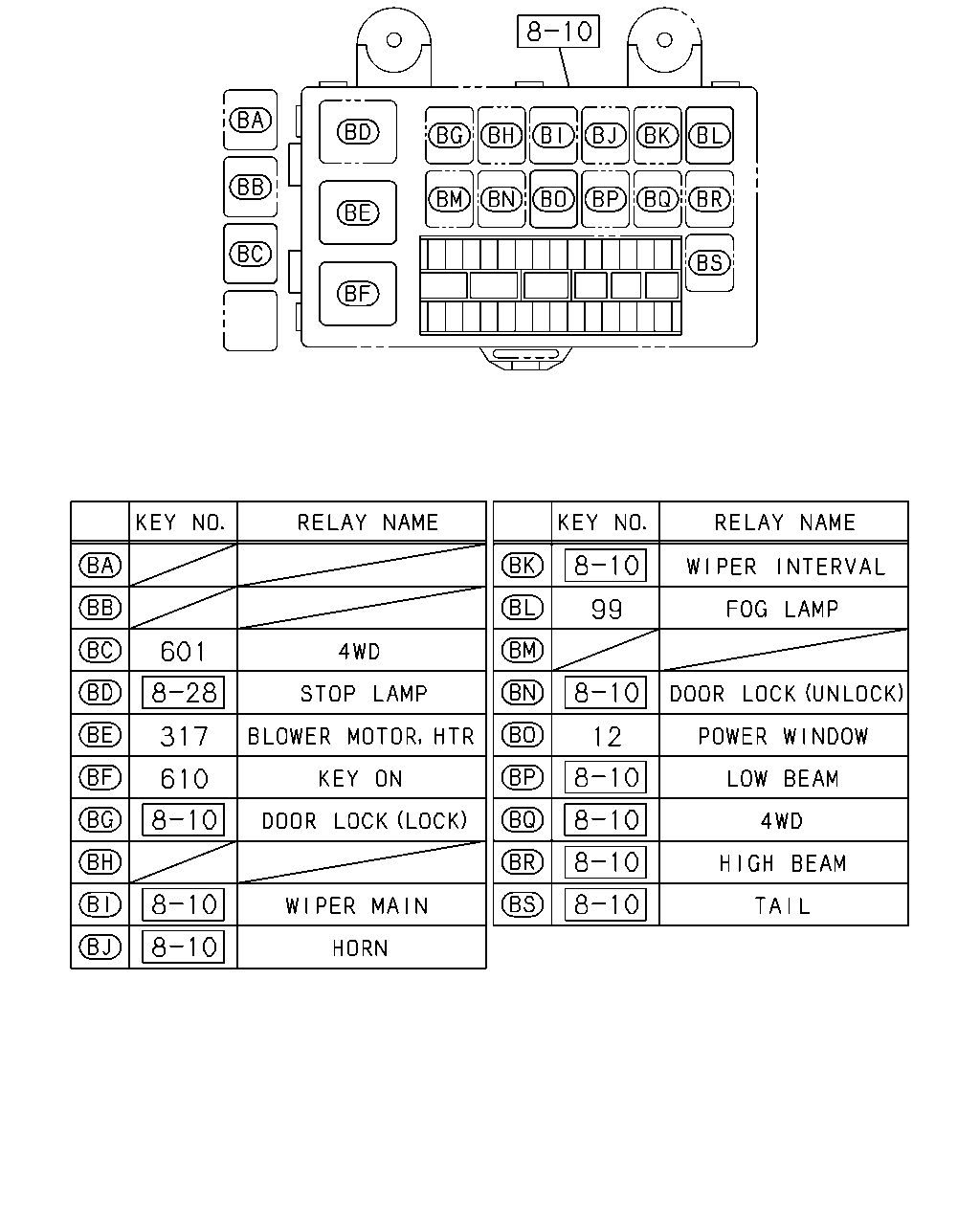

[825A] -'12/4 RELAY;CAB HARNESS (7 parça)

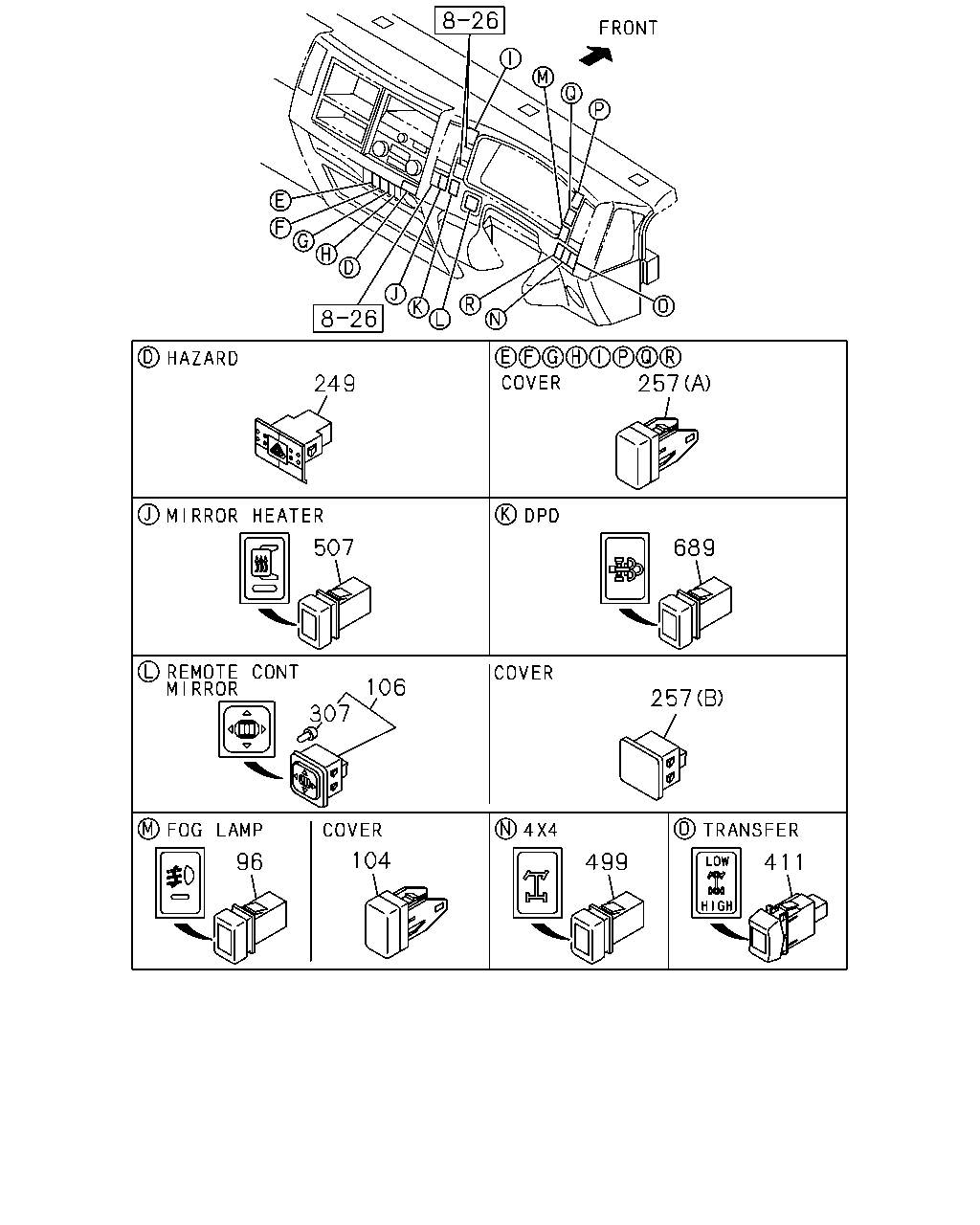

[825A] SWITCH(NO.2) (23 parça)

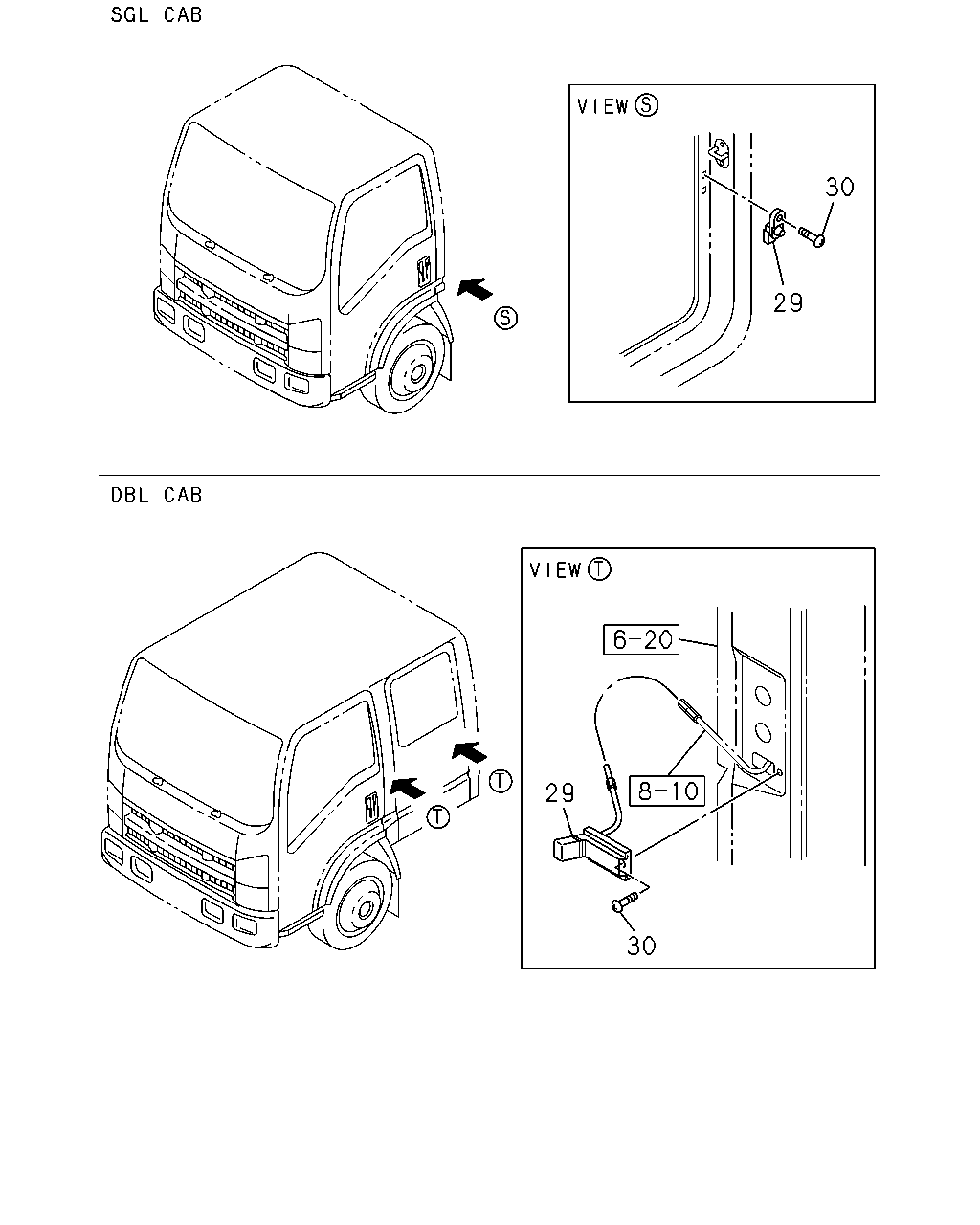

[825A] SWITCH(NO.3) (11 parça)
▶
601
317
610
595
610
12
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
08.852 RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
●
317
02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-
●
●
595
02.510 RELAY; IGNITION
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
601
02.510 RELAY; 4WD
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-1204
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
151
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
151
09.277 RELAY; HTR & A/C
02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-
●
●
154
09.277 RELAY; CONDENSER FAN
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
●
1
3
21
21
10
263
8
10
8
263
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>
8-98069-995-1
01
1
0710-
●
●
1
02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>
8-98069-993-2
01
1
0710-
●
●
1
02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98070-001-1
01
1
0710-0905
●
●
1
02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>
8-98146-635-0
01
1
0906-
●
●
3
02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0710-
●
●
8
16.263 SWITCH; POWER WINDOW
PASSENGER SIDE
8-97387-034-2
01
1
0710-
●
8
16.263 SWITCH; POWER WINDOW
DRIVER SIDE
8-98003-785-1
01
1
0710-0809
●
8
16.263 SWITCH; POWER WINDOW
DRIVER SIDE
8-98129-844-0
01
1
0810-1001
●
8
16.263 SWITCH; POWER WINDOW
DRIVER SIDE
8-98159-543-0
01
1
1002-
●
10
03.885 SCREW; POWER WINDOW SW
8-98153-865-0
03
1
0710-
●
21
02.575 SWITCH; CLU
(A)
8-97358-248-0
01
1
0710-
●
●
21
02.575 SWITCH; CLU
(B)
8-97620-841-0
01
1
0710-
●
●
263
16.081 COVER; SW
DRIVER SIDE
8-98153-836-0
01
1
0710-
●
263
16.081 COVER; SW
PASSENGER SIDE
8-98153-841-0
01
1
0710-
●
12
99
610
601
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
08.852 RELAY; POWER WINDOW
24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
99
02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
●
317
02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-
●
●
601
02.510 RELAY; 4WD
08.852 24V 10A PANASONIC
8-97173-035-1
01
1
0710-
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-1204
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
249
507
257
689
257
499
411
104
96
307
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
02.485 SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-3
01
1
0710-
●
●
104
09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081
8-98025-954-1
01
1
0710-
●
●
106
10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>
8-97173-294-1
01
1
0710-
●
●
249
02.485 SWITCH; HAZARD
8-97386-922-1
01
1
0710-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0710-0906
●
●
257
16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)
8-98029-914-1
01
1
0710-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0710-0906
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0710-0906
●
●
257
16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)
8-98025-954-1
01
1
0710-0906
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0710-0906
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0710-0906
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)
8-98025-954-1
01
1
0907-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
307
08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 28V 40MA
8-97116-331-0
01
1
0710-
●
●
411
09.755 SWITCH; TRANSFER
8-97613-967-0
01
1
0710-
●
●
499
09.755 SWITCH; 4X4
8-97386-914-2
01
1
0710-
●
●
507
10.186 SWITCH; MIRROR HEATER
8-97386-924-2
01
1
0710-
●
●
689
02.780 SWITCH; DPD
8-97386-921-1
01
1
0710-
●
●
30
29
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
29
16.263 SWITCH; DOOR
BLACK
8-98022-211-0
02
1
0710-0710
●
29
16.263 SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0710-
●
29
16.263 SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0710-
●
29
16.263 SWITCH; DOOR
FRONT
8-97855-032-3
02
1
0710-0710
●
29
16.263 SWITCH; DOOR
FRONT
8-97855-032-3
01
1
0711-
●
29
16.263 SWITCH; DOOR
FRONT
8-97855-032-3
01
1
0711-
●
29
16.263 SWITCH; DOOR
REAR
8-98054-195-0
02
1
0710-0710
●
29
16.263 SWITCH; DOOR
REAR
8-98054-195-0
01
1
0711-
●
29
16.263 SWITCH; DOOR
REAR
8-98054-195-0
01
1
0711-
●
30
16.263 SCREW; DOOR SW
M5X18
8-98047-201-0
02
1
0710-
●
30
16.263 SCREW; DOOR SW
M5X16
8-94279-341-0
04
1
0710-
●
