Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#36947) — 180 parça

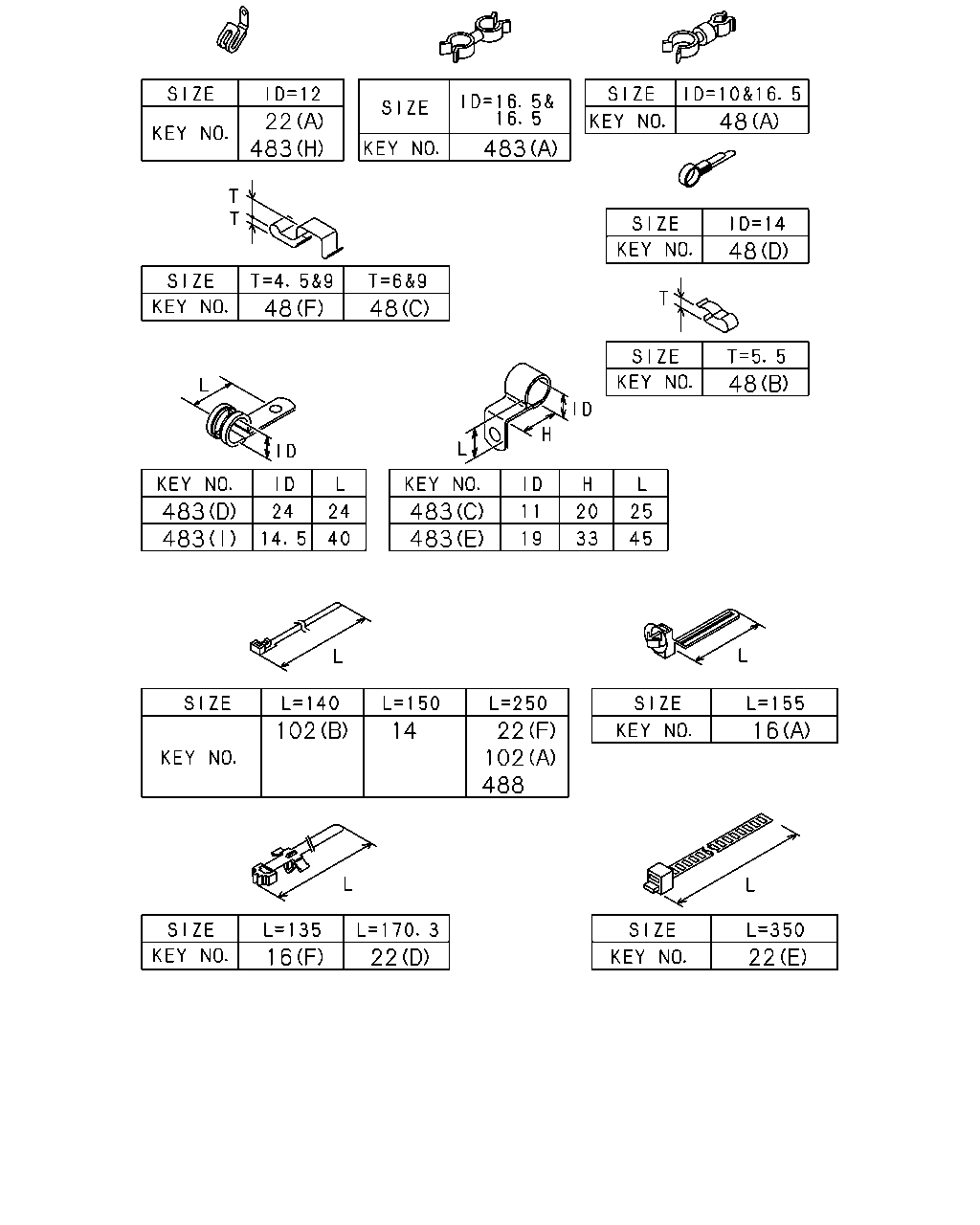

22 483 48 483 48 48 48 48 483 483 483 483 102 22 102 488 16 14 16 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 09.242 L=150	8-97355-273-0	02	1	0710-0801	●	●
14	02.559 CLIP; BAND,HARNESS 09.242 L=150	8-97355-273-0	01	1	0802-0810	●	●
14	02.559 CLIP; BAND,HARNESS 09.242 L=150	8-97355-273-0	02	1	0811-0906	●	●
14	02.559 CLIP; BAND,HARNESS 09.242 L=150	8-97355-273-0	01	1	0907-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	01	1	0711-1106	●	●
16	02.559 CLIP; HARNESS 03.483 (G)	8-97101-436-0	01	1	0711-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (C)	8-97037-154-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS (D) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0712-	●	●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0801-	●	●
22	02.559 CLIP; ENG HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●	●
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
22	02.559 CLIP; ENG HARNESS (F) L=250	5-09707-030-1	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0710-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0710-0804	●	●
48	02.559 CLIP; FRAME HARNESS (F) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0804	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	0805-	●	●
102	02.559 CLIP; BAND (A) L=250	5-09707-030-1	04	1	0710-0801	●	●
102	02.559 CLIP; BAND 03.162 (B) L=140	5-09707-031-1	11	1	0710-0801	●	●
102	02.559 CLIP; BAND 03.162 (B) L=140	5-09707-031-1	06	1	0802-1110	●	●
102	02.559 CLIP; BAND 03.162 (B) L=140	5-09707-031-1	07	1	1111-	●	●
483	02.559 CLIP; ENG HARNESS (H) ID=12	8-97329-630-0	01	1	1111-	●	●
483	02.559 CLIP; ENG HARNESS 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (D) ID=24 L=24	1-09701-001-1	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (A) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 03.483 (G)	8-97101-436-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (H) ID=12	8-97329-630-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 06.602 (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
483	02.559 CLIP; ENG HARNESS 04.785 (I) ID=14.5 L=40	1-09701-014-0	01	1	0710-	●	●
483	02.559 CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
483	02.559 CLIP; ENG HARNESS 01.152 (F) L=36	8-94224-891-1	01	1	0710-	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0710-	●	●

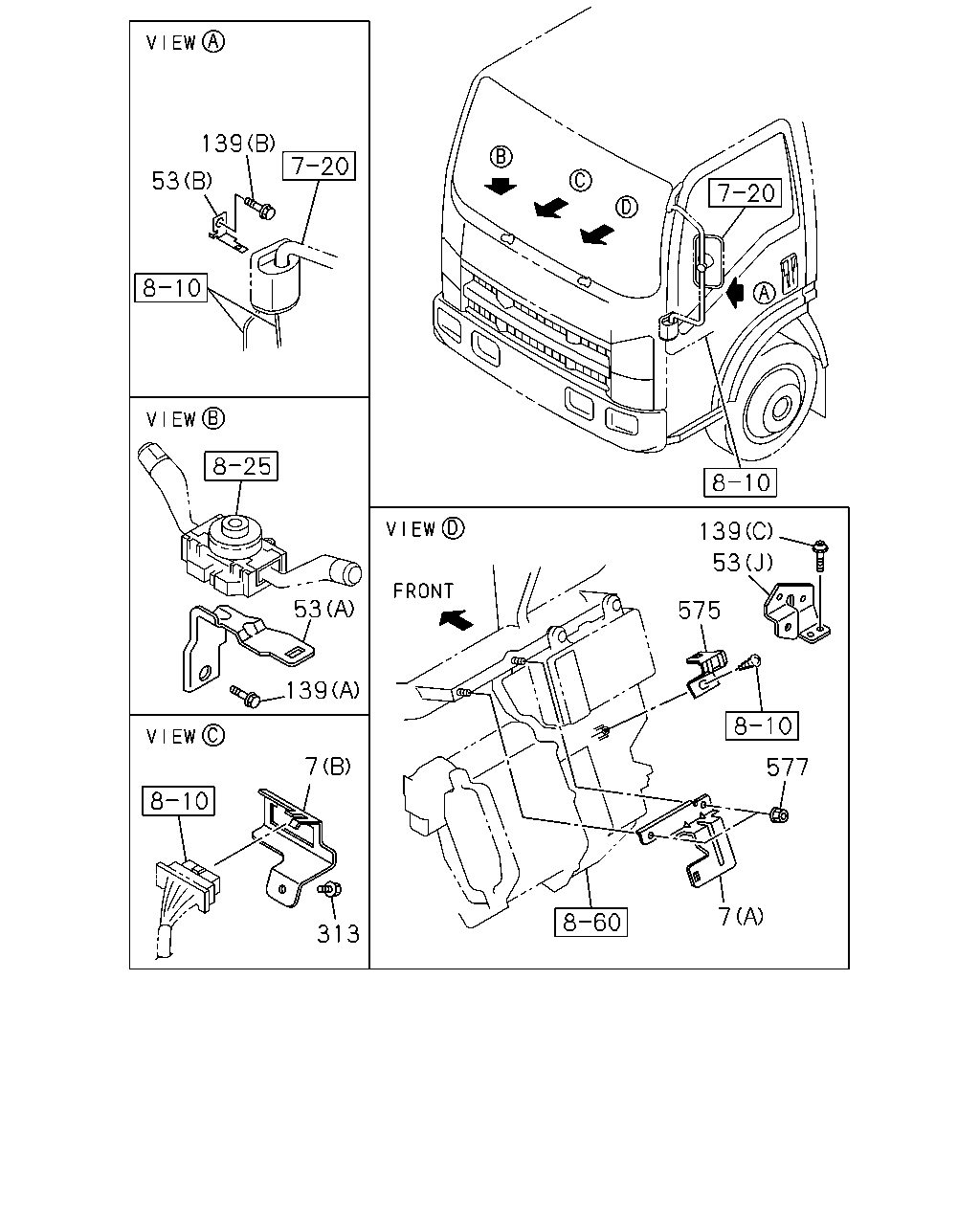

139 53 139 53 53 575 139 7 577 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (A)	8-98029-762-4	01	1	0710-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98039-277-2	02	1	0710-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0812-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0710-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●

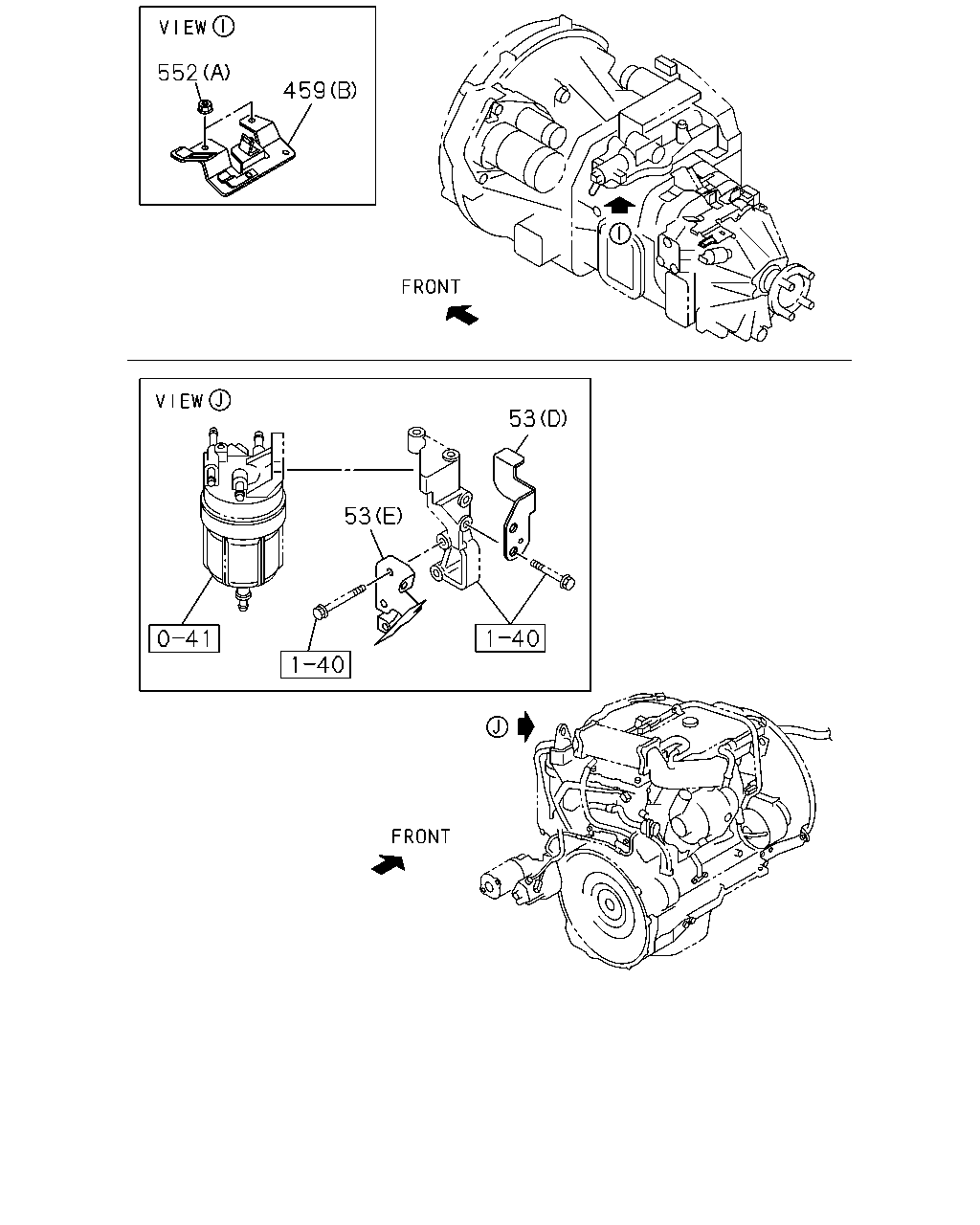

552 459 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98039-277-2	02	1	0710-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0812-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (A)	8-97379-633-0	01	1	0710-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98020-227-3	01	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●

16 16 22 483 16 16 16 483 483 48 513 530 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	01	1	0711-1106	●	●
16	02.559 CLIP; HARNESS 03.483 (G)	8-97101-436-0	01	1	0711-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (C)	8-97037-154-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS (D) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0712-	●	●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0801-	●	●
22	02.559 CLIP; ENG HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●	●
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
22	02.559 CLIP; ENG HARNESS (F) L=250	5-09707-030-1	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0710-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0710-0804	●	●
48	02.559 CLIP; FRAME HARNESS (F) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0804	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	0805-	●	●
483	02.559 CLIP; ENG HARNESS (H) ID=12	8-97329-630-0	01	1	1111-	●	●
483	02.559 CLIP; ENG HARNESS 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (D) ID=24 L=24	1-09701-001-1	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (A) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 03.483 (G)	8-97101-436-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (H) ID=12	8-97329-630-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 06.602 (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-	●	●
483	02.559 CLIP; ENG HARNESS 04.785 (I) ID=14.5 L=40	1-09701-014-0	01	1	0710-	●	●
483	02.559 CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
483	02.559 CLIP; ENG HARNESS 01.152 (F) L=36	8-94224-891-1	01	1	0710-	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0711-0902	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0903-		●
513	02.559 TAPE; SOFT,HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0710-	●	●

139 150 150 139 150 304 150 313 480 529 304 480 377 377 386 377 386 386 377 386 24 515 577 219 294 515 515 552 24 515 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0801-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●
150	02.343 BOLT; CLIP 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0710-0801	●	●
150	02.343 BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801	●	●
150	02.343 BOLT; CLIP 00.662 (D) M8X14 FLANGE	0-28080-814-0	01	1	0710-0801	●	●
150	02.343 BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
294	02.559 NUT 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0801-0904	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-	●	●
304	02.483 BOLT; ENG HARNESS CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801	●	●
304	02.483 BOLT; ENG HARNESS CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0710-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0710-1004	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0710-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0710-		●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●

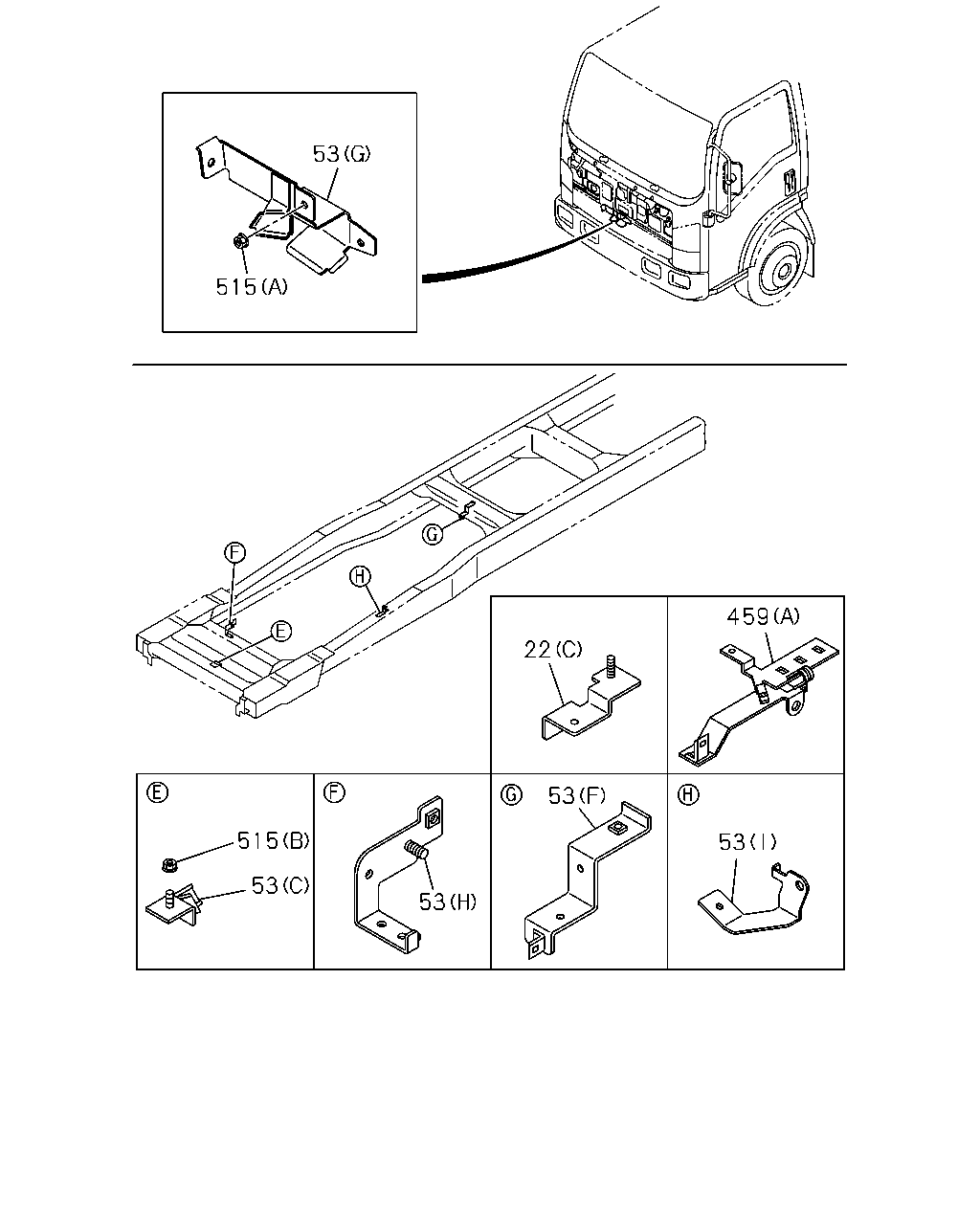

53 515 459 22 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	02.559 CLIP; ENG HARNESS 03.162 (C)	8-97037-154-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS (D) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0712-	●	●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0801-	●	●
22	02.559 CLIP; ENG HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●	●
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-	●	●
22	02.559 CLIP; ENG HARNESS (F) L=250	5-09707-030-1	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98039-277-2	02	1	0710-	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	0812-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (A)	8-97379-633-0	01	1	0710-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98020-227-3	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
