Sayfa 8-10 - Isuzu EPC

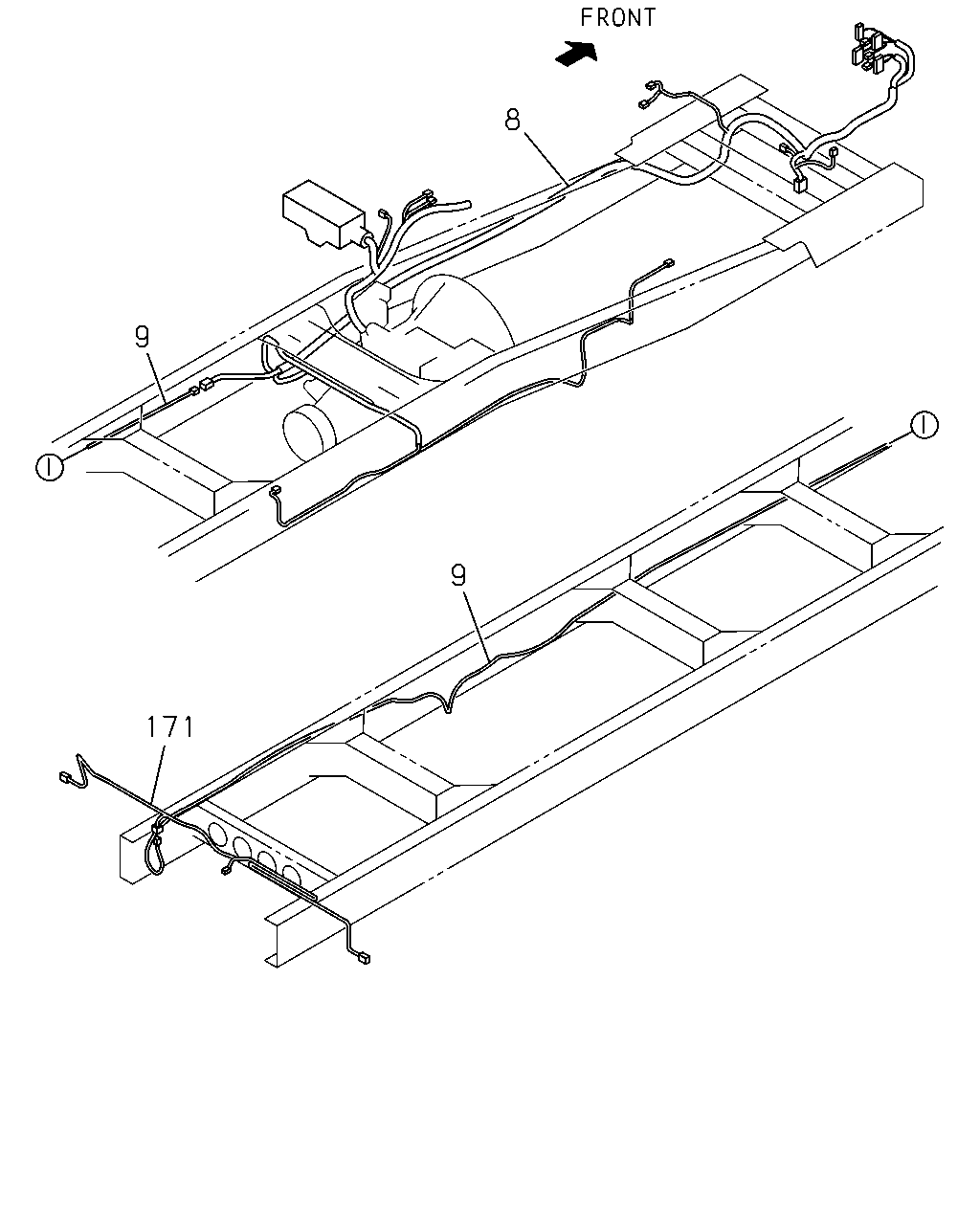

8 9 171 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT	8-98070-293-8	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT	8-98070-294-7	01	1	0710-		●
9	02.480 HARNESS; FRAME,RR	8-98067-970-2	01	1	0710-0805	●	●
9	02.480 HARNESS; FRAME,RR	8-98117-248-0	01	1	0806-	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0710-1006	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1007-	●	●

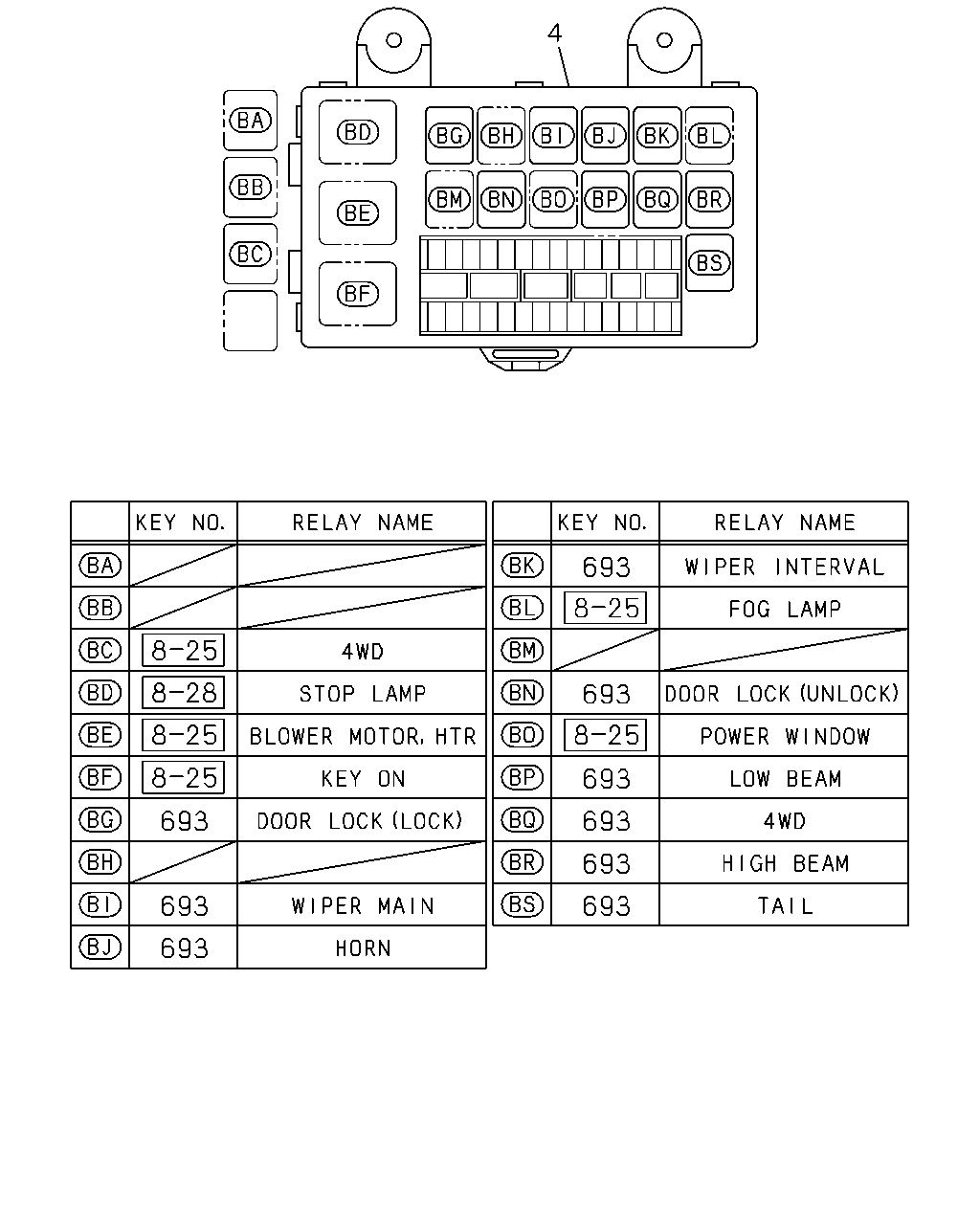

693 4 693 693 693 693 663 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0710-	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-	●	●

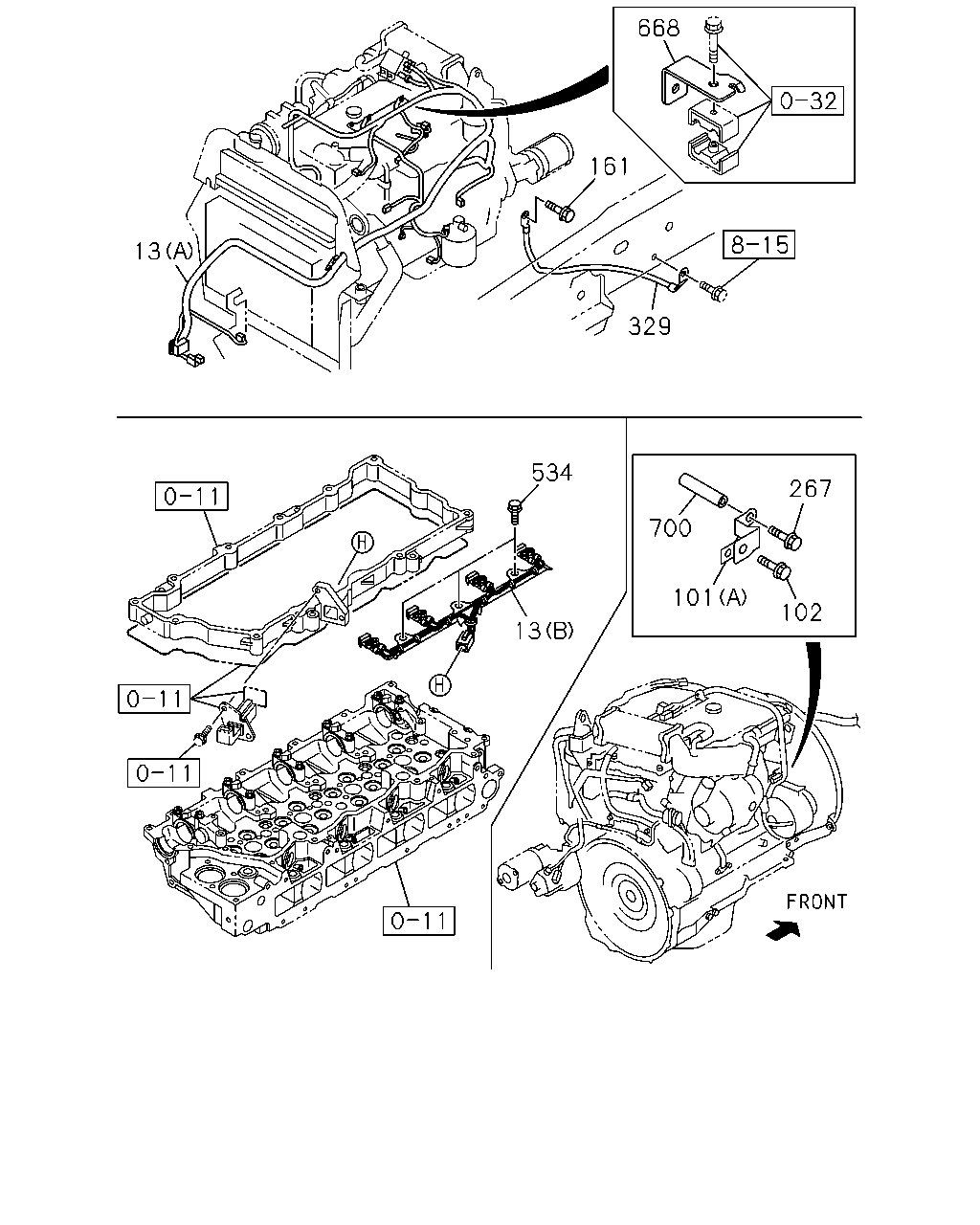

668 329 161 13 13 534 700 101 102 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	02.525 HARNESS; ENG GENERATOR 24V50A(6QN) (A)	8-98090-070-2	01	1	0710-	●	●
13	02.525 HARNESS; ENG GENERATOR 24V80A(7YN) (A)	8-98090-071-2	01	1	0710-	●	●
13	02.525 HARNESS; ENG (B)	8-97332-133-3	01	1	0710-1007	●	●
13	02.525 HARNESS; ENG (B)	8-98171-638-0	01	1	1008-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	0710-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98079-137-1	01	1	0710-0710	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98094-483-1	01	1	0710-	●	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0710-0801	●	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 02.042 M10X25 FLANGE	0-28151-025-0	01	1	0710-0801	●	●
161	02.559 BOLT; GROUND,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●
267	02.483 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0710-	●	●
329	02.480 CABLE; ENG TO FRAME	8-98039-304-2	01	1	0710-0804	●	●
329	02.480 CABLE; ENG TO FRAME	8-98102-465-0	01	1	0805-	●	●
534	02.483 BOLT 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0710-0805	●	●
534	02.483 BOLT 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-	●	●
668	02.559 BRACKET; HARNESS	8-98001-095-0	01	1	0710-	●	●
700	02.483 TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98084-726-0	01	1	0710-	●	●

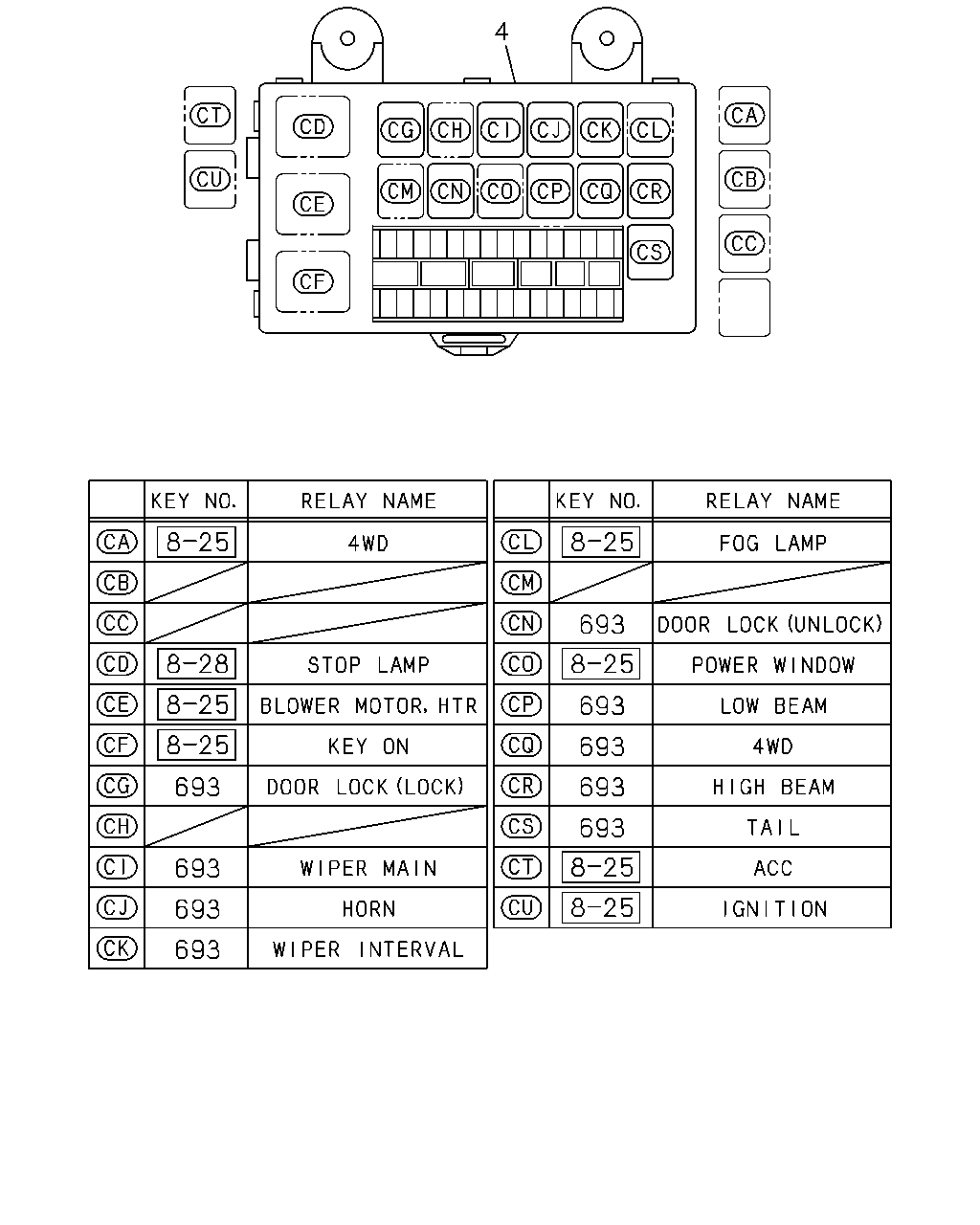

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0710-	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-	●	●

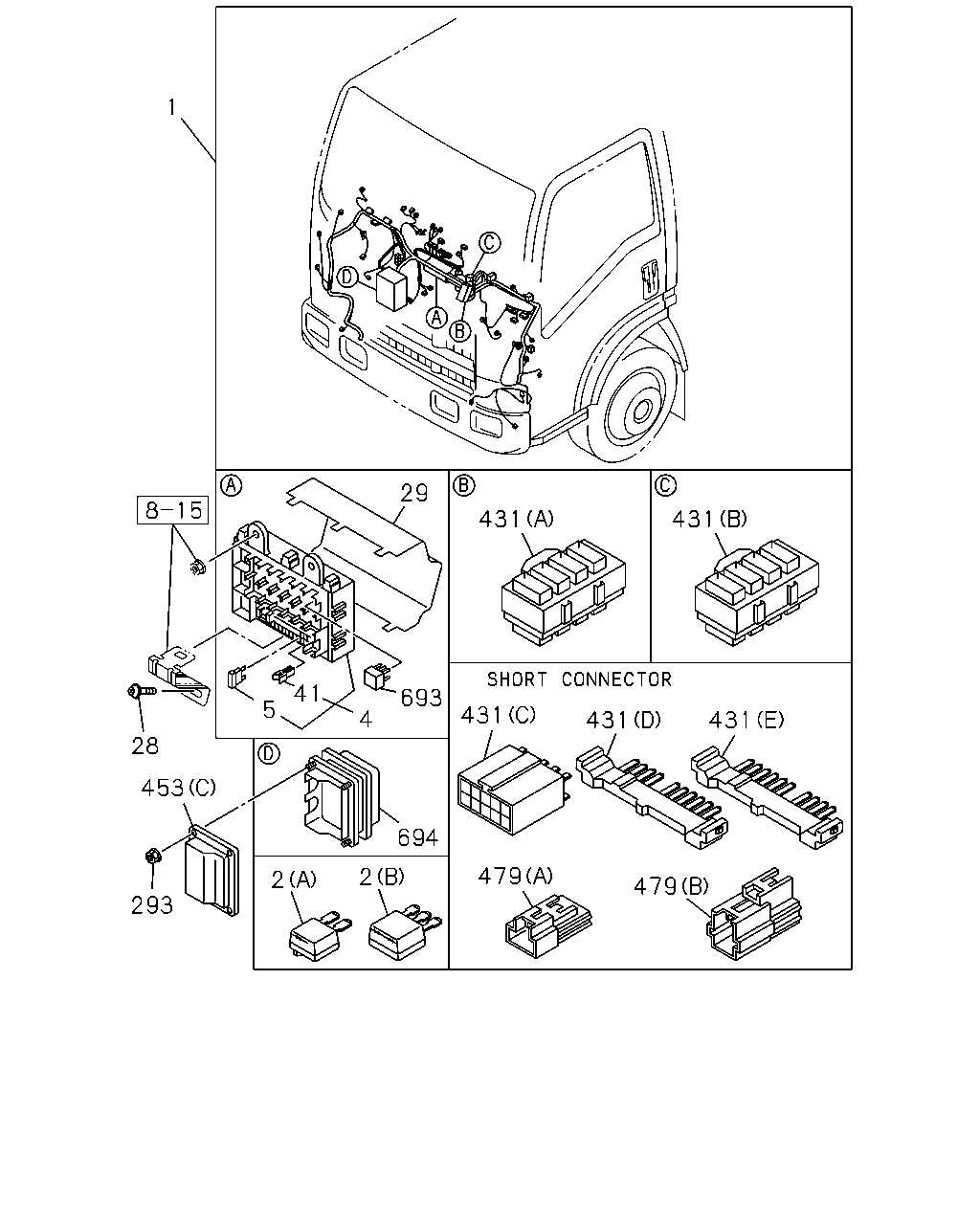

1 29 431 431 41 693 5 431 4 431 431 28 453 694 479 2 2 479 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98087-877-6	01	1	0710-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98087-889-6	01	1	0710-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98207-668-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60)	8-98087-875-1	01	1	0710-0801	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-875-6	01	1	0802-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60)	8-98087-888-1	01	1	0710-0801		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-888-6	01	1	0802-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-667-0	01	1	1205-		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-868-6	01	1	1004-1204		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-660-0	01	1	1205-		●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0710-	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0710-	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0710-	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0710-	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0710-	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0710-	●	●
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0710-	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0710-	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0710-1005	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1006-	●	●
431	02.530 CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0710-	●	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0710-	●	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0710-	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0710-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0710-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0710-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0710-	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0802-	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0802-	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	0710-	●	●

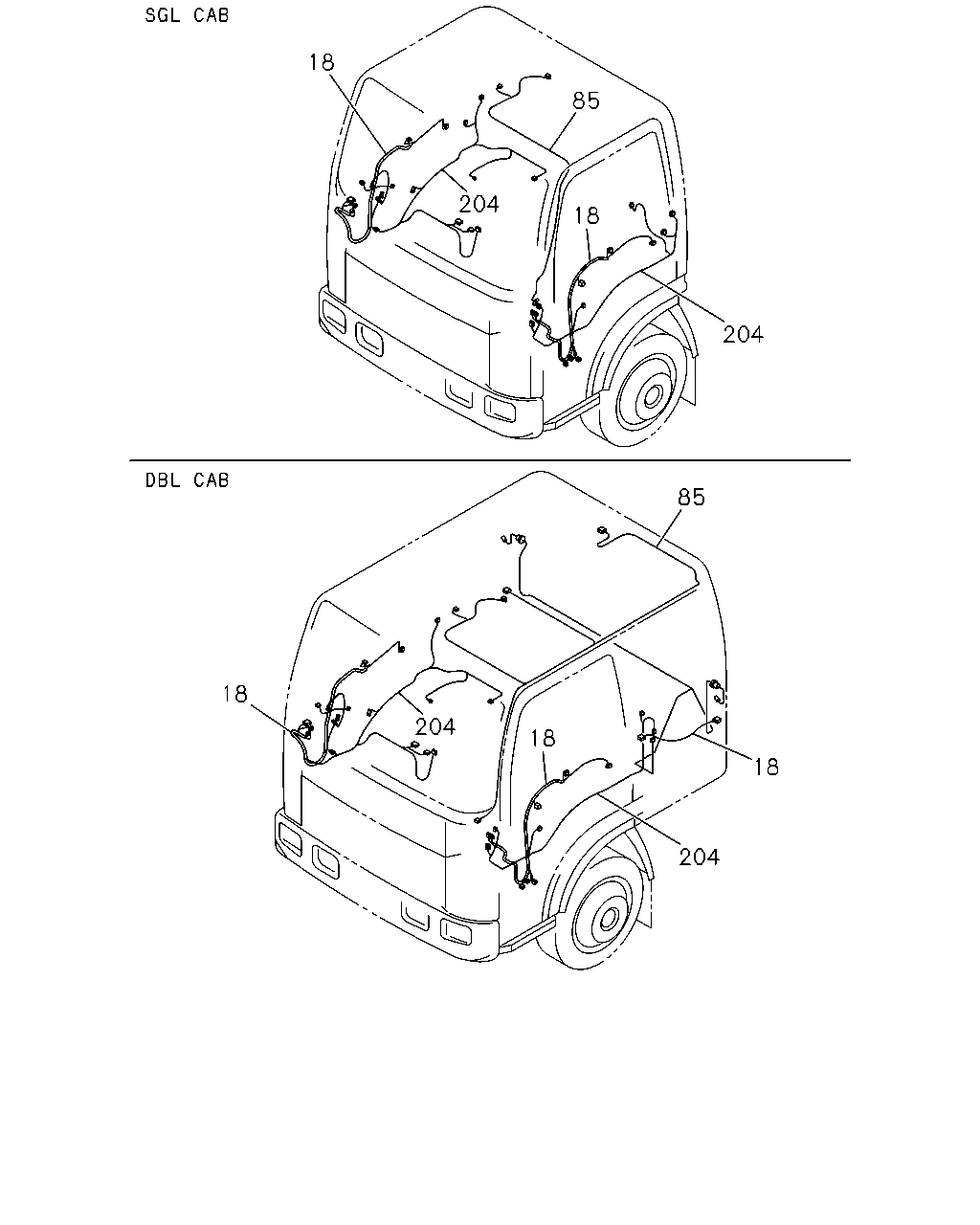

18 204 85 18 204 85 18 204 18 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-078-2	01	1	0710-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-086-3	01	1	0710-	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-076-2	01	1	0710-	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-084-3	01	1	0710-	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-077-2	01	1	0710-		●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-085-3	01	1	0710-		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-075-2	01	1	0710-		●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-98071-083-2	01	1	0710-		●
85	06.495 HARNESS; ROOM LAMP	8-98071-092-2	01	1	0710-	●
85	06.495 HARNESS; ROOM LAMP	8-98071-094-2	01	1	0710-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98047-157-5	01	1	0710-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0710-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-787-3	01	1	0710-	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0710-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-793-2	01	1	0710-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-593-2	01	1	0710-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98070-791-2	01	1	0710-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-809-2	01	1	0710-		●

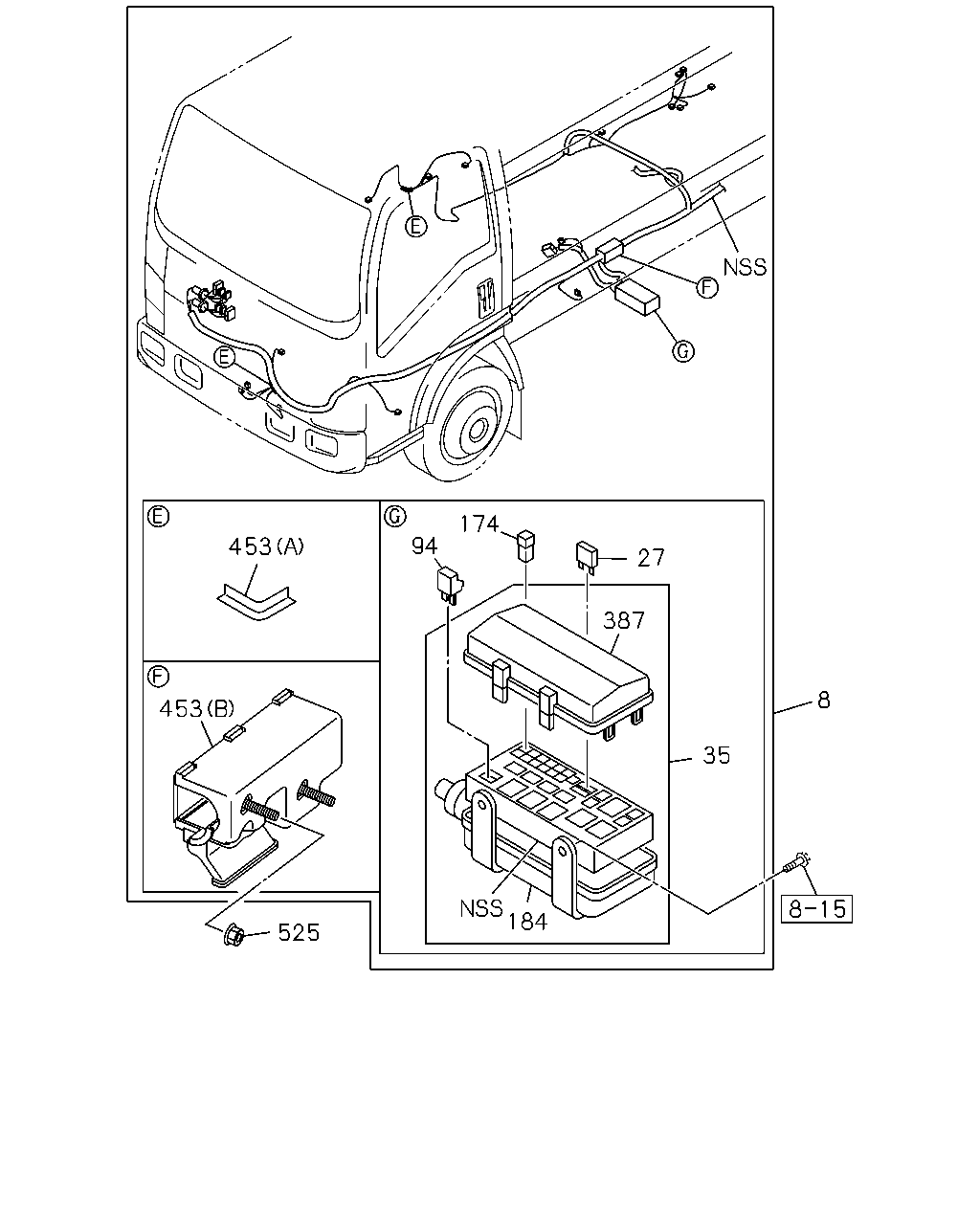

174 27 387 35 8 184 525 453 453 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT	8-98070-293-8	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT	8-98070-294-7	01	1	0710-		●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0710-	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0710-	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0710-	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0710-	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0710-	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0710-	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0710-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0710-	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0710-	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0710-	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0710-	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0710-	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●

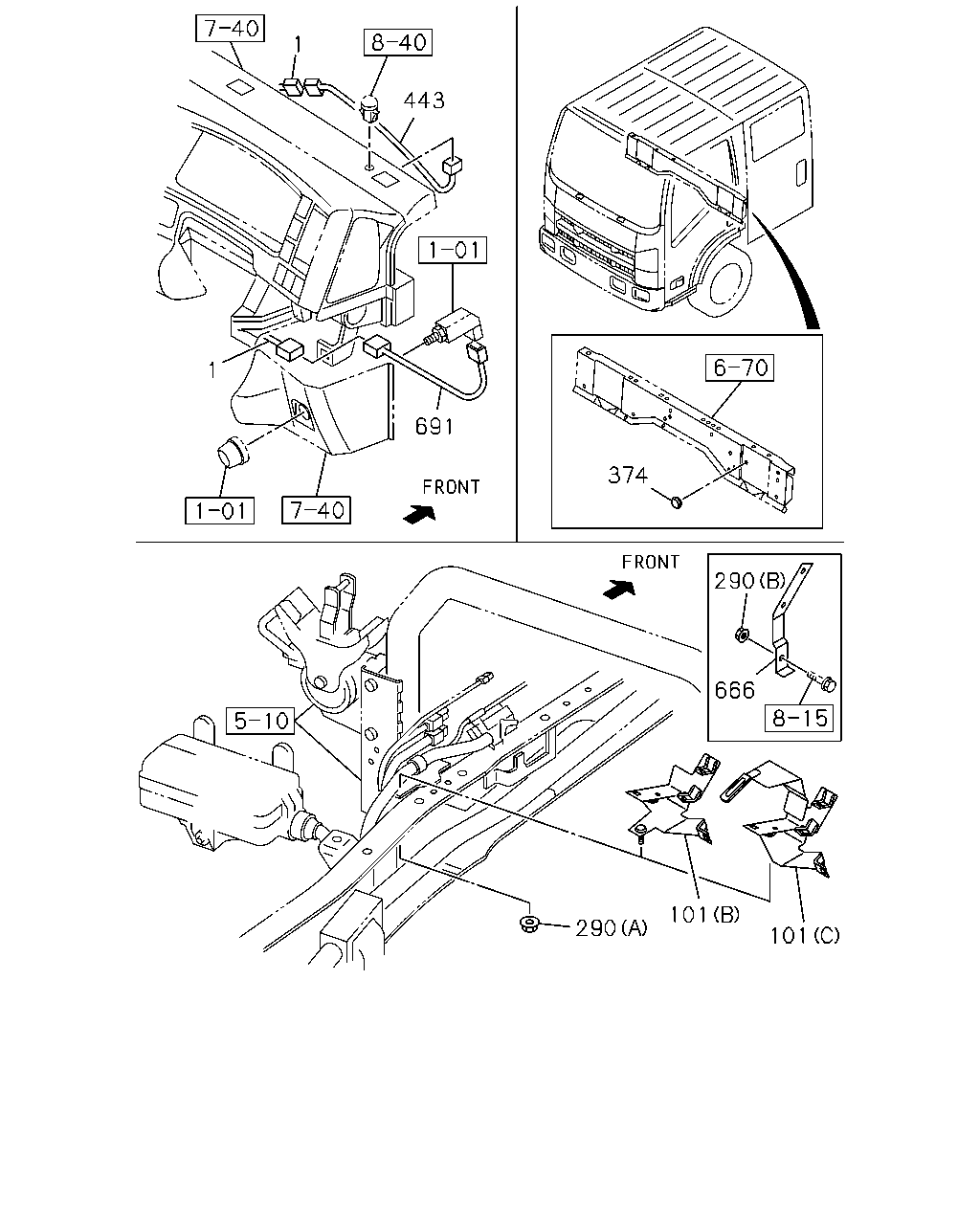

1 443 691 1 374 290 666 101 101 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98087-877-6	01	1	0710-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98087-889-6	01	1	0710-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68)	8-98207-668-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60)	8-98087-875-1	01	1	0710-0801	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-875-6	01	1	0802-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60)	8-98087-888-1	01	1	0710-0801		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-888-6	01	1	0802-1204		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-667-0	01	1	1205-		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98087-868-6	01	1	1004-1204		●
1	02.480 HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68)	8-98207-660-0	01	1	1205-		●
101	02.483 BRACKET; HARNESS CONNECTOR (A)	8-98052-805-0	01	1	0710-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98079-137-1	01	1	0710-0710	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98094-483-1	01	1	0710-	●	●
290	02.483 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
290	02.483 NUT; BRKT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0710-		●
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	0710-	●	●
666	02.483 BRACKET; CLIP	8-98100-361-0	01	1	0710-	●	●
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	0710-	●	●
