Sayfa 7-50 - Isuzu EPC

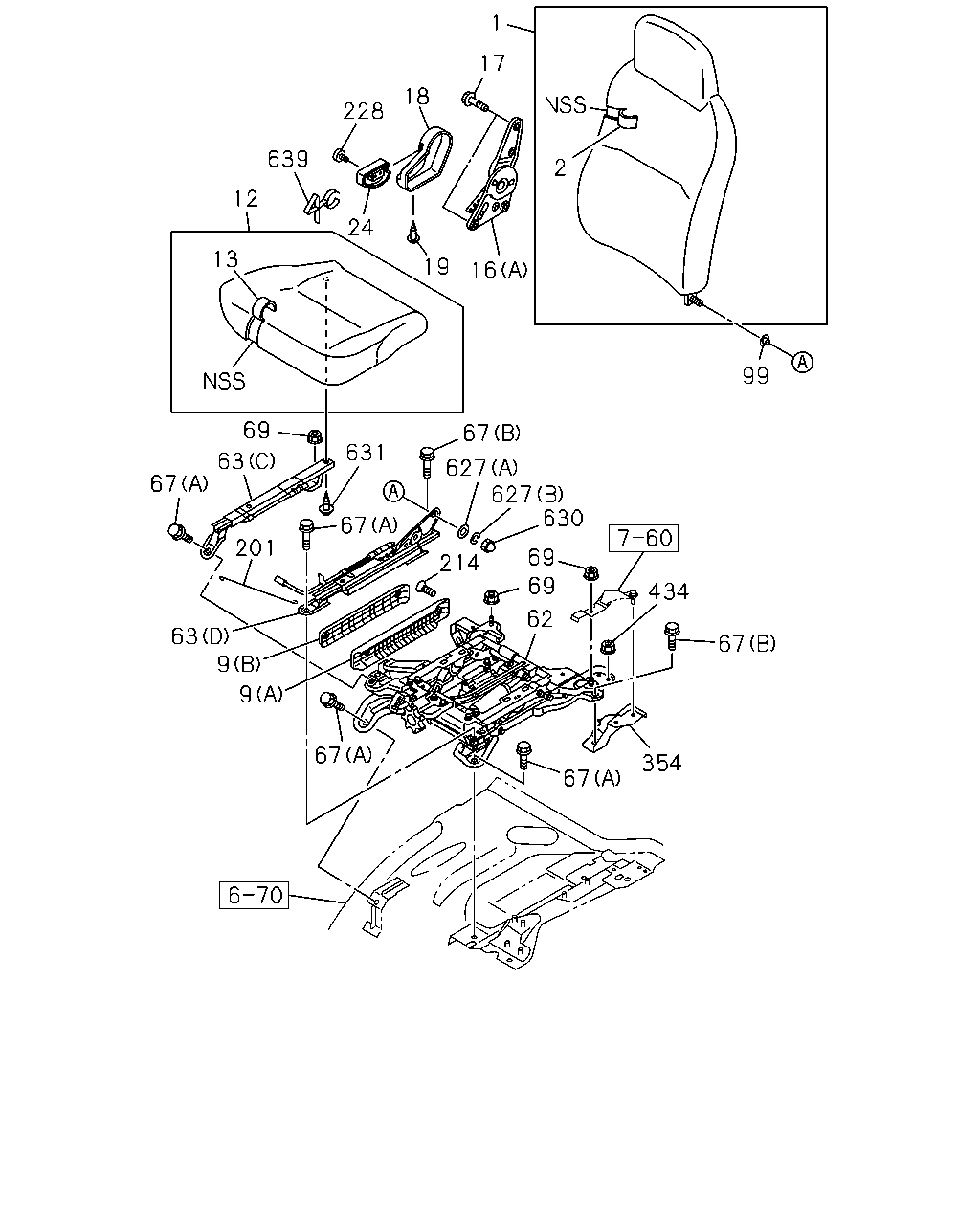

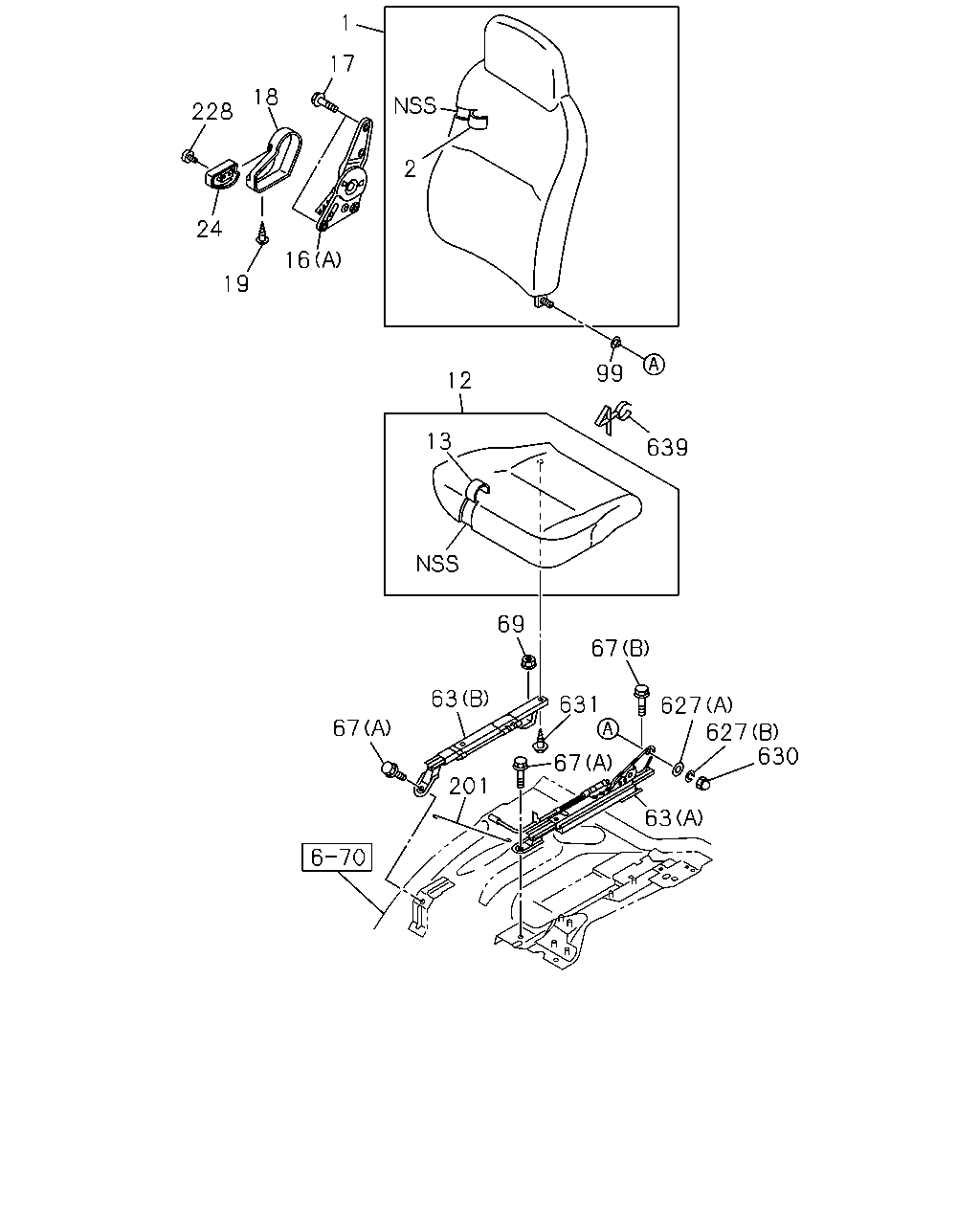

7-50 — FRONT SEAT (#36940) — 527 parça

1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-2	01	1	0710-0803	●
1	16.720 BACK ASM; SEAT EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-145-2	01	1	0710-0803	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-2	01	1	0710-0803		●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-145-3	01	1	0804-0804	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-3	01	1	0804-0804	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-3	01	1	0804-0804		●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-4	01	1	0805-0805	●	●
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-4	01	1	0805-0805	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-145-5	01	1	0806-1009	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-5	01	1	0806-1009	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-5	01	1	0806-1009		●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-235-0	01	1	1010-	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-235-0	01	1	1010-	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-235-0	01	1	1010-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-0	01	1	0710-0803	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-146-0	01	1	0710-0803	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-0	01	1	0710-0803		●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-146-0	01	1	0804-0804	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-0	01	1	0804-0804	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-0	01	1	0804-0804		●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-0	01	1	0805-0805	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-0	01	1	0805-0805	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-146-1	01	1	0806-1009	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-1	01	1	0806-1009	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-1	01	1	0806-1009		●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-254-0	01	1	1010-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-254-0	01	1	1010-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-254-0	01	1	1010-		●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-1	01	1	0710-0803	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-2	01	1	0804-0804	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-3	01	1	0805-0805	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-3	01	1	0806-0902	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-252-1	01	1	0903-1009	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-0	01	1	1010-	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-150-1	01	1	0710-0804	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0710-0804		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-150-1	01	1	0805-0805	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0805-0805		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-150-1	01	1	0806-1009	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0806-1009		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-248-0	01	1	1010-	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-248-0	01	1	1010-		●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-708-0	01	1	0804-0902	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-256-0	01	1	0903-1009	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-245-0	01	1	1010-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-0	01	1	0710-0803	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-1	01	1	0804-0804	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-2	01	1	0805-0805	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-2	01	1	0806-0902	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-260-0	01	1	0903-1009	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-0	01	1	1010-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-151-1	01	1	0710-0804	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0710-0804		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-151-1	01	1	0805-0805	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0805-0805		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-151-1	01	1	0806-1009	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0806-1009		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-268-0	01	1	1010-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-268-0	01	1	1010-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-709-0	01	1	0804-0902	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-264-0	01	1	0903-1009	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-264-0	01	1	1010-	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	0710-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK	8-97859-274-3	01	1	0710-	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-0	01	1	0710-0803	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-0	01	1	0710-0803	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-0	01	1	0710-0803		●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-1	01	1	0804-0804	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0804-0804	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0804-0804		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0805-0805	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0805-0805	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-1	01	1	0806-	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0806-	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0806-		●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0710-0803	●
17	16.682 BOLT; RECLINING EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0710-0803	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0710-0803		●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0804-0804	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0804-0804	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0804-0804		●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0805-0805	●	●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0805-0805	●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0806-	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0806-	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0806-		●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0710-0803	●
18	16.682 COVER; RECLINING EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-332-0	01	1	0710-0803	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0710-0803		●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-332-0	01	1	0804-0804	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0804-0804	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0804-0804		●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0805-0805	●	●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0805-0805	●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-332-0	01	1	0806-	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0806-	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0806-		●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0710-0803	●
19	16.686 SCREW; COVER EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0710-0803	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0710-0803		●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0804-0804	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0804-0804	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0804-0804		●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0805-0805	●	●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0805-0805	●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0806-	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0806-	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0806-		●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0710-0803	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-333-0	01	1	0710-0803	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0710-0803		●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-333-0	01	1	0804-0804	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0804-0804	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0804-0804		●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0805-0805	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0805-0805	●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-333-0	01	1	0806-	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0806-	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0806-		●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-1	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A)	8-97382-800-1	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-1	01	1	0710-0803		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A)	8-97382-800-2	01	1	0804-0804	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0804-0804		●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0805-0805	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A)	8-97382-800-2	01	1	0806-	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0806-		●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-0	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B)	8-97382-801-0	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-0	01	1	0710-0803		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B)	8-97382-801-1	01	1	0804-0804	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0804-0804		●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0805-0805	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B)	8-97382-801-1	01	1	0806-	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0806-		●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D)	8-98114-417-0	01	1	0804-	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C)	8-98114-419-0	01	1	0804-	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0710-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0710-0802	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSPENSION SEAT<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0710-	●	●
69	16.682 NUT; FRT SEAT SUSPENSION SEAT<SA3> M10 FLANGE	8-98055-961-0	02	1	0803-	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98063-219-0	01	1	0710-0803	●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0710-0803	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0710-0803		●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0804-0804	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0804-0804		●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0804-0804	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0805-0805	●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0805-0805	●
99	16.716 BUSHING; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98112-751-0	01	1	0806-	●
99	16.716 BUSHING; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0806-	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0806-		●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-0	01	1	0710-0803	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-0	01	1	0710-0803	●
201	16.682 CABLE; ADJ	8-98003-086-0	01	1	0710-0803		●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0804-0804	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0804-0804		●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0805-0805	●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0806-	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0806-		●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0804-	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0710-0803	●
228	16.714 SCREW; KNOB EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0710-0803	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0710-0803		●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0804-0804	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0804-0804	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0804-0804		●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0805-0805	●	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0805-0805	●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0806-	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0806-	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0806-		●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0710-0803		●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0804-0804		●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0805-0805	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0806-		●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0710-0803		●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0804-0804		●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0805-0805	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0806-		●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0710-0803	●
630	16.682 NUT; CAP EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0710-0803	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0710-0803		●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0804-0804	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0804-0804	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0804-0804		●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0805-0805	●	●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0805-0805	●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0806-	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0806-	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0806-		●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0710-0803		●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804		●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-		●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0710-0803		●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804		●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0710-0804	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0710-0804		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0805-0805	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0805-0805		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0806-	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0806-		●

460 368 361 161 160 141 139 460 16 126 139 139 114 16 361 478 126 368 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	0710-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK	8-97859-274-3	01	1	0710-	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-0	01	1	0710-0803	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-0	01	1	0710-0803	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-0	01	1	0710-0803		●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-1	01	1	0804-0804	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0804-0804	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0804-0804		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0805-0805	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0805-0805	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-1	01	1	0806-	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0806-	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0806-		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-277-1	01	1	0710-1009	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-291-0	01	1	1010-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0710-	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	0710-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97409-334-1	01	1	0710-1009	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97421-305-0	01	1	1010-	●	●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	0710-	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	03	1	0710-0812	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0901-	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0710-	●	●
368	16.682 BOLT; SEAT 16.679 M8X20 W/PL WASHER	8-98031-841-0	02	1	0710-0801	●	●
368	16.682 BOLT; SEAT 16.679 M8X20 W/PL WASHER	8-98031-841-0	01	1	0802-0804	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0802-0804	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0805-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97405-335-4	01	1	0710-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97421-278-0	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97405-338-3	01	1	0710-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97421-299-0	01	1	1010-	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	0710-	●	●

1 17 18 228 639 2 12 24 13 19 16 99 69 67 631 63 627 627 630 67 67 201 69 214 69 434 62 63 9 67 9 67 354 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-2	01	1	0710-0803	●
1	16.720 BACK ASM; SEAT EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-145-2	01	1	0710-0803	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-2	01	1	0710-0803		●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-145-3	01	1	0804-0804	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-3	01	1	0804-0804	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-3	01	1	0804-0804		●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-4	01	1	0805-0805	●	●
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-4	01	1	0805-0805	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-145-5	01	1	0806-1009	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-145-5	01	1	0806-1009	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-5	01	1	0806-1009		●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-235-0	01	1	1010-	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-235-0	01	1	1010-	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-235-0	01	1	1010-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-0	01	1	0710-0803	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-146-0	01	1	0710-0803	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-0	01	1	0710-0803		●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-146-0	01	1	0804-0804	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-0	01	1	0804-0804	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-0	01	1	0804-0804		●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-0	01	1	0805-0805	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-0	01	1	0805-0805	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-146-1	01	1	0806-1009	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-146-1	01	1	0806-1009	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-1	01	1	0806-1009		●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-254-0	01	1	1010-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-254-0	01	1	1010-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-254-0	01	1	1010-		●
9	16.682 COVER; SIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) UPPER GRAY	8-97415-722-0	01	1	0804-	●
9	16.682 COVER; SIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) LOWER GRAY	8-97415-723-0	01	1	0804-	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-1	01	1	0710-0803	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-2	01	1	0804-0804	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-3	01	1	0805-0805	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-147-3	01	1	0806-0902	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-252-1	01	1	0903-1009	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-0	01	1	1010-	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-150-1	01	1	0710-0804	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0710-0804		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-150-1	01	1	0805-0805	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0805-0805		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-150-1	01	1	0806-1009	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0806-1009		●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-248-0	01	1	1010-	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-248-0	01	1	1010-		●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-708-0	01	1	0804-0902	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-256-0	01	1	0903-1009	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-245-0	01	1	1010-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-0	01	1	0710-0803	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-1	01	1	0804-0804	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-2	01	1	0805-0805	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-148-2	01	1	0806-0902	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-260-0	01	1	0903-1009	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-0	01	1	1010-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-151-1	01	1	0710-0804	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0710-0804		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-151-1	01	1	0805-0805	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0805-0805		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97414-151-1	01	1	0806-1009	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0806-1009		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-268-0	01	1	1010-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-268-0	01	1	1010-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-709-0	01	1	0804-0902	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-264-0	01	1	0903-1009	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-264-0	01	1	1010-	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	0710-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK	8-97859-274-3	01	1	0710-	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-0	01	1	0710-0803	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-0	01	1	0710-0803	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-0	01	1	0710-0803		●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-1	01	1	0804-0804	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0804-0804	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0804-0804		●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0805-0805	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0805-0805	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98003-087-1	01	1	0806-	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	0806-	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0806-		●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0710-0803	●
17	16.682 BOLT; RECLINING EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0710-0803	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0710-0803		●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0804-0804	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0804-0804	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0804-0804		●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0805-0805	●	●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0805-0805	●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0806-	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0806-	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0806-		●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0710-0803	●
18	16.682 COVER; RECLINING EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-332-0	01	1	0710-0803	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0710-0803		●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-332-0	01	1	0804-0804	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0804-0804	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0804-0804		●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0805-0805	●	●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0805-0805	●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-332-0	01	1	0806-	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	0806-	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0806-		●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0710-0803	●
19	16.686 SCREW; COVER EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0710-0803	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0710-0803		●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0804-0804	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0804-0804	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0804-0804		●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0805-0805	●	●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0805-0805	●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0806-	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0806-	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0806-		●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0710-0803	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-333-0	01	1	0710-0803	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0710-0803		●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-333-0	01	1	0804-0804	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0804-0804	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0804-0804		●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0805-0805	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0805-0805	●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-333-0	01	1	0806-	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	0806-	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0806-		●
62	16.686 DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97415-702-1	01	1	0804-	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-1	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A)	8-97382-800-1	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-1	01	1	0710-0803		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A)	8-97382-800-2	01	1	0804-0804	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0804-0804		●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0805-0805	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A)	8-97382-800-2	01	1	0806-	●
63	16.682 ADJUSTER; SEAT SLIDE (A)	8-97382-800-2	01	1	0806-		●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-0	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B)	8-97382-801-0	01	1	0710-0803	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-0	01	1	0710-0803		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B)	8-97382-801-1	01	1	0804-0804	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0804-0804		●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0805-0805	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B)	8-97382-801-1	01	1	0806-	●
63	16.682 ADJUSTER; SEAT SLIDE (B)	8-97382-801-1	01	1	0806-		●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D)	8-98114-417-0	01	1	0804-	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C)	8-98114-419-0	01	1	0804-	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0710-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0710-0802	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSPENSION SEAT<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0710-	●	●
69	16.682 NUT; FRT SEAT SUSPENSION SEAT<SA3> M10 FLANGE	8-98055-961-0	02	1	0803-	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98063-219-0	01	1	0710-0803	●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0710-0803	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0710-0803		●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0804-0804	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0804-0804		●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0804-0804	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0805-0805	●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0805-0805	●
99	16.716 BUSHING; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98112-751-0	01	1	0806-	●
99	16.716 BUSHING; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0806-	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0806-		●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-0	01	1	0710-0803	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-0	01	1	0710-0803	●
201	16.682 CABLE; ADJ	8-98003-086-0	01	1	0710-0803		●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0804-0804	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0804-0804		●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0805-0805	●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0806-	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0806-		●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0804-	●
214	16.682 SCREW; SIDE COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98130-276-0	04	1	0809-	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0710-0803	●
228	16.714 SCREW; KNOB EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0710-0803	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0710-0803		●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0804-0804	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0804-0804	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0804-0804		●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0805-0805	●	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0805-0805	●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0806-	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0806-	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0806-		●
354	16.686 BRACKET; SUSPENSION DEVICE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714	8-98090-867-1	01	1	0804-	●
434	16.716 NUT; BRKT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE	8-98055-961-0	01	1	0804-	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0710-0803		●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0804-0804		●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0805-0805	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0806-		●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0710-0803	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0710-0803		●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0804-0804	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0804-0804		●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0805-0805	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0806-	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0806-		●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0710-0803	●
630	16.682 NUT; CAP EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0710-0803	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0710-0803		●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0804-0804	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0804-0804	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0804-0804		●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0805-0805	●	●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0805-0805	●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0806-	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0806-	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0806-		●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0710-0803		●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804		●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-		●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0710-0803	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0710-0803		●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804		●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0710-0804	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0710-0804		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0805-0805	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0805-0805		●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0806-	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0806-		●

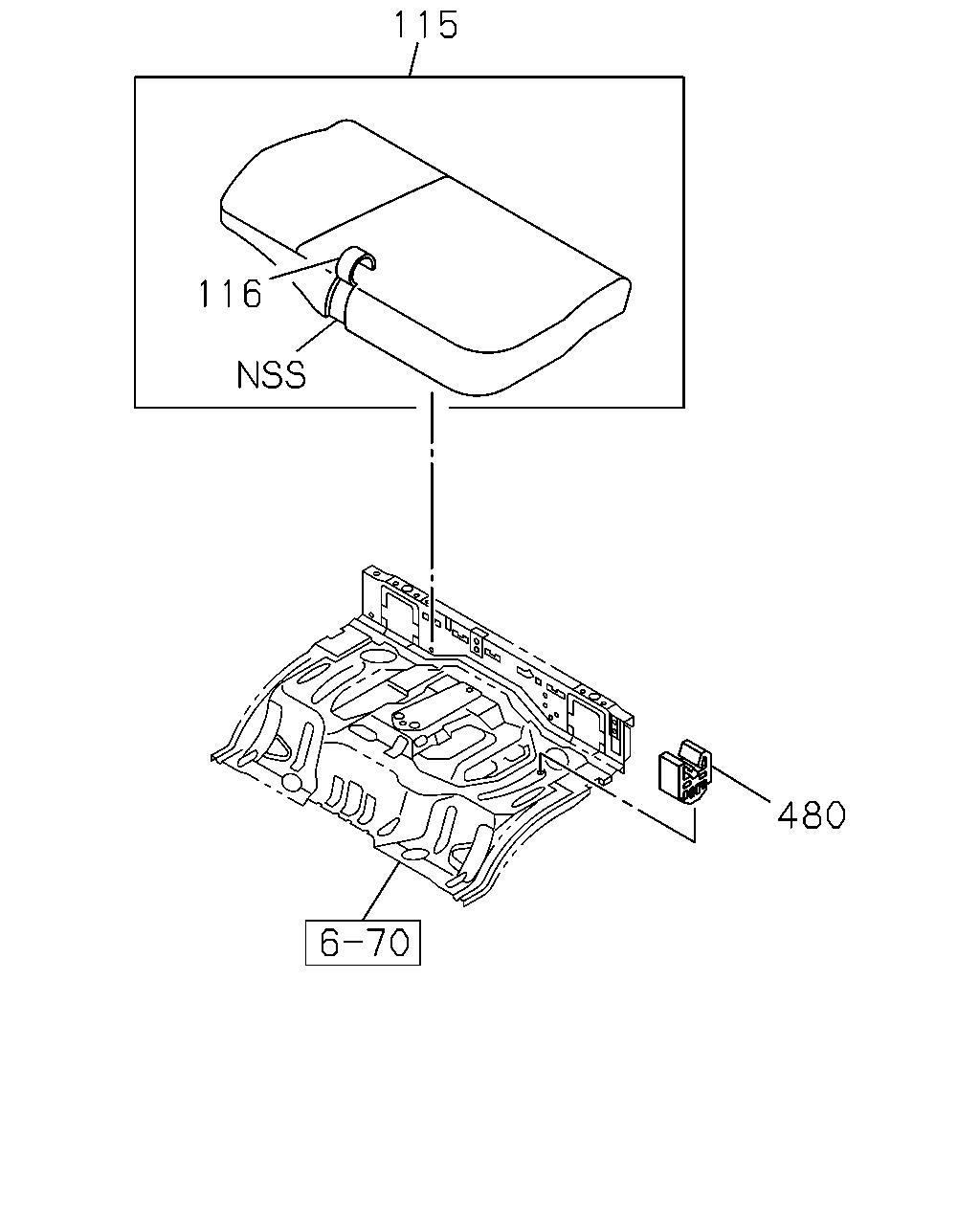

115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-347-3	01	1	0710-0902	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97405-347-3	01	1	0710-0902		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-274-0	01	1	0903-1009	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-274-0	01	1	0903-1009		●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-321-0	01	1	1010-	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-321-0	01	1	1010-		●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-344-4	01	1	0710-0902	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-273-0	01	1	0903-1009	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-319-0	01	1	1010-	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-291-2	01	1	0710-0902	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97409-291-2	01	1	0710-0902		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-289-0	01	1	0903-1009	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97416-289-0	01	1	0903-1009		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-341-0	01	1	1010-	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97421-341-0	01	1	1010-		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-288-2	01	1	0710-0902	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-288-0	01	1	0903-1009	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-339-0	01	1	1010-	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
