0-25 — INLET MANIFOLD (#3694) — 231 parça

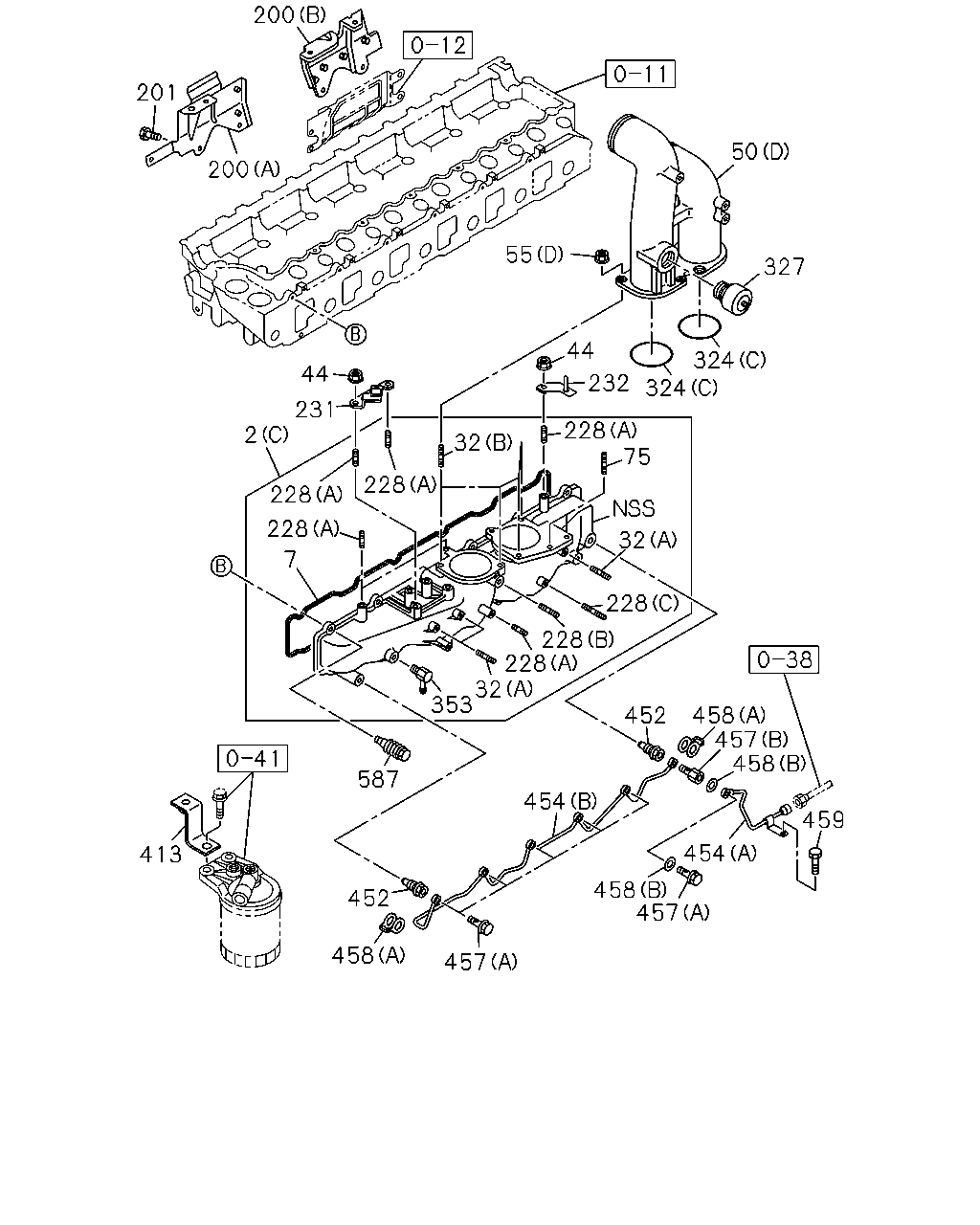

200 201 200 50 55 327 44 324 324 44 232 231 2 228 75 32 228 228 228 32 7 228 228 228 32 353 458 457 458 452 587 454 459 413 454 458 457 452 458 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-899-0	01	1	9505-9512	●
2	COVER; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-899-0	01	1	9601-9605	●
2	COVER; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94395-899-1	01	1	9606-	●
2	COVER; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94395-960-0	01	1	9505-9608	●
2	COVER; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-960-0	01	1	9609-	●
2	COVER; INL (C)	8-94391-466-0	01	1	9703-9705		●
2	COVER; INL (C)	8-94391-107-2	01	1	9706-9706		●
2	COVER; INL (C)	8-94391-891-0	01	1	9707-		●
2	COVER; INL (C)	8-94392-020-0	01	1	9710-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-052-0	01	1	9101-9504				●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9505-9702	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9703-9709	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9710-	●	●	●
32	STUD; INL PIPE (C) M10X20 L=35	9-04411-020-0	02	1	9101-9504				●	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) M8X20 L=32	9-04110-820-0	05	1	9505-9512	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 L=32	9-04110-820-0	05	1	9601-9605	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) M8X20 L=32	9-04110-820-0	05	1	9606-0604	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) M8X20 L=32	0-41010-820-0	05	1	0605-	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) M6X25 L=34	9-04110-625-0	04	1	9505-9512	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M6X25 L=34	9-04110-625-0	04	1	9601-9605	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) M6X25 L=34	9-04110-625-0	04	1	9606-0604	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) M6X25 L=34	0-41010-625-0	04	1	0605-	●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9703-9709		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9710-9805		●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9703-9709		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9806-0604		●	●
32	STUD; INL PIPE (A) M6X30 L=38	0-41010-630-0	03	1	0605-		●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9710-		●	●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	9703-9709		●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	9710-0602		●	●
44	NUT; PIPE BRKT M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
50	PIPE; INL AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-14114-736-1	01	1	9101-9504				●
50	PIPE; INL EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-14114-650-1	01	1	9101-9504				●
50	PIPE; INL (B)	1-14114-650-1	01	1	9101-9504					●
50	PIPE; INL RIGHT HAND DRIVE(LTR5FB) (A)	5-14111-016-1	01	1	9311-9401				●
50	PIPE; INL LEFT HAND DRIVE(LTR6FB) EXC. ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSION REGULATION<TAL> (A)	5-14111-016-1	01	1	9311-9401				●
50	PIPE; INL (A)	5-14111-016-1	01	1	9311-9401					●
50	PIPE; INL (A)	5-14111-016-0	01	1	9101-9310				●	●
50	PIPE; INL LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> (A)	1-14112-515-0	01	1	9311-9401				●
50	PIPE; INL (A)	5-14111-016-1	01	1	9402-9504				●	●
50	PIPE; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94396-214-0	01	1	9505-9608	●
50	PIPE; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C)	8-94396-214-0	01	1	9609-	●
50	PIPE; INL (D)	8-94390-012-1	01	1	9703-9709		●
50	PIPE; INL (D)	8-94390-012-1	01	1	9710-9711		●	●
50	PIPE; INL (D)	8-94390-012-1	01	1	9712-		●
50	PIPE; INL (D)	8-94395-787-1	01	1	9712-			●
55	NUT; INL PIPE (A) M8	9-09110-408-0	03	1	9101-9504				●	●
55	NUT; INL PIPE (B) M10	9-09110-410-0	02	1	9101-9504				●	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) M8 FLANGE	0-91150-108-0	05	1	9505-9512	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE	0-91150-108-0	05	1	9601-9605	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) M8 FLANGE	0-91150-108-0	05	1	9606-0602	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) M8 FLANGE	0-91180-108-0	05	1	0603-	●
55	NUT; INL PIPE (D) M10 FLANGE	0-91150-110-0	04	1	9703-9709		●
55	NUT; INL PIPE (D) M10 FLANGE	0-91150-110-0	04	1	9710-0602		●	●
55	NUT; INL PIPE (D) M10 FLANGE	0-91180-110-0	04	1	0603-		●	●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9703-9709		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	9710-0604		●	●
75	STUD; BRKT,AIR PIPE M10X25 L=40	0-44011-025-0	02	1	0605-		●	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9703-9709		●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	9710-		●	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9703-9709		●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9710-9802		●	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	9804-		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9703-9709		●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	9710-0512		●	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28050-816-0	05	1	0601-		●	●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	9703-9709		●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	9710-0604		●	●
228	STUD; INL COVER (A) M8X16 L=28	0-41010-816-0	06	1	0605-		●	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	9703-9709		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	9710-9805		●	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	9703-9709		●
228	STUD; INL COVER (A) M8X25 L=37	9-04110-825-0	01	1	9806-0604		●	●
228	STUD; INL COVER (A) M8X25 L=37	0-41010-825-0	01	1	0605-		●	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	9710-0604		●	●
228	STUD; INL COVER (C) M8X40 L=52	0-41010-840-0	01	1	0605-		●	●
231	STAY; FUEL PIPE	8-94391-134-0	01	1	9703-9709		●
231	STAY; FUEL PIPE	8-94391-134-0	01	1	9710-		●	●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	9703-9709		●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	9710-		●	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94394-141-0	01	1	9505-9512	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-141-0	01	1	9601-9605	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94394-141-0	01	1	9606-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94399-417-0	01	1	9505-9608	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94399-417-0	01	1	9609-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=62.6	1-09623-505-0	02	1	9703-9709		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=62.6	1-09623-505-0	02	1	9710-		●	●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	9710-			●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	9703-9709		●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	9710-		●	●
413	BRACKET; HARNESS CLIP	1-47475-868-0	01	1	9704-9709		●
413	BRACKET; HARNESS CLIP	1-47475-868-0	01	1	9710-		●	●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	9710-			●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	9710-			●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	9710-			●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	9710-			●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	9710-			●
458	GASKET; AIR PIPE,VSS (B) ID=8.2 OD=13.2	1-09630-082-0	02	1	9710-			●
458	GASKET; AIR PIPE,VSS (A) ID=8.6	8-94395-214-0	06	1	9710-9910			●
458	GASKET; AIR PIPE,VSS (A) ID=8.3	8-97600-925-0	06	1	9911-1301			●
458	GASKET; AIR PIPE,VSS (A)	8-98231-394-0	06	1	1302-			●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	9710-0512			●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	9703-9709		●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	9710-		●	●

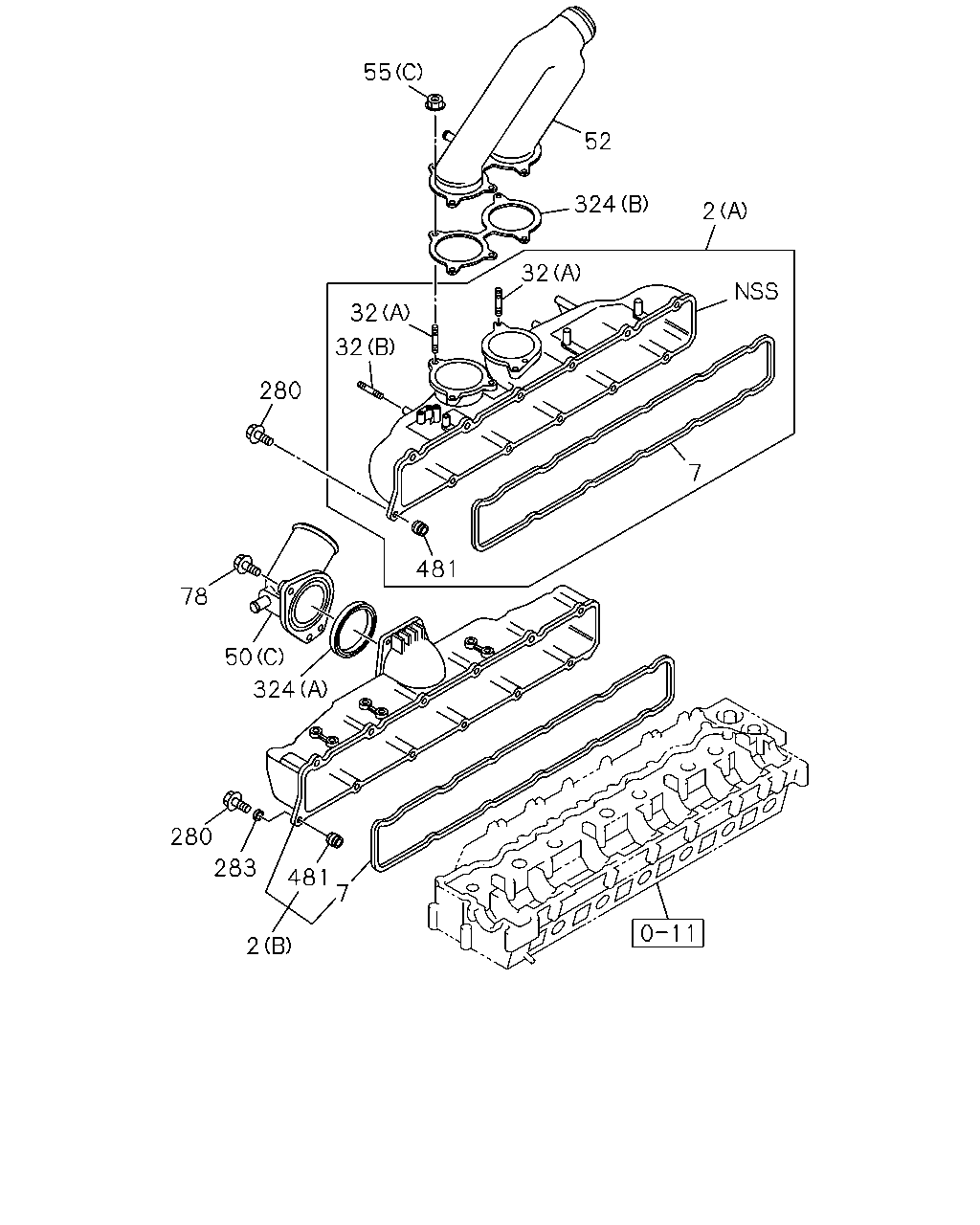

55 52 324 2 32 32 32 280 7 481 78 50 324 280 283 481 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	COVER; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-899-0	01	1	9505-9512	●
2	COVER; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-899-0	01	1	9601-9605	●
2	COVER; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94395-899-1	01	1	9606-	●
2	COVER; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94395-960-0	01	1	9505-9608	●
2	COVER; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94395-960-0	01	1	9609-	●
2	COVER; INL (C)	8-94391-466-0	01	1	9703-9705		●
2	COVER; INL (C)	8-94391-107-2	01	1	9706-9706		●
2	COVER; INL (C)	8-94391-891-0	01	1	9707-		●
2	COVER; INL (C)	8-94392-020-0	01	1	9710-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-052-0	01	1	9101-9504				●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9505-9702	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9703-9709	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9710-	●	●	●
32	STUD; INL PIPE (C) M10X20 L=35	9-04411-020-0	02	1	9101-9504				●	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) M8X20 L=32	9-04110-820-0	05	1	9505-9512	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 L=32	9-04110-820-0	05	1	9601-9605	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) M8X20 L=32	9-04110-820-0	05	1	9606-0604	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) M8X20 L=32	0-41010-820-0	05	1	0605-	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) M6X25 L=34	9-04110-625-0	04	1	9505-9512	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M6X25 L=34	9-04110-625-0	04	1	9601-9605	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) M6X25 L=34	9-04110-625-0	04	1	9606-0604	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) M6X25 L=34	0-41010-625-0	04	1	0605-	●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9703-9709		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9710-9805		●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9703-9709		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9806-0604		●	●
32	STUD; INL PIPE (A) M6X30 L=38	0-41010-630-0	03	1	0605-		●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9710-		●	●
50	PIPE; INL AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-14114-736-1	01	1	9101-9504				●
50	PIPE; INL EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-14114-650-1	01	1	9101-9504				●
50	PIPE; INL (B)	1-14114-650-1	01	1	9101-9504					●
50	PIPE; INL RIGHT HAND DRIVE(LTR5FB) (A)	5-14111-016-1	01	1	9311-9401				●
50	PIPE; INL LEFT HAND DRIVE(LTR6FB) EXC. ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSION REGULATION<TAL> (A)	5-14111-016-1	01	1	9311-9401				●
50	PIPE; INL (A)	5-14111-016-1	01	1	9311-9401					●
50	PIPE; INL (A)	5-14111-016-0	01	1	9101-9310				●	●
50	PIPE; INL LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> (A)	1-14112-515-0	01	1	9311-9401				●
50	PIPE; INL (A)	5-14111-016-1	01	1	9402-9504				●	●
50	PIPE; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94396-214-0	01	1	9505-9608	●
50	PIPE; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C)	8-94396-214-0	01	1	9609-	●
50	PIPE; INL (D)	8-94390-012-1	01	1	9703-9709		●
50	PIPE; INL (D)	8-94390-012-1	01	1	9710-9711		●	●
50	PIPE; INL (D)	8-94390-012-1	01	1	9712-		●
50	PIPE; INL (D)	8-94395-787-1	01	1	9712-			●
52	PIPE; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-143-1	01	1	9505-9512	●
52	PIPE; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94395-143-1	01	1	9601-9605	●
52	PIPE; INL EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>	8-94395-143-1	01	1	9606-	●
55	NUT; INL PIPE (A) M8	9-09110-408-0	03	1	9101-9504				●	●
55	NUT; INL PIPE (B) M10	9-09110-410-0	02	1	9101-9504				●	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) M8 FLANGE	0-91150-108-0	05	1	9505-9512	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE	0-91150-108-0	05	1	9601-9605	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) M8 FLANGE	0-91150-108-0	05	1	9606-0602	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) M8 FLANGE	0-91180-108-0	05	1	0603-	●
55	NUT; INL PIPE (D) M10 FLANGE	0-91150-110-0	04	1	9703-9709		●
55	NUT; INL PIPE (D) M10 FLANGE	0-91150-110-0	04	1	9710-0602		●	●
55	NUT; INL PIPE (D) M10 FLANGE	0-91180-110-0	04	1	0603-		●	●
78	BOLT; INL PIPE TO INL MANIF EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X35 FLANGE	0-28181-035-0	03	1	9505-9608	●
78	BOLT; INL PIPE TO INL MANIF EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> M10X35 FLANGE	0-28181-035-0	03	1	9609-0512	●
78	BOLT; INL PIPE TO INL MANIF EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> M10X35 FLANGE	0-28151-035-0	03	1	0601-	●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	12	1	9505-	●
283	RUBBER EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94397-059-1	12	1	9505-9505	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94394-141-0	01	1	9505-9512	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-94394-141-0	01	1	9601-9605	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B)	8-94394-141-0	01	1	9606-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94399-417-0	01	1	9505-9608	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (A)	8-94399-417-0	01	1	9609-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=62.6	1-09623-505-0	02	1	9703-9709		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=62.6	1-09623-505-0	02	1	9710-		●	●
481	TUBE; DIST,INL COVER EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OD=22	8-94395-684-0	12	1	9505-9505	●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	12	1	9505-	●
481	TUBE; DIST,INL COVER EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94397-058-0	12	1	9505-9505	●

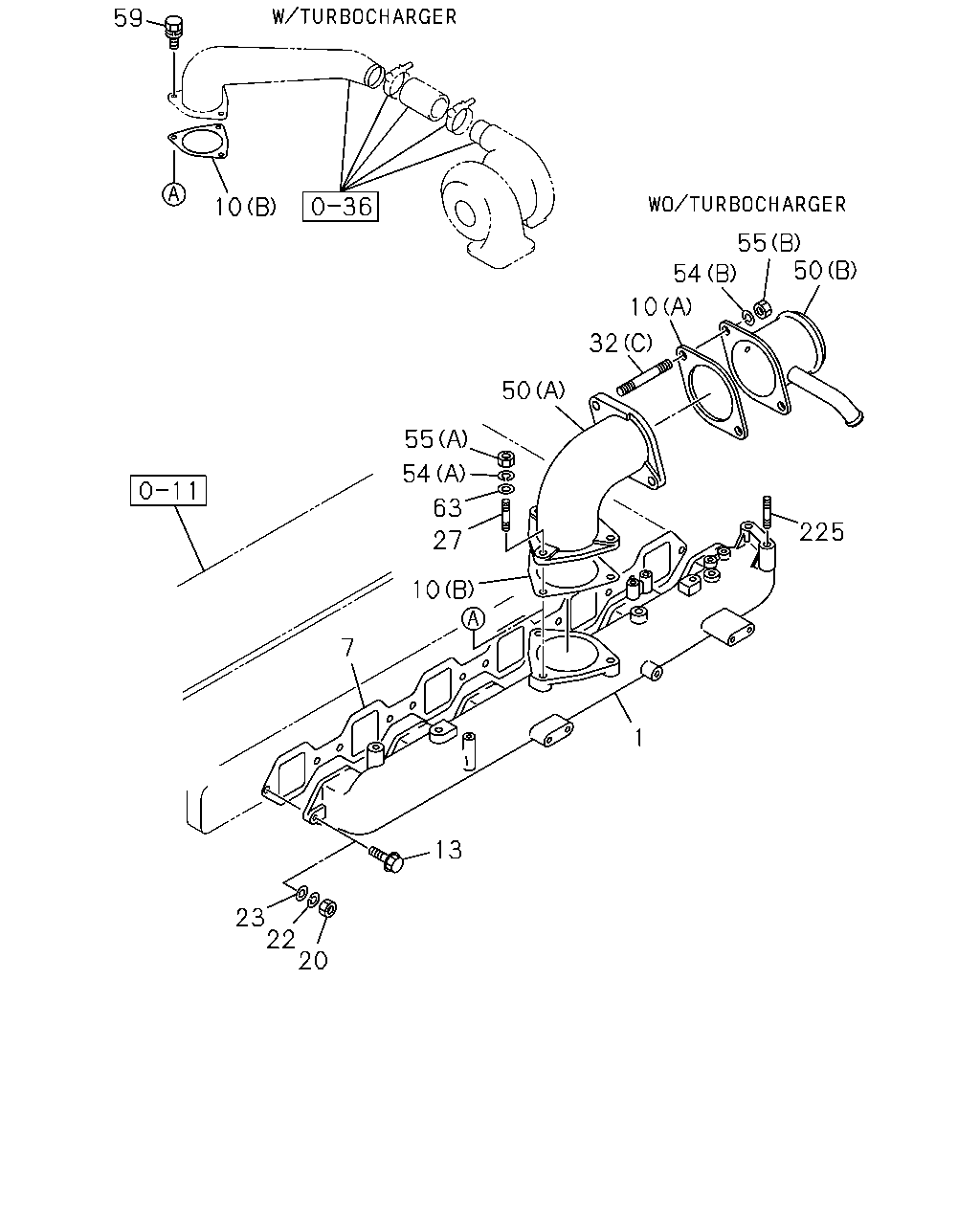

59 10 55 54 50 10 32 50 55 54 63 225 27 10 7 1 13 23 22 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	MANIFOLD; INL	1-14111-900-8	01	1	9101-9504				●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-052-0	01	1	9101-9504				●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9505-9702	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9703-9709	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	9710-	●	●	●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-09637-056-0	01	1	9101-9504				●	●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-14115-054-0	01	1	9101-9504				●	●	●
13	BOLT; INL MANIF M8X28 W/LK&PL WASHER	0-50140-828-0	09	1	9101-9504				●	●	●
20	NUT; INL MANIF M8	9-09110-408-0	03	1	9101-9504				●	●	●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	03	1	9101-9504				●	●	●
23	WASHER; PL,INL MANIF ID=8.4	9-09160-508-0	03	1	9101-9504				●	●	●
27	STUD; INL MANIF M8X28 L=44	9-04010-828-0	03	1	9101-9504				●	●
32	STUD; INL PIPE (C) M10X20 L=35	9-04411-020-0	02	1	9101-9504				●	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (A) M8X20 L=32	9-04110-820-0	05	1	9505-9512	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M8X20 L=32	9-04110-820-0	05	1	9601-9605	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) M8X20 L=32	9-04110-820-0	05	1	9606-0604	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (A) M8X20 L=32	0-41010-820-0	05	1	0605-	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (B) M6X25 L=34	9-04110-625-0	04	1	9505-9512	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M6X25 L=34	9-04110-625-0	04	1	9601-9605	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) M6X25 L=34	9-04110-625-0	04	1	9606-0604	●
32	STUD; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (B) M6X25 L=34	0-41010-625-0	04	1	0605-	●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9703-9709		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9710-9805		●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9703-9709		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	9806-0604		●	●
32	STUD; INL PIPE (A) M6X30 L=38	0-41010-630-0	03	1	0605-		●	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	9710-		●	●
50	PIPE; INL AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-14114-736-1	01	1	9101-9504				●
50	PIPE; INL EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> (B)	1-14114-650-1	01	1	9101-9504				●
50	PIPE; INL (B)	1-14114-650-1	01	1	9101-9504					●
50	PIPE; INL RIGHT HAND DRIVE(LTR5FB) (A)	5-14111-016-1	01	1	9311-9401				●
50	PIPE; INL LEFT HAND DRIVE(LTR6FB) EXC. ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSION REGULATION<TAL> (A)	5-14111-016-1	01	1	9311-9401				●
50	PIPE; INL (A)	5-14111-016-1	01	1	9311-9401					●
50	PIPE; INL (A)	5-14111-016-0	01	1	9101-9310				●	●
50	PIPE; INL LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> (A)	1-14112-515-0	01	1	9311-9401				●
50	PIPE; INL (A)	5-14111-016-1	01	1	9402-9504				●	●
50	PIPE; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C)	8-94396-214-0	01	1	9505-9608	●
50	PIPE; INL EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C)	8-94396-214-0	01	1	9609-	●
50	PIPE; INL (D)	8-94390-012-1	01	1	9703-9709		●
50	PIPE; INL (D)	8-94390-012-1	01	1	9710-9711		●	●
50	PIPE; INL (D)	8-94390-012-1	01	1	9712-		●
50	PIPE; INL (D)	8-94395-787-1	01	1	9712-			●
54	WASHER; LK,INL PIPE (A) ID=8.2	9-09150-508-0	03	1	9101-9504				●	●
54	WASHER; LK,INL PIPE (B) ID=10.2	9-09150-510-0	02	1	9101-9504				●	●
55	NUT; INL PIPE (A) M8	9-09110-408-0	03	1	9101-9504				●	●
55	NUT; INL PIPE (B) M10	9-09110-410-0	02	1	9101-9504				●	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) M8 FLANGE	0-91150-108-0	05	1	9505-9512	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE	0-91150-108-0	05	1	9601-9605	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) M8 FLANGE	0-91150-108-0	05	1	9606-0602	●
55	NUT; INL PIPE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) M8 FLANGE	0-91180-108-0	05	1	0603-	●
55	NUT; INL PIPE (D) M10 FLANGE	0-91150-110-0	04	1	9703-9709		●
55	NUT; INL PIPE (D) M10 FLANGE	0-91150-110-0	04	1	9710-0602		●	●
55	NUT; INL PIPE (D) M10 FLANGE	0-91180-110-0	04	1	0603-		●	●
59	BOLT; INL PIPE TO MANIF M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	9101-9504						●
63	WASHER; PL,INL PIPE ID=8.4	9-09160-508-0	03	1	9101-9504				●	●
225	STUD; FUEL FILTER M10X80 L=95	9-04411-080-0	02	1	9101-9504				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
