◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51410 - NPS(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#36935) — 18 parça

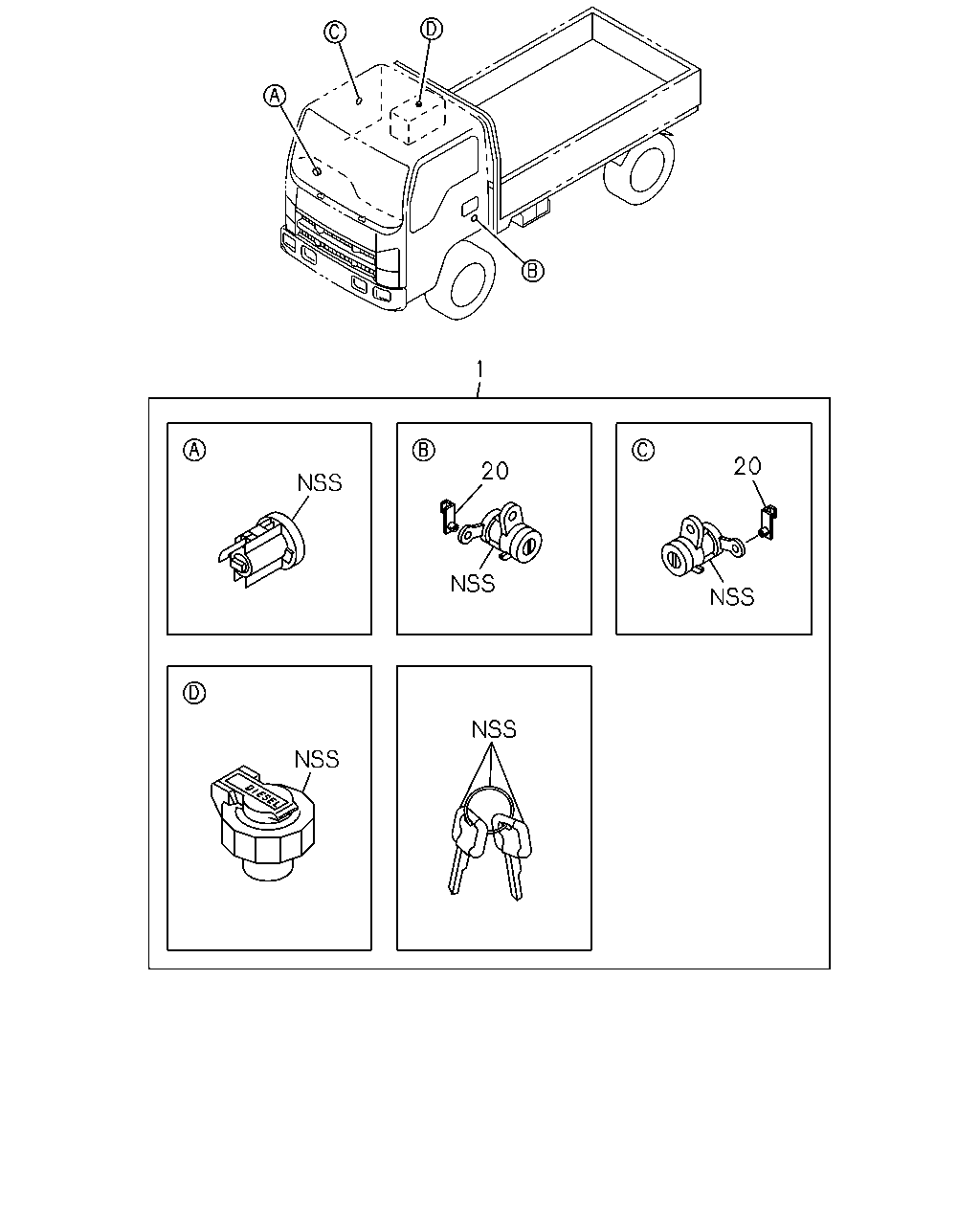

çizim 35748
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.188 CYLINDER SET; CAR LOCK 8-98029-406-1 01 1 0710-0804 ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-98088-949-0 01 1 0805-0912 ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-98145-977-0 01 1 1001-1202 ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1203- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710- ● ●

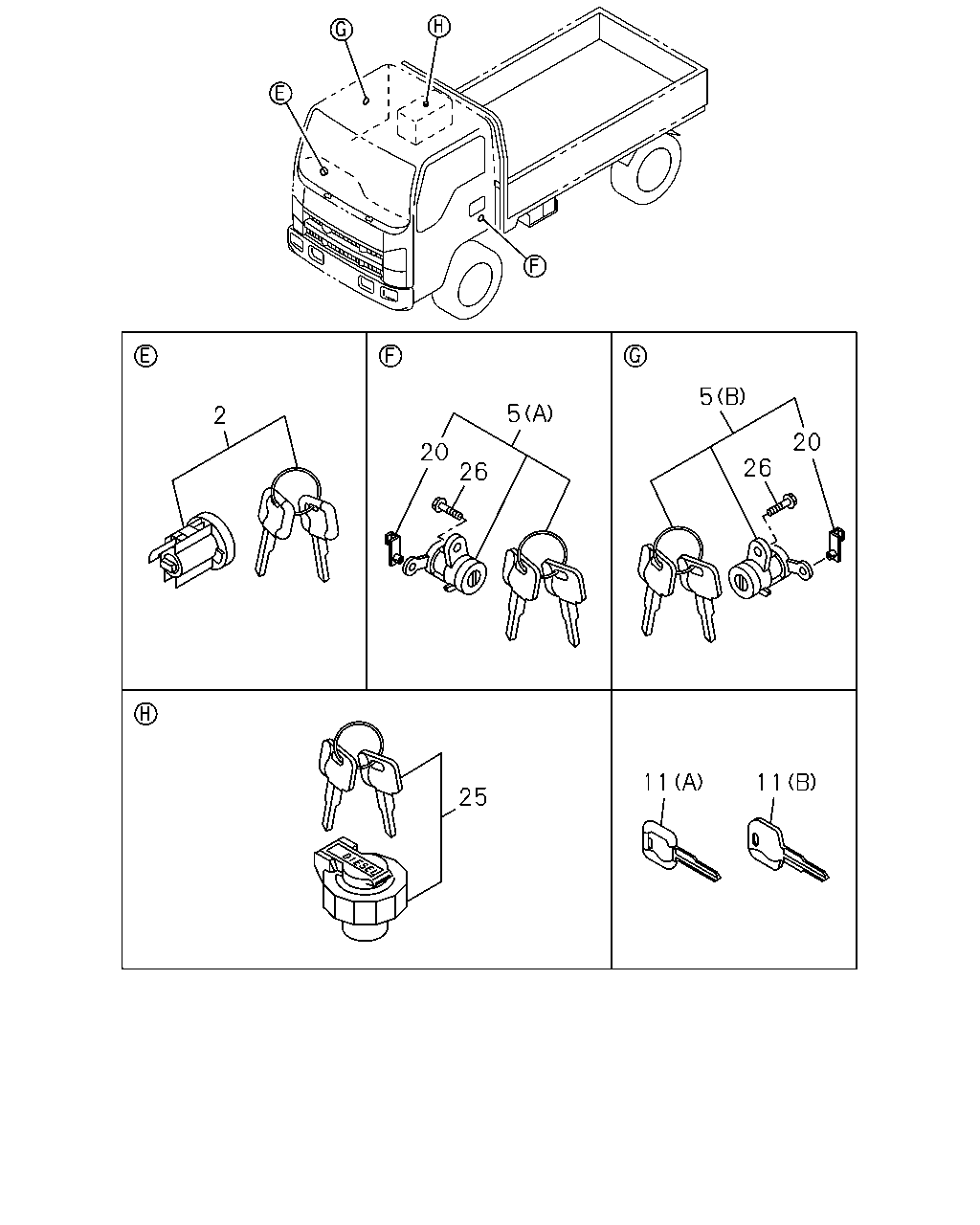

çizim 35749
5 5 2 20 20 26 26 11 11 25
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-147-0 01 1 0710-1202 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1203- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0710- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0710- ● ●
11 02.187 KEY; BLANK
(A) IMMOBILIZER 		8-98055-168-0 AR 1 0710- ● ●
11 02.187 KEY; BLANK
(B) 		8-98055-170-0 AR 1 0710- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0710- ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0710- ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98033-157-0 01 1 0710-0804 ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98088-982-0 01 1 0805-0912 ● ●
25 03.028 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1001- ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0710- ● ●
