Isuzu WW
▶
TRUCKS
▶
NPS
▶
51410 - NPS(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

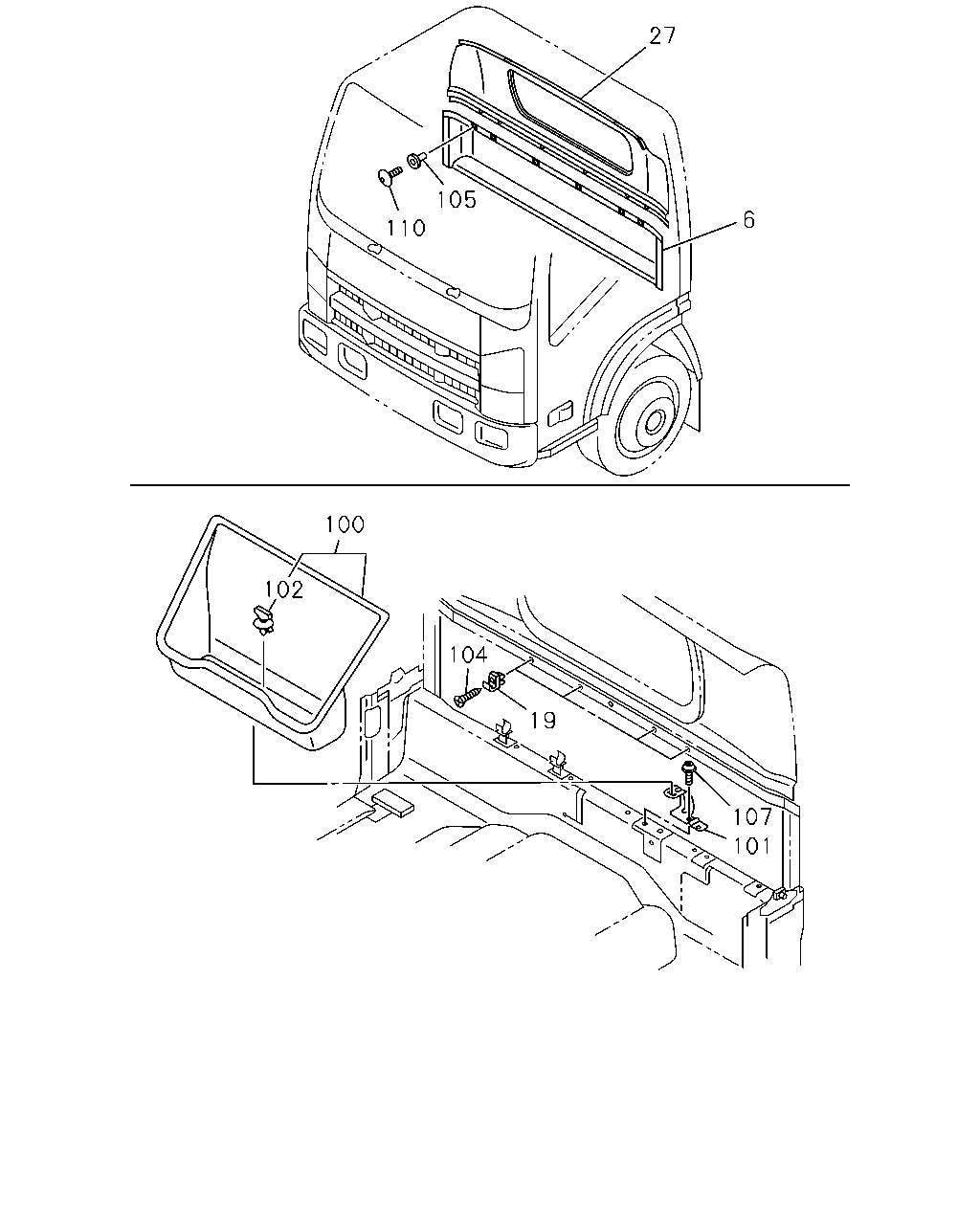

6-84 — BACK TRIM
(#36930) — 12 parça
27
105
6
110
100
102
104
19
107
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY
8-97405-290-3
01
1
0710-
6
16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY
8-97405-289-3
01
1
0710-
19
16.165 HOOK; RET
GRAY
8-97406-042-0
04
1
0710-
27
16.587 COVER; TRIM,BACK
DARK GRAY
8-97405-293-3
01
1
0710-0902
27
16.587 COVER; TRIM,BACK
DARK GRAY
8-97417-129-1
01
1
0903-
100
16.587 TRAY; BACK PANEL
GRAY
8-97405-174-1
01
1
0710-
101
17.225 BRACKET; TRAY,BACK PANEL
8-98029-438-1
01
1
0710-
102
16.584 CLIP; TRAY,BACK PANEL
GRAY
8-97406-996-0
01
1
0811-
104
17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
04
1
0710-
105
16.166 CLIP; BACK TRIM
16.587
8-98033-680-0
02
1
0710-
107
16.588 SCREW; BRKT
16.570 M6X16
0-38050-616-0
01
1
0710-
110
16.587 CLIP; TRIM COVER
16.166 GRAY
8-97406-433-0
02
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
