◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#3693) — 135 parça

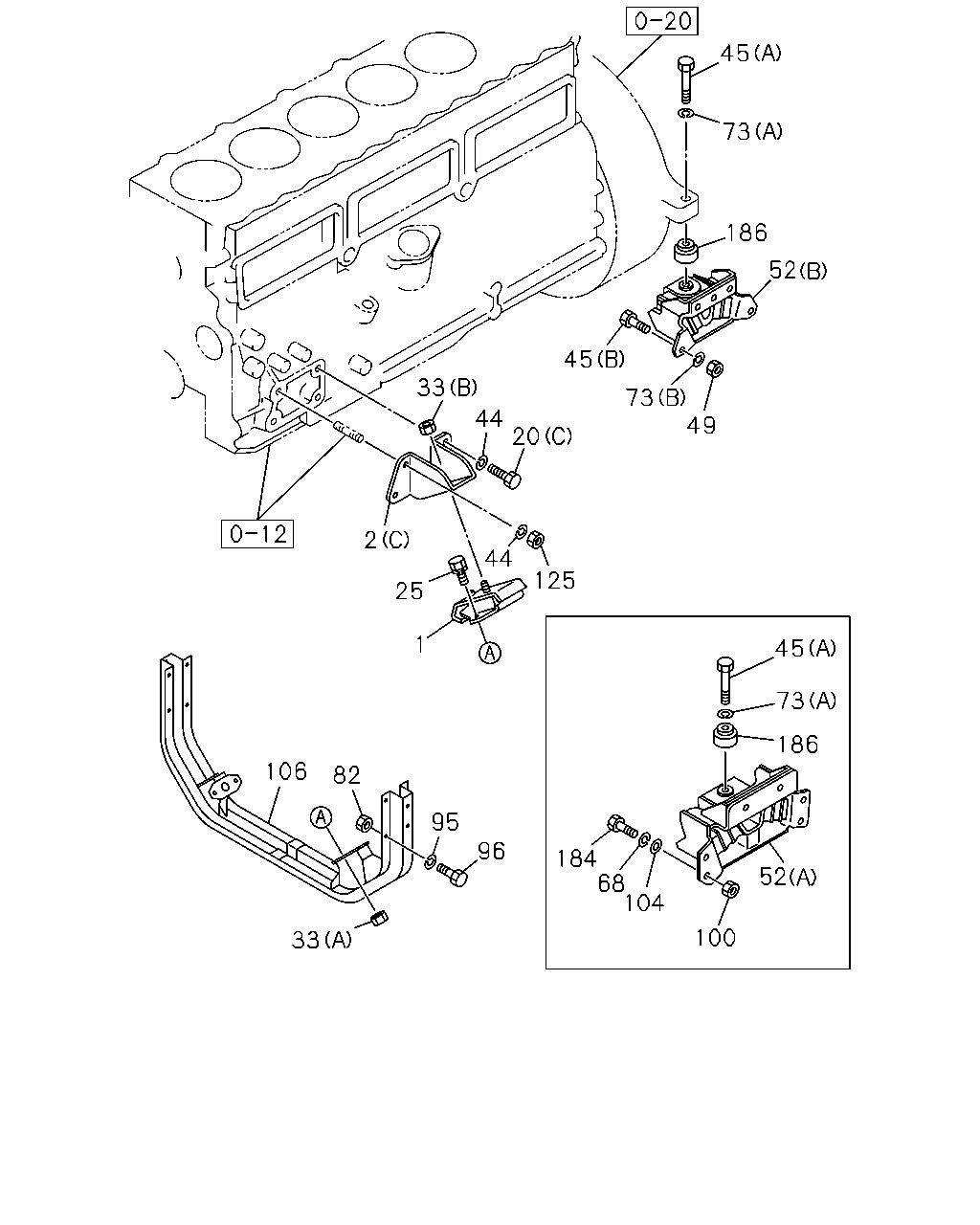

çizim 36812
45 73 186 45 33 73 49 44 20 2 44 125 25 1 45 73 186 106 82 95 96 184 68 104 100 33 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53215-046-0 02 1 9101-9504 ● ● ●
1 RUBBER; ENG FOOT,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53215-048-0 02 1 9101-9504 ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9505- ● ● ●
2 FOOT; ENG
(C) 		1-11771-157-1 01 1 9101-9504 ● ● ●
2 FOOT; ENG
(C) 		1-11771-156-1 01 1 9101-9504 ● ● ●
2 FOOT; ENG
(A) FRONT 		8-94393-491-0 02 1 9505-9702 ●
2 FOOT; ENG
(A) FRONT 		8-94393-491-0 02 1 9703-9709 ● ●
2 FOOT; ENG
(A) FRONT 		8-94393-491-1 02 1 9710- ● ● ●
2 FOOT; ENG
(B) REAR 		8-94395-570-0 02 1 9505-9702 ●
2 FOOT; ENG
(B) REAR 		8-94395-570-0 02 1 9703-9709 ● ●
2 FOOT; ENG
(B) REAR 		8-94395-570-0 02 1 9710- ● ● ●
20 BOLT; ENG FOOT
(C) M10X22 		9-02061-022-0 07 1 9101-9504 ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9505-9702 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9703-9709 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9710- ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9505-9702 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9703-9709 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9710- ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9101-9504 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X30 FLANGE 		0-28081-230-0 04 1 9505-9606 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 9607-0512 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(A) M10 		9-09110-410-0 04 1 9101-9307 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(A) M10 		9-09110-410-0 04 1 9308-9504 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9505-0602 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 9101-9307 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 9308-9504 ● ● ●
44 WASHER; LK,ENG FOOT
ID=10.2 		9-09150-510-0 08 1 9101-9504 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
(A) M18X100 		0-16806-800-0 02 1 9101-9504 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X55 		9-91066-255-0 04 1 9101-9504 ● ● ●
45 BOLT; CUSHION RUBBER TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X35 		9-92061-235-0 04 1 9101-9504 ● ● ●
49 NUT; CUSHION RUBBER TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 08 1 9101-9504 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53225-157-1 02 1 9101-9504 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-279-4 01 1 9505-1302 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-313-1 01 1 1303- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-53225-145-1 02 1 9101-9504 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-280-4 01 1 9505-1302 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-314-1 01 1 1303- ● ● ●
68 WASHER; LK,CUSHION RUBBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=14.2 		9-09150-614-0 12 1 9101-9504 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
(A) ID=18.2 		9-09150-518-0 02 1 9101-9504 ● ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=12.2 		9-09150-612-0 08 1 9101-9504 ● ● ●
82 NUT; BRKT
M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
95 WASHER; LK,BRKT
ID=10.2 		9-09150-610-0 08 1 9101-9504 ● ● ●
96 BOLT; BRKT
M10X25 		9-02061-025-0 08 1 9101-9504 ● ●
96 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 		9-02061-025-0 08 1 9101-9504 ●
96 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 		9-02061-025-0 07 1 9101-9504 ●
96 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X30 		9-02061-030-0 01 1 9101-9504 ●
100 NUT; CUSHION RUBBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 		9-99110-514-0 12 1 9101-9504 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9505-0602 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
104 WASHER; PL,CUSHION RUBBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=15 		9-09651-069-0 12 1 9101-9504 ● ● ●
106 MEMBER; MTG,RR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53211-065-2 01 1 9101-9504 ● ●
106 MEMBER; MTG,RR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-53211-171-1 01 1 9101-9504 ● ● ●
106 MEMBER; MTG,RR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-53211-141-2 01 1 9101-9504 ● ● ●
106 MEMBER; MTG,RR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53211-115-0 01 1 9101-9504 ●
106 MEMBER; MTG,RR 1-53221-189-1 01 1 9505- ● ● ●
125 NUT; ENG FOOT
M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
184 BOLT; CUSHION RUBBER,RR,UPR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X90 		9-91066-490-0 06 1 9101-9504 ● ● ●
184 BOLT; CUSHION RUBBER,RR,UPR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14X50 		9-91061-450-0 06 1 9101-9504 ● ● ●
186 PIECE; DIST,ENG MTG 1-09509-031-0 02 1 9101-9504 ● ● ●
çizim 36875
48 47 27 29 2 46 2 20 1 52 25 112 20 19 106 257 287 257 287 258 99 258 99 100 112 172 112 33 288
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RUBBER; ENG FOOT,FRT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53215-046-0 02 1 9101-9504 ● ● ●
1 RUBBER; ENG FOOT,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53215-048-0 02 1 9101-9504 ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9505- ● ● ●
2 FOOT; ENG
(C) 		1-11771-157-1 01 1 9101-9504 ● ● ●
2 FOOT; ENG
(C) 		1-11771-156-1 01 1 9101-9504 ● ● ●
2 FOOT; ENG
(A) FRONT 		8-94393-491-0 02 1 9505-9702 ●
2 FOOT; ENG
(A) FRONT 		8-94393-491-0 02 1 9703-9709 ● ●
2 FOOT; ENG
(A) FRONT 		8-94393-491-1 02 1 9710- ● ● ●
2 FOOT; ENG
(B) REAR 		8-94395-570-0 02 1 9505-9702 ●
2 FOOT; ENG
(B) REAR 		8-94395-570-0 02 1 9703-9709 ● ●
2 FOOT; ENG
(B) REAR 		8-94395-570-0 02 1 9710- ● ● ●
19 MEMBER; ENG MTG CROSS 1-53211-225-2 01 1 9505- ● ● ●
20 BOLT; ENG FOOT
(C) M10X22 		9-02061-022-0 07 1 9101-9504 ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9505-9702 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9703-9709 ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9710- ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9505-9702 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9703-9709 ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9710- ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		0-50041-028-0 04 1 9101-9504 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X30 FLANGE 		0-28081-230-0 04 1 9505-9606 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 9607-0512 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9505-9606 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9505- ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(A) M10 		9-09110-410-0 04 1 9101-9307 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(A) M10 		9-09110-410-0 04 1 9308-9504 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 9505-0602 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 9101-9307 ● ● ●
33 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 9308-9504 ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0706- ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9505-0603 ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		0-91510-616-0 02 1 0604-0705 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9505-0512 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53225-157-1 02 1 9101-9504 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-279-4 01 1 9505-1302 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-313-1 01 1 1303- ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-53225-145-1 02 1 9101-9504 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-280-4 01 1 9505-1302 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR
(C) 		1-53225-314-1 01 1 1303- ● ● ●
99 BOLT; LWR BRKT RR
M10X25 		9-02061-025-0 08 1 9505-9606 ● ● ●
99 BOLT; LWR BRKT RR
M10X25 FLANGE 		0-28691-025-0 08 1 9607-0512 ● ● ●
99 BOLT; LWR BRKT RR
M10X25 FLANGE 		0-28661-025-0 08 1 0601- ● ● ●
100 NUT; CUSHION RUBBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M14 		9-99110-514-0 12 1 9101-9504 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9505-0602 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ●
106 MEMBER; MTG,RR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53211-065-2 01 1 9101-9504 ● ●
106 MEMBER; MTG,RR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-53211-171-1 01 1 9101-9504 ● ● ●
106 MEMBER; MTG,RR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-53211-141-2 01 1 9101-9504 ● ● ●
106 MEMBER; MTG,RR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-53211-115-0 01 1 9101-9504 ●
106 MEMBER; MTG,RR 1-53221-189-1 01 1 9505- ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9505- ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9505-9510 ●
112 PROTECTOR; HEAT
EXC. THAILAND EQUIPMENT<PM9> (B) 		1-53219-638-0 01 1 9601-0104 ●
112 PROTECTOR; HEAT
EXC. THAILAND EQUIPMENT<PM9> (C) 		1-53239-107-1 01 1 0105-0203 ●
112 PROTECTOR; HEAT
(C) 		1-53239-107-1 01 1 0204- ●
172 BOLT; HEAT PROTECTOR
EXC. THAILAND EQUIPMENT<PM9> M8X20 FLANGE 		0-28680-820-0 02 1 0105-0203 ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 0204-0512 ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
257 NUT; MEMBER
M10 		9-09110-510-0 08 1 9505-9606 ● ● ●
257 NUT; MEMBER
M10 FLANGE 		0-91150-210-0 08 1 9607-0602 ● ● ●
257 NUT; MEMBER
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ●
257 NUT; MEMBER
M12 		9-99110-512-0 08 1 9505-9606 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 9607-0602 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
258 WASHER; LK,MEMBER
ID=10.2 		9-09150-610-0 08 1 9505-9606 ●
287 BOLT; MEMBER
M12X35 FLANGE 		0-28081-235-0 08 1 9505-9606 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 9607-0512 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ● ●
288 NUT; HEAT PROTECTOR
EXC. THAILAND EQUIPMENT<PM9> M12 FLANGE 		0-91150-212-0 02 1 9608-0104 ●
