6-80 — BACK PANEL (#36928) — 66 parça

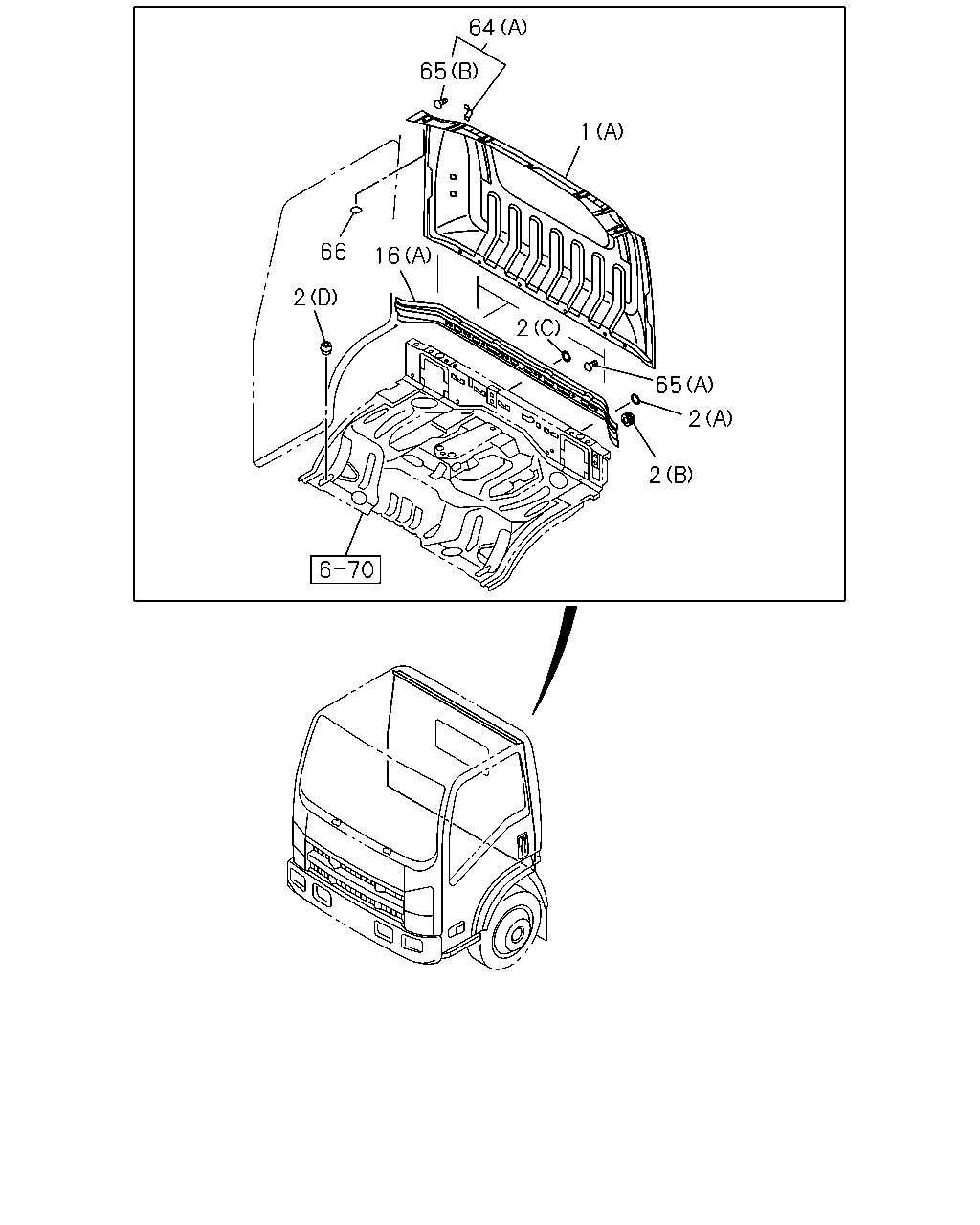

çizim 35644
64 65 1 66 16 2 2 65 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 0710- ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0710- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-0710 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (F) OD=16.2 		8-94492-493-0 02 1 0710-0908 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (F) OD=15.0 		8-94279-040-0 02 1 0909- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1110- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0710- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 0710- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 0710- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0710- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0710- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0710- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0710-1001 ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0710- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 0710- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●

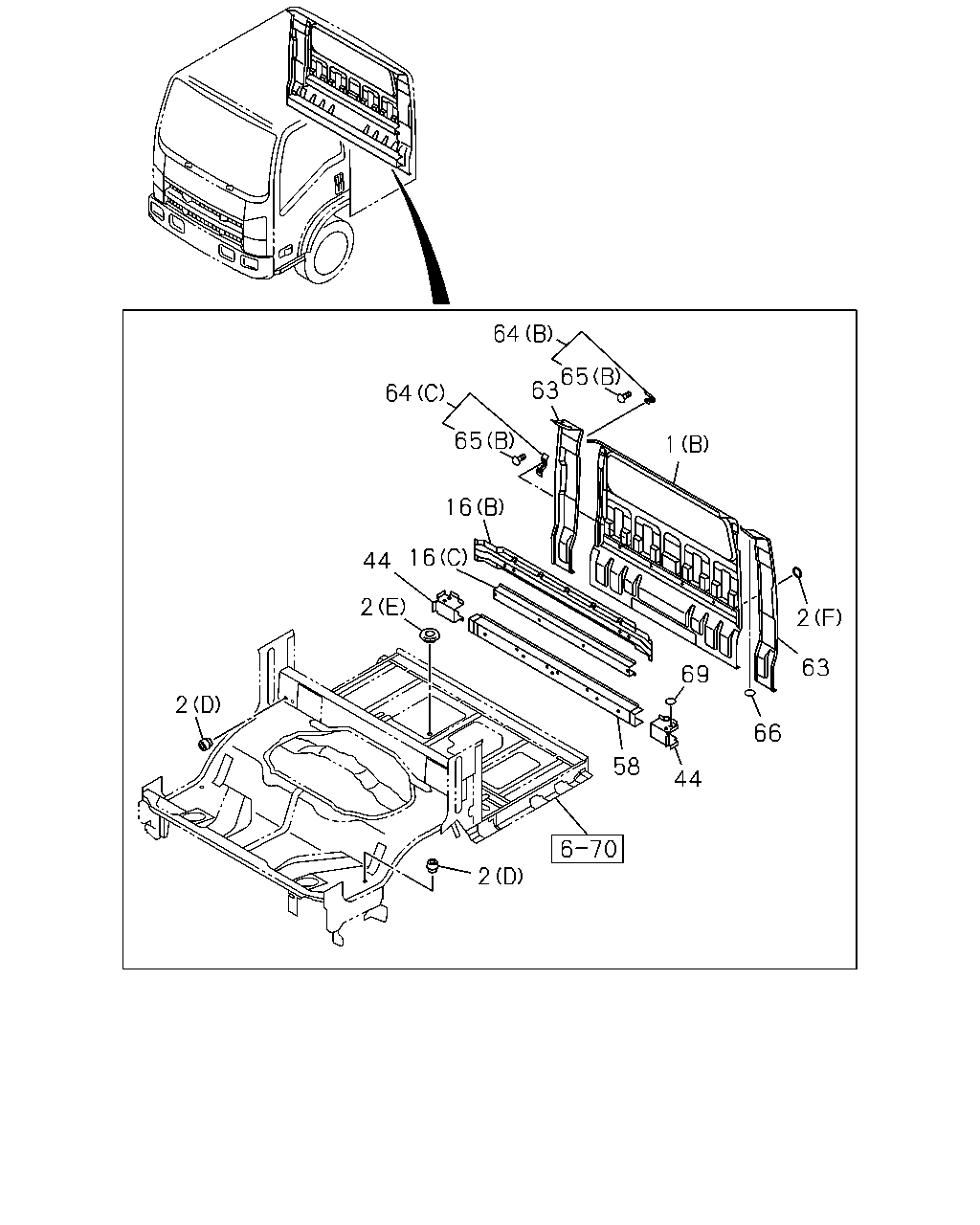

çizim 35671
64 65 63 64 65 1 16 16 44 2 2 63 69 2 66 58 44 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 0710- ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0710- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0710- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-0710 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (F) OD=16.2 		8-94492-493-0 02 1 0710-0908 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (F) OD=15.0 		8-94279-040-0 02 1 0909- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1110- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0710- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 0710- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 0710- ●
44 16.587 BRACKET; RR SEAT ANCHOR
16.714 		8-98055-947-0 01 1 0801- ●
44 16.587 BRACKET; RR SEAT ANCHOR
16.714 		8-98055-949-0 01 1 0801- ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR 8-98006-720-0 01 1 0710- ●
63 16.575 PANEL; BACK,SIDE 8-97583-750-6 01 1 0710- ●
63 16.575 PANEL; BACK,SIDE 8-97583-751-5 01 1 0710- ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0710- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0710- ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0710- ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0710-1001 ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0710- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 0710- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
69 16.587 SEAL; LOCATION HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710- ●

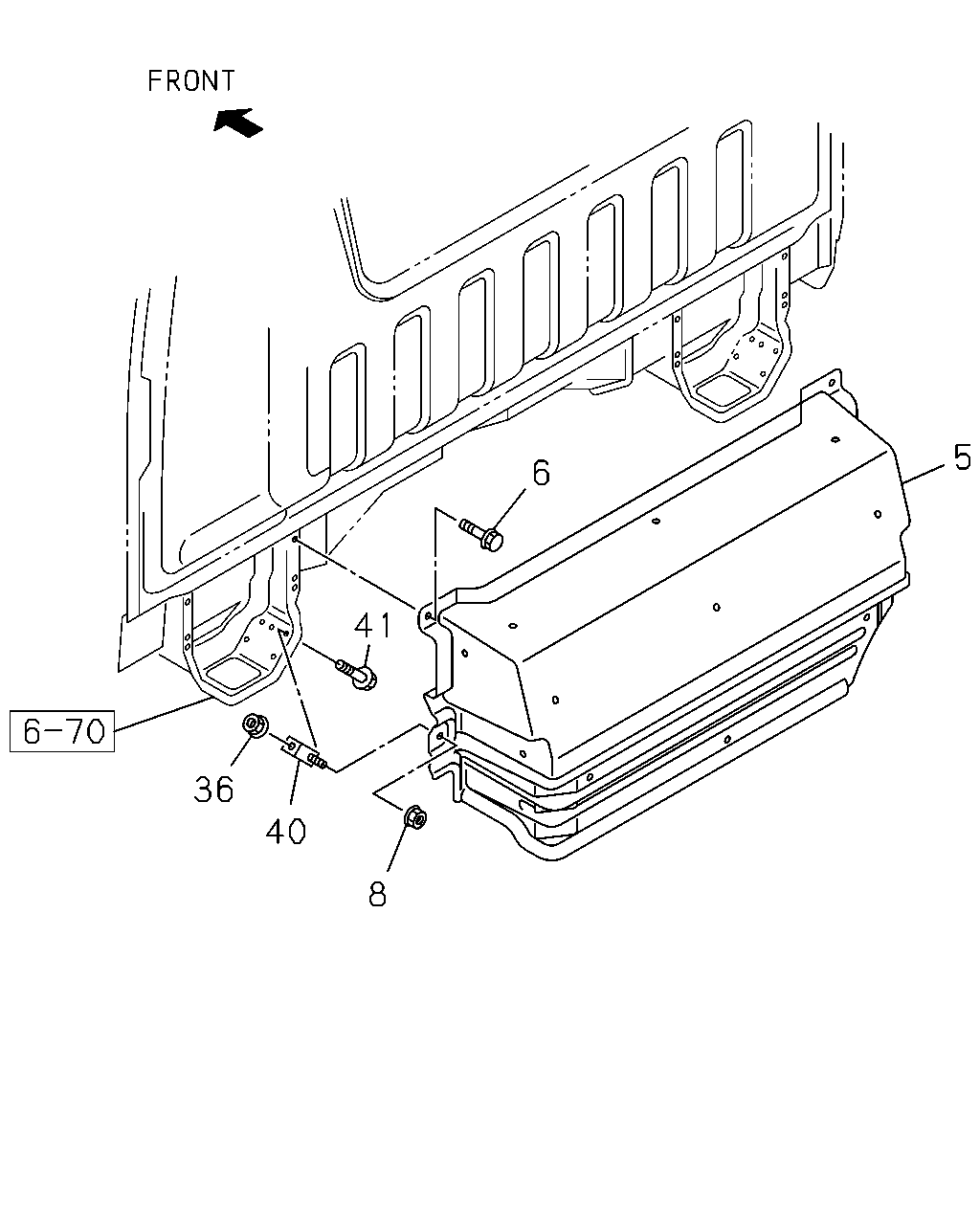

çizim 35722
5 6 41 36 40 8
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.587 PANEL; CAB BACK 8-98011-595-0 01 1 0710- ●
6 16.587 BOLT; BACK PANEL
08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0710- ●
8 16.587 NUT; BACK PANEL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710- ●
36 16.587 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
40 16.587 BRACKET; BACK PANEL 8-97322-264-0 02 1 0710- ●
41 16.587 BOLT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
