7-40 — INSTRUMENT PANEL AND BOX (#36912) — 155 parça

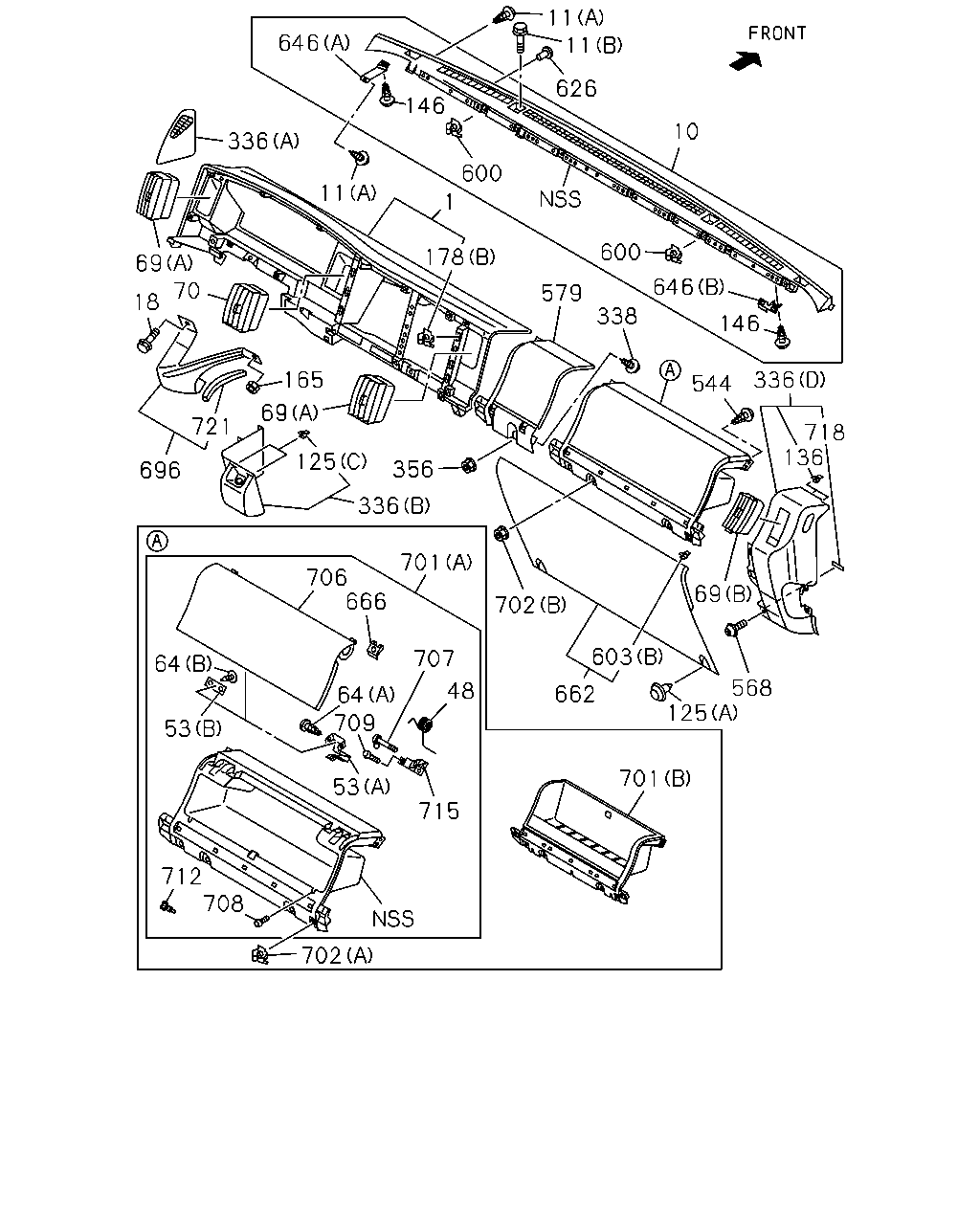

çizim 111489
646 146 626 11 11 10 600 600 146 646 336 544 338 579 178 11 1 336 69 165 69 356 336 125 721 696 70 18 718 136 69 568 125 662 702 603 701 701 702 715 708 712 53 48 707 64 709 53 64 706 666
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0809-
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0809-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0809-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0809-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0809-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0809-1011
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0809-1011
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0809-1011
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0809-1011
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0809-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0809-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0809-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0809-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0809-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0809-
136 CLIP; INST COVER 8-98076-254-0 02 1 0809-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0809-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0809-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0809-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0809-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0809-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0809-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0809-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0809-
600 NUT; PANEL 8-98037-629-0 02 1 0809-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0809-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0809-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0809-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0809-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0809-
666 INSERT; INST PANEL 8-98038-450-0 04 1 0809-1011
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1012-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 0809-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 0809-1011
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1012-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1012-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0809-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0809-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0809-1011
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0809-1011
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0809-1011
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0809-1011
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0809-1011
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0809-1011
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0809-1011
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
4X35 		8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0809-1109

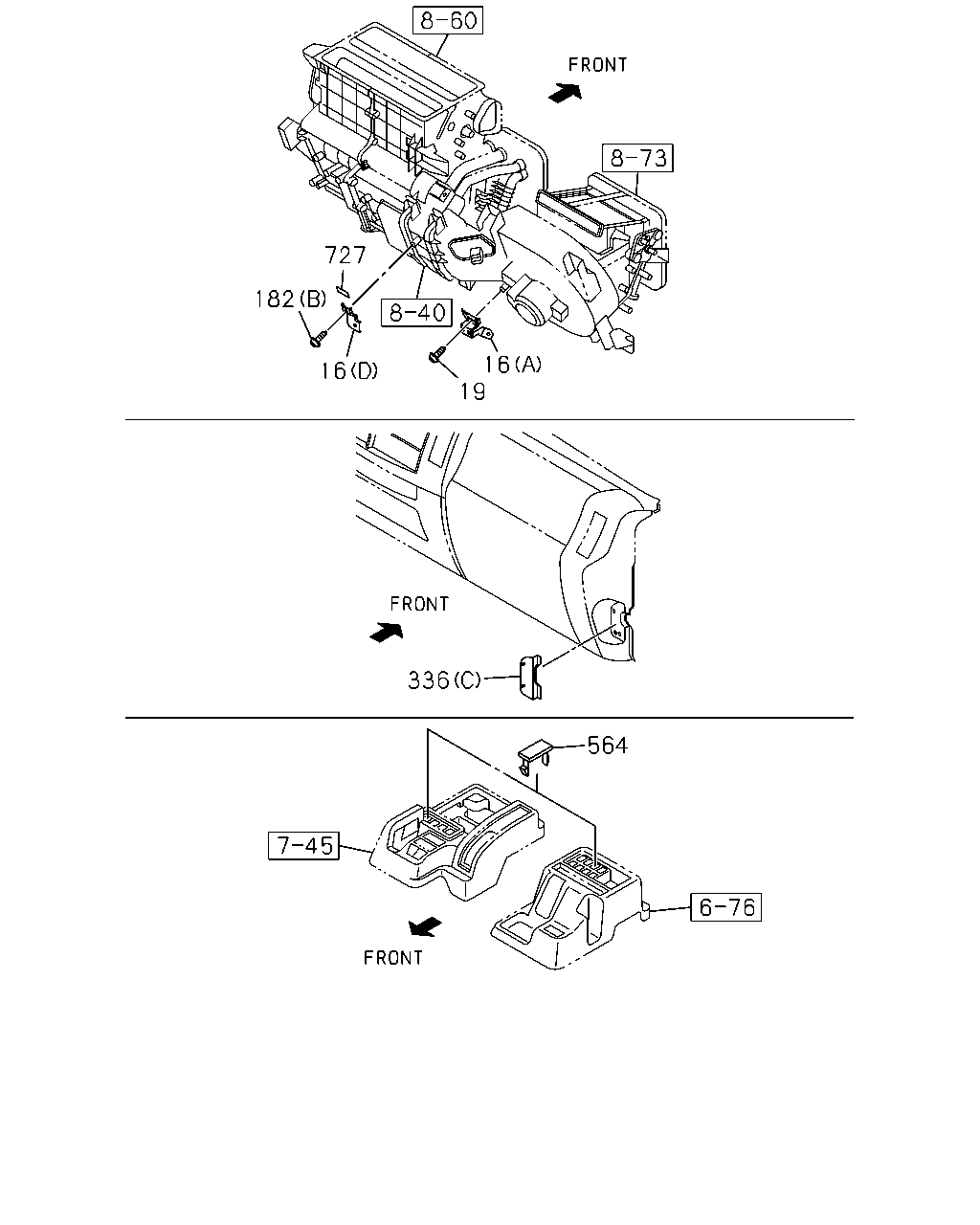

çizim 111491
16 19 16 182 727 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0809-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0809-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0809-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0809-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0809-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0809-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0809-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0809-
564 COVER; SW 8-97043-732-1 06 1 0809-1004
564 COVER; SW
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 06 1 1005-
564 COVER; SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-97043-732-1 04 1 1005-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1209-

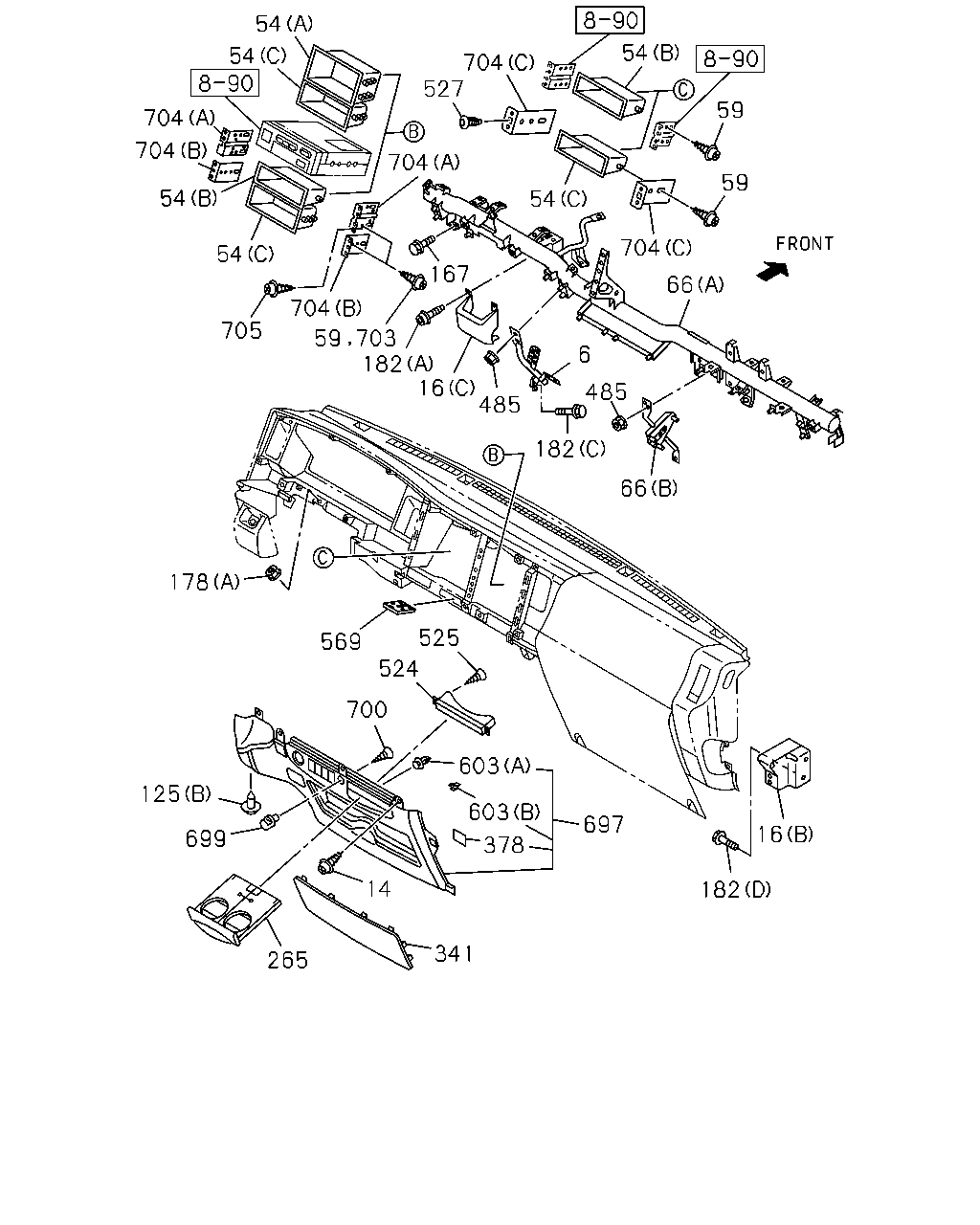

çizim 111493
54 54 54 705 54 704 704 704 527 704 54 59 59 704 54 66 6 485 66 182 485 16 182 704 167 16 182 697 603 603 378 341 14 265 699 125 700 524 525 569 178 59 703
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0809-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0809-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0809-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0809-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0809-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0809-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0809-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0809-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0809-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0809-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 0809-
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 0809-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0809-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0809-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0809-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0809-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0809-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0809-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0809-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0809-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0809-
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0809-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0809-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0809-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0809-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0809-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0809-
569 HOLDER; CARD 8-97410-276-1 01 1 0809-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0809-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0809-
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0809-1010
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0809-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0809-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0809-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0809-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0809-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0809-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0809-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
