Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#3691) — 317 parça

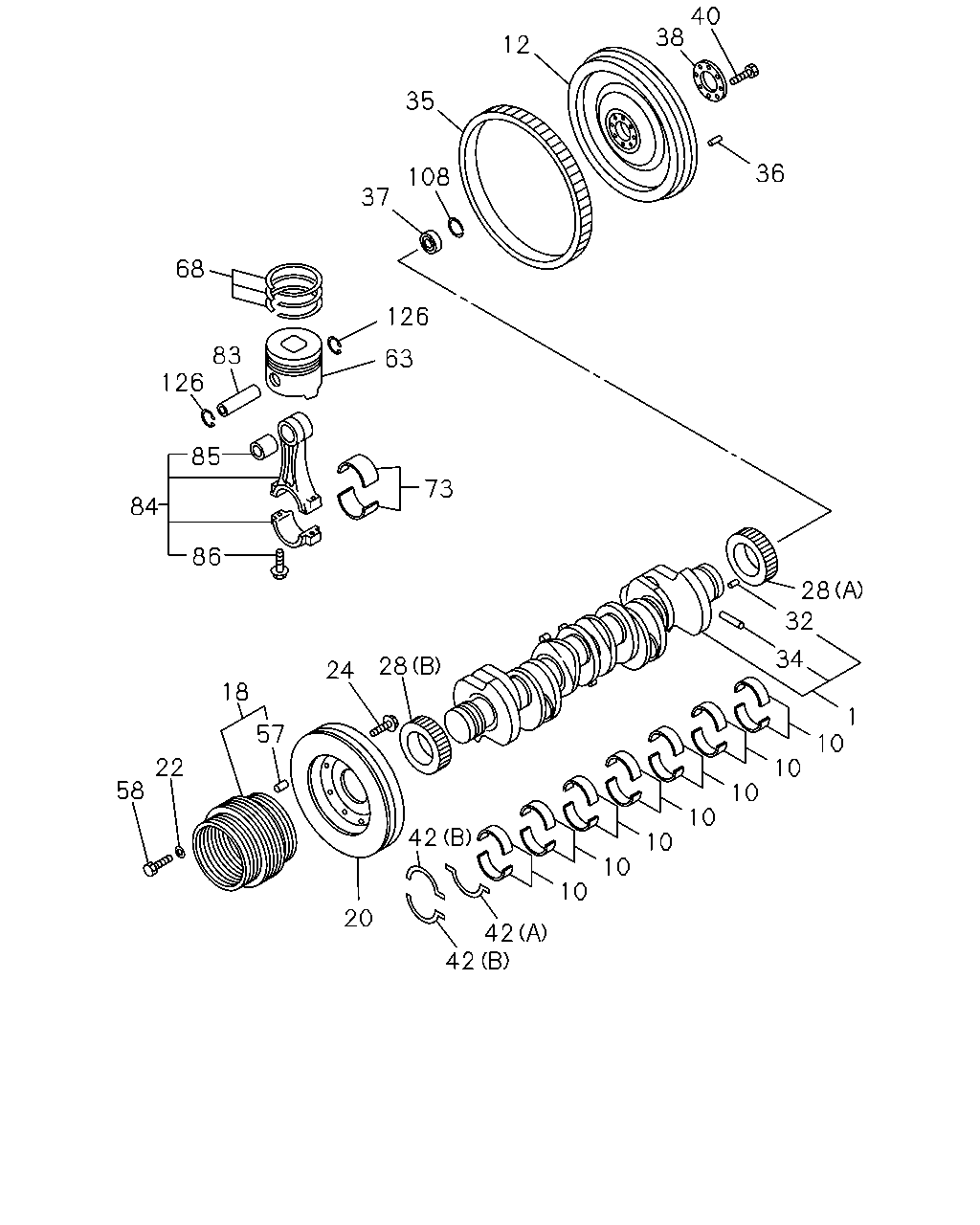

68 83 126 85 84 86 73 63 126 37 108 35 12 38 40 36 24 28 57 18 22 58 20 42 42 42 10 10 1 10 10 10 10 10 34 28 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	1-12310-448-0	01	1	9101-9504	●
1	CRANKSHAFT	1-12310-437-0	01	1	9101-9504		●
1	CRANKSHAFT	1-12310-407-0	01	1	9101-9504			●
1	CRANKSHAFT	8-94393-291-4	01	1	9505-0305				●
1	CRANKSHAFT	8-97603-003-1	01	1	0306-				●
1	CRANKSHAFT	8-94396-737-2	01	1	9703-9709					●
1	CRANKSHAFT	8-94396-737-4	01	1	9710-0305					●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-					●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0306-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0306-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0306-				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	01	1	9505-0305				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	01	1	9505-0305				●	●	●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	01	1	9505-0305				●	●	●
12	FLYWHEEL ISUZU M/T<X9A>	1-12331-164-3	01	1	9101-9201	●	●	●
12	FLYWHEEL ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C>	1-12331-164-3	01	1	9202-9504	●	●	●
12	FLYWHEEL MT643 A/T ALLISON(PR7)	1-12331-250-1	01	1	9101-9504	●	●	●
12	FLYWHEEL ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C>	1-12331-183-3	01	1	9202-9504	●		●
12	FLYWHEEL	8-94395-519-1	01	1	9505-				●
12	FLYWHEEL	8-94395-450-1	01	1	9703-9709					●
12	FLYWHEEL	8-94395-450-2	01	1	9710-					●	●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9505-9702				●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9703-9709				●	●
18	PULLEY; CR/SHF 7-GROOVE	8-94395-505-2	01	1	9710-				●	●	●
20	DAMPER; CR/SHF	8-94396-846-4	01	1	9505-				●
20	DAMPER; CR/SHF	8-94394-354-5	01	1	9703-9709					●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	9710-1110					●	●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-					●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9505-9702				●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9703-9709				●	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9710-				●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9505-9702				●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9703-9709				●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9710-0512				●	●	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-				●	●	●
28	GEAR; CR/SHF (C) Z=25	1-12521-008-0	01	1	9101-9504	●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9505-9702				●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9703-9709				●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9710-				●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9505-9702				●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9703-9709				●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9710-				●	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08151-220-0	01	1	9101-9504	●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9505-9702				●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9703-9709				●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9710-				●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9505-9702				●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9703-9709				●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9710-				●	●	●
35	GEAR; RING ISUZU M/T<X9A> Z=129	1-12333-017-0	01	1	9101-9201	●	●	●
35	GEAR; RING ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> Z=129	1-12333-017-0	01	1	9202-9504	●	●	●
35	GEAR; RING MT643 A/T ALLISON(PR7) Z=140	1-12333-015-0	01	1	9101-9201	●	●	●
35	GEAR; RING MT643 A/T ALLISON(PR7) Z=140	1-12333-015-0	01	1	9202-9504	●	●	●
35	GEAR; RING ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> Z=140	1-12333-015-0	01	1	9202-9504	●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9505-9702				●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9703-9709				●	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	9710-				●	●	●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	9101-9504	●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9505-9702				●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9703-9709				●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9710-				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	1-09800-214-0	01	1	9101-9504	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9505-9702				●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9703-9709				●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9710-9901				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	9902-				●	●	●
38	WASHER; FLYWHEEL ISUZU M/T<X9A>	5-12336-008-1	01	1	9101-9504	●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9505-9702				●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9703-9709				●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9710-				●	●	●
40	BOLT; FLYWHEEL ISUZU M/T<X9A>	9-92061-638-0	06	1	9101-9504	●	●	●
40	BOLT; FLYWHEEL MT643 A/T ALLISON(PR7)	1-09054-042-0	06	1	9101-9504	●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9505-9702				●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9703-9709				●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9710-				●	●	●
42	WASHER; THRUST,CR/SHF (C)	1-11680-001-2	02	1	9101-9504	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9505-9702				●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9703-9709				●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9710-0703				●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-				●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9505-9702				●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9703-9709				●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9710-0703				●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-				●	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9505-9702				●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9703-9709				●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9710-				●	●	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9505-9509				●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9510-9702				●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9703-9709				●	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9710-0512				●	●	●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-				●	●	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-377-4	06	1	9101-9201	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-528-0	06	1	9202-9504	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-303-1	06	1	9101-9504		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-428-0	06	1	9101-9504			●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> NON GRADE	8-94391-598-0	06	1	9505-9512				●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> NON GRADE	8-94391-598-0	06	1	9601-9605				●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> NON GRADE	8-94391-598-0	06	1	9606-9608				●
63	PISTON ALSO INCLUDED IN LINER SET. ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> NON GRADE	8-94391-598-0	06	1	9609-0203				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0204-					●	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> NON GRADE	8-94391-599-0	06	1	9505-9608				●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. ENG OIL COOLER HEAVY DUTY<E1E> NON GRADE	8-94391-606-1	06	1	9609-0203				●
63	PISTON ALSO INCLUDED IN LINER SET. ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> NON GRADE	8-94391-606-1	06	1	9609-0203				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0204-				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-0	06	1	9703-9709					●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	9710-0203					●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-065-1	06	1	9101-9202	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-101-1	06	1	9203-9504	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-005-0	06	1	9101-9504		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9505-9606				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9607-				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9703-9709					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-7	06	1	9710-					●	●
73	METAL SET; CONN ROD,STANDARD	9-12271-608-0	06	1	9101-9504	●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-1108				●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	12	1	1109-				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9703-9709					●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	9710-0701					●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9703-9709					●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	9710-0701					●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-					●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-					●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	06	1	9101-9504	●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9505-				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-0	06	1	9703-9709					●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9710-					●	●
84	ROD ASM; CONN	1-12230-104-1	06	1	9101-9504	●	●	●
84	ROD ASM; CONN	8-94396-394-8	06	1	9505-				●
84	ROD ASM; CONN	8-94399-661-1	06	1	9703-9709					●
84	ROD ASM; CONN	8-94399-661-1	06	1	9710-0108					●	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305					●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706					●	●
84	ROD ASM; CONN	8-98018-425-3	06	1	0707-					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	06	1	9101-9504	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9505-0805				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9703-9709					●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9710-0108					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-					●	●
86	BOLT; CONNROD M20X49.5	1-12235-027-1	12	1	9101-9504	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9505-9702				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9703-9709				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9710-0905				●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-0906					●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-1004				●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-				●	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9505-9702				●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9703-9709				●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9710-				●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	12	1	9101-9504	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	9505-				●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9703-9709					●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9710-					●	●

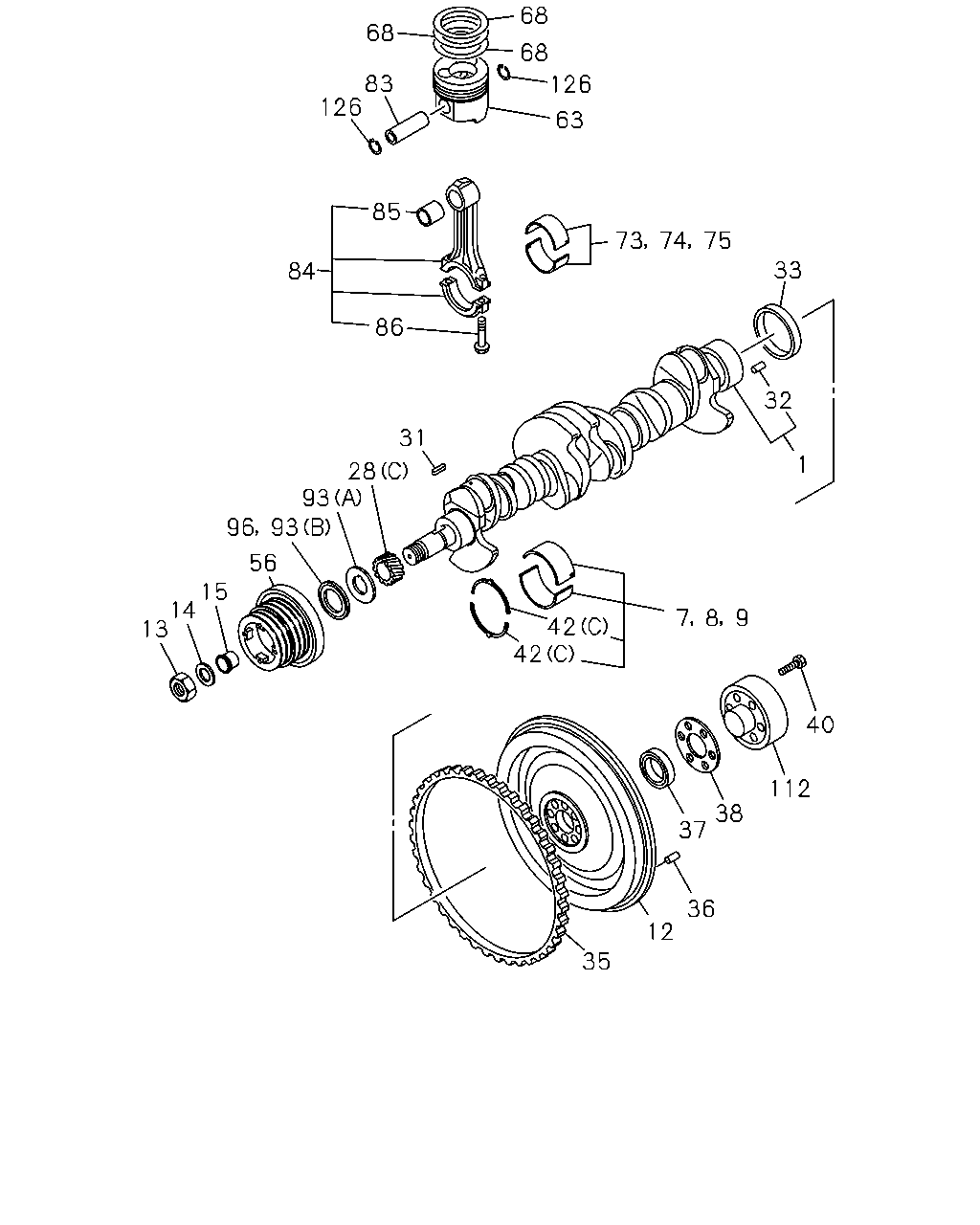

68 68 68 83 126 126 63 85 73 74 75 33 84 86 32 31 1 28 93 93 96 56 15 14 13 7 8 9 42 42 40 112 38 37 36 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CRANKSHAFT	1-12310-448-0	01	1	9101-9504	●
1	CRANKSHAFT	1-12310-437-0	01	1	9101-9504		●
1	CRANKSHAFT	1-12310-407-0	01	1	9101-9504			●
1	CRANKSHAFT	8-94393-291-4	01	1	9505-0305				●
1	CRANKSHAFT	8-97603-003-1	01	1	0306-				●
1	CRANKSHAFT	8-94396-737-2	01	1	9703-9709					●
1	CRANKSHAFT	8-94396-737-4	01	1	9710-0305					●	●
1	CRANKSHAFT	8-97603-004-0	01	1	0306-					●	●
7	METAL KIT; CRANKSHAFT,STANDARD FLYWHEEL HSG SAE #2<E4C> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-11510-084-0	01	1	9401-9504	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-074-2	01	1	9101-9312	●	●	●
7	METAL KIT; CRANKSHAFT,STANDARD EXC. FLYWHEEL HSG SAE #2<E4C>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-11510-074-2	01	1	9401-9502	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-074-2	01	1	9401-9502		●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-074-2	01	1	9503-9504	●	●	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	1-11530-074-0	01	1	9101-9312	●	●	●
8	METAL KIT; CRANKSHAFT,U/S=0.25 EXC. FLYWHEEL HSG SAE #2<E4C>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-11530-074-0	01	1	9401-9502	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	1-11530-074-0	01	1	9401-9502		●	●
8	METAL KIT; CRANKSHAFT,U/S=0.25	1-11530-074-0	01	1	9503-9504	●	●	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	1-11540-074-0	01	1	9101-9312	●	●	●
9	METAL KIT; CRANKSHAFT,U/S=0.50 EXC. FLYWHEEL HSG SAE #2<E4C>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-11540-074-0	01	1	9401-9502	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	1-11540-074-0	01	1	9401-9502		●	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	1-11540-074-0	01	1	9503-9504	●	●	●
12	FLYWHEEL ISUZU M/T<X9A>	1-12331-164-3	01	1	9101-9201	●	●	●
12	FLYWHEEL ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C>	1-12331-164-3	01	1	9202-9504	●	●	●
12	FLYWHEEL MT643 A/T ALLISON(PR7)	1-12331-250-1	01	1	9101-9504	●	●	●
12	FLYWHEEL ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C>	1-12331-183-3	01	1	9202-9504	●		●
12	FLYWHEEL	8-94395-519-1	01	1	9505-				●
12	FLYWHEEL	8-94395-450-1	01	1	9703-9709					●
12	FLYWHEEL	8-94395-450-2	01	1	9710-					●	●
13	NUT; STARTING HANDLE	9-09840-107-1	01	1	9101-9504	●	●	●
14	WASHER; PULLEY DAMPER	9-09851-431-0	01	1	9101-9504	●	●	●
15	BUSHING; TAPER,CR/SHF PULLEY	9-12379-045-0	01	1	9101-9504	●	●	●
28	GEAR; CR/SHF (C) Z=25	1-12521-008-0	01	1	9101-9504	●	●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9505-9702				●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9703-9709				●	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9710-				●	●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9505-9702				●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9703-9709				●	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9710-				●	●	●
31	KEY; FEATHER,CR/SHF	5-09738-001-0	01	1	9101-9504	●	●	●
32	PIN; FLYWHEEL OD=12 L=20	9-08151-220-0	01	1	9101-9504	●	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9505-9702				●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9703-9709				●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9710-				●	●	●
33	RING; WEAR,CR/SHF	5-12319-003-2	01	1	9101-9504	●	●	●
35	GEAR; RING ISUZU M/T<X9A> Z=129	1-12333-017-0	01	1	9101-9201	●	●	●
35	GEAR; RING ISUZU M/T<X9A> EXC. FLYWHEEL HSG SAE #2<E4C> Z=129	1-12333-017-0	01	1	9202-9504	●	●	●
35	GEAR; RING MT643 A/T ALLISON(PR7) Z=140	1-12333-015-0	01	1	9101-9201	●	●	●
35	GEAR; RING MT643 A/T ALLISON(PR7) Z=140	1-12333-015-0	01	1	9202-9504	●	●	●
35	GEAR; RING ISUZU M/T<X9A> FLYWHEEL HSG SAE #2<E4C> Z=140	1-12333-015-0	01	1	9202-9504	●		●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9505-9702				●
35	GEAR; RING Z=140	8-94396-784-0	01	1	9703-9709				●	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	9710-				●	●	●
36	PIN; FLYWHEEL ISUZU M/T<X9A> OD=10 L=22	9-08151-022-0	02	1	9101-9504	●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9505-9702				●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9703-9709				●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9710-				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT ISUZU M/T<X9A>	1-09800-214-0	01	1	9101-9504	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9505-9702				●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9703-9709				●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9710-9901				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-				●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	9902-				●	●	●
38	WASHER; FLYWHEEL ISUZU M/T<X9A>	5-12336-008-1	01	1	9101-9504	●	●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9505-9702				●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9703-9709				●	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9710-				●	●	●
40	BOLT; FLYWHEEL ISUZU M/T<X9A>	9-92061-638-0	06	1	9101-9504	●	●	●
40	BOLT; FLYWHEEL MT643 A/T ALLISON(PR7)	1-09054-042-0	06	1	9101-9504	●	●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9505-9702				●
40	BOLT; FLYWHEEL M16X62	8-94393-070-0	08	1	9703-9709				●	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9710-				●	●	●
42	WASHER; THRUST,CR/SHF (C)	1-11680-001-2	02	1	9101-9504	●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9505-9702				●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9703-9709				●	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9710-0703				●	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-				●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9505-9702				●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9703-9709				●	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9710-0703				●	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-				●	●	●
56	PULLEY; CR/SHF DAMPER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 4-GROOVE	1-12371-243-0	01	1	9101-9504	●
56	PULLEY; CR/SHF DAMPER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 6-GROOVE	1-12371-391-0	01	1	9101-9504	●		●
56	PULLEY; CR/SHF DAMPER MT643 A/T ALLISON(PR7) 6-GROOVE	1-12371-391-0	01	1	9101-9504		●
56	PULLEY; CR/SHF DAMPER ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 6-GROOVE	1-12371-391-0	01	1	9101-9504		●
56	PULLEY; CR/SHF DAMPER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 4-GROOVE	1-12371-166-0	01	1	9101-9504		●	●
56	PULLEY; CR/SHF DAMPER ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 4-GROOVE	1-12371-166-0	01	1	9101-9504		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-377-4	06	1	9101-9201	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-528-0	06	1	9202-9504	●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-303-1	06	1	9101-9504		●
63	PISTON ALSO INCLUDED IN LINER SET.	1-12111-428-0	06	1	9101-9504			●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> NON GRADE	8-94391-598-0	06	1	9505-9512				●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> NON GRADE	8-94391-598-0	06	1	9601-9605				●
63	PISTON ALSO INCLUDED IN LINER SET. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> NON GRADE	8-94391-598-0	06	1	9606-9608				●
63	PISTON ALSO INCLUDED IN LINER SET. ENG OIL COOLER HEAVY DUTY<E1E> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> NON GRADE	8-94391-598-0	06	1	9609-0203				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	0204-					●	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV> NON GRADE	8-94391-599-0	06	1	9505-9608				●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. ENG OIL COOLER HEAVY DUTY<E1E> NON GRADE	8-94391-606-1	06	1	9609-0203				●
63	PISTON ALSO INCLUDED IN LINER SET. ENG OIL COOLER HEAVY DUTY<E1E> AIR COMPRESSOR HEAVY DUTY<E1Q> NON GRADE	8-94391-606-1	06	1	9609-0203				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0204-				●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-0	06	1	9703-9709					●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-596-1	06	1	9710-0203					●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-065-1	06	1	9101-9202	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-101-1	06	1	9203-9504	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	5-12121-005-0	06	1	9101-9504		●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9505-9606				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9607-				●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-5	06	1	9703-9709					●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-061-7	06	1	9710-					●	●
73	METAL SET; CONN ROD,STANDARD	9-12271-608-0	06	1	9101-9504	●	●	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-1108				●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	12	1	1109-				●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-0	06	1	9703-9709					●
73	METAL SET; CONN ROD,STANDARD GREEN	8-94395-757-1	06	1	9710-0701					●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-0	06	1	9703-9709					●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97131-186-1	06	1	9710-0701					●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98064-281-0	06	1	0702-0706					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98064-282-0	06	1	0702-0706					●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0707-					●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0707-					●	●
74	METAL SET; CONN ROD,U/S=0.25	9-12273-608-0	06	1	9101-9504	●	●	●
75	METAL SET; CONN ROD,U/S=0.50	9-12274-608-0	06	1	9101-9504	●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	9-12211-604-0	06	1	9101-9504	●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9505-				●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-0	06	1	9703-9709					●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-731-1	06	1	9710-					●	●
84	ROD ASM; CONN	1-12230-104-1	06	1	9101-9504	●	●	●
84	ROD ASM; CONN	8-94396-394-8	06	1	9505-				●
84	ROD ASM; CONN	8-94399-661-1	06	1	9703-9709					●
84	ROD ASM; CONN	8-94399-661-1	06	1	9710-0108					●	●
84	ROD ASM; CONN	8-94391-791-1	06	1	0109-0305					●	●
84	ROD ASM; CONN	8-94399-661-2	06	1	0306-0706					●	●
84	ROD ASM; CONN	8-98018-425-3	06	1	0707-					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-027-0	06	1	9101-9504	●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9505-0805				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905				●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9703-9709					●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	9710-0108					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-0	06	1	0109-0305					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94394-613-0	06	1	0306-0706					●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0707-					●	●
86	BOLT; CONNROD M20X49.5	1-12235-027-1	12	1	9101-9504	●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9505-9702				●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9703-9709				●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9710-0905				●	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-0906					●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0906-1004				●	●	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-				●	●	●
93	THROWER; OIL,CR/SHF (A) D=85	1-12362-003-1	01	1	9101-9504	●	●	●
93	THROWER; OIL,CR/SHF EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) D=104	5-12362-003-1	01	1	9101-9504		●	●
93	THROWER; OIL,CR/SHF BUS BODY MAKER KITAMURA<Y08> (B) D=104	5-12362-003-1	01	1	9101-9504		●
96	THROWER; DUST,CR/SHF EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	5-12362-003-1	01	1	9101-9504	●
112	ADAPTER; FLEX PLATE MT643 A/T ALLISON(PR7)	1-32212-006-3	01	1	9101-9504	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94107-575-0	12	1	9101-9504	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	12	1	9505-				●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9703-9709					●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-081-1	12	1	9710-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
