7-10 — CAUTION PLATE AND LABEL (#36909) — 13 parça

çizim 111444

6 228

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7>	8-98082-441-0	01	1	0809-
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>	8-98082-437-0	01	1	0809-
	228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7>	1-85877-948-0	01	1	0809-1001
	228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS ARABIAN<WJ7>	1-85887-935-0	01	1	0809-1001

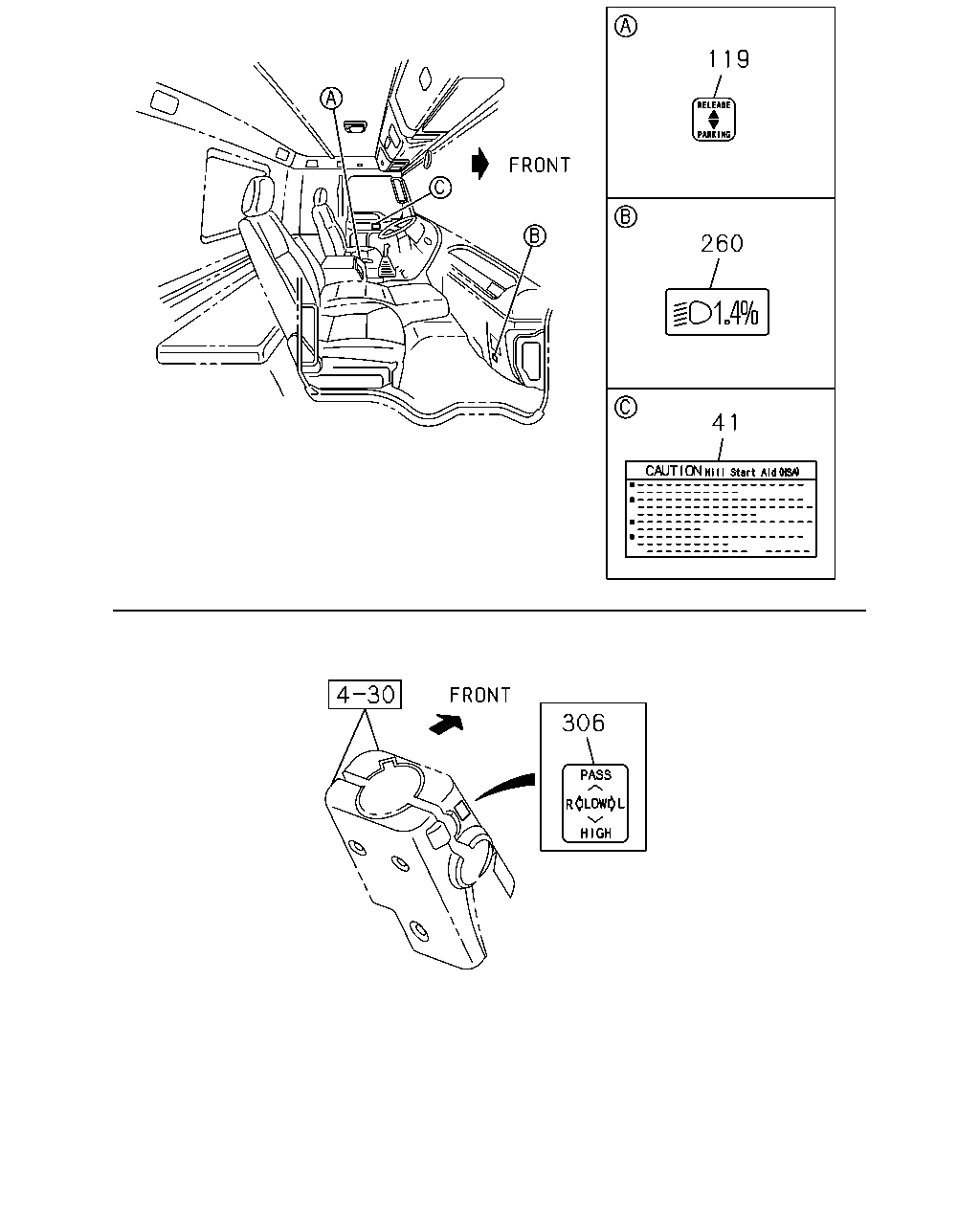

çizim 111467

119 260 41 306

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	41	PLATE; CAUTION,HSA H.S.A SYSTEM<6EP> CAUTIONS ARABIAN<WJ7>	8-98141-841-0	01	1	0907-
	41	PLATE; CAUTION,HSA H.S.A SYSTEM<6EP> EXC. CAUTIONS ARABIAN<WJ7>	8-98141-836-0	01	1	0907-
	119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	0809-
	260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	0809-
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	0809-

çizim 111473

35 49

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	35	PLATE; CAUTION,CAB CAUTIONS ARABIAN<WJ7>	8-98070-107-0	01	1	0809-
	35	PLATE; CAUTION,CAB EXC. CAUTIONS ARABIAN<WJ7>	8-98065-363-0	01	1	0809-
	49	PLATE; CAUTION,FUSE BOX CAUTIONS ARABIAN<WJ7>	8-98127-559-0	01	1	0809-
	49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS ARABIAN<WJ7>	8-98122-354-0	01	1	0809-
