Sayfa 0-14 - Isuzu EPC

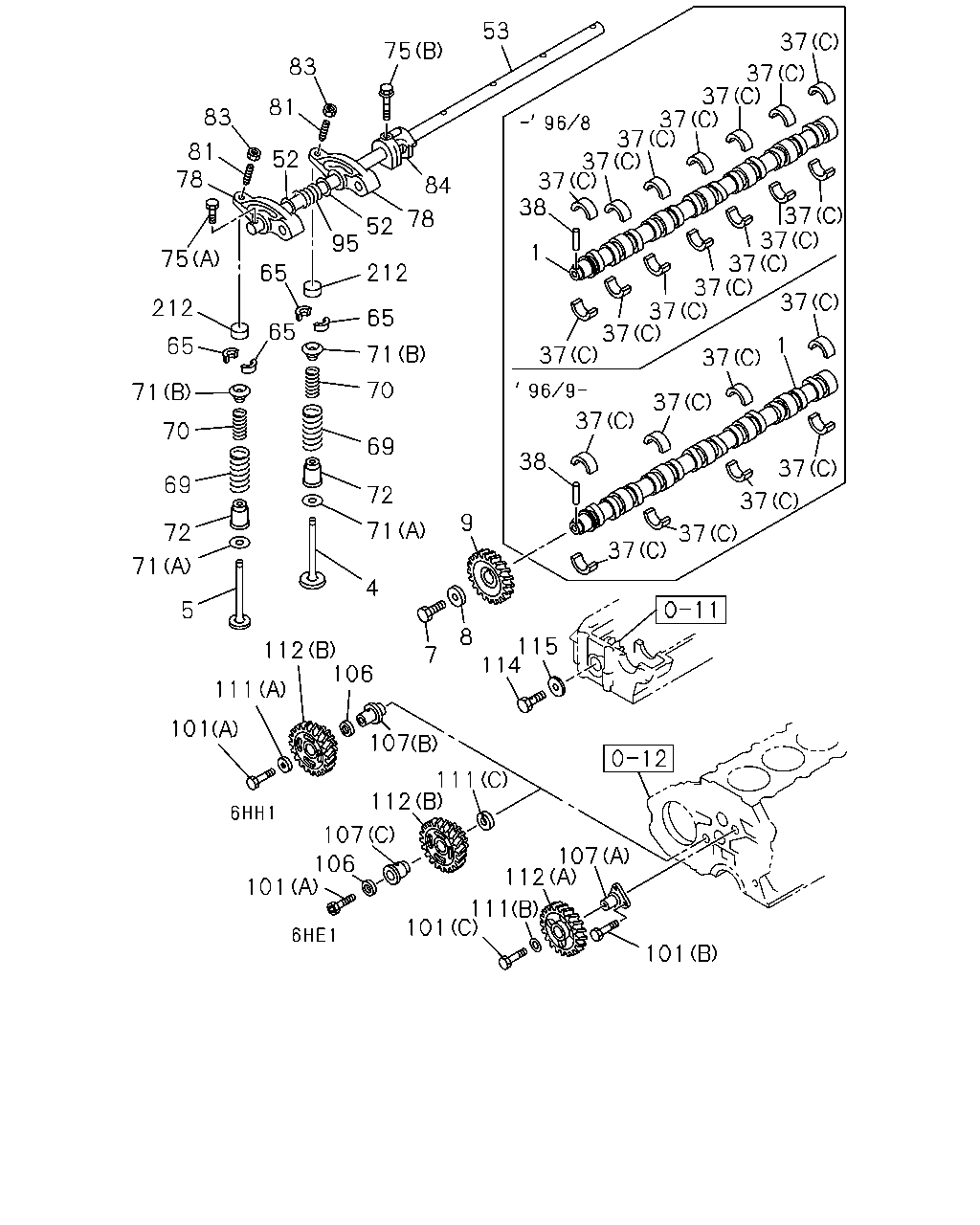

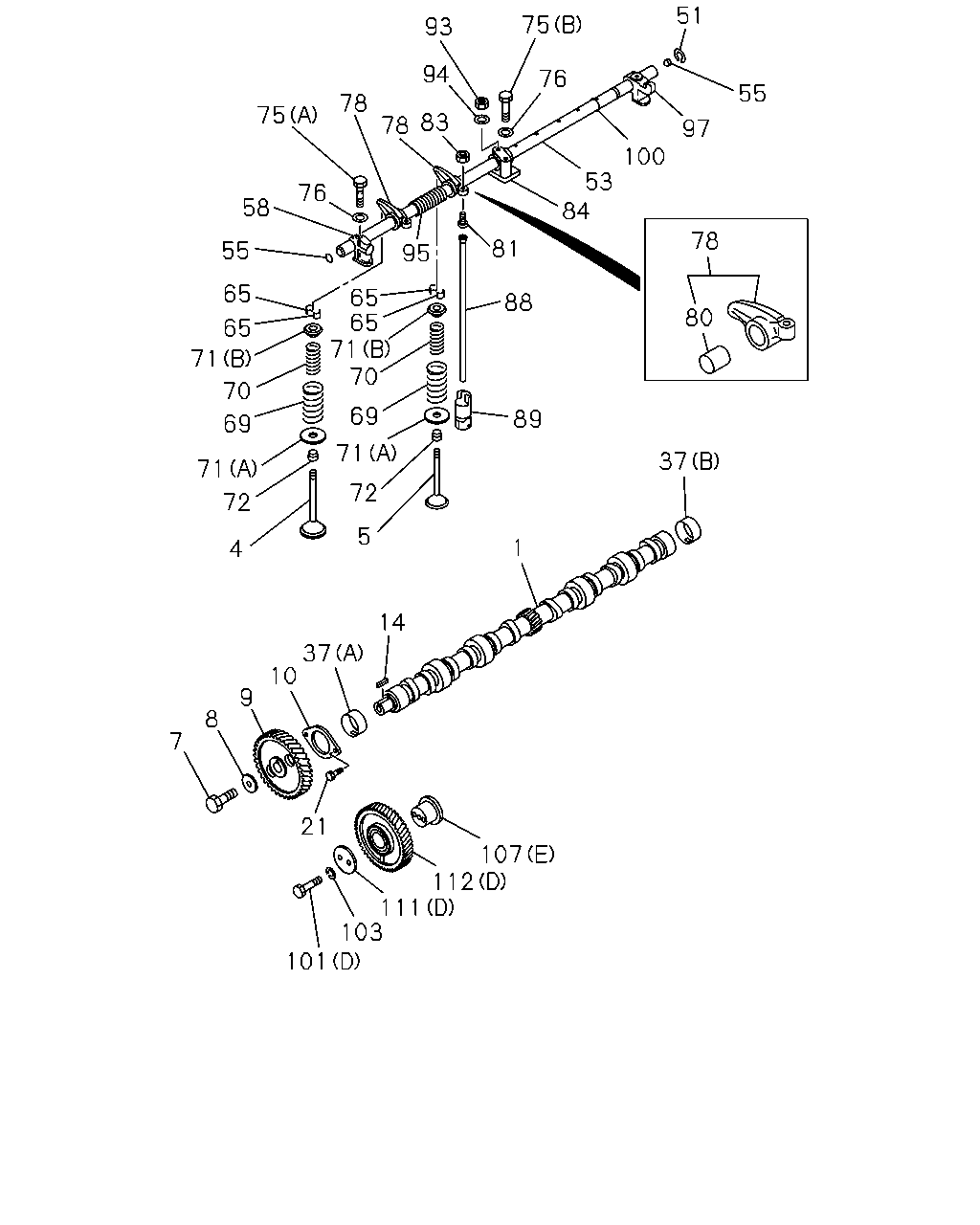

0-14 — CAMSHAFT AND VALVE (#3690) — 429 parça

51 75 93 94 76 55 78 75 83 78 97 100 53 84 76 58 78 81 55 5 65 65 71 70 65 88 80 65 71 70 69 89 69 71 37 71 72 72 5 1 4 14 37 10 9 8 7 21 107 112 111 103 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	1-12511-185-3	01	1	9101-9504	●	●	●
1	CAMSHAFT	8-94396-425-1	01	1	9505-9509				●
1	CAMSHAFT	8-94395-576-2	01	1	9510-1311				●
1	CAMSHAFT	8-98227-259-1	01	1	1312-				●
1	CAMSHAFT	8-94395-758-1	01	1	9703-9709					●
1	CAMSHAFT	8-94395-758-2	01	1	9710-1311					●	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-					●	●
4	VALVE; INL	1-12551-139-0	06	1	9101-9504	●	●	●
4	VALVE; INL	8-94394-160-2	06	1	9505-				●
4	VALVE; INL	8-94395-113-1	06	1	9703-9709					●
4	VALVE; INL	8-94395-113-1	06	1	9710-					●	●
5	VALVE; EXH	1-12552-079-0	06	1	9101-9104	●	●	●
5	VALVE; EXH	1-12552-083-0	06	1	9105-9504	●	●	●
5	VALVE; EXH	8-94395-462-0	06	1	9505-9702				●
5	VALVE; EXH	8-94395-462-0	06	1	9703-9709				●	●
5	VALVE; EXH	8-94395-462-2	06	1	9710-				●	●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9101-9504	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9505-9702				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9703-9709				●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9710-				●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9101-9504	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9505-9702				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9703-9709				●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9710-				●	●	●
9	GEAR; CM/SHF Z=50	1-12522-016-1	01	1	9101-9504	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9505-9702				●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9703-9709				●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9710-				●	●	●
10	PLATE; THRUST	9-11681-015-0	01	1	9101-9504	●	●	●
14	KEY; CM/SHF	9-08030-713-0	01	1	9101-9504	●	●	●
21	BOLT; CM/SHF METAL,NO 7 M8X25 W/LK WASHER	0-50040-825-0	02	1	9101-9504	●	●	●
37	METAL; CM/SHF (C) UPPER B=16	8-97356-939-0	04	1	0401-0706				●	●	●
37	METAL; CM/SHF (C) UPPER B=16	8-97386-189-0	04	1	0707-				●	●	●
37	METAL; CM/SHF (A)	9-11691-048-0	01	1	9101-9504	●	●	●
37	METAL; CM/SHF (B)	9-11693-035-0	05	1	9101-9504	●	●	●
37	METAL; CM/SHF (C)	8-94393-380-0	14	1	9505-9608				●
37	METAL; CM/SHF (C)	8-94363-100-0	08	1	9609-9702				●
37	METAL; CM/SHF (C)	8-94363-100-0	08	1	9703-9709				●	●
37	METAL; CM/SHF (C)	8-94363-100-1	08	1	9710-0206				●	●	●
37	METAL; CM/SHF (C) B=22	8-97602-698-0	08	1	0207-0312				●	●	●
37	METAL; CM/SHF (C) LOWER B=22	8-97602-698-0	04	1	0401-				●	●	●
51	RING; SNAP,ROCKER ARM SHAFT ID=17.5	9-09180-019-0	01	1	9101-9504	●	●	●
53	SHAFT; ROCKER ARM	1-12621-062-1	01	1	9101-9504	●	●	●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9505-9702				●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9703-9709				●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	9710-				●	●	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9101-9504	●	●	●
58	BRACKET; ROCKER SHAFT,FRT	5-12628-012-0	01	1	9101-9504	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9101-9504	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9505-9702				●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9703-9709				●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9710-				●	●	●
69	SPRING; VLV,OUTER INLET L=51.5	1-12561-089-0	06	1	9101-9504	●	●	●
69	SPRING; VLV,OUTER EXHAUST L=52.7	1-12561-090-0	06	1	9101-9504	●	●	●
69	SPRING; VLV,OUTER EXHAUST MARK YELLOW	8-94393-310-0	06	1	9505-9702				●
69	SPRING; VLV,OUTER EXHAUST MARK YELLOW	8-94393-310-0	06	1	9703-9709				●	●
69	SPRING; VLV,OUTER EXHAUST MARK YELLOW	8-94393-310-0	06	1	9710-				●	●	●
69	SPRING; VLV,OUTER INLET	8-94394-996-0	06	1	9505-9702				●
69	SPRING; VLV,OUTER INLET	8-94394-996-0	06	1	9703-9709				●	●
69	SPRING; VLV,OUTER INLET	8-94394-996-0	06	1	9710-0111				●	●	●
69	SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	06	1	0112-				●	●	●
70	SPRING; VLV,INNER INLET L=49	1-12562-057-0	06	1	9101-9504	●	●	●
70	SPRING; VLV,INNER EXHAUST L=54.8	1-12562-058-0	06	1	9101-9504	●	●	●
70	SPRING; VLV,INNER INLET	8-94395-266-0	06	1	9505-9702				●
70	SPRING; VLV,INNER INLET	8-94395-266-0	06	1	9703-9709				●	●
70	SPRING; VLV,INNER INLET	8-94395-266-0	06	1	9710-0111				●	●	●
70	SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	06	1	0112-				●	●	●
70	SPRING; VLV,INNER EXHAUST MARK YELLOW	8-94397-500-0	06	1	9505-9702				●
70	SPRING; VLV,INNER EXHAUST MARK YELLOW	8-94397-500-0	06	1	9703-9709				●	●
70	SPRING; VLV,INNER EXHAUST MARK YELLOW	8-94397-500-0	06	1	9710-				●	●	●
71	SEAT; SPR (A) LOWER	5-12563-001-0	12	1	9101-9504	●	●	●
71	SEAT; SPR (B) UPPER	8-94114-579-0	12	1	9101-9504	●	●	●
71	SEAT; SPR (B) UPPER OD=38	8-94385-029-1	12	1	9505-9702				●
71	SEAT; SPR (B) UPPER OD=38	8-94385-029-1	12	1	9703-9709				●	●
71	SEAT; SPR (B) UPPER OD=38	8-94385-029-2	12	1	9710-				●	●	●
71	SEAT; SPR (A) LOWER ID=14.3 T=0.5	8-94396-014-0	12	1	9505-9702				●
71	SEAT; SPR (A) LOWER ID=14.3 T=0.5	8-94396-014-0	12	1	9703-9709				●	●
71	SEAT; SPR (A) LOWER ID=14.3 T=0.5	8-94396-014-0	12	1	9710-				●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-015-0	12	1	9101-9504	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9505-9702				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9703-9709				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9710-				●	●	●
75	BOLT; BRKT (B) M8X65	1-09000-567-0	08	1	9101-9504	●	●	●
75	BOLT; BRKT (A) M8X65	9-09602-148-0	01	1	9101-9504	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9505-9702				●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9703-9709				●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9710-0512				●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-				●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9505-9702				●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9703-9709				●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9710-				●	●	●
76	WASHER; PL,BRKT	9-09851-430-0	09	1	9101-9504	●	●	●
78	ARM; ROCKER	1-12611-249-0	12	1	9101-9504	●	●	●
78	ARM; ROCKER EXHAUST	8-94397-362-1	06	1	9505-9512				●
78	ARM; ROCKER EXHAUST JBK	8-97014-258-1	06	1	9601-9702				●
78	ARM; ROCKER EXHAUST JBK	8-97014-258-1	06	1	9703-9709				●	●
78	ARM; ROCKER EXHAUST JBK	8-97014-258-2	06	1	9710-				●	●	●
78	ARM; ROCKER INLET	8-94394-424-0	06	1	9505-9512				●
78	ARM; ROCKER INLET JBK	8-97074-614-0	06	1	9601-9702				●
78	ARM; ROCKER INLET JBK	8-97074-614-0	06	1	9703-9709				●	●
78	ARM; ROCKER INLET JBK	8-97074-614-1	06	1	9710-				●	●	●
80	BUSHING; ROCKER ARM	9-12615-602-0	12	1	9101-9504	●	●	●
81	SCREW; ADJ,ROCKER ARM	9-12616-042-0	12	1	9101-9504	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9505-9702				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9703-9709				●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9710-				●	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	12	1	9101-9504	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9505-9702				●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9703-9705				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9709				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9710-0512				●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-				●	●	●
84	BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	06	1	9101-9504	●	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9505-9702				●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9703-9709				●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9710-				●	●	●
88	ROD; PUSH	1-12575-030-0	12	1	9101-9504	●	●	●
89	TAPPET; VLV	1-12571-211-3	12	1	9101-9504	●	●	●
93	NUT; BRKT	1-09400-116-0	04	1	9101-9504	●	●	●
94	WASHER; PL,BRKT	9-09851-430-0	04	1	9101-9504	●	●	●
97	BRACKET; ROCKER SHAFT,RR	5-12628-006-0	01	1	9101-9504	●	●	●
100	GASKET; ROCKER ARM SHAFT	5-09623-060-0	01	1	9101-9504	●	●	●
101	BOLT; THRUST COLLAR (D) M10X55	0-10811-055-0	02	1	9101-9504	●	●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9505-9611				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9702				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9703-9709				●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9710-0512				●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-				●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9505-9702				●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9703-9709				●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9710-9805				●	●	●
101	BOLT; THRUST COLLAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (A) M14X60	9-91666-460-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (A) M14X60	9-91666-460-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9806-0512				●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-				●	●	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9510-0512				●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0601-				●
101	BOLT; THRUST COLLAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR CAUTIONS SPANISH<YN1> (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9703-9709					●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9710-9802					●	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9804-					●	●
103	WASHER; LK,THRUST COLLAR ID=10.2	9-09150-510-0	02	1	9101-9504	●	●	●
107	SHAFT; IDLE GEAR (E)	9-12531-030-0	01	1	9101-9504	●	●	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (C)	8-94395-073-2	01	1	9505-9509				●
107	SHAFT; IDLE GEAR CAUTIONS SPANISH<YN1> (C)	8-94395-073-2	01	1	9505-9509				●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9505-9702				●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9703-9709				●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9710-9805				●	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9803-9805				●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (A)	8-97073-938-1	01	1	9803-9805						●
107	SHAFT; IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (B)	8-97104-380-0	01	1	9505-9509				●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (B)	8-97104-380-0	01	1	9505-9509				●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-0609				●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-				●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9703-9709					●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9710-0205					●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-					●	●
107	SHAFT; IDLE GEAR EMISSION PARTS<TCA> (A)	8-97189-244-0	01	1	9803-9805						●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9703-9709					●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9710-0304					●	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-					●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	9806-0204				●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-				●	●	●
111	COLLAR; THRUST,IDLE GEAR (D)	5-12535-001-1	01	1	9101-9504	●	●	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) ID=24 OD=70	8-94394-097-1	01	1	9505-9509				●
111	COLLAR; THRUST,IDLE GEAR CAUTIONS SPANISH<YN1> (A) ID=24 OD=70	8-94394-097-1	01	1	9505-9509				●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9505-9702				●
111	COLLAR; THRUST,IDLE GEAR (C) ID=24 OD=70	8-94394-097-1	01	1	9703-9709					●
111	COLLAR; THRUST,IDLE GEAR (C) ID=24 OD=70	8-94394-097-1	01	1	9710-					●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9703-9709				●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9710-0306				●	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97209-728-2	02	1	0307-				●	●	●
112	GEAR; IDLE (D) Z=51 W/BUSH	1-12523-057-3	01	1	9101-9504	●	●	●
112	GEAR; IDLE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (B) Z=72-30	8-94394-092-3	01	1	9505-9509				●
112	GEAR; IDLE CAUTIONS SPANISH<YN1> (B) Z=72-30	8-94394-092-3	01	1	9505-9509				●
112	GEAR; IDLE (A) W/BUSH Z=61	8-97094-546-2	01	1	9505-				●
112	GEAR; IDLE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (B) Z=72-30	8-94395-107-1	01	1	9505-9509				●
112	GEAR; IDLE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (B) Z=72-30	8-94395-107-1	01	1	9505-9509				●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-0609				●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9703-9709					●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	9710-					●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9703-9709					●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9710-					●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9703-9709					●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	9710-					●	●

53 37 75 83 37 37 37 37 37 37 38 81 83 81 78 52 84 37 37 37 37 37 37 37 78 52 95 1 75 212 65 37 212 65 65 1 65 71 37 70 71 37 37 70 69 38 37 69 72 37 9 71 72 37 37 71 4 5 8 115 114 112 106 7 111 111 112 107 107 112 106 101 101 101 107 111 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	CAMSHAFT	1-12511-185-3	01	1	9101-9504	●	●	●
1	CAMSHAFT	8-94396-425-1	01	1	9505-9509				●
1	CAMSHAFT	8-94395-576-2	01	1	9510-1311				●
1	CAMSHAFT	8-98227-259-1	01	1	1312-				●
1	CAMSHAFT	8-94395-758-1	01	1	9703-9709					●
1	CAMSHAFT	8-94395-758-2	01	1	9710-1311					●	●
1	CAMSHAFT	8-98227-258-1	01	1	1312-					●	●
4	VALVE; INL	1-12551-139-0	06	1	9101-9504	●	●	●
4	VALVE; INL	8-94394-160-2	06	1	9505-				●
4	VALVE; INL	8-94395-113-1	06	1	9703-9709					●
4	VALVE; INL	8-94395-113-1	06	1	9710-					●	●
5	VALVE; EXH	1-12552-079-0	06	1	9101-9104	●	●	●
5	VALVE; EXH	1-12552-083-0	06	1	9105-9504	●	●	●
5	VALVE; EXH	8-94395-462-0	06	1	9505-9702				●
5	VALVE; EXH	8-94395-462-0	06	1	9703-9709				●	●
5	VALVE; EXH	8-94395-462-2	06	1	9710-				●	●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9101-9504	●	●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9505-9702				●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9703-9709				●	●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	9710-				●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9101-9504	●	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9505-9702				●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9703-9709				●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9710-				●	●	●
9	GEAR; CM/SHF Z=50	1-12522-016-1	01	1	9101-9504	●	●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9505-9702				●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9703-9709				●	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	9710-				●	●	●
37	METAL; CM/SHF (C) UPPER B=16	8-97356-939-0	04	1	0401-0706				●	●	●
37	METAL; CM/SHF (C) UPPER B=16	8-97386-189-0	04	1	0707-				●	●	●
37	METAL; CM/SHF (A)	9-11691-048-0	01	1	9101-9504	●	●	●
37	METAL; CM/SHF (B)	9-11693-035-0	05	1	9101-9504	●	●	●
37	METAL; CM/SHF (C)	8-94393-380-0	14	1	9505-9608				●
37	METAL; CM/SHF (C)	8-94363-100-0	08	1	9609-9702				●
37	METAL; CM/SHF (C)	8-94363-100-0	08	1	9703-9709				●	●
37	METAL; CM/SHF (C)	8-94363-100-1	08	1	9710-0206				●	●	●
37	METAL; CM/SHF (C) B=22	8-97602-698-0	08	1	0207-0312				●	●	●
37	METAL; CM/SHF (C) LOWER B=22	8-97602-698-0	04	1	0401-				●	●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9505-9702				●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9703-9709				●	●
38	PIN; CAM BRG SET OD=7 L=7.5	8-94399-487-0	01	1	9710-				●	●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9505-9702				●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9703-9709				●	●
52	WASHER; ROCKER ARM SHAFT	8-94362-105-0	12	1	9710-				●	●	●
53	SHAFT; ROCKER ARM	1-12621-062-1	01	1	9101-9504	●	●	●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9505-9702				●
53	SHAFT; ROCKER ARM	8-94393-984-1	01	1	9703-9709				●	●
53	SHAFT; ROCKER ARM	8-94393-984-4	01	1	9710-				●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9101-9504	●	●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9505-9702				●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9703-9709				●	●
65	COLLAR; SPLIT	5-12565-006-0	24	1	9710-				●	●	●
69	SPRING; VLV,OUTER INLET L=51.5	1-12561-089-0	06	1	9101-9504	●	●	●
69	SPRING; VLV,OUTER EXHAUST L=52.7	1-12561-090-0	06	1	9101-9504	●	●	●
69	SPRING; VLV,OUTER EXHAUST MARK YELLOW	8-94393-310-0	06	1	9505-9702				●
69	SPRING; VLV,OUTER EXHAUST MARK YELLOW	8-94393-310-0	06	1	9703-9709				●	●
69	SPRING; VLV,OUTER EXHAUST MARK YELLOW	8-94393-310-0	06	1	9710-				●	●	●
69	SPRING; VLV,OUTER INLET	8-94394-996-0	06	1	9505-9702				●
69	SPRING; VLV,OUTER INLET	8-94394-996-0	06	1	9703-9709				●	●
69	SPRING; VLV,OUTER INLET	8-94394-996-0	06	1	9710-0111				●	●	●
69	SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	06	1	0112-				●	●	●
70	SPRING; VLV,INNER INLET L=49	1-12562-057-0	06	1	9101-9504	●	●	●
70	SPRING; VLV,INNER EXHAUST L=54.8	1-12562-058-0	06	1	9101-9504	●	●	●
70	SPRING; VLV,INNER INLET	8-94395-266-0	06	1	9505-9702				●
70	SPRING; VLV,INNER INLET	8-94395-266-0	06	1	9703-9709				●	●
70	SPRING; VLV,INNER INLET	8-94395-266-0	06	1	9710-0111				●	●	●
70	SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	06	1	0112-				●	●	●
70	SPRING; VLV,INNER EXHAUST MARK YELLOW	8-94397-500-0	06	1	9505-9702				●
70	SPRING; VLV,INNER EXHAUST MARK YELLOW	8-94397-500-0	06	1	9703-9709				●	●
70	SPRING; VLV,INNER EXHAUST MARK YELLOW	8-94397-500-0	06	1	9710-				●	●	●
71	SEAT; SPR (A) LOWER	5-12563-001-0	12	1	9101-9504	●	●	●
71	SEAT; SPR (B) UPPER	8-94114-579-0	12	1	9101-9504	●	●	●
71	SEAT; SPR (B) UPPER OD=38	8-94385-029-1	12	1	9505-9702				●
71	SEAT; SPR (B) UPPER OD=38	8-94385-029-1	12	1	9703-9709				●	●
71	SEAT; SPR (B) UPPER OD=38	8-94385-029-2	12	1	9710-				●	●	●
71	SEAT; SPR (A) LOWER ID=14.3 T=0.5	8-94396-014-0	12	1	9505-9702				●
71	SEAT; SPR (A) LOWER ID=14.3 T=0.5	8-94396-014-0	12	1	9703-9709				●	●
71	SEAT; SPR (A) LOWER ID=14.3 T=0.5	8-94396-014-0	12	1	9710-				●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-015-0	12	1	9101-9504	●	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9505-9702				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9703-9709				●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	12	1	9710-				●	●	●
75	BOLT; BRKT (B) M8X65	1-09000-567-0	08	1	9101-9504	●	●	●
75	BOLT; BRKT (A) M8X65	9-09602-148-0	01	1	9101-9504	●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9505-9702				●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9703-9709				●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28080-835-0	02	1	9710-0512				●	●	●
75	BOLT; BRKT (A) M8X35 FLANGE	0-28050-835-0	02	1	0601-				●	●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9505-9702				●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9703-9709				●	●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	9710-				●	●	●
78	ARM; ROCKER	1-12611-249-0	12	1	9101-9504	●	●	●
78	ARM; ROCKER EXHAUST	8-94397-362-1	06	1	9505-9512				●
78	ARM; ROCKER EXHAUST JBK	8-97014-258-1	06	1	9601-9702				●
78	ARM; ROCKER EXHAUST JBK	8-97014-258-1	06	1	9703-9709				●	●
78	ARM; ROCKER EXHAUST JBK	8-97014-258-2	06	1	9710-				●	●	●
78	ARM; ROCKER INLET	8-94394-424-0	06	1	9505-9512				●
78	ARM; ROCKER INLET JBK	8-97074-614-0	06	1	9601-9702				●
78	ARM; ROCKER INLET JBK	8-97074-614-0	06	1	9703-9709				●	●
78	ARM; ROCKER INLET JBK	8-97074-614-1	06	1	9710-				●	●	●
81	SCREW; ADJ,ROCKER ARM	9-12616-042-0	12	1	9101-9504	●	●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9505-9702				●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9703-9709				●	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	9710-				●	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	12	1	9101-9504	●	●	●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9505-9702				●
83	NUT; ADJ SCREW,LK M10	9-09111-510-0	12	1	9703-9705				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9706-9709				●	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	12	1	9710-0512				●	●	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	0601-				●	●	●
84	BRACKET; ROCKER SHAFT,INTER	9-12628-105-0	06	1	9101-9504	●	●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9505-9702				●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9703-9709				●	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	05	1	9710-				●	●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	05	1	9101-9504	●	●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9505-9702				●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9703-9709				●	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	06	1	9710-				●	●	●
101	BOLT; THRUST COLLAR (D) M10X55	0-10811-055-0	02	1	9101-9504	●	●	●
101	BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9505-9611				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9612-9702				●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9703-9709				●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	9710-0512				●	●	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-				●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9505-9702				●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9703-9709				●	●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9710-9805				●	●	●
101	BOLT; THRUST COLLAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (A) M14X60	9-91666-460-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (A) M14X60	9-91666-460-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR (C) M14X30	9-92361-430-0	01	1	9806-0512				●	●	●
101	BOLT; THRUST COLLAR (C) M14X30	0-23951-430-0	01	1	0601-				●	●	●
101	BOLT; THRUST COLLAR (A) M14X60	9-91666-460-0	01	1	9510-0512				●
101	BOLT; THRUST COLLAR (A) M14X60	0-16956-460-0	01	1	0601-				●
101	BOLT; THRUST COLLAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR CAUTIONS SPANISH<YN1> (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9505-9509				●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9703-9709					●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-0	01	1	9710-9802					●	●
101	BOLT; THRUST COLLAR (A) M14X67 HEX SOCKET	8-94394-779-2	01	1	9804-					●	●
106	WASHER; IDLE GEAR SHAFT EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> ID=14.2 OD=23	1-09503-031-0	01	1	9505-9509				●
106	WASHER; IDLE GEAR SHAFT CAUTIONS SPANISH<YN1> ID=14.2 OD=23	1-09503-031-0	01	1	9505-9509				●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9703-9709					●
106	WASHER; IDLE GEAR SHAFT ID=14.2 OD=23	1-09503-031-0	01	1	9710-					●	●
107	SHAFT; IDLE GEAR (E)	9-12531-030-0	01	1	9101-9504	●	●	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (C)	8-94395-073-2	01	1	9505-9509				●
107	SHAFT; IDLE GEAR CAUTIONS SPANISH<YN1> (C)	8-94395-073-2	01	1	9505-9509				●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9505-9702				●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9703-9709				●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9710-9805				●	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9803-9805				●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (A)	8-97073-938-1	01	1	9803-9805						●
107	SHAFT; IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (B)	8-97104-380-0	01	1	9505-9509				●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (B)	8-97104-380-0	01	1	9505-9509				●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-0609				●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-				●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9703-9709					●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9710-0205					●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-					●	●
107	SHAFT; IDLE GEAR EMISSION PARTS<TCA> (A)	8-97189-244-0	01	1	9803-9805						●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9703-9709					●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9710-0304					●	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-					●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	9806-0204				●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-				●	●	●
111	COLLAR; THRUST,IDLE GEAR (D)	5-12535-001-1	01	1	9101-9504	●	●	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) ID=24 OD=70	8-94394-097-1	01	1	9505-9509				●
111	COLLAR; THRUST,IDLE GEAR CAUTIONS SPANISH<YN1> (A) ID=24 OD=70	8-94394-097-1	01	1	9505-9509				●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9505-9702				●
111	COLLAR; THRUST,IDLE GEAR (C) ID=24 OD=70	8-94394-097-1	01	1	9703-9709					●
111	COLLAR; THRUST,IDLE GEAR (C) ID=24 OD=70	8-94394-097-1	01	1	9710-					●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9703-9709				●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9710-0306				●	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97209-728-2	02	1	0307-				●	●	●
112	GEAR; IDLE (D) Z=51 W/BUSH	1-12523-057-3	01	1	9101-9504	●	●	●
112	GEAR; IDLE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (B) Z=72-30	8-94394-092-3	01	1	9505-9509				●
112	GEAR; IDLE CAUTIONS SPANISH<YN1> (B) Z=72-30	8-94394-092-3	01	1	9505-9509				●
112	GEAR; IDLE (A) W/BUSH Z=61	8-97094-546-2	01	1	9505-				●
112	GEAR; IDLE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (B) Z=72-30	8-94395-107-1	01	1	9505-9509				●
112	GEAR; IDLE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (B) Z=72-30	8-94395-107-1	01	1	9505-9509				●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-0609				●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9703-9709					●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	9710-					●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9703-9709					●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9710-					●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9703-9709					●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	9710-					●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9505-9702				●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9703-9709				●	●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	9710-				●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9505-9702				●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9703-9709				●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9710-0306				●	●	●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-				●	●	●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9505-9702				●
212	CAP; ADJ SCREW	8-94396-015-1	12	1	9703-9709				●	●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	9710-				●	●	●

107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	9703-9709					●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	9710-					●	●
107	SHAFT; IDLE GEAR (E)	9-12531-030-0	01	1	9101-9504	●	●	●
107	SHAFT; IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (C)	8-94395-073-2	01	1	9505-9509				●
107	SHAFT; IDLE GEAR CAUTIONS SPANISH<YN1> (C)	8-94395-073-2	01	1	9505-9509				●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9505-9702				●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9703-9709				●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9710-9805				●	●	●
107	SHAFT; IDLE GEAR (A)	8-97073-938-1	01	1	9803-9805				●	●
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<THN> (A)	8-97073-938-1	01	1	9803-9805						●
107	SHAFT; IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (B)	8-97104-380-0	01	1	9505-9509				●
107	SHAFT; IDLE GEAR EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (B)	8-97104-380-0	01	1	9505-9509				●
107	SHAFT; IDLE GEAR (B)	8-97104-380-0	01	1	9510-0609				●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	0610-				●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9703-9709					●
107	SHAFT; IDLE GEAR (C)	8-94395-073-2	01	1	9710-0205					●	●
107	SHAFT; IDLE GEAR (C)	8-97602-588-0	01	1	0206-					●	●
107	SHAFT; IDLE GEAR EMISSION PARTS<TCA> (A)	8-97189-244-0	01	1	9803-9805						●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9703-9709					●
107	SHAFT; IDLE GEAR (D)	8-94395-096-0	01	1	9710-0304					●	●
107	SHAFT; IDLE GEAR (D)	8-94334-682-1	01	1	0305-					●	●
107	SHAFT; IDLE GEAR (A)	8-97189-244-1	01	1	9806-0204				●	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0205-				●	●	●
111	COLLAR; THRUST,IDLE GEAR (D)	5-12535-001-1	01	1	9101-9504	●	●	●
111	COLLAR; THRUST,IDLE GEAR EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (A) ID=24 OD=70	8-94394-097-1	01	1	9505-9509				●
111	COLLAR; THRUST,IDLE GEAR CAUTIONS SPANISH<YN1> (A) ID=24 OD=70	8-94394-097-1	01	1	9505-9509				●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9505-9702				●
111	COLLAR; THRUST,IDLE GEAR (C) ID=24 OD=70	8-94394-097-1	01	1	9703-9709					●
111	COLLAR; THRUST,IDLE GEAR (C) ID=24 OD=70	8-94394-097-1	01	1	9710-					●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9703-9709				●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-94370-688-0	02	1	9710-0306				●	●	●
111	COLLAR; THRUST,IDLE GEAR (B) ID=14.5 OD=46	8-97209-728-2	02	1	0307-				●	●	●
112	GEAR; IDLE (D) Z=51 W/BUSH	1-12523-057-3	01	1	9101-9504	●	●	●
112	GEAR; IDLE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> EXC. OVERHEAD COOLING SYSTEM<YS9> (B) Z=72-30	8-94394-092-3	01	1	9505-9509				●
112	GEAR; IDLE CAUTIONS SPANISH<YN1> (B) Z=72-30	8-94394-092-3	01	1	9505-9509				●
112	GEAR; IDLE (A) W/BUSH Z=61	8-97094-546-2	01	1	9505-				●
112	GEAR; IDLE EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> OVERHEAD COOLING SYSTEM<YS9> (B) Z=72-30	8-94395-107-1	01	1	9505-9509				●
112	GEAR; IDLE EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, CAUTIONS SPANISH<YN1> (B) Z=72-30	8-94395-107-1	01	1	9505-9509				●
112	GEAR; IDLE (B) Z=72-30	8-94395-107-1	01	1	9510-0609				●
112	GEAR; IDLE (B) Z=72-30	8-97227-074-0	01	1	0610-				●
112	GEAR; IDLE (A) Z=61	8-94393-439-3	01	1	9703-9709					●
112	GEAR; IDLE (A) Z=61	8-94393-439-4	01	1	9710-					●	●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9703-9709					●
112	GEAR; IDLE (B) Z=72-30	8-94394-092-3	01	1	9710-					●	●
112	GEAR; IDLE (C) Z=34	8-94394-509-2	01	1	9703-9709					●
112	GEAR; IDLE (C) Z=34	8-94394-509-3	01	1	9710-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
