3-46 — AIR DRYER (#369) — 31 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

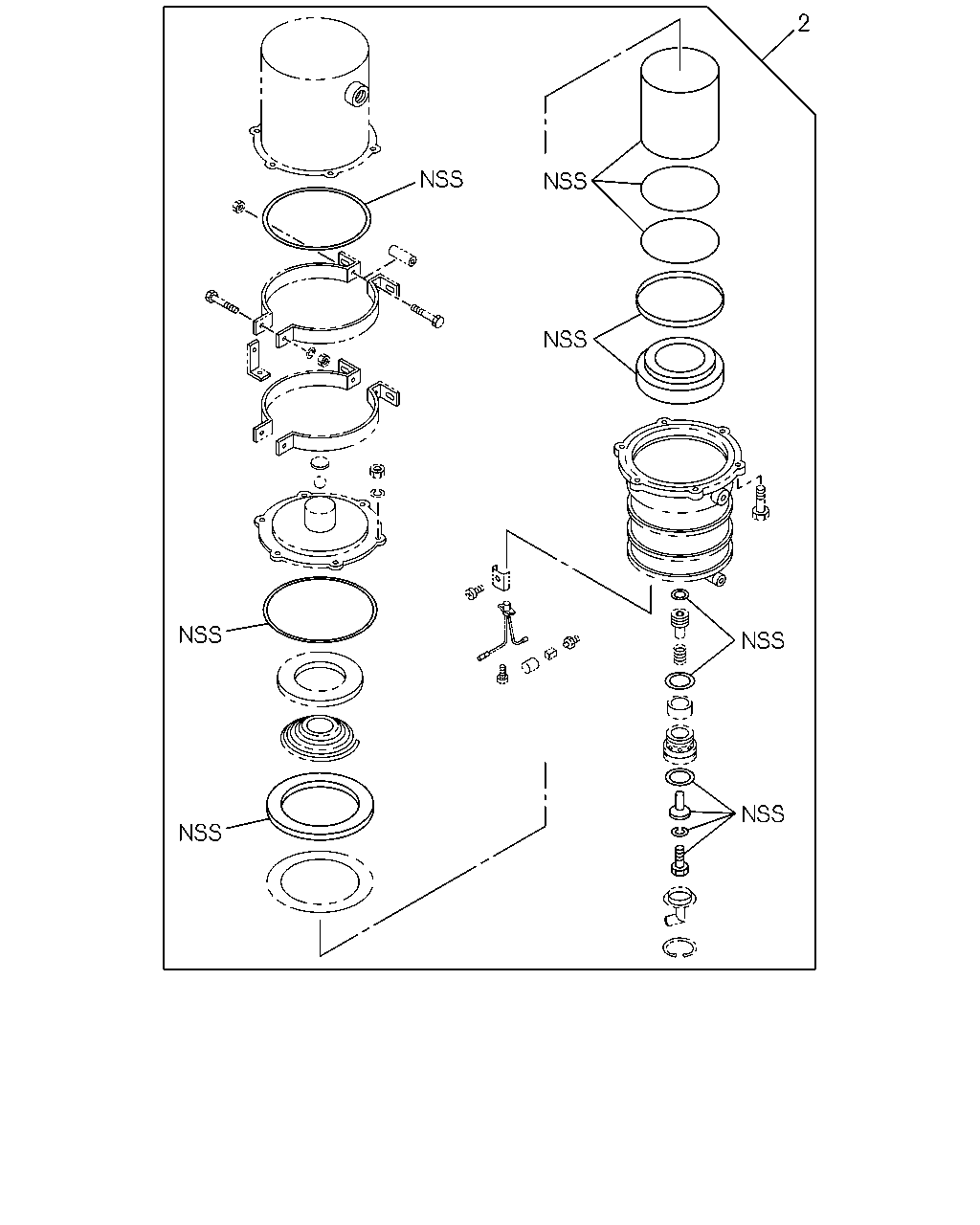

	2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-083-0	01	1	9202-	●	●

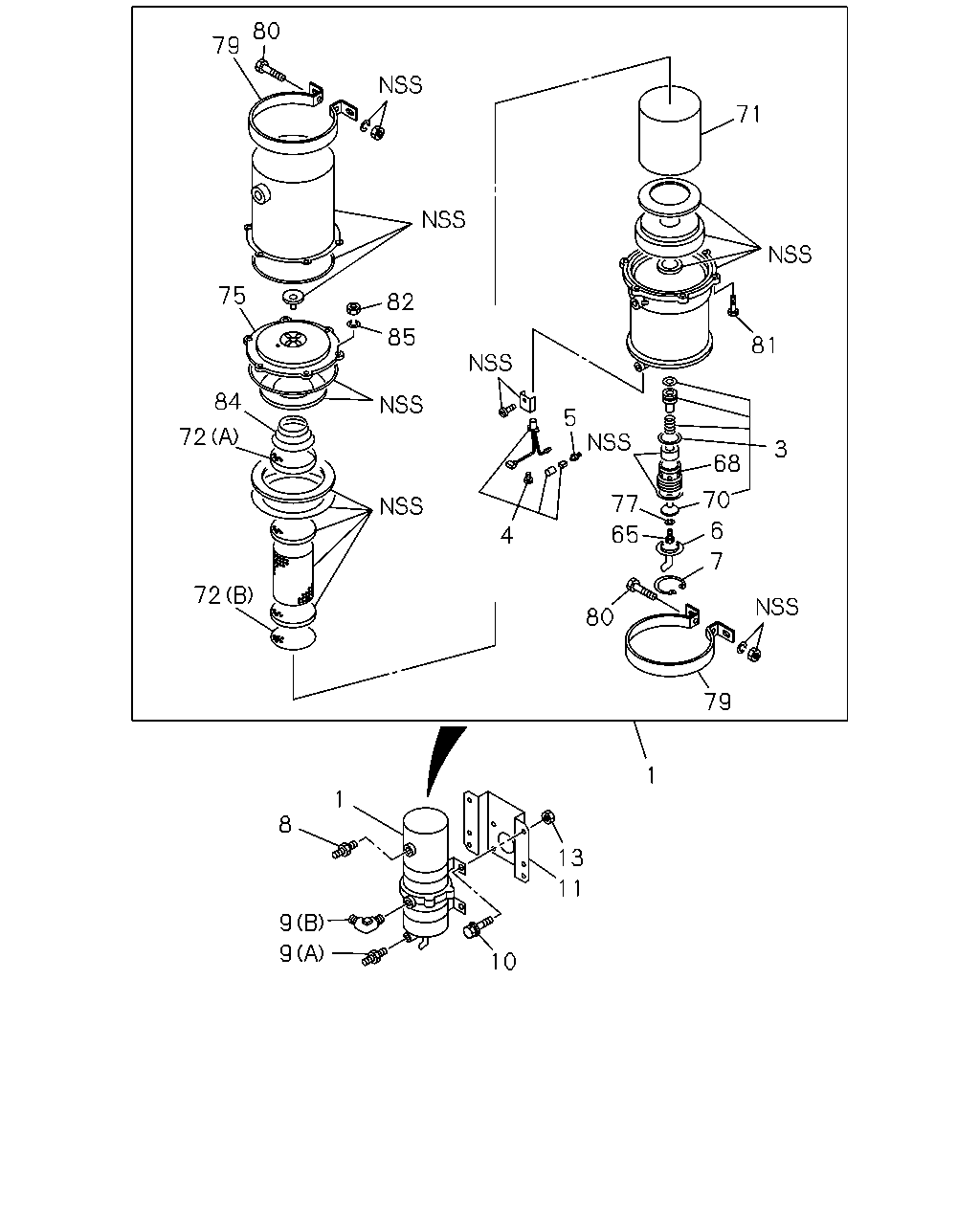

80 79 71 75 82 85 81 84 5 72 3 68 70 77 6 65 4 7 72 80 79 1 1 8 13 11 9 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR AIR DRYER<PS7>	1-48190-061-1	01	1	9202-9206	●	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-091-0	01	1	9207-	●	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-084-0	01	1	9202-	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-085-0	01	1	9202-9206	●	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-121-0	01	1	9207-	●	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-200-0	01	1	9202-	●	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-132-0	01	1	9202-	●	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-100-0	01	1	9202-	●	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9202-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-	●	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) FLARE M22 PT1/2	9-09231-815-1	01	1	9202-	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9202-	●	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9202-	●	●
11	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48195-057-0	01	1	9202-	●	●
13	NUT; AIR DRYER M10	9-09110-510-0	04	1	9202-	●	●
13	NUT; AIR DRYER M10	9-09110-510-0	02	1	9204-	●	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	9202-	●	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	9202-	●	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	9202-	●	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	9202-	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (A)	1-48199-097-0	01	1	9202-	●	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (B)	1-48199-098-0	01	1	9202-	●	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-201-0	01	1	9202-	●	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	9202-	●	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-209-0	02	1	9202-	●	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-212-0	02	1	9202-	●	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-208-0	06	1	9202-	●	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-211-0	08	1	9202-	●	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-092-0	01	1	9202-	●	●
85	WASHER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-024-0	08	1	9202-	●	●
