1 |
PAN ASM; OIL
|
5-11360-377-1 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
|
8-94395-608-0 |
01 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94395-608-0 |
01 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-608-1 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94395-608-1 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-608-2 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94395-608-2 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94395-861-0 |
01 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94395-861-0 |
01 |
1 |
9606-9608 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
COOLER COMPRESSOR USER<TGZ>
|
8-94395-861-0 |
01 |
1 |
9606-9608 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EXC. ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION
SYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94395-861-1 |
01 |
1 |
9609-0203 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM
ECE REQUIREMENT VAR2<TDZ>
|
8-94395-861-1 |
01 |
1 |
0204-0204 |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
ANTI NOISE EQUIPMENT VAR2<TAK>,EMISSION SYSTEM
ECE REQUIREMENT VAR2<TDZ>
|
8-94395-861-1 |
01 |
1 |
0205- |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
GENERATOR NIKKO 24V-110A 3KW(PU1),GENERATOR
NIKKO 24V-60A 1.5KW(SC8)
|
8-94395-861-1 |
01 |
1 |
0205- |
|
|
|
● |
|
|
| |
1 |
PAN ASM; OIL
|
8-94394-711-0 |
01 |
1 |
9703-9709 |
|
|
|
|
● |
|
| |
1 |
PAN ASM; OIL
|
8-94394-711-2 |
01 |
1 |
9710- |
|
|
|
|
● |
● |
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-273-0 |
01 |
1 |
9101-9504 |
● |
● |
|
|
|
|
| |
2 |
GAUGE; OIL LEVEL
|
1-11760-368-0 |
01 |
1 |
9101-9504 |
|
|
● |
|
|
|
| |
2 |
GAUGE; OIL LEVEL
OVERHEAD COOLING SYSTEM<YS9>
|
8-94395-217-1 |
01 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
|
8-94395-217-1 |
01 |
1 |
9606-9702 |
|
|
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
|
8-94395-217-1 |
01 |
1 |
9703-9709 |
|
|
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
|
8-94395-217-1 |
01 |
1 |
9703-9709 |
|
|
|
|
● |
|
| |
2 |
GAUGE; OIL LEVEL
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
|
8-94395-217-1 |
01 |
1 |
9710- |
|
|
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
|
8-94395-217-1 |
01 |
1 |
9710- |
|
|
|
|
● |
● |
| |
2 |
GAUGE; OIL LEVEL
EXC. OVERHEAD COOLING SYSTEM<YS9>
|
8-94397-149-1 |
01 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
OVERHEAD COOLING SYSTEM<YS9>
COOLER COMPRESSOR USER<TGZ>
|
8-94397-149-1 |
01 |
1 |
9606- |
|
|
|
● |
|
|
| |
2 |
GAUGE; OIL LEVEL
EXC. OVERHEAD COOLING SYSTEM<YS9>
|
8-94397-149-1 |
01 |
1 |
9606- |
|
|
|
● |
|
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-183-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
9505-9701 |
|
|
|
● |
|
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
9702-9709 |
|
|
|
● |
● |
|
| |
5 |
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=24.4
|
1-09623-057-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9505-9701 |
|
|
|
● |
|
|
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9702-9709 |
|
|
|
● |
● |
|
| |
6 |
PLUG; OIL DRAIN
M20X16.5
|
9-09662-012-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
|
1-11766-361-0 |
01 |
1 |
9101-9504 |
● |
● |
|
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(C)
|
1-11766-141-0 |
01 |
1 |
9101-9504 |
|
|
● |
|
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
OVERHEAD COOLING SYSTEM<YS9>
(A)
|
8-94394-934-1 |
01 |
1 |
9505-9505 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
OVERHEAD COOLING SYSTEM<YS9>
(A)
|
8-94390-196-0 |
01 |
1 |
9505-9507 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
OVERHEAD COOLING SYSTEM<YS9>
(A)
|
8-94390-494-0 |
01 |
1 |
9508-9605 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
(A)
|
8-94390-494-0 |
01 |
1 |
9606-9708 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
(A)
|
8-94391-957-0 |
01 |
1 |
9709- |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
EXC. OVERHEAD COOLING SYSTEM<YS9>
(A)
|
8-94395-238-0 |
01 |
1 |
9505-9505 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
EXC. OVERHEAD COOLING SYSTEM<YS9>
(A)
|
8-94390-195-0 |
01 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
OVERHEAD COOLING SYSTEM<YS9>
COOLER COMPRESSOR USER<TGZ>
(A)
|
8-94390-195-0 |
01 |
1 |
9606- |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
EXC. OVERHEAD COOLING SYSTEM<YS9>
(A)
|
8-94390-195-0 |
01 |
1 |
9606- |
|
|
|
● |
|
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
8-94391-543-0 |
01 |
1 |
9703-9709 |
|
|
|
|
● |
|
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
8-94391-543-0 |
01 |
1 |
9710-9811 |
|
|
|
|
● |
● |
| |
8 |
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
|
8-97600-209-0 |
01 |
1 |
9812- |
|
|
|
|
● |
● |
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
01 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
1-09623-469-0 |
02 |
1 |
9505-9708 |
|
|
|
● |
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
OVERHEAD COOLING SYSTEM<YS9>
COOLER COMPRESSOR USER<TGZ>
ID=11
|
1-09623-469-0 |
02 |
1 |
9709- |
|
|
|
● |
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
EXC. OVERHEAD COOLING SYSTEM<YS9>
ID=11
|
1-09623-469-0 |
02 |
1 |
9709- |
|
|
|
● |
|
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
02 |
1 |
9703-9709 |
|
|
|
|
● |
|
| |
9 |
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=11
|
5-09623-002-0 |
02 |
1 |
9710- |
|
|
|
|
● |
● |
| |
10 |
BOLT; GUIDE TUBE
M8X28 FLANGE
|
8-94396-974-0 |
01 |
1 |
9505-0701 |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
M8X28 FLANGE
|
8-98043-528-0 |
01 |
1 |
0702- |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
OVERHEAD COOLING SYSTEM<YS9>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9606-0512 |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
|
|
|
● |
|
|
| |
10 |
BOLT; GUIDE TUBE
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9703-9709 |
|
|
|
|
● |
|
| |
10 |
BOLT; GUIDE TUBE
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9710-0512 |
|
|
|
|
● |
● |
| |
10 |
BOLT; GUIDE TUBE
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0601- |
|
|
|
|
● |
● |
| |
23 |
BOLT; OIL PAN
M8X18 W/LK WASHER
|
0-50040-818-0 |
32 |
1 |
9101-9504 |
● |
● |
● |
|
|
|
| |
23 |
BOLT; OIL PAN
OVERHEAD COOLING SYSTEM<YS9>
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
M8X18 FLANGE
|
0-28080-818-0 |
28 |
1 |
9606- |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
OVERHEAD COOLING SYSTEM<YS9>
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
9505-9605 |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
OVERHEAD COOLING SYSTEM<YS9>
EXC. COOLER COMPRESSOR USER<TGZ>
M8X28 FLANGE
|
0-28080-828-0 |
02 |
1 |
9606- |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
9703-9709 |
|
|
|
|
● |
|
| |
23 |
BOLT; OIL PAN
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
9710-0010 |
|
|
|
|
● |
● |
| |
23 |
BOLT; OIL PAN
COOLER COMPRESSOR USER<TGZ>
OVERHEAD COOLING SYSTEM<YS9>
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
0011- |
|
|
|
● |
|
|
| |
23 |
BOLT; OIL PAN
M8X18 FLANGE
|
0-28080-818-0 |
30 |
1 |
0011- |
|
|
|
|
● |
● |
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9710-0602 |
|
|
|
● |
● |
● |
| |
24 |
NUT; OIL PAN
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
|
|
● |
● |
● |
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
9703-9703 |
|
|
|
● |
● |
|
| |
47 |
CLIP; HOSE,AIR BREATHER
|
1-11369-115-0 |
01 |
1 |
9704-1506 |
|
|
|
● |
|
|
| |
47 |
CLIP; HOSE,AIR BREATHER
|
8-98303-447-0 |
01 |
1 |
1507- |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
LEFT HAND DRIVE(LTR6FB)
ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN
EMISSIONREGULATION<TAL>
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9311-9504 |
● |
|
|
|
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0204-0602 |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0204-0602 |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
|
|
● |
|
|
| |
115 |
NUT; OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
|
|
● |
|
|
| |
121 |
COVER; OIL PAN
LEFT HAND DRIVE(LTR6FB)
ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN
EMISSIONREGULATION<TAL>
|
1-19381-301-0 |
01 |
1 |
9311-9504 |
● |
|
|
|
|
|
| |
121 |
COVER; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
|
8-94395-613-2 |
01 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |

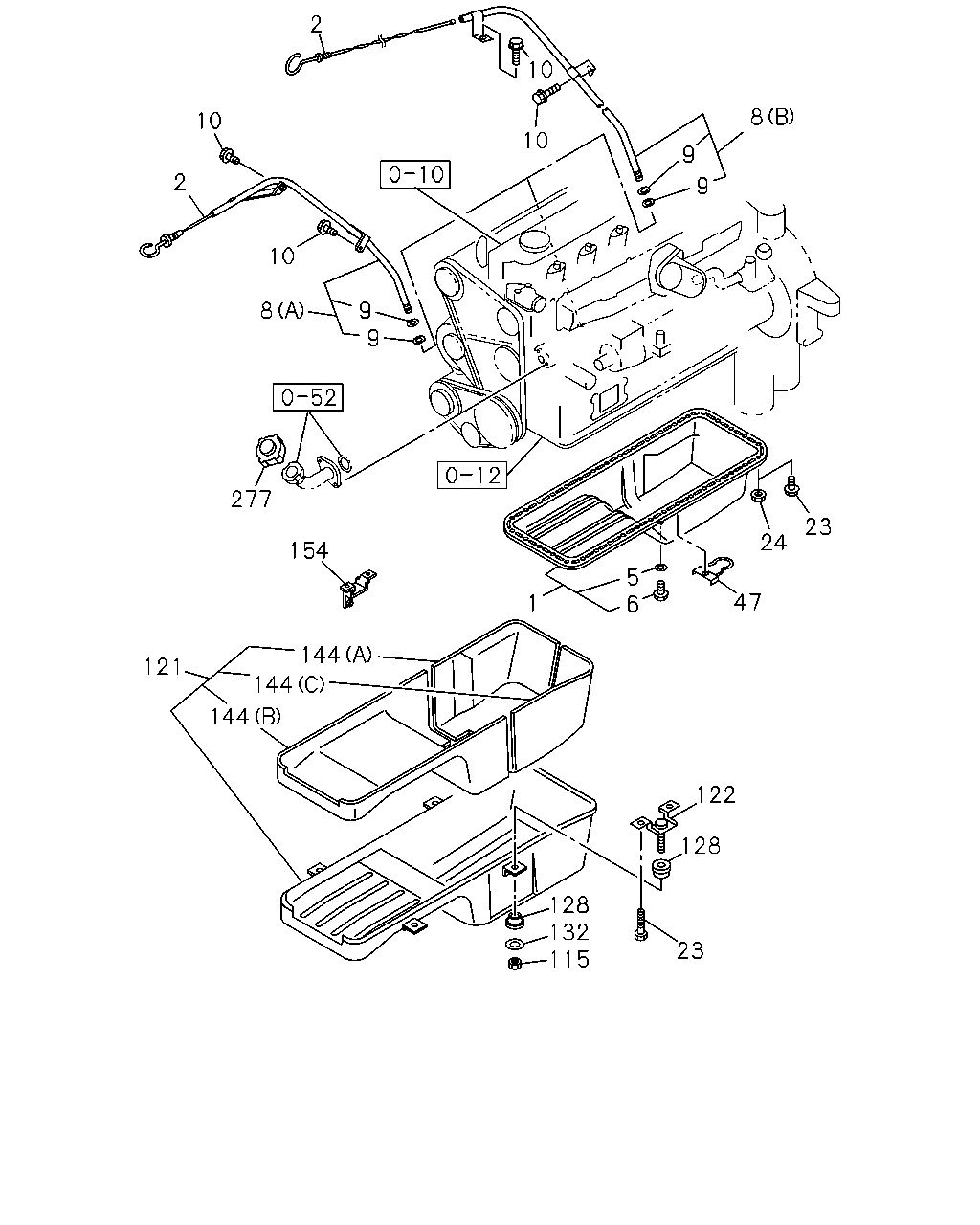

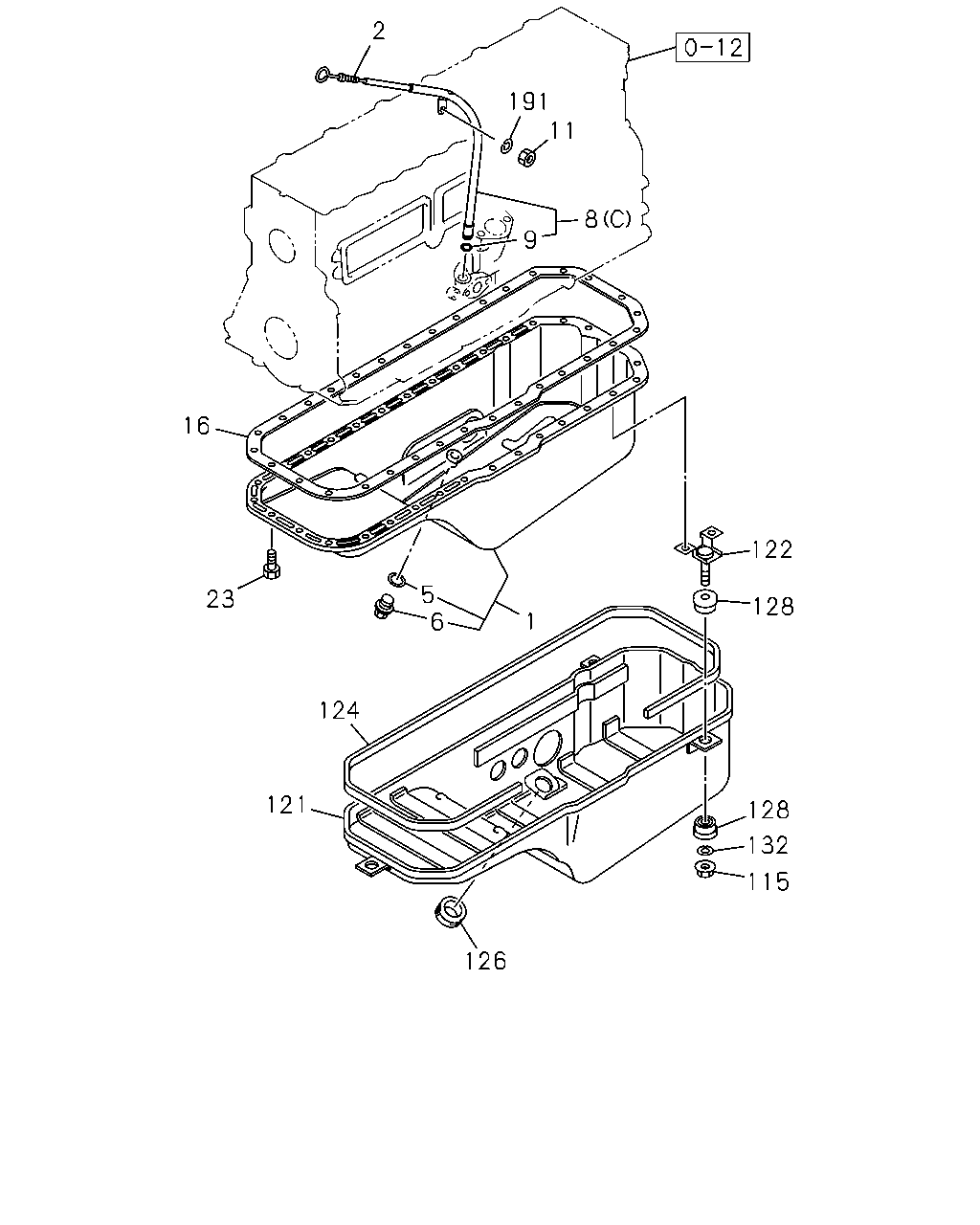

121 |
COVER; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94395-613-2 |
01 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
121 |
COVER; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-613-2 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
121 |
COVER; OIL PAN
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94395-613-2 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
121 |
COVER; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94395-613-2 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
121 |
COVER; OIL PAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94395-613-2 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
122 |
BRACKET; OIL PAN COVER
LEFT HAND DRIVE(LTR6FB)
ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN
EMISSIONREGULATION<TAL>
|
5-19386-002-0 |
03 |
1 |
9311-9504 |
● |
|
|
|
|
|
| |
122 |
BRACKET; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
|
8-94396-827-0 |
04 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
122 |
BRACKET; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
8-94396-827-0 |
04 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
122 |
BRACKET; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94396-827-0 |
04 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
122 |
BRACKET; OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94396-827-0 |
04 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
122 |
BRACKET; OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
8-94396-827-0 |
04 |
1 |
0204- |
|
|
|
● |
|
|
| |
122 |
BRACKET; OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
|
8-94396-827-0 |
04 |
1 |
0204- |
|
|
|
● |
|
|
| |
128 |
RUBBER; MTG,OIL PAN
LEFT HAND DRIVE(LTR6FB)
ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN
EMISSIONREGULATION<TAL>
|
1-09337-024-0 |
06 |
1 |
9311-9504 |
● |
|
|
|
|
|
| |
128 |
RUBBER; MTG,OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
|
1-09337-024-0 |
08 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
128 |
RUBBER; MTG,OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
|
1-09337-024-0 |
08 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
128 |
RUBBER; MTG,OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
1-09337-024-0 |
08 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
128 |
RUBBER; MTG,OIL PAN
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
|
1-09337-024-0 |
08 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
128 |
RUBBER; MTG,OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
|
1-09337-024-0 |
08 |
1 |
0204- |
|
|
|
● |
|
|
| |
128 |
RUBBER; MTG,OIL PAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
|
1-09337-024-0 |
08 |
1 |
0204- |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
LEFT HAND DRIVE(LTR6FB)
ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN
EMISSIONREGULATION<TAL>
ID=8.4 OD=22
|
9-09160-708-0 |
03 |
1 |
9311-9504 |
● |
|
|
|
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
0204-0605 |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
ID=8.4 OD=22
|
9-09160-708-0 |
04 |
1 |
0204-0605 |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
ID=8.4 OD=22
|
0-91610-708-0 |
04 |
1 |
0606- |
|
|
|
● |
|
|
| |
132 |
WASHER; PL,OIL PAN COVER
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
ID=8.4 OD=22
|
0-91610-708-0 |
04 |
1 |
0606- |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
(A)
|
8-94395-874-0 |
01 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(A)
|
8-94395-874-0 |
01 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
(A)
|
8-94395-874-0 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
(A)
|
8-94395-874-0 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
(A)
|
8-94395-874-0 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
(A)
|
8-94395-874-0 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
(B)
|
8-94395-875-0 |
01 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(B)
|
8-94395-875-0 |
01 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
|
8-94395-875-0 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
(B)
|
8-94395-875-0 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
(B)
|
8-94395-875-0 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
(B)
|
8-94395-875-0 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
(C)
|
8-94395-876-0 |
01 |
1 |
9505-9512 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
(C)
|
8-94395-876-0 |
01 |
1 |
9601-9605 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>,
EMISSION SYSTEM ECE REQUIREMENTS<SFV>
ANTI NOISE EQUIPMENT VAR2<TAK>
(C)
|
8-94395-876-0 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ>
(C)
|
8-94395-876-0 |
01 |
1 |
9606-0203 |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>
ANTI NOISE EQUIPMENT VAR2<TAK>
(C)
|
8-94395-876-0 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
144 |
INSULATOR; OIL PAN
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,
EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ>
(C)
|
8-94395-876-0 |
01 |
1 |
0204- |
|
|
|
● |
|
|
| |
154 |
BRACKET; CLIP,ENG HARNESS
|
8-94396-823-3 |
02 |
1 |
9505- |
|
|
|
● |
|
|
| |
277 |
CAP; OIL FILLER
|
1-11750-020-0 |
01 |
1 |
9505-9702 |
|
|
|
● |
|
|
| |
277 |
CAP; OIL FILLER
|
1-11750-020-0 |
01 |
1 |
9703-9709 |
|
|
|
● |
● |
|
| |
277 |
CAP; OIL FILLER
|
1-11750-020-0 |
01 |
1 |
9710- |
|
|
|
● |
● |
● |
