◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶

5-01 — FRAME AND OTHER PARTS (#36881) — 135 parça

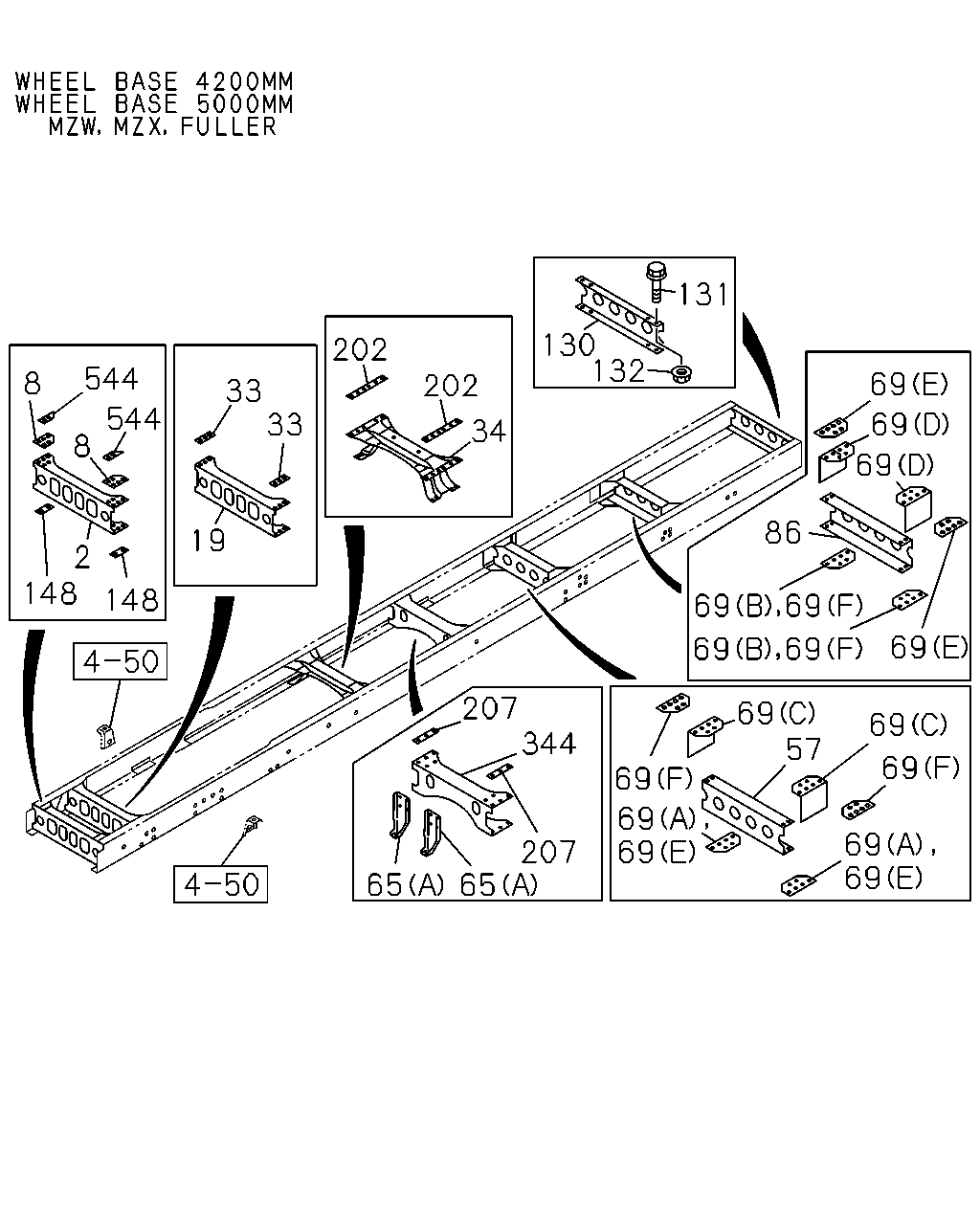

207 131 207 344 130 132 65 65 65 65 202 202 544 8 544 69 8 69 34 69 2 86 148 148 69 545 69 57 545 69 69 69 69 69 69 69 33 33 345 65 19 65 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	0809-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	8-97623-239-3	01	1	0809-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0809-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	0809-	●	●	●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97614-132-0	02	1	0809-	●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97614-133-0	02	1	0809-			●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97621-881-0	02	1	0809-			●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97614-136-0	02	1	1003-		●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97610-865-0	02	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-97610-866-0	02	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97619-800-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97619-801-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-802-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-803-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97619-889-0	04	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-890-0	04	1	0809-	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	0809-	●	●	●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	0809-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0809-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0809-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0809-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	0809-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	0809-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	0809-	●		●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	0809-		●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0809-	●	●	●
345	MEMBER; CROSS,5TH MLD6W M/T(Y2C)	8-97611-238-1	01	1	0809-		●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0809-			●
544	PLATE; CAB FRT MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	0809-	●	●	●
544	PLATE; CAB FRT MTG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97615-598-0	02	1	0809-	●	●	●
545	SPACER; 5TH C/MBR MLD6W M/T(Y2C) 0.24KG	8-97611-245-0	02	1	0809-		●
545	SPACER; 5TH C/MBR 0.24KG	8-97611-245-0	02	1	0809-			●

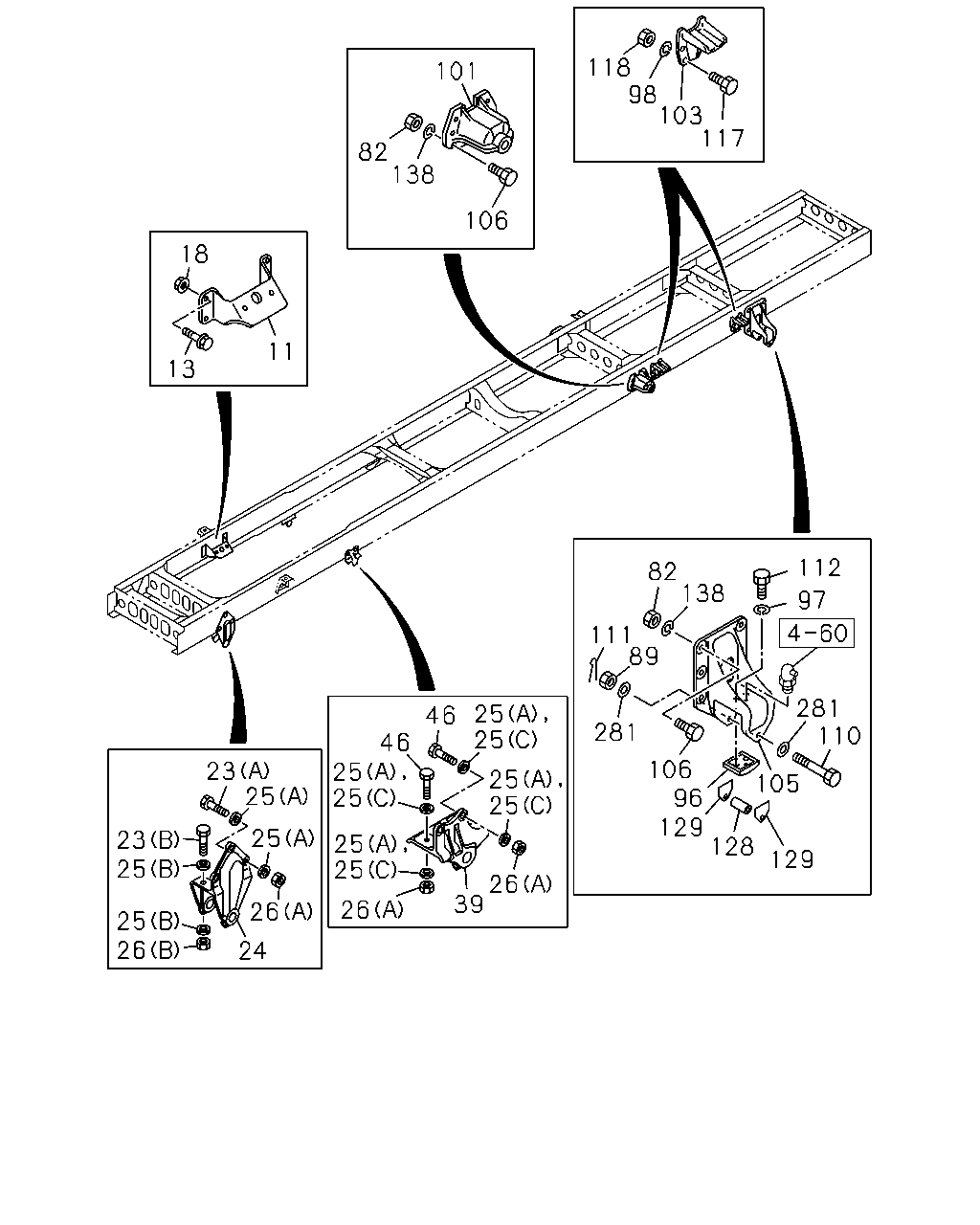

118 98 103 117 101 82 138 106 18 11 13 112 82 138 97 111 89 105 281 110 25 25 46 281 46 25 25 106 96 129 128 23 25 25 25 25 23 25 25 25 129 26 39 26 26 25 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-549-0	02	1	0809-	●	●	●
11	BRACKET; ENG MTG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-550-0	02	1	0809-	●	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0809-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0809-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0809-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0809-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0809-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	28	1	0809-0910	●	●	●
25	WASHER; PL,BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=15	8-98010-627-0	28	1	0911-1002	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) ID=15	8-98010-627-0	28	1	0911-1002	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	28	1	0911-1002		●	●
25	WASHER; PL,BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=15	8-98010-627-0	28	1	1003-1003	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) EXC. BUMPER REAR<7HZ> (A) ID=15	8-98010-627-0	28	1	1003-1003	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) BUMPER REAR<7HZ> EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) ID=15	8-98010-627-0	28	1	1003-1003	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	28	1	1003-1003		●	●
25	WASHER; PL,BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=15	8-98010-627-0	28	1	1004-1005	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) EXC. REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> (A) ID=15	8-98010-627-0	28	1	1004-1005	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> EXC. STABILIZER REAR LIGHT DUTY<GN1> (A) ID=15	8-98010-627-0	28	1	1004-1005	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	28	1	1004-1005		●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1006-	●	●	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> (C) ID=14.2	0-91510-814-0	16	1	0911-1002	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> BUMPER REAR<7HZ> (C) ID=14.2	0-91510-814-0	16	1	1003-1003	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> (C) ID=14.2	0-91510-814-0	16	1	1004-1005	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> (C) ID=15	8-98010-627-0	12	1	0911-1002	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> BUMPER REAR<7HZ> (C) ID=15	8-98010-627-0	12	1	1003-1003	●
25	WASHER; PL,BRKT FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> (C) ID=15	8-98010-627-0	12	1	1004-1005	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0809-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0809-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0809-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0809-	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0809-	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0809-	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0809-	●	●	●
98	WASHER; LK,STOPPER MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=14.2	0-91510-814-0	16	1	0809-0906	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2	0-91510-814-0	16	1	0809-0906	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	0809-0906		●	●
98	WASHER; LK,STOPPER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2	0-91510-814-0	16	1	0907-1002	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2	0-91510-814-0	16	1	0907-1002	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	0907-1002		●	●
98	WASHER; LK,STOPPER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2	0-91510-814-0	16	1	1003-1003	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) EXC. BUMPER REAR<7HZ> ID=14.2	0-91510-814-0	16	1	1003-1003	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) BUMPER REAR<7HZ> EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2	0-91510-814-0	16	1	1003-1003	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1003-1003		●	●
98	WASHER; LK,STOPPER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2	0-91510-814-0	16	1	1004-1005	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) EXC. REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> ID=14.2	0-91510-814-0	16	1	1004-1005	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> EXC. STABILIZER REAR LIGHT DUTY<GN1> ID=14.2	0-91510-814-0	16	1	1004-1005	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1004-1005		●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	1006-	●	●	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> ID=15	8-98010-627-0	16	1	0809-1002	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> BUMPER REAR<7HZ> ID=15	8-98010-627-0	16	1	1003-1003	●
98	WASHER; LK,STOPPER FULLER FSO5206B OD M/T(Y4V) STABILIZER REAR LIGHT DUTY<GN1> REAR BUMPER,REINFORCEMENT<SMS>,BUMPER REAR<7HZ> ID=15	8-98010-627-0	16	1	1004-1005	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0809-	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0809-	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0809-	●	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0809-	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0809-	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0809-	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0809-	●	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0809-	●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0809-	●	●	●
128	COLLAR; RUBBER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-53359-004-0	02	1	0809-	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0809-	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0809-	●	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	0809-	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0809-	●	●	●

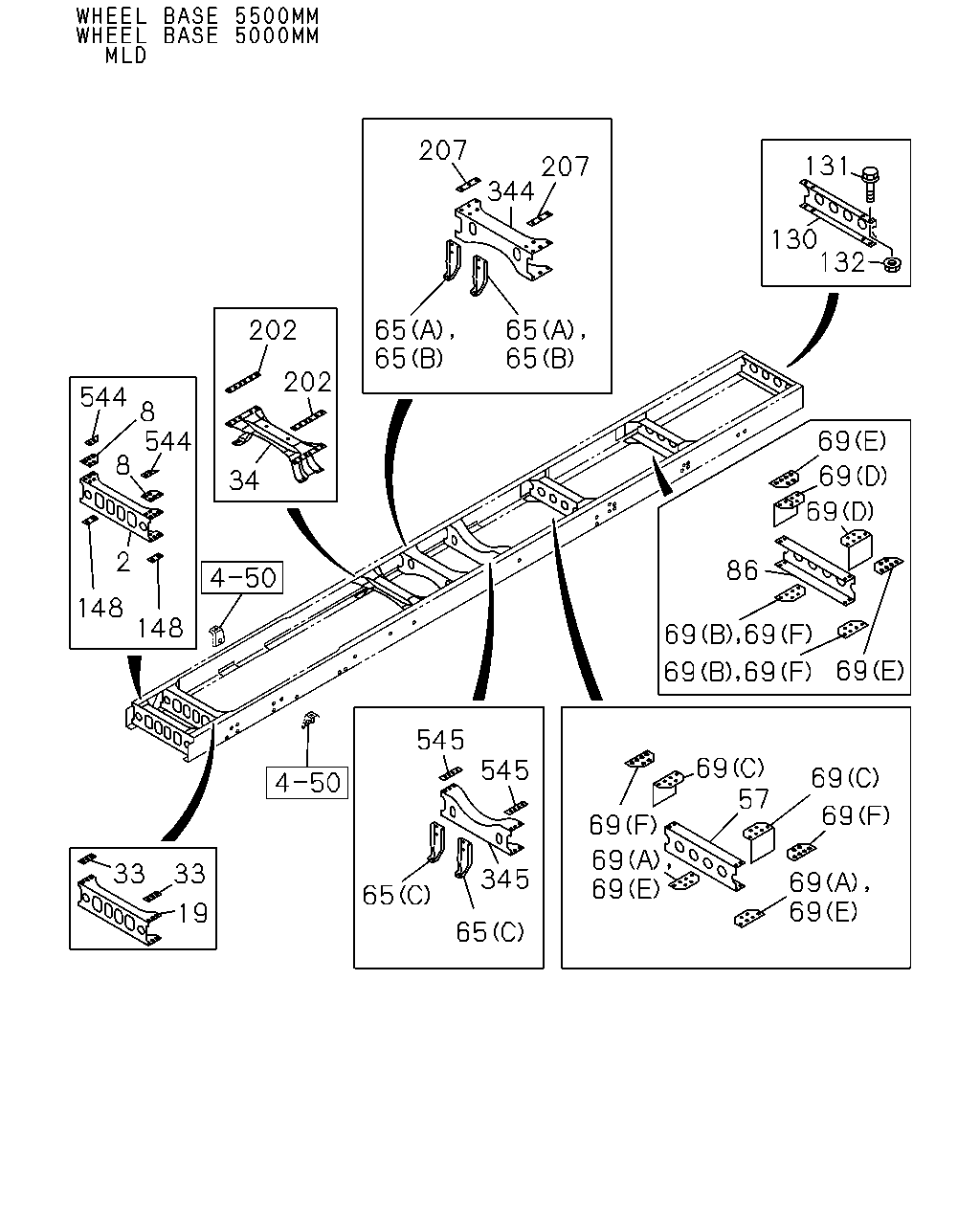

131 130 132 202 544 8 69 202 33 33 544 69 34 69 8 86 19 2 148 148 69 207 344 69 57 69 69 69 69 69 69 69 207 65 65 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	0809-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	8-97623-239-3	01	1	0809-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0809-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	0809-	●	●	●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97614-132-0	02	1	0809-	●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-97614-133-0	02	1	0809-			●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97621-881-0	02	1	0809-			●
65	BRACKET; CENTER BRG BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-97614-136-0	02	1	1003-		●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97610-865-0	02	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-97610-866-0	02	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97619-800-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97619-801-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-802-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-97619-803-0	01	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-97619-889-0	04	1	0809-	●	●	●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-97619-890-0	04	1	0809-	●	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97610-858-5	01	1	0809-	●	●	●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-888-3	01	1	0809-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0809-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0809-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0809-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	0809-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	0809-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	0809-	●		●
207	SPACER; 4TH C/MBR 0.24KG	8-97611-245-0	02	1	0809-		●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0809-	●	●	●
544	PLATE; CAB FRT MTG EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-030-0	02	1	0809-	●	●	●
544	PLATE; CAB FRT MTG HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97615-598-0	02	1	0809-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
