◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#36880) — 84 parça
çizim 111405
2 31 32 3 2 2 31 31 16 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		1-42350-730-0 02 1 0809-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		1-42350-730-0 04 1 0809-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		1-42350-730-0 01 1 0809-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) FRONT 		1-42350-447-0 02 1 0809-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) REAR 		1-42350-447-0 04 1 0809-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-447-0 01 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT 		1-42350-448-0 02 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR 		1-42350-448-0 04 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-448-0 01 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 0809-1109
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 0809-1109
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		1-42350-745-0 01 1 0809-1109
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0809-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 20 1 0809-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 0809-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1004-
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) FRONT 		1-42355-012-1 02 1 0809-
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) REAR 		1-42355-012-1 04 1 0809-
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42355-012-1 01 1 0809-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) FRONT 		1-42355-014-0 02 1 0809-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) REAR 		1-42355-014-0 04 1 0809-
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42355-014-0 01 1 0809-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 02 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 1110-
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 04 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 04 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 1110-
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 04 1 1110-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 01 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 01 1 1110-
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 05 1 0809-

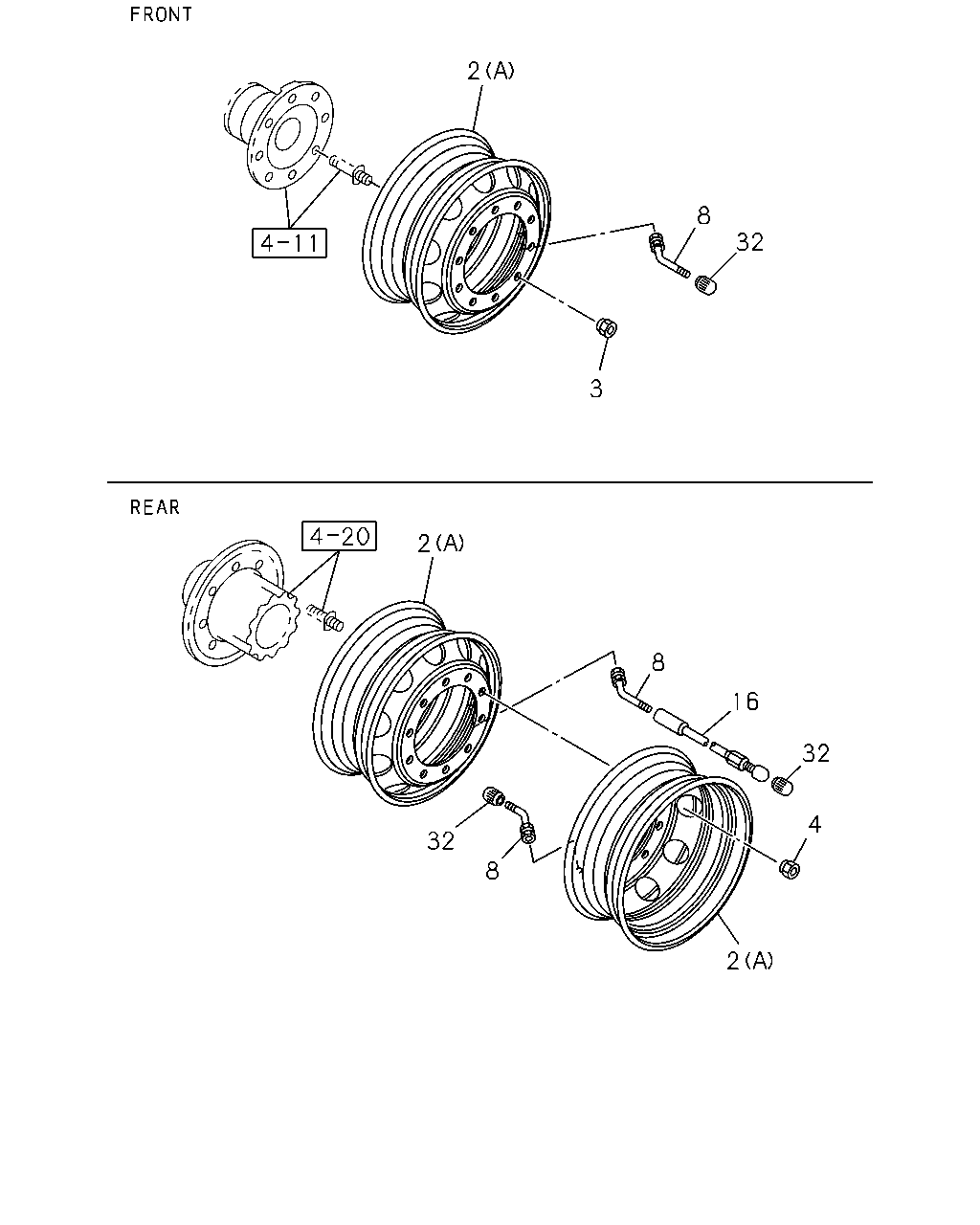

çizim 111437
2 8 32 3 2 8 16 32 4 32 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		1-42350-730-0 02 1 0809-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98217-247-0 02 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT 		8-98281-497-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		1-42350-730-0 04 1 0809-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98217-247-0 04 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR 		8-98281-497-0 04 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		1-42350-730-0 01 1 0809-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) FRONT 		1-42350-447-0 02 1 0809-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (B) REAR 		1-42350-447-0 04 1 0809-
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-447-0 01 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) FRONT 		1-42350-448-0 02 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (B) REAR 		1-42350-448-0 04 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-448-0 01 1 0809-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT 		1-42350-745-0 02 1 0809-1109
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR 		1-42350-745-0 04 1 0809-1109
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		1-42350-745-0 01 1 0809-1109
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0809-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 20 1 0809-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42370-020-3 02 1 0809-1109
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-020-3 02 1 1110-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-048-0 02 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42370-020-3 04 1 0809-1109
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-020-3 04 1 1110-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-048-0 04 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR 		1-42370-019-3 04 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 0809-1109
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 1110-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-019-3 01 1 1408-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 0809-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1004-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 02 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 02 1 1110-
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 04 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) 		1-42374-001-0 04 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42374-001-0 04 1 1110-
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 04 1 1110-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 01 1 0809-1109
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 01 1 1110-
32 CAP; VALVE
WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 05 1 0809-
