Sayfa 4-10 - Isuzu EPC

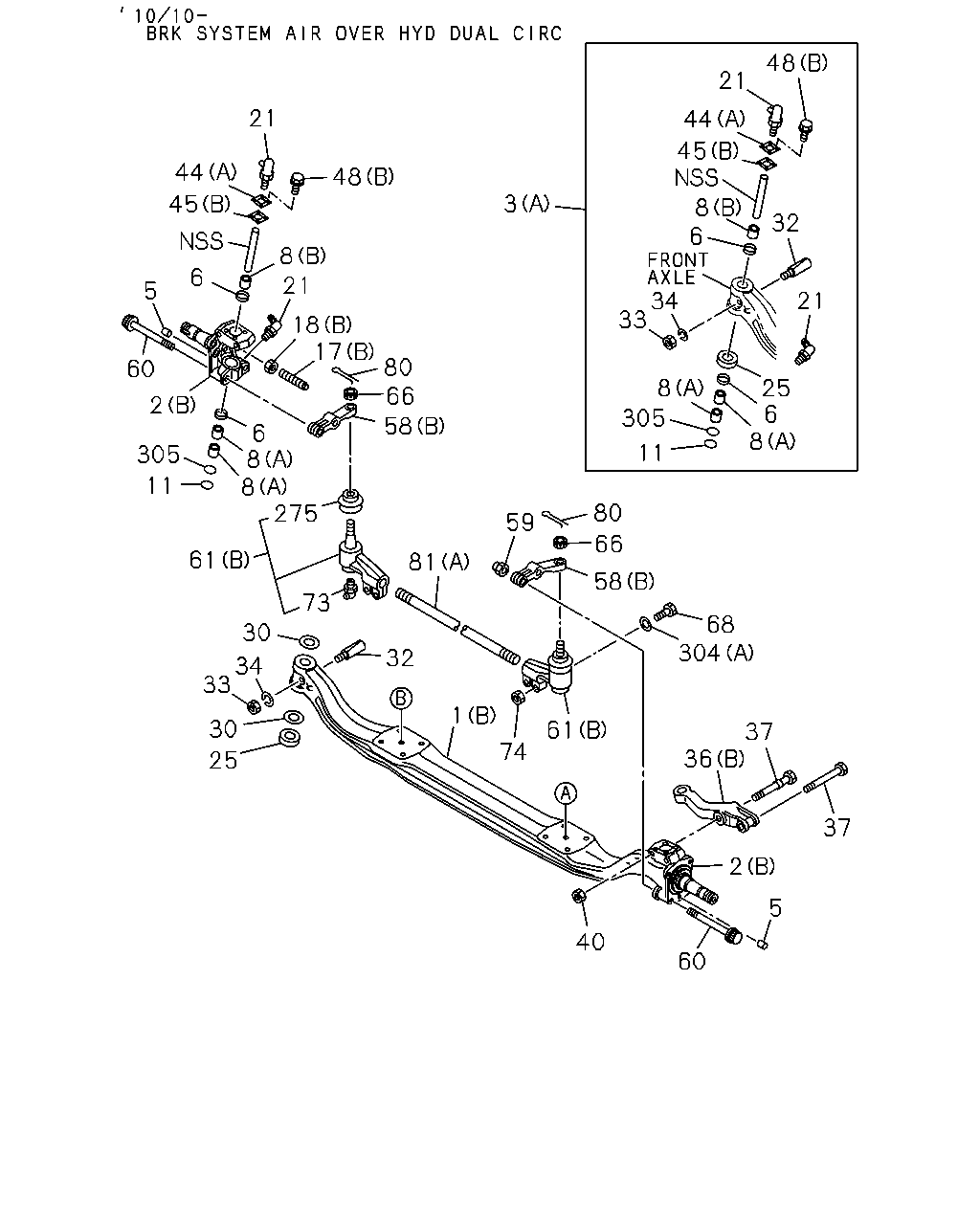

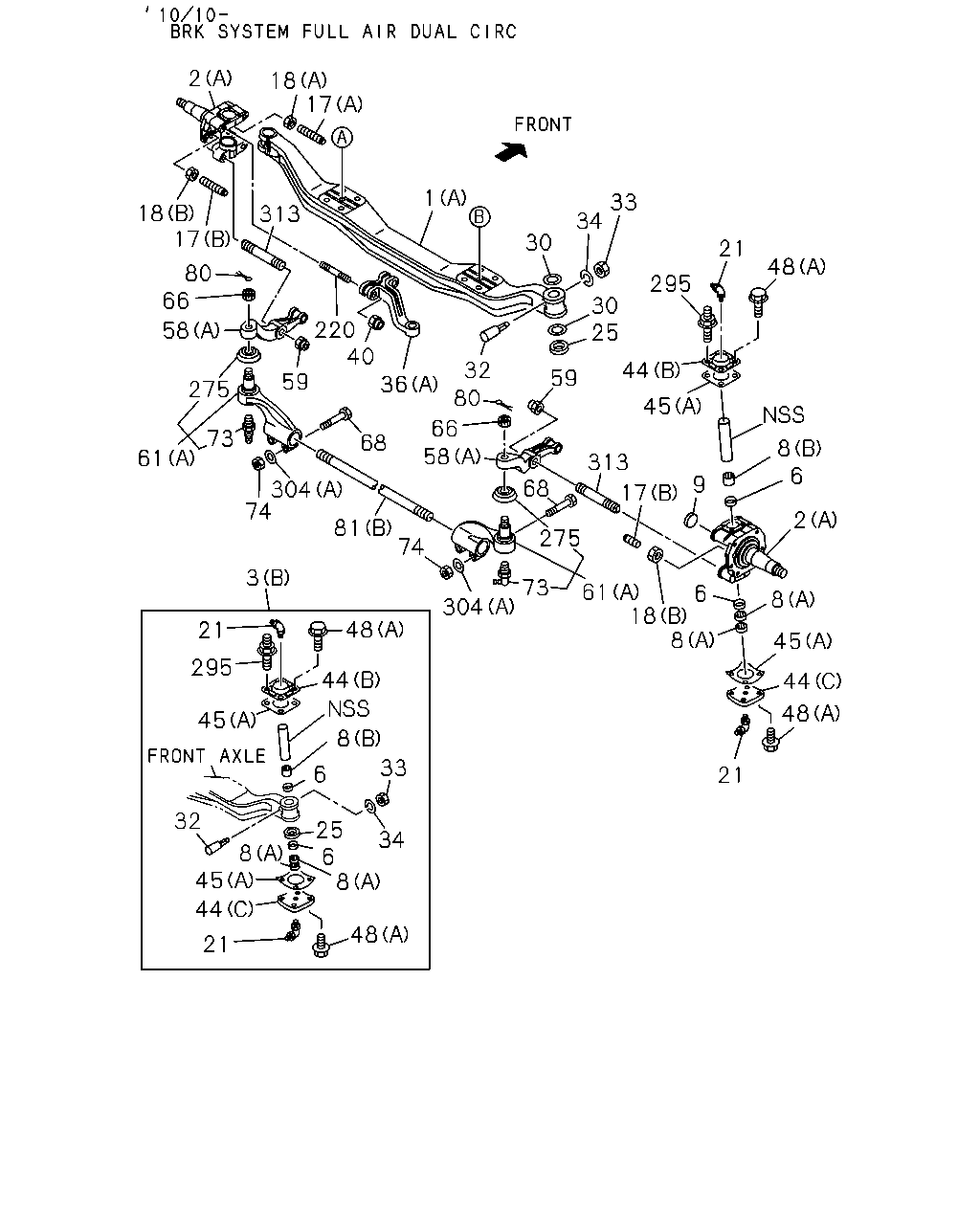

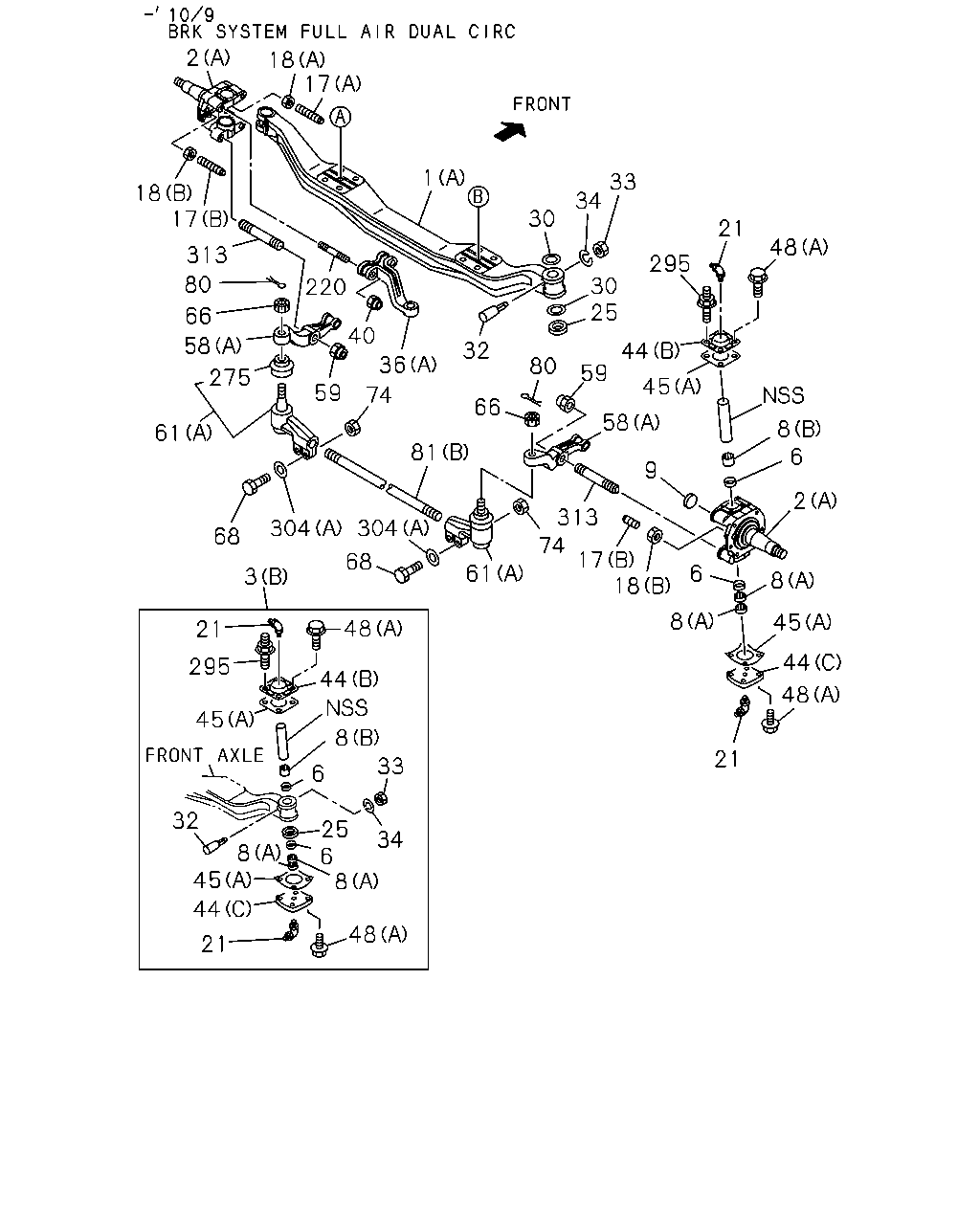

4-10 — FRONT AXLE (#36865) — 400 parça

48 21 44 45 21 3 8 6 34 33 32 44 48 45 21 8 21 6 5 8 2 6 8 18 17 80 66 305 60 11 2 58 80 6 8 8 59 305 66 81 11 58 61 30 68 304 32 34 33 275 30 1 37 36 74 25 61 37 2 5 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98061-842-2	01	1	0809-1011
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-
1	AXLE; FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43111-113-6	01	1	0809-
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43131-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43132-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43131-079-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43132-079-1	01	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-87831-349-1	02	1	0809-1011
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-
3	KING PIN SET BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-87831-302-2	02	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-
5	PIN; KNUCKLE TO DRUM COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09740-072-0	02	1	0809-
6	SEAL; KING PIN	9-09926-024-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0809-
11	RING; SNAP,KNUCKLE PLUG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09950-204-0	02	1	0809-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0809-
17	BOLT; STOPPER KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M18X53	1-09009-066-0	01	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0809-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0809-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0809-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0809-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0809-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0809-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0809-1011
34	WASHER; LK,KEY BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302
36	ARM; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43133-073-3	01	1	0809-
36	ARM; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43133-063-3	01	1	0809-
37	BOLT; KNUCKLE ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X179	8-98052-380-1	01	1	0809-
37	BOLT; KNUCKLE ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X167	8-98052-381-1	01	1	0809-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98100-654-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98100-655-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43175-014-1	02	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98100-656-1	04	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42319-044-0	02	1	0809-
48	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0809-
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43134-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43135-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43134-042-3	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43135-042-3	01	1	0809-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0809-
60	BOLT; TIE ROD ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X193	8-98052-379-1	04	1	0809-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-851-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-853-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-801-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-802-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0809-
68	BOLT; TIE ROD END BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0809-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0809-
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43151-157-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98171-947-0	01	1	1010-
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43151-119-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98172-133-0	01	1	1010-1109
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0809-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.5	0-91614-512-0	02	1	0809-1009
304	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=12.5	0-91614-512-0	04	1	0809-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0809-
305	COVER; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98052-291-0	02	1	0809-

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

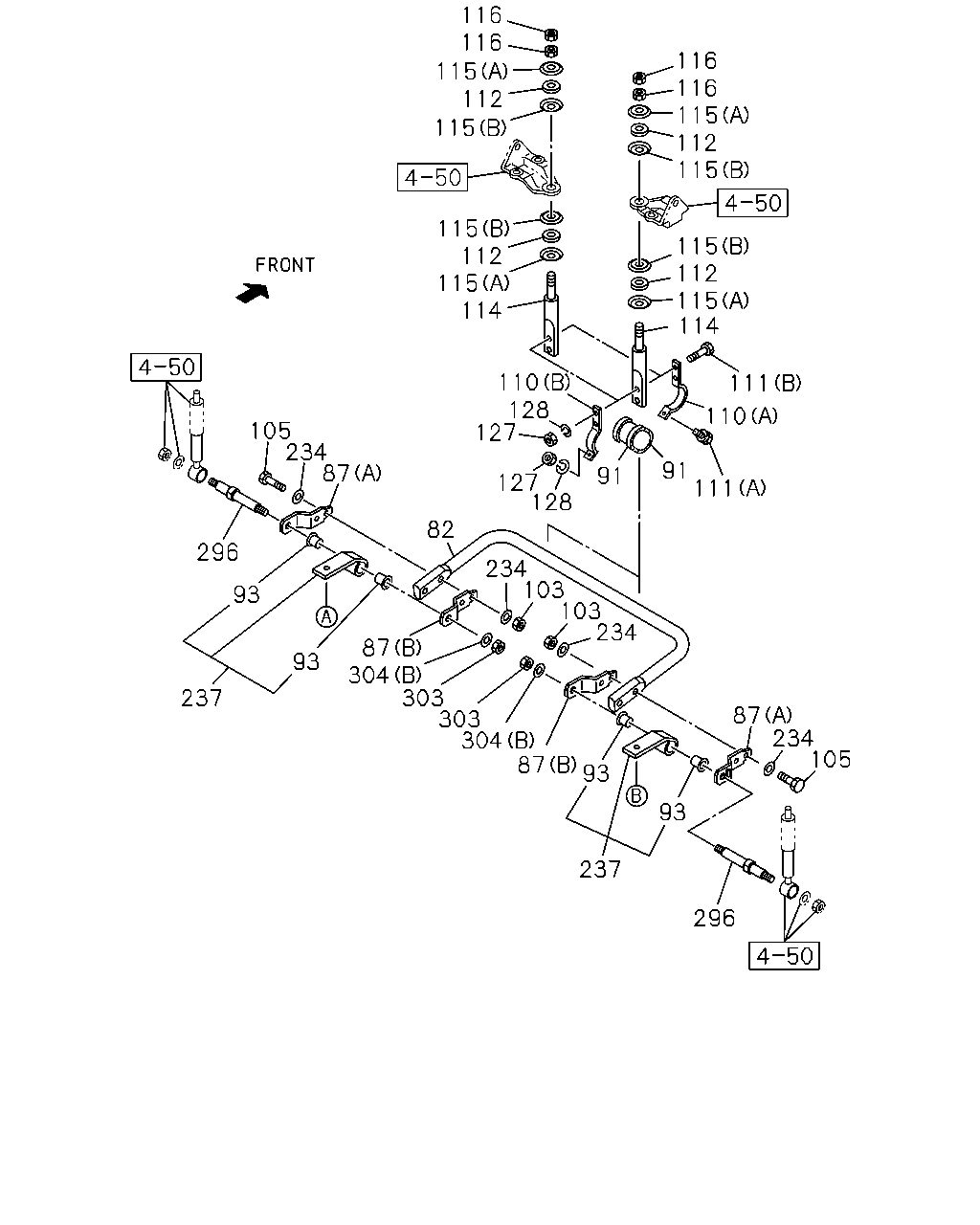

82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	0809-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	0809-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	0809-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0809-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0809-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0809-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0809-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0809-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0809-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0809-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0809-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0809-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	0809-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0809-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0809-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0809-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0809-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0809-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0809-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0809-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0809-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0809-
304	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.5	0-91614-512-0	02	1	0809-1009
304	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=12.5	0-91614-512-0	04	1	0809-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0809-

2 18 17 1 33 34 18 17 30 21 48 313 295 80 30 25 220 66 40 58 32 44 36 80 59 275 45 59 74 66 58 8 6 61 81 9 2 313 304 304 68 74 17 18 68 61 6 3 8 8 45 48 21 44 44 295 48 45 8 21 33 6 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98061-842-2	01	1	0809-1011
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-
1	AXLE; FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43111-113-6	01	1	0809-
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43131-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43132-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43131-079-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43132-079-1	01	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-87831-349-1	02	1	0809-1011
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-
3	KING PIN SET BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-87831-302-2	02	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-
6	SEAL; KING PIN	9-09926-024-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0809-
9	PLUG; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) OD=22	1-09600-011-2	02	1	0809-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0809-
17	BOLT; STOPPER KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M18X53	1-09009-066-0	01	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0809-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0809-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0809-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0809-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0809-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0809-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0809-1011
34	WASHER; LK,KEY BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302
36	ARM; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43133-073-3	01	1	0809-
36	ARM; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43133-063-3	01	1	0809-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98100-654-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98100-655-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43175-014-1	02	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98100-656-1	04	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42319-044-0	02	1	0809-
48	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0809-
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43134-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43135-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43134-042-3	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43135-042-3	01	1	0809-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0809-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-851-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-853-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-801-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-802-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0809-
68	BOLT; TIE ROD END BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0809-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0809-
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43151-157-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98171-947-0	01	1	1010-
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43151-119-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98172-133-0	01	1	1010-1109
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98193-965-0	01	1	1110-
220	STUD; KNUCKLE ARM BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22X145	1-09300-127-1	02	1	0809-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0809-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	0809-
304	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.5	0-91614-512-0	02	1	0809-1009
304	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=12.5	0-91614-512-0	04	1	0809-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0809-
313	STUD; TIE ROD ARM BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22X145	1-09300-127-1	04	1	0809-

48 21 21 44 45 44 48 3 45 8 6 34 33 32 8 21 6 5 21 18 17 80 66 60 8 2 6 8 2 305 58 6 8 8 275 11 305 11 80 59 66 61 81 58 73 68 304 30 32 34 33 1 30 61 37 36 74 25 37 2 5 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98061-842-2	01	1	0809-1011
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-
1	AXLE; FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43111-113-6	01	1	0809-
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43131-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43132-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43131-079-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43132-079-1	01	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-87831-349-1	02	1	0809-1011
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-
3	KING PIN SET BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-87831-302-2	02	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-
5	PIN; KNUCKLE TO DRUM COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09740-072-0	02	1	0809-
6	SEAL; KING PIN	9-09926-024-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0809-
11	RING; SNAP,KNUCKLE PLUG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-09950-204-0	02	1	0809-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0809-
17	BOLT; STOPPER KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M18X53	1-09009-066-0	01	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0809-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0809-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0809-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0809-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0809-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0809-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0809-1011
34	WASHER; LK,KEY BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302
36	ARM; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43133-073-3	01	1	0809-
36	ARM; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43133-063-3	01	1	0809-
37	BOLT; KNUCKLE ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X179	8-98052-380-1	01	1	0809-
37	BOLT; KNUCKLE ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X167	8-98052-381-1	01	1	0809-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98100-654-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98100-655-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43175-014-1	02	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98100-656-1	04	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42319-044-0	02	1	0809-
48	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0809-
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43134-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43135-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43134-042-3	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43135-042-3	01	1	0809-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0809-
60	BOLT; TIE ROD ARM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22X193	8-98052-379-1	04	1	0809-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-851-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-853-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-801-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-802-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0809-
68	BOLT; TIE ROD END BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0809-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0809-
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43151-157-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98171-947-0	01	1	1010-
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43151-119-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98172-133-0	01	1	1010-1109
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98193-965-0	01	1	1110-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0809-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.5	0-91614-512-0	02	1	0809-1009
304	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=12.5	0-91614-512-0	04	1	0809-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0809-
305	COVER; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98052-291-0	02	1	0809-

2 18 17 1 33 34 18 17 313 30 21 48 80 66 295 30 25 220 40 36 58 32 80 44 59 59 275 45 66 58 73 68 8 6 61 313 9 68 304 74 17 2 81 74 275 3 73 61 6 18 8 8 304 48 21 45 44 295 44 48 45 8 33 6 21 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98061-842-2	01	1	0809-1011
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98061-842-3	01	1	1012-
1	AXLE; FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43111-113-6	01	1	0809-
1	AXLE; FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98170-180-2	01	1	1012-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43131-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43132-120-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43131-079-1	01	1	0809-
2	KNUCKLE; FRT AXLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43132-079-1	01	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-87831-349-1	02	1	0809-1011
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-2	02	1	1012-
3	KING PIN SET BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-87831-302-2	02	1	0809-
3	KING PIN SET BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-87831-410-2	02	1	1012-
6	SEAL; KING PIN	9-09926-024-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0809-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0809-
9	PLUG; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) OD=22	1-09600-011-2	02	1	0809-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	0809-
17	BOLT; STOPPER KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M18X53	1-09009-066-0	01	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	0809-
18	NUT; STOPPER BOLT,KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	0809-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0809-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0809-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0809-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0809-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0809-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0809-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0809-1011
34	WASHER; LK,KEY BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
34	WASHER; LK,KEY BOLT BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-810-0	02	1	1012-1302
36	ARM; KNUCKLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43133-073-3	01	1	0809-
36	ARM; KNUCKLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43133-063-3	01	1	0809-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98100-654-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98100-655-0	02	1	0809-
44	COVER; KING PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43175-014-1	02	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98100-656-1	04	1	0809-
45	GASKET; KING PIN COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-42319-044-0	02	1	0809-
48	BOLT; COVER BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	0809-
48	BOLT; COVER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43134-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-43135-049-4	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43134-042-3	01	1	0809-
58	ARM; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43135-042-3	01	1	0809-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0809-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-851-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98054-853-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-801-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-444-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-800-0	01	1	1307-
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-43150-802-0	01	1	0809-1009
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98171-445-0	01	1	1010-1306
61	ROD END; TIE ROD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98236-801-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0809-
68	BOLT; TIE ROD END BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X65	8-98053-922-0	04	1	0809-1009
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1010-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0809-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0809-
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-43151-157-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98171-947-0	01	1	1010-
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-43151-119-0	01	1	0809-1009
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98172-133-0	01	1	1010-1109
81	ROD; TIE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98193-965-0	01	1	1110-
220	STUD; KNUCKLE ARM BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22X145	1-09300-127-1	02	1	0809-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0809-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	0809-
304	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.5	0-91614-512-0	02	1	0809-1009
304	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=12.5	0-91614-512-0	04	1	0809-1009
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1010-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0809-
313	STUD; TIE ROD ARM BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22X145	1-09300-127-1	04	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
