◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#36864) — 1852 parça

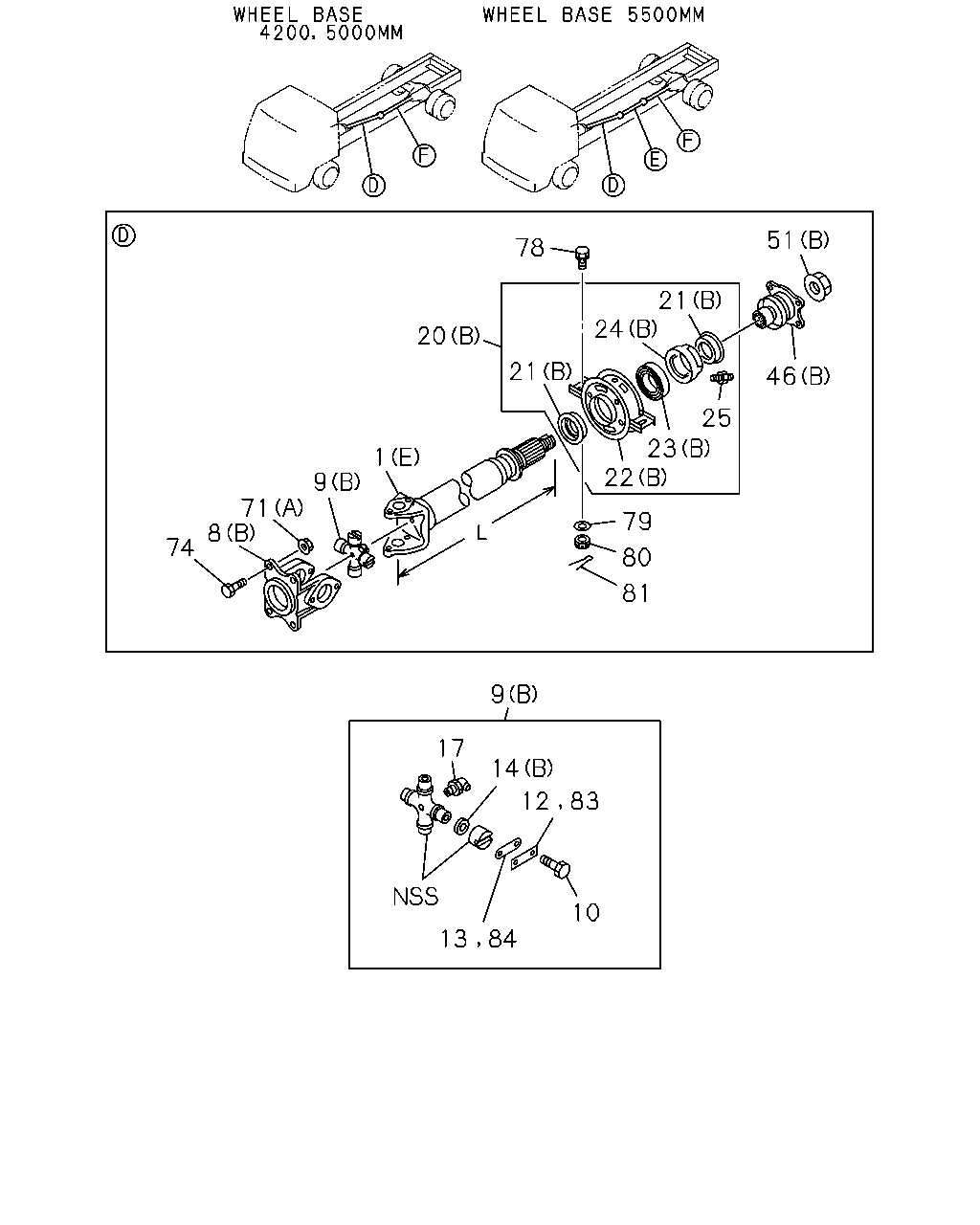

çizim 111383
51 78 21 24 20 21 46 25 23 22 1 9 71 8 79 74 80 81 9 17 14 10 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) L=1094 		1-37123-928-0 01 1 0809-0809 ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=954 		8-98069-592-0 01 1 0809-0810 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (E) L=1599 		8-98136-994-0 01 1 0811- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98090-934-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0809-1006 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1007- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=966 		1-37151-945-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=959 		8-98069-616-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961 		1-37151-382-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954 		8-98069-592-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=839 		8-98069-569-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829 		8-98113-452-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-221-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1134 		1-37124-093-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1279 		1-37123-909-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0809- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 0809- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1007- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37211-054-1 01 1 0809-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37300-102-1 AR 1 0809-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0809- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ● ●
13 COVER; FRT UJT,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ● ●
13 COVER; FRT UJT,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ●
13 COVER; FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37319-012-0 04 1 0809-1111 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●

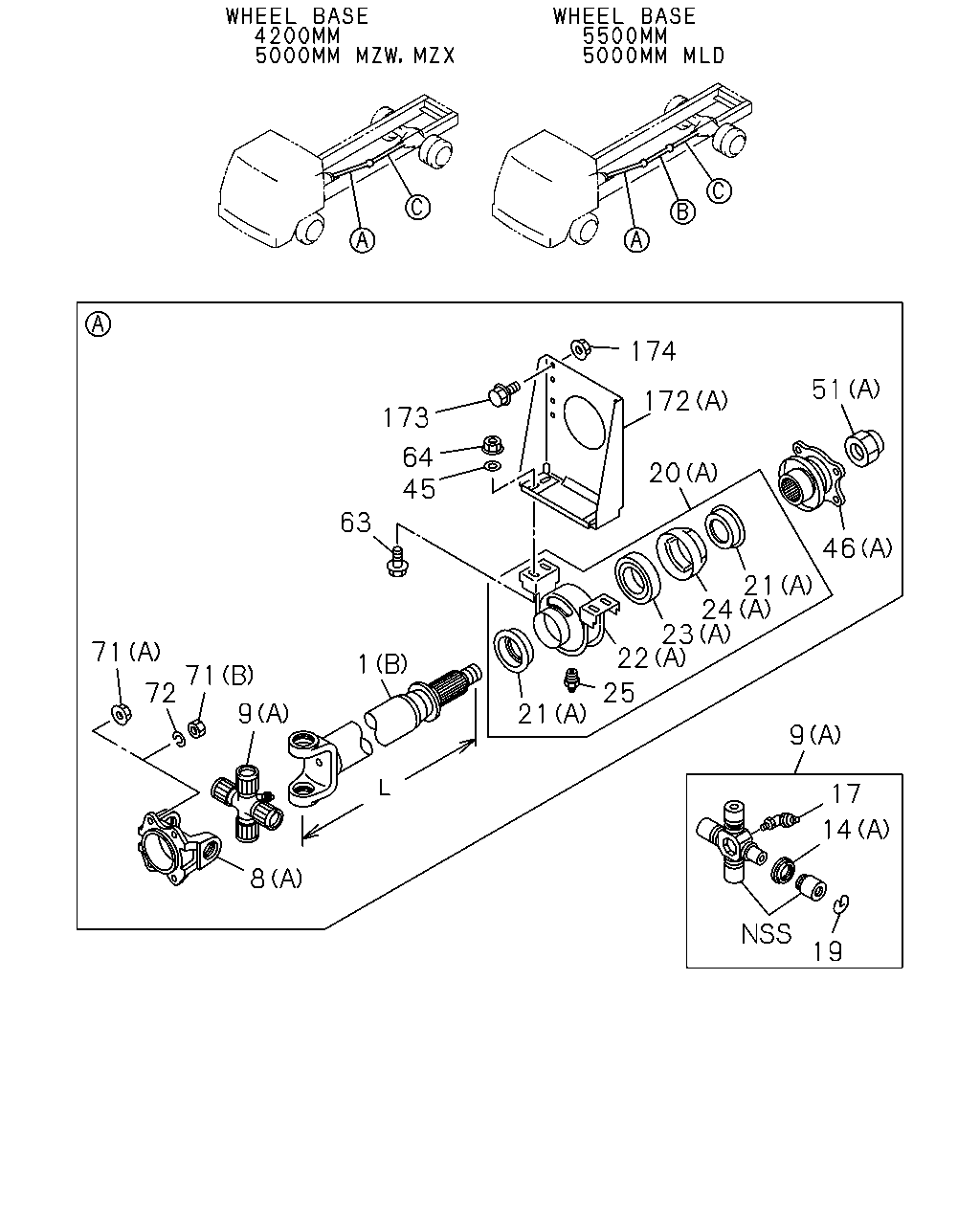

20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT

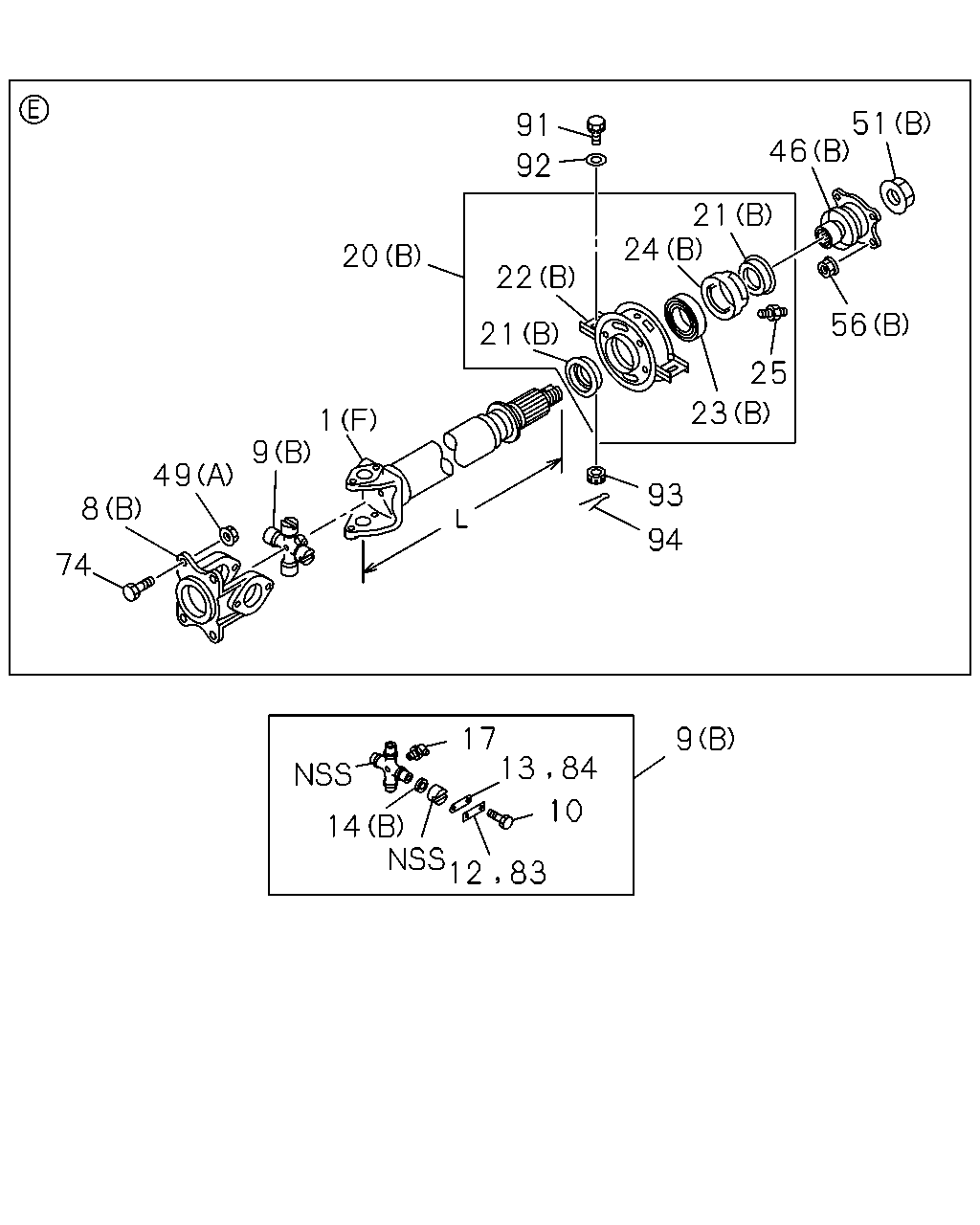

P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37510-105-0 01 1 0809-1111 ● ● ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0906-0906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0907-0907 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0906-0906 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0907-0907 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37529-068-0 01 1 0809-1111 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37245-071-0 01 1 0809-1111 ● ● ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0906-0906 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0907-0907 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
71 NUT; YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 0809-0810 ● ● ●
71 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0809-0810 ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 0811-0906 ● ● ●
71 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0811-0906 ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 0907-1006 ● ● ●
71 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0907-1006 ● ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1007- ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 1007- ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0809-0906 ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0907- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0809-0810 ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0811-1006 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0809-0901 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 0902-1006 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0902-1006 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1007- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 0809- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 0809- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 0809- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809- ● ● ●
çizim 111384
51 46 91 92 21 24 20 22 56 21 25 23 1 9 49 8 93 94 74 9 17 10 14 13 84 83 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) L=1094 		1-37123-928-0 01 1 0809-0809 ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=954 		8-98069-592-0 01 1 0809-0810 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (E) L=1599 		8-98136-994-0 01 1 0811- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98090-934-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0809-1006 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1007- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=966 		1-37151-945-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=959 		8-98069-616-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961 		1-37151-382-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954 		8-98069-592-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=839 		8-98069-569-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829 		8-98113-452-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-221-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1134 		1-37124-093-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1279 		1-37123-909-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0809- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 0809- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1007- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37211-054-1 01 1 0809-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37300-102-1 AR 1 0809-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0809- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ● ●
13 COVER; FRT UJT,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ● ●
13 COVER; FRT UJT,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ●
13 COVER; FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37319-012-0 04 1 0809-1111 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37510-105-0 01 1 0809-1111 ● ● ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0906-0906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0907-0907 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0906-0906 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0907-0907 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37529-068-0 01 1 0809-1111 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37245-071-0 01 1 0809-1111 ● ● ●
49 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0809-1006 ●
49 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1007- ●
49 NUT; YOKE
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0809- ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0809- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0906-0906 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0907-0907 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
56 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0809-0810 ● ● ●
56 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0811-1006 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1007- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0809-0810 ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0811-1006 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0809-0901 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 0902-1006 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0902-1006 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1007- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809- ● ● ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 0809- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 0809- ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		0-91116-516-0 02 1 0809-1204 ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 0809- ●
çizim 111386
74 8 9 1 128 57 225 56 106 9 8 9 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) L=1094 		1-37123-928-0 01 1 0809-0809 ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=954 		8-98069-592-0 01 1 0809-0810 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (E) L=1599 		8-98136-994-0 01 1 0811- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98090-934-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0809-1006 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1007- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=966 		1-37151-945-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=959 		8-98069-616-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961 		1-37151-382-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954 		8-98069-592-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=839 		8-98069-569-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829 		8-98113-452-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-221-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1134 		1-37124-093-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1279 		1-37123-909-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0809- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 0809- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1007- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37211-054-1 01 1 0809-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37300-102-1 AR 1 0809-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37319-012-0 04 1 0809-1111 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ●
56 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0809-0810 ● ● ●
56 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0811-1006 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1007- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 0809- ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0809-0810 ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0811-1006 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0809-0901 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 0902-1006 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0902-1006 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1007- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (A) 		1-09600-067-0 01 1 0809- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0809- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 0809- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0809- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 0809- ● ● ●
çizim 111388
174 51 172 173 64 45 20 63 46 21 24 23 22 71 1 71 72 25 9 21 9 17 14 8 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) L=1094 		1-37123-928-0 01 1 0809-0809 ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=954 		8-98069-592-0 01 1 0809-0810 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (E) L=1599 		8-98136-994-0 01 1 0811- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98090-934-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0809-1006 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1007- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=966 		1-37151-945-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=959 		8-98069-616-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961 		1-37151-382-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954 		8-98069-592-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=839 		8-98069-569-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829 		8-98113-452-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-221-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1134 		1-37124-093-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1279 		1-37123-909-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0809- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 0809- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1007- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37211-054-1 01 1 0809-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37300-102-1 AR 1 0809-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37319-012-0 04 1 0809-1111 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37510-105-0 01 1 0809-1111 ● ● ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0906-0906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0907-0907 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0906-0906 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0907-0907 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37529-068-0 01 1 0809-1111 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37245-071-0 01 1 0809-1111 ● ● ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0906-0906 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0907-0907 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ● ● ●
64 NUT; RET TO BRKT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ●
71 NUT; YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 0809-0810 ● ● ●
71 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0809-0810 ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 0811-0906 ● ● ●
71 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0811-0906 ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 0907-1006 ● ● ●
71 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0907-1006 ● ● ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1007- ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 1007- ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0809-0906 ● ● ●
71 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0907- ● ● ●
72 WASHER; LK,YOKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 0809-0906 ● ● ●
72 WASHER; LK,YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 0907- ● ● ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		8-98084-679-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		8-98084-679-0 01 1 0907- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37515-101-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) MZX (B) MLD 		1-37515-101-0 01 1 0907-1011 ●
172 BRACKET; CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) MZW,MZX (B) MLD 		1-37515-101-0 01 1 1012- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. VIN MODEL YEAR 2011<VZB> (A) MZW,MZX (B) MLD 		1-37515-101-0 01 1 1012- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0907- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 0907- ●
172 BRACKET; CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		8-98084-677-0 01 1 0809- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A) 		1-37515-136-0 01 1 1012- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 0809- ● ● ●
173 BOLT; BRKT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 0809- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 0809- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ● ● ●
çizim 111393
177 172 51 173 64 60 20 63 46 21 24 23 22 49 52 1 25 9 21 9 8 17 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) L=1094 		1-37123-928-0 01 1 0809-0809 ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=954 		8-98069-592-0 01 1 0809-0810 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (E) L=1599 		8-98136-994-0 01 1 0811- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98090-934-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0809-1006 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1007- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=966 		1-37151-945-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=959 		8-98069-616-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961 		1-37151-382-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954 		8-98069-592-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=839 		8-98069-569-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829 		8-98113-452-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-221-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1134 		1-37124-093-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1279 		1-37123-909-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0809- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 0809- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1007- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37211-054-1 01 1 0809-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37300-102-1 AR 1 0809-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37319-012-0 04 1 0809-1111 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0809-0810 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0811-0905 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0906-0906 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0907-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0809- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 0809-1111 ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-881-0 01 1 1112- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0809- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37510-105-0 01 1 0809-1111 ● ● ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0809-0810 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0811-0905 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0906-0906 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0907-0907 ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=54 		1-09625-161-0 02 1 0908- ● ●
21 SEAL; OIL,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 0908- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ● ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 0809- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0809-0810 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0811-0905 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0906-0906 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0906-0906 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0907-0907 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0907-0907 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-37516-059-0 01 1 0908- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 0908- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0809- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0809-0810 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0811-0905 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0906-0906 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0906-0906 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0907-0907 ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0907-0907 ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		9-00090-071-0 01 1 0908- ● ●
23 BEARING; CENTER,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 0908- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 0809-1111 ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ● ●
24 RETAINER; CENTER BRG,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-882-0 01 1 1112- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ● ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0809- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37529-068-0 01 1 0809-1111 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0809-0810 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0811-0906 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 0907-1006 ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ● ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 1ST AND P60 2ND MT6 STRAIGHT 		1-09380-006-0 01 1 1007- ●
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 1ST,2ND 		8-98020-889-0 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 0809-1111 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-815-0 01 1 1112- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0809- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37245-071-0 01 1 0809-1111 ● ● ●
49 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0809-1006 ●
49 NUT; YOKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1007- ●
49 NUT; YOKE
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0809- ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 0809- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0809-0810 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0811-0905 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0906-0906 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0906-0906 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0907-0907 ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0907-0907 ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M30 		8-97160-857-0 01 1 0908- ● ●
51 NUT; FLANGE,SPLINED
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 0908- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ● ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0809- ●
52 WASHER; LK,YOKE
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 0809- ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 0809- ●
60 WASHER; PL,RET TO BRKT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 0809- ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 0809- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 0809- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ● ● ●
64 NUT; RET TO BRKT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0809-0810 ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0811-1006 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0809-0901 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 0902-1006 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0902-1006 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1007- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		8-98084-679-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		8-98084-679-0 01 1 0907- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37515-101-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) MZX (B) MLD 		1-37515-101-0 01 1 0907-1011 ●
172 BRACKET; CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) MZW,MZX (B) MLD 		1-37515-101-0 01 1 1012- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. VIN MODEL YEAR 2011<VZB> (A) MZW,MZX (B) MLD 		1-37515-101-0 01 1 1012- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0907- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 0809-0906 ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 0907- ●
172 BRACKET; CENTER BRG
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 		8-98084-677-0 01 1 0809- ●
172 BRACKET; CENTER BRG
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) VIN MODEL YEAR 2011<VZB> (A) 		1-37515-136-0 01 1 1012- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 0809- ● ● ●
173 BOLT; BRKT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 0809- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 0809- ●
177 NUT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 0809- ●
çizim 111398
74 56 8 9 1 128 107 9 8 106 106 225 104 74 17 9 10 14 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) L=1094 		1-37123-928-0 01 1 0809-0809 ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1094 		1-37123-928-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=954 		8-98069-592-0 01 1 0809-0810 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (E) L=1599 		8-98136-994-0 01 1 0811- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98095-876-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) (B) L=849 		8-98069-584-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=1519 		8-98090-935-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98106-152-0 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1509 		8-98090-934-0 01 1 1112- ●
1 SHAFT; PROP
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=729 		8-98069-567-0 01 1 0907- ●
1 SHAFT; PROP
MZX6P M/T(RSW) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0809-0906 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726 		1-37151-632-1 01 1 0907-1111 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719 		8-98069-957-0 01 1 1112- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 0809-1006 ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1007- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=966 		1-37151-945-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (B) L=959 		8-98069-616-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (C) L=589 		8-98119-467-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961 		1-37151-382-1 01 1 0809-1111 ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954 		8-98069-592-0 01 1 1112- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) L=839 		8-98069-569-0 01 1 0809- ●
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829 		8-98113-452-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=916 		1-37152-279-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=1559 		8-98091-221-0 01 1 0809- ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1134 		1-37124-093-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1201 		8-98069-656-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1279 		1-37123-909-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1336 		8-98090-991-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 0809- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 0809- ●
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 0809- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=834 		8-98173-567-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=1489 		8-98173-568-0 01 1 1007- ●
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1007- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ● ●
8 YOKE; FLANGE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		1-37211-056-3 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 0809- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37211-054-1 01 1 0809-1111 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 0809- ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-0809 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ● ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0809-1006 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1007- ●
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98048-925-1 01 1 0809- ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0809-0810 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0811- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37300-102-1 AR 1 0809-1111 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98048-925-1 AR 1 1112- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		8-98048-925-1 02 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0809- ● ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0809- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0809 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809-0810 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0811-1006 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1007- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0809 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809-0810 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ● ●
13 COVER; FRT UJT,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0811-1006 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ● ●
13 COVER; FRT UJT,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ●
13 COVER; FRT UJT,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1007- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0809- ● ● ●
14 COVER; DUST,SPIDER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 0809-1111 ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 1ST,2ND 		8-98020-800-0 04 1 1112- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0809- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		1-37319-012-0 04 1 0809-1111 ● ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) END 		8-98020-800-0 08 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0809- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0809-0810 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0811-0905 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0906-0906 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0907-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0809-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 0809- ● ● ●
56 NUT; YOKE
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0809-0810 ● ● ●
56 NUT; YOKE
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0811-1006 ● ● ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1007- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0809-0810 ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 0811-1006 ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0809-0901 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 0902-1006 ● ● ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 0902-1006 ●
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1007- ● ● ●
74 BOLT; YOKE,TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1007- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 0809- ● ● ●
74 BOLT; YOKE,TRANS
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0809- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 0809- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 0809- ● ● ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (A) 		1-09600-067-0 01 1 0809- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0809- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 0809- ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0809- ● ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0809- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 0809- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0809- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 0809- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
