Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#36863) — 285 parça

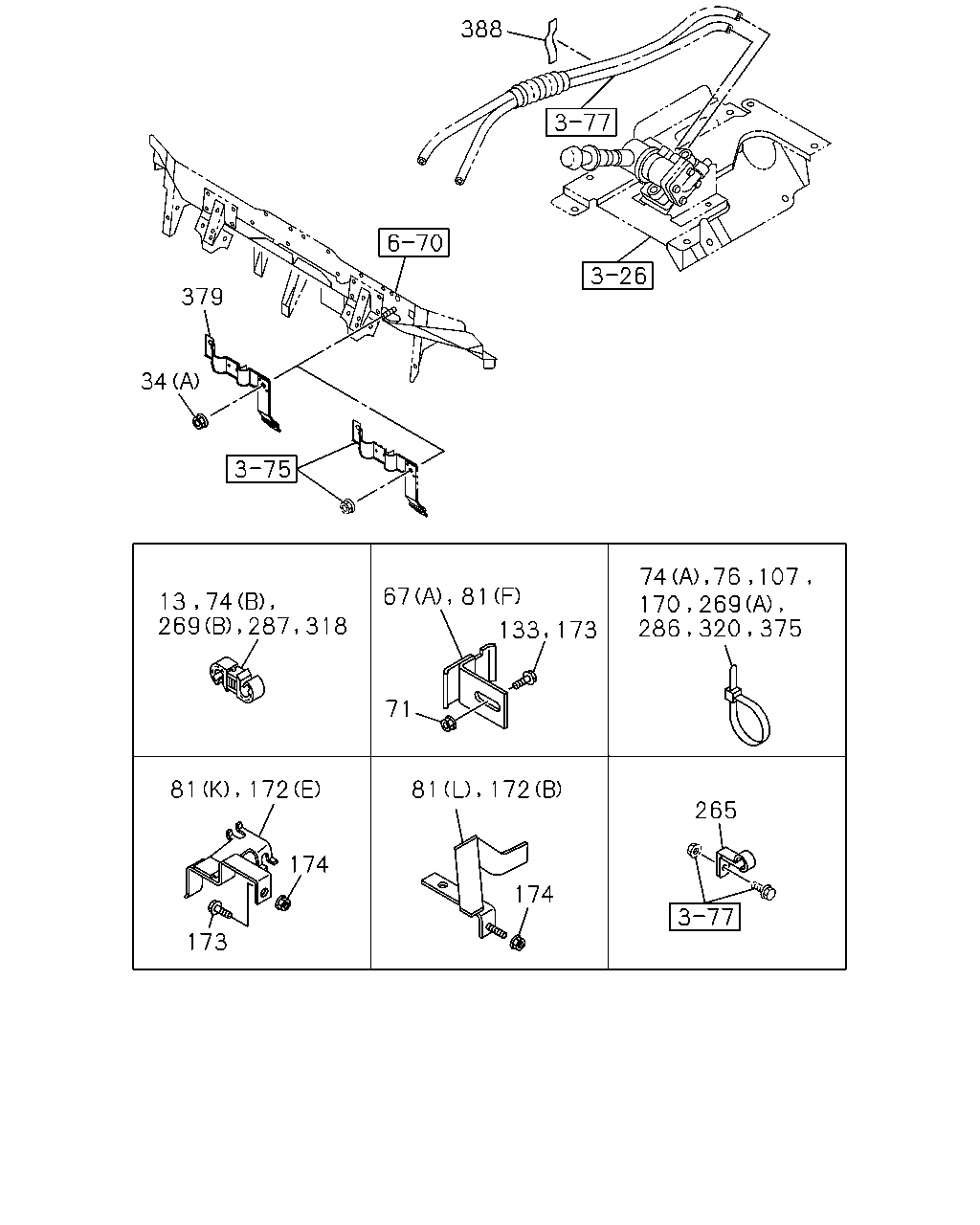

388 379 34 67 81 71 81 172 81 172 265 174 174 173 13 74 269 287 318 133 173 74 76 107 170 269 286 320 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	0809-
34	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M8 FLANGE	0-91180-108-0	01	1	0809-0811
34	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	0809-
34	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	0809-
67	BRACKET; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=100 H=30	1-47477-645-2	01	1	0809-0811
67	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=150 H=30	1-47477-629-2	01	1	0809-
67	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47479-693-0	01	1	0809-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0812-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	11	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	08	1	0812-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	01	1	1106-
74	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=12 & 15	1-09709-281-1	01	1	0809-0903
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	01	1	0809-0811
74	CLIP; NYLON TUBE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	01	1	0809-0811
74	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	03	1	0812-
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	11	1	0809-0811
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	07	1	0812-
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	11	1	0812-
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	12	1	0812-
74	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15	1-09709-281-1	01	1	1012-
76	CLIP; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	01	1	0809-0811
76	CLIP; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	01	1	0812-
76	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	0812-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0809-0809
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (F)	1-47479-693-0	01	1	0810-
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) L=100 H=30	1-47477-645-2	03	1	0809-0812
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	03	1	0901-0906
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	03	1	0907-1012
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	03	1	1101-1107
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	02	1	1108-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) L=100 H=30	1-47477-645-2	04	1	0809-0812
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	04	1	0901-1012
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	04	1	1101-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) L=65	1-47477-713-0	01	1	0809-0902
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) L=65 B=25	8-98135-584-0	01	1	0903-
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98118-865-0	01	1	0809-0906
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98118-865-0	01	1	0907-1008
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98169-434-0	01	1	1009-1107
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (L)	8-98182-331-0	01	1	1108-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=150 H=30	1-47477-629-2	01	1	0809-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) L=60 H=30	1-47477-716-1	02	1	0809-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-420-2	01	1	0809-1509
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (J)	8-98186-380-0	01	1	1106-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K)	8-98182-760-0	01	1	1108-
107	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	03	1	0809-0811
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	39	1	0812-
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	19	1	0809-0811
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	35	1	0812-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	41	1	0812-1110
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	42	1	1111-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0809-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	04	1	0809-0811
133	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	03	1	0812-0906
133	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	03	1	0907-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	06	1	0809-0811
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0812-
170	CLIP; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	28	1	0809-0809
170	CLIP; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	29	1	0810-1008
170	CLIP; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	30	1	1009-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=100 H=30	1-47477-645-2	03	1	0809-0812
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (J)	8-98129-212-0	03	1	0901-1012
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (K)	8-98177-873-0	03	1	1101-1107
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (K)	8-98177-873-0	02	1	1108-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=65	1-47477-713-0	01	1	0810-0902
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=65 B=25	8-98135-584-0	01	1	0903-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98118-865-0	01	1	0809-1008
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (L)	8-98169-222-0	01	1	1009-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98169-434-0	01	1	1009-1010
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98182-925-0	01	1	1011-1107
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98182-331-0	01	1	1108-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) L=150 H=30	1-47477-629-2	01	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) L=60 H=30	1-47477-716-1	05	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D)	8-98031-420-2	01	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F)	8-98126-176-0	01	1	0809-1103
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (M)	8-98166-032-0	01	1	1104-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98182-760-0	01	1	1108-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	02	1	0810-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	09	1	0809-1008
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	10	1	1009-1104
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1105-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0809-
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	11	1	0809-0809
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	12	1	0810-1008
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	13	1	1009-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0809-
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	02	1	0809-0811
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	03	1	0812-
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) ID=12 & 15	1-09709-281-1	01	1	1012-
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	1012-
286	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1012-
287	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=6.35 & 12	1-09709-275-1	01	1	1012-1012
287	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=6.35 & 6.35	1-09709-273-1	01	1	1012-1012
287	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	1012-1012
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	0809-0905
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0906-1011
318	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	03	1	1012-
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0906-1011
318	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1012-
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	0809-1011
320	CLIP; BAND,FLEX FIX TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1012-
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0809-0811
375	CLIP; AIR PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	01	1	0812-0906
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0907-1011
375	CLIP; AIR PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	1-09707-183-0	01	1	1012-
375	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1012-
379	BRACKET; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98112-515-1	01	1	0809-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0809-1110
388	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	1111-

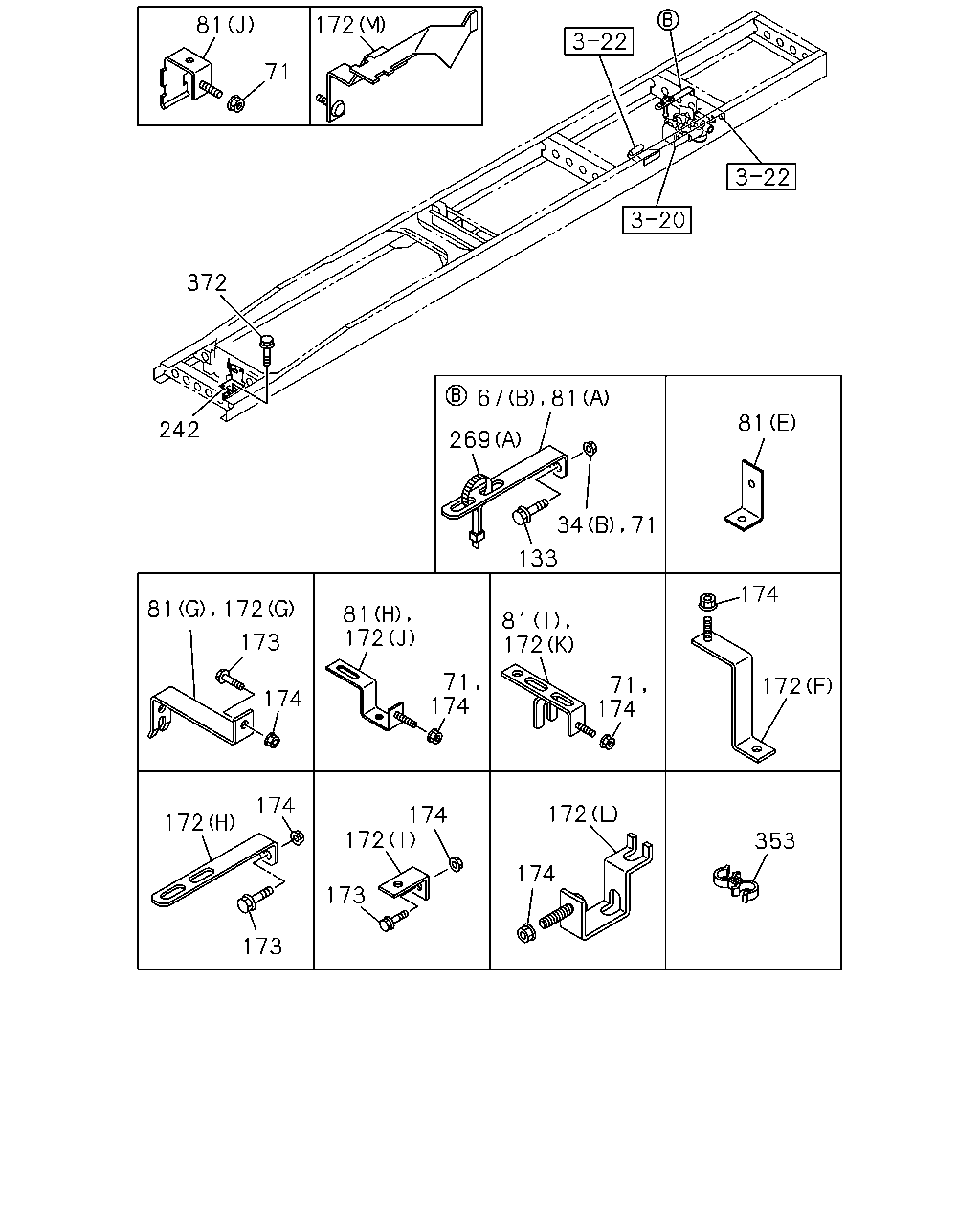

81 172 71 372 81 242 269 133 174 81 172 81 172 81 172 173 71 174 71 174 172 174 174 172 174 172 172 353 174 173 173 67 81 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M8 FLANGE	0-91180-108-0	01	1	0809-0811
34	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	0809-
34	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	0809-
67	BRACKET; CLIP WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=100 H=30	1-47477-645-2	01	1	0809-0811
67	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) L=150 H=30	1-47477-629-2	01	1	0809-
67	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47479-693-0	01	1	0809-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0812-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	11	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	08	1	0812-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	01	1	1106-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0809-0809
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (F)	1-47479-693-0	01	1	0810-
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) L=100 H=30	1-47477-645-2	03	1	0809-0812
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	03	1	0901-0906
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	03	1	0907-1012
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	03	1	1101-1107
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	02	1	1108-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) L=100 H=30	1-47477-645-2	04	1	0809-0812
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	04	1	0901-1012
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	04	1	1101-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) L=65	1-47477-713-0	01	1	0809-0902
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) L=65 B=25	8-98135-584-0	01	1	0903-
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98118-865-0	01	1	0809-0906
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98118-865-0	01	1	0907-1008
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98169-434-0	01	1	1009-1107
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (L)	8-98182-331-0	01	1	1108-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=150 H=30	1-47477-629-2	01	1	0809-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) L=60 H=30	1-47477-716-1	02	1	0809-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-420-2	01	1	0809-1509
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (J)	8-98186-380-0	01	1	1106-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K)	8-98182-760-0	01	1	1108-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0809-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	04	1	0809-0811
133	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	03	1	0812-0906
133	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	03	1	0907-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	06	1	0809-0811
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0812-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=100 H=30	1-47477-645-2	03	1	0809-0812
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (J)	8-98129-212-0	03	1	0901-1012
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (K)	8-98177-873-0	03	1	1101-1107
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (K)	8-98177-873-0	02	1	1108-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=65	1-47477-713-0	01	1	0810-0902
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=65 B=25	8-98135-584-0	01	1	0903-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98118-865-0	01	1	0809-1008
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (L)	8-98169-222-0	01	1	1009-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98169-434-0	01	1	1009-1010
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98182-925-0	01	1	1011-1107
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98182-331-0	01	1	1108-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) L=150 H=30	1-47477-629-2	01	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) L=60 H=30	1-47477-716-1	05	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D)	8-98031-420-2	01	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F)	8-98126-176-0	01	1	0809-1103
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (M)	8-98166-032-0	01	1	1104-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98182-760-0	01	1	1108-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	02	1	0810-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	09	1	0809-1008
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	10	1	1009-1104
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1105-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0809-
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	11	1	0809-0809
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	12	1	0810-1008
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	13	1	1009-
242	BRACKET; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98106-046-0	01	1	0809-0912
242	BRACKET; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98158-602-0	01	1	1001-
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	02	1	0809-0811
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=350	1-09707-183-0	03	1	0812-
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) ID=12 & 15	1-09709-281-1	01	1	1012-
269	CLIP; BAND,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	1012-
353	CLIP; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=18 & 18	8-94323-068-0	01	1	0809-
372	BOLT; CLIP BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0809-

81 172 173 81 172 107 71 174 133 81 172

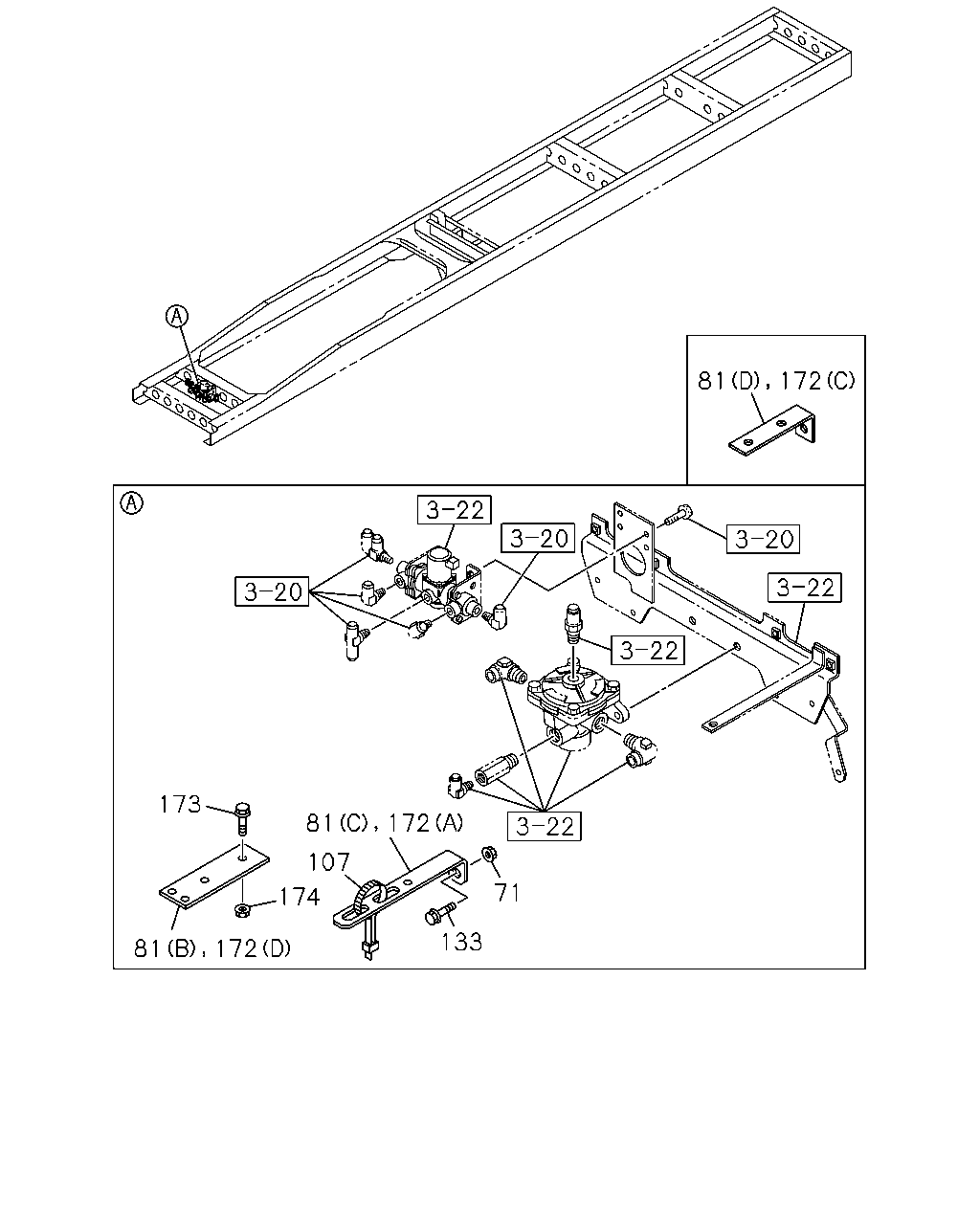

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0812-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	11	1	0809-0811
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	08	1	0812-
71	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	01	1	1106-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	0809-0809
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (F)	1-47479-693-0	01	1	0810-
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) L=100 H=30	1-47477-645-2	03	1	0809-0812
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	03	1	0901-0906
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	03	1	0907-1012
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	03	1	1101-1107
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	02	1	1108-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) L=100 H=30	1-47477-645-2	04	1	0809-0812
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (H)	8-98129-212-0	04	1	0901-1012
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (I)	8-98177-873-0	04	1	1101-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) L=65	1-47477-713-0	01	1	0809-0902
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (E) L=65 B=25	8-98135-584-0	01	1	0903-
81	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98118-865-0	01	1	0809-0906
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98118-865-0	01	1	0907-1008
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (G)	8-98169-434-0	01	1	1009-1107
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (L)	8-98182-331-0	01	1	1108-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=150 H=30	1-47477-629-2	01	1	0809-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) L=60 H=30	1-47477-716-1	02	1	0809-
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-420-2	01	1	0809-1509
81	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (J)	8-98186-380-0	01	1	1106-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (K)	8-98182-760-0	01	1	1108-
107	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	03	1	0809-0811
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	39	1	0812-
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	19	1	0809-0811
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	35	1	0812-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	41	1	0812-1110
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	42	1	1111-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0810-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	01	1	0809-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0809-0811
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	01	1	0812-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	04	1	0809-0811
133	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	03	1	0812-0906
133	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	03	1	0907-
133	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	06	1	0809-0811
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0812-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=100 H=30	1-47477-645-2	03	1	0809-0812
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (J)	8-98129-212-0	03	1	0901-1012
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (K)	8-98177-873-0	03	1	1101-1107
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (K)	8-98177-873-0	02	1	1108-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=65	1-47477-713-0	01	1	0810-0902
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=65 B=25	8-98135-584-0	01	1	0903-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98118-865-0	01	1	0809-1008
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (L)	8-98169-222-0	01	1	1009-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98169-434-0	01	1	1009-1010
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G)	8-98182-925-0	01	1	1011-1107
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	8-98182-331-0	01	1	1108-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) L=150 H=30	1-47477-629-2	01	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) L=60 H=30	1-47477-716-1	05	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D)	8-98031-420-2	01	1	0809-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F)	8-98126-176-0	01	1	0809-1103
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (M)	8-98166-032-0	01	1	1104-
172	BRACKET; TUBE CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98182-760-0	01	1	1108-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	02	1	0810-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	09	1	0809-1008
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	10	1	1009-1104
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1105-
173	BOLT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE	0-28650-825-0	02	1	0809-
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	11	1	0809-0809
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	12	1	0810-1008
174	NUT; CLIP BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	13	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
