3-77 — BRAKE PIPING; AIR,REAR (#36862) — 77 parça

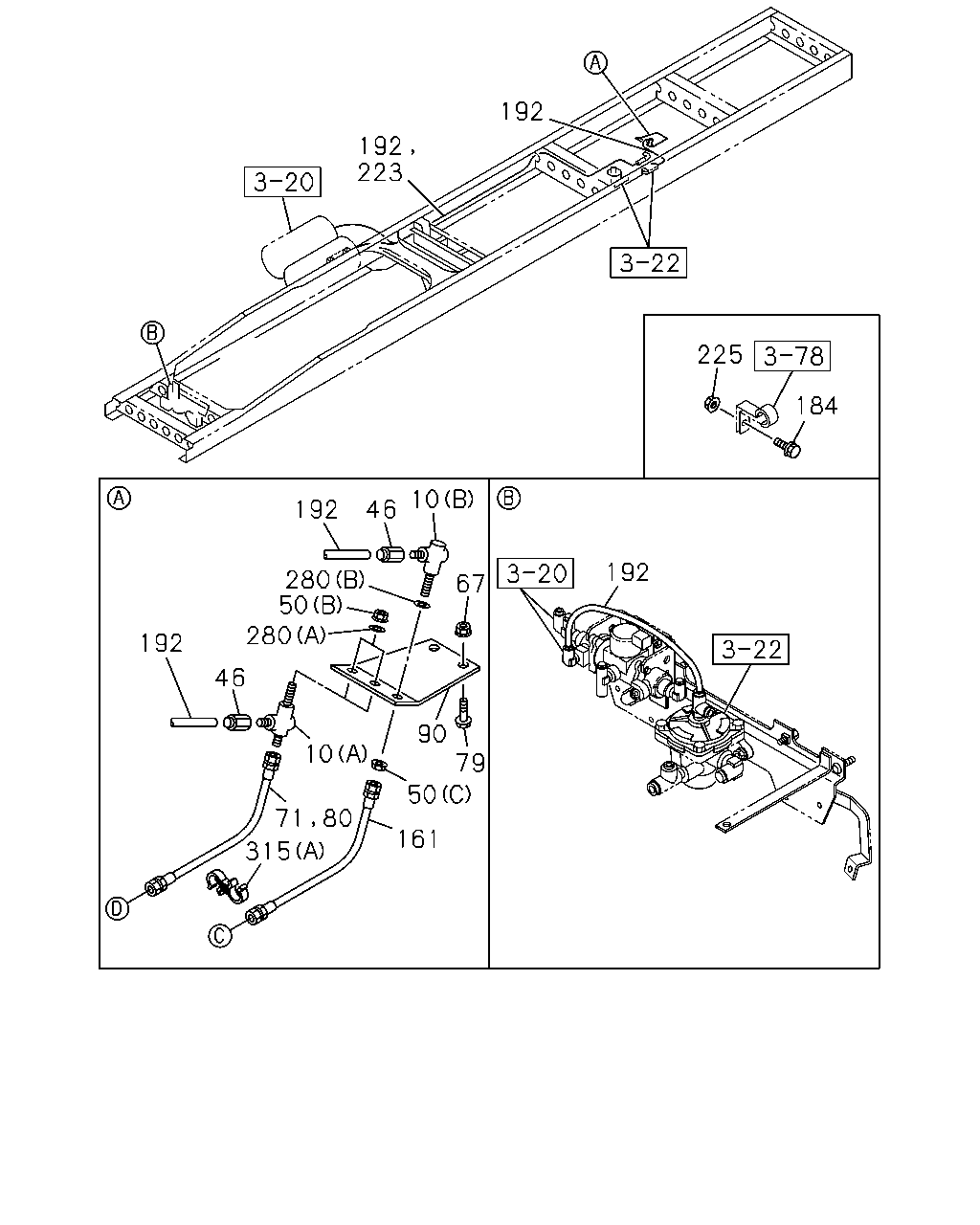

192 192 223 225 184 10 192 46 192 280 50 280 67 192 46 90 79 10 50 71 80 161 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	0809-
10	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M16 2WAY	1-09650-182-1	02	1	0809-
46	NIPPLE; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0809-
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	0809-
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	0809-
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-1110
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1111-
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1111-
67	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	02	1	0809-
71	HOSE; FLEX,RWD RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	0809-0910
79	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0809-
80	HOSE; FLEX,POWER CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=660	1-09363-814-0	02	1	0911-
90	BRACKET; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47477-851-1	01	1	0809-
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=740	1-09363-756-0	01	1	0809-0904
161	HOSE; FLEX,QUICK RELEASE VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=680	1-09363-742-0	01	1	0905-
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0809-
192	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1111-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0809-
280	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=12.2	0-91510-812-0	02	1	0809-
280	WASHER; LK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=16.2	0-91510-816-0	01	1	0809-
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0809-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-1110
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1111-

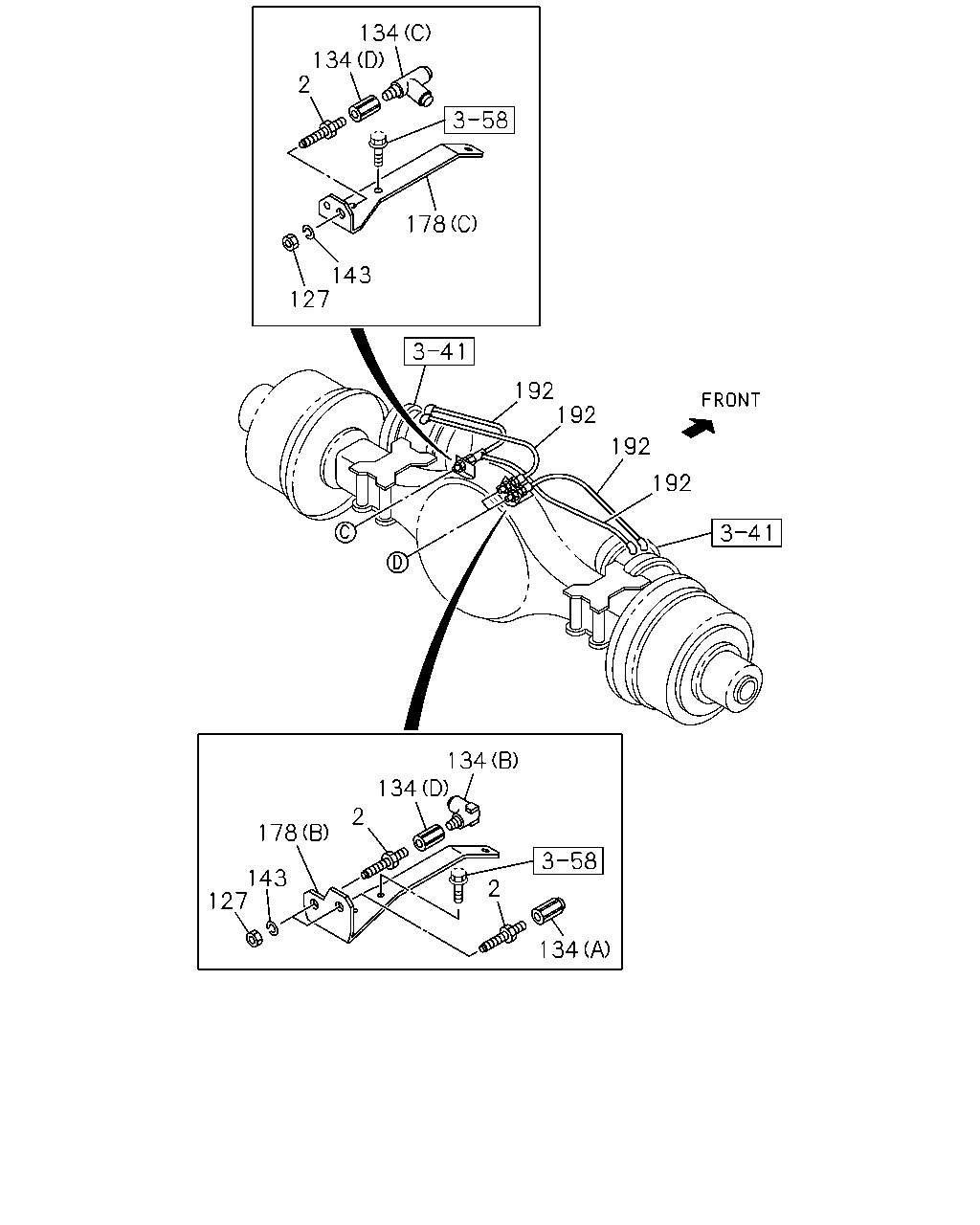

134 134 2 178 143 127 192 192 192 192 134 134 2 178 143 127 2 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 L=74	0-92123-310-0	03	1	0809-
127	NUT; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	03	1	0809-
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0809-
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0809-
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
134	CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0809-
143	WASHER; LK,UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	03	1	0809-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-0	01	1	0809-1110
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1111-
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0809-
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	0809-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0809-
192	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1111-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-

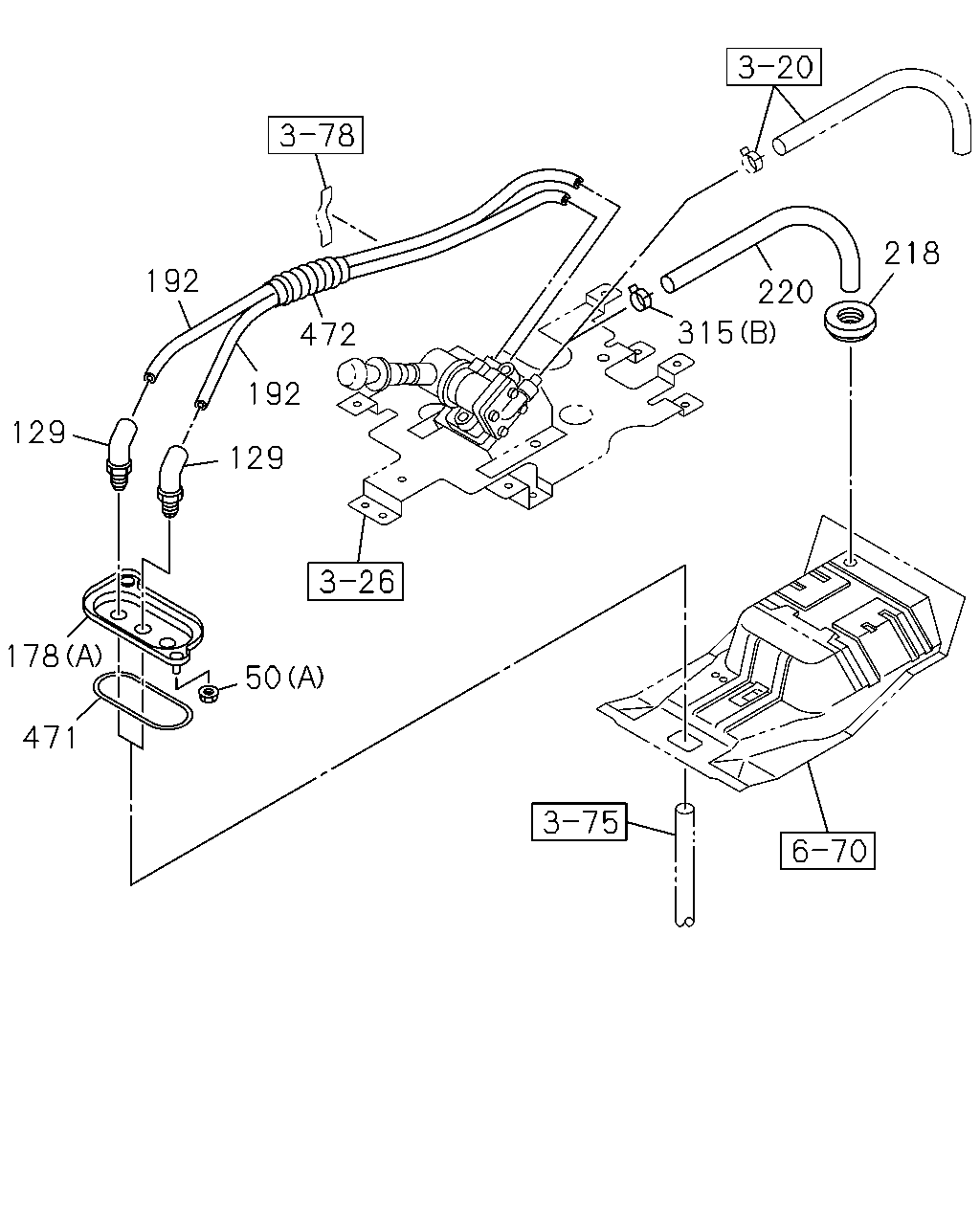

218 192 220 315 472 192 129 129 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12	0-91111-512-0	02	1	0809-
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M16	0-91111-516-0	01	1	0809-
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-1110
50	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1111-
50	NUT; UNION BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 FLANGE	0-91180-108-0	02	1	1111-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0809-1110
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0809-1110
129	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1111-
129	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1111-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-0	01	1	0809-1110
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1111-
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98031-034-1	01	1	0809-
178	BRACKET; UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98057-823-0	01	1	0809-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0809-
192	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1111-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0912-1110
218	GROMMET; VINYL HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1111-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0912-1110
220	HOSE; VINYL,EXH,PARKING BRK VLV BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1111-
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0809-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-1110
315	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1111-
471	SEAL; BRKT	1-79738-832-0	01	1	0809-1110
471	SEAL; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1111-
471	SEAL; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-832-0	01	1	1111-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0809-1110
472	TUBE; SPUTTER BRK SYSTEM FULL AIR DUAL CIRC(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1111-
