Sayfa 3-75 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶

3-75 — BRAKE PIPING; AIR,FRONT (#36861) — 133 parça

98 117 66 36 32 107 106 98 117 65 26 25 41 15 159 3 122 98 98 98 98

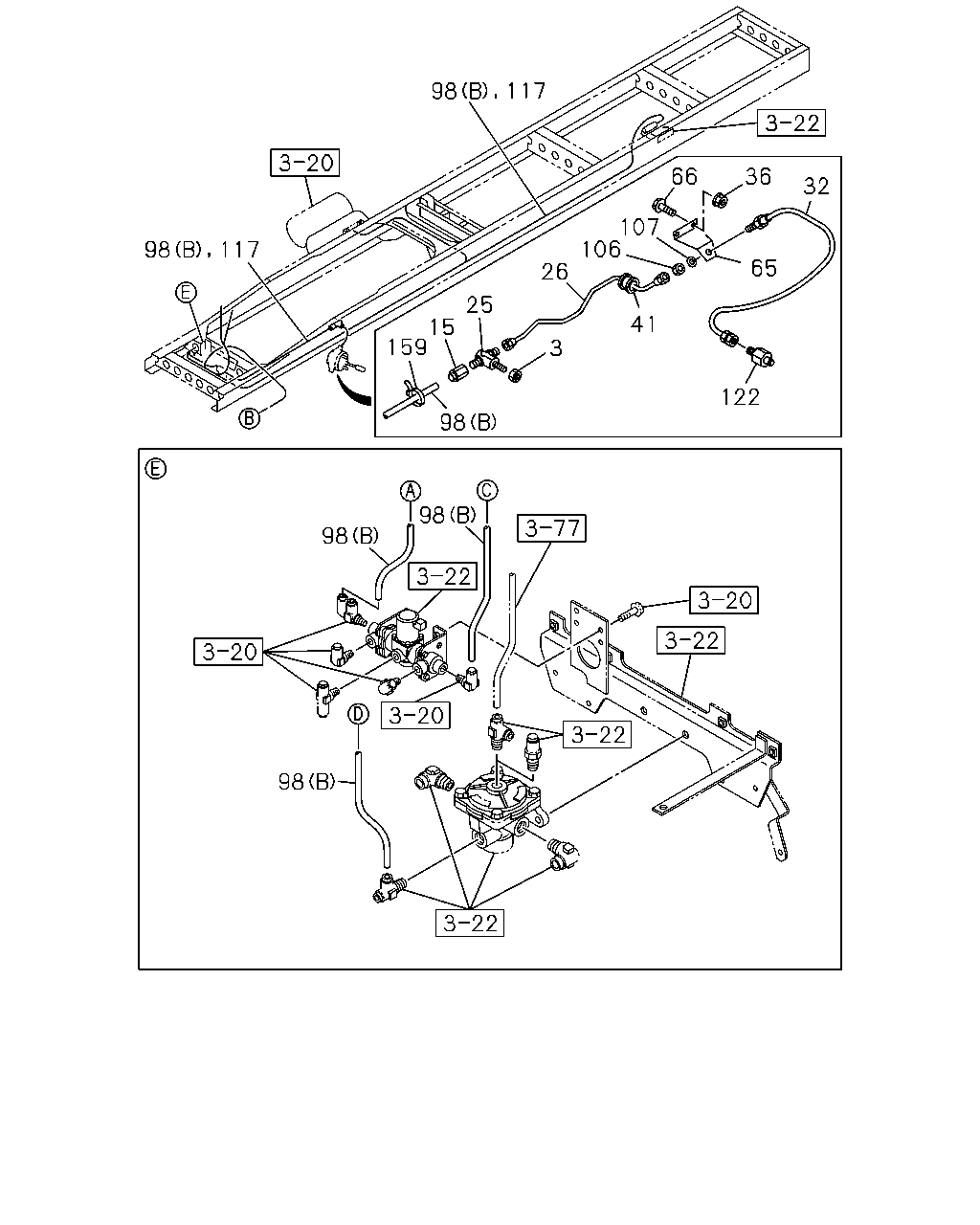

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; PIPE UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) M12	0-91111-512-0	02	1	0809-
15	CONNECTOR; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0809-
25	UNION; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	0809-
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=500	8-98091-274-1	01	1	0809-
26	PIPE; AIR,UNION TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=657	8-98126-150-1	01	1	0809-
32	HOSE; FLEX,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98090-844-0	02	1	0809-
36	NUT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	04	1	0809-
41	GROMMET; AIR PIPE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-210-0	01	1	0809-
65	BRACKET; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47476-211-0	01	1	0809-
66	BOLT; HOSE BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE	0-28650-825-0	04	1	0809-
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98120-172-0	01	1	0809-0901
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98141-251-0	01	1	0902-0903
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98146-120-0	01	1	0904-
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98094-874-0	01	1	0809-0901
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98141-250-0	01	1	0902-0903
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98146-119-0	01	1	0904-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0809-
106	NUT; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16	0-91111-516-0	02	1	0809-
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-516-0	02	1	0809-1009
107	WASHER; LK,FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=16.2	0-91510-816-0	02	1	1010-
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=32	1-87411-036-0	01	1	1203-
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1203-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1203-
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=32	1-87411-036-0	01	1	0809-1107
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	0809-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0809-1011
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1012-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0809-
122	CONNECTOR; FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	0809-
159	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=350	1-09707-183-0	01	1	0809-

115 48 171 75 98 52 52 176 114 52 117 175 52 52 52 117 175 145 52 52 56 149 52 52 93 48

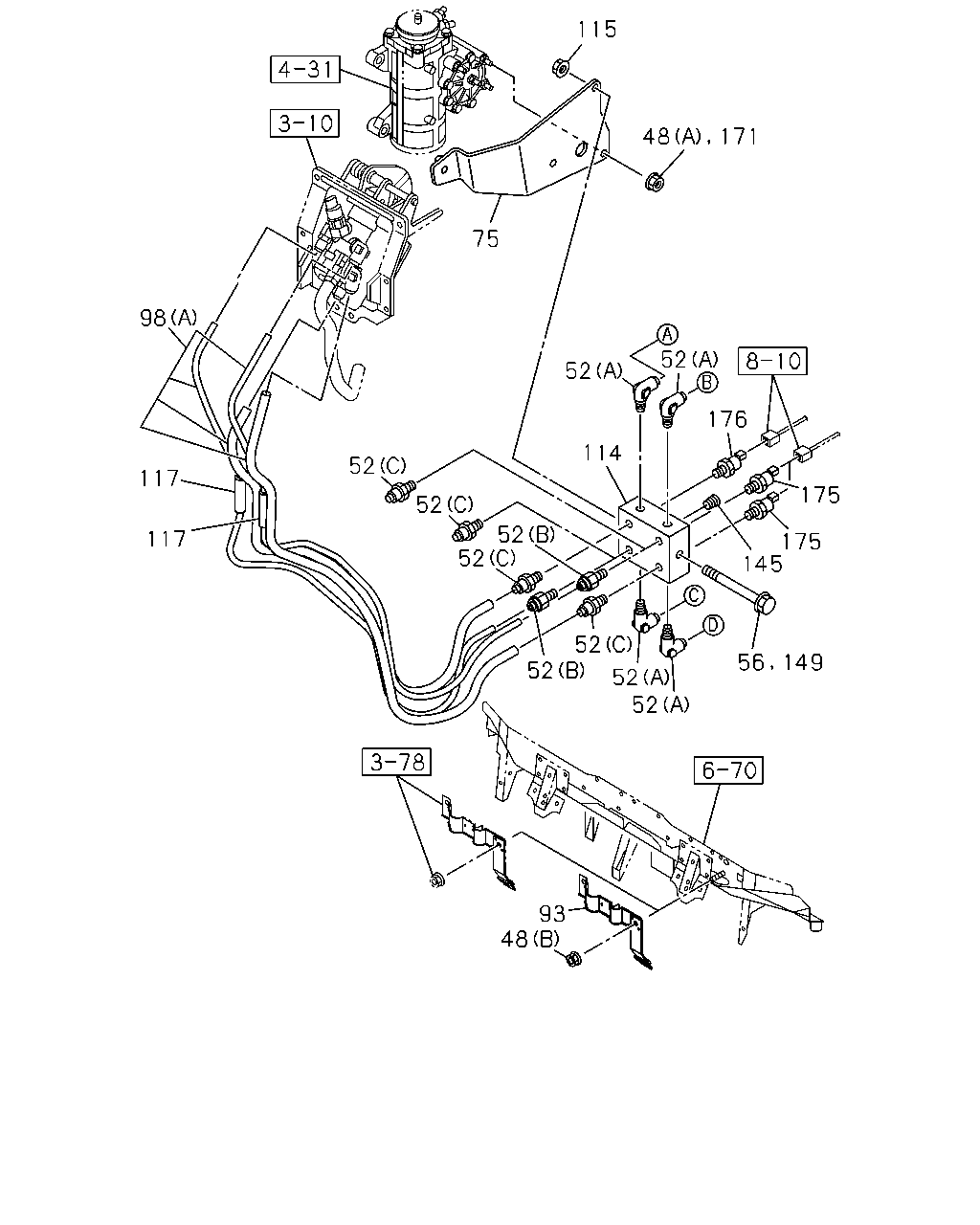

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	NUT; UNION BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10 FLANGE	0-91180-210-0	02	1	0809-
48	NUT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M6 FLANGE	0-91180-106-0	02	1	0809-
52	CONNECTOR; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	0809-
52	CONNECTOR; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	0809-
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	0809-
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0809-
52	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0809-
56	BOLT; UNION BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X100 FLANGE	0-28050-800-0	01	1	0809-
75	BRACKET; UNION	8-98126-944-0	01	1	0809-
93	BRACKET; UNION,TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98112-515-1	01	1	0809-
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98120-172-0	01	1	0809-0901
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98141-251-0	01	1	0902-0903
98	TUBE; NYLON BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98146-120-0	01	1	0904-
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98094-874-0	01	1	0809-0901
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98141-250-0	01	1	0902-0903
98	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98146-119-0	01	1	0904-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0809-
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0809-
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0809-
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=32	1-87411-036-0	01	1	1203-
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1203-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=4000 ID=28	1-87411-034-0	01	1	1203-
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=32	1-87411-036-0	01	1	0809-1107
117	TUBE; CORRUGATE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	0809-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=22	1-87411-029-0	03	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=22	1-87411-029-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0809-1011
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1012-
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1012-
117	TUBE; CORRUGATE WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0809-1011
117	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> SERVICED BY L=2000 ID=15	1-87411-025-0	03	1	1012-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0809-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	0809-
145	PLUG PT1/4	9-99204-513-0	01	1	0809-
149	BOLT; UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X100 FLANGE	0-28050-800-0	01	1	0809-
171	NUT; BRACKET BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE	0-91180-210-0	02	1	0809-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0809-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0809-
