Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#36860) — 319 parça

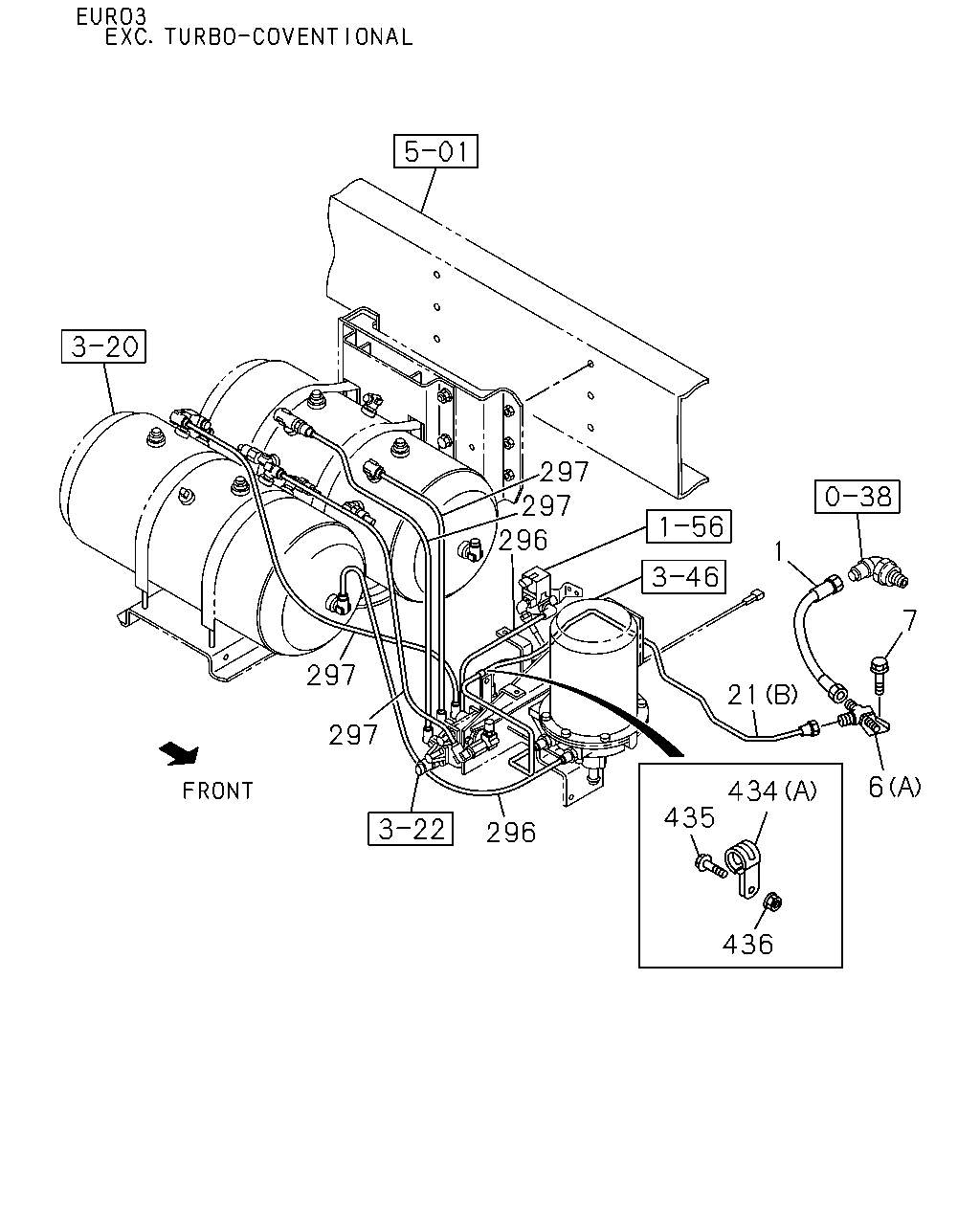

296 1 7 297 21 297 6 434 435 296 436 297 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1012-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98117-117-0	01	1	0809-1011
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1012-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

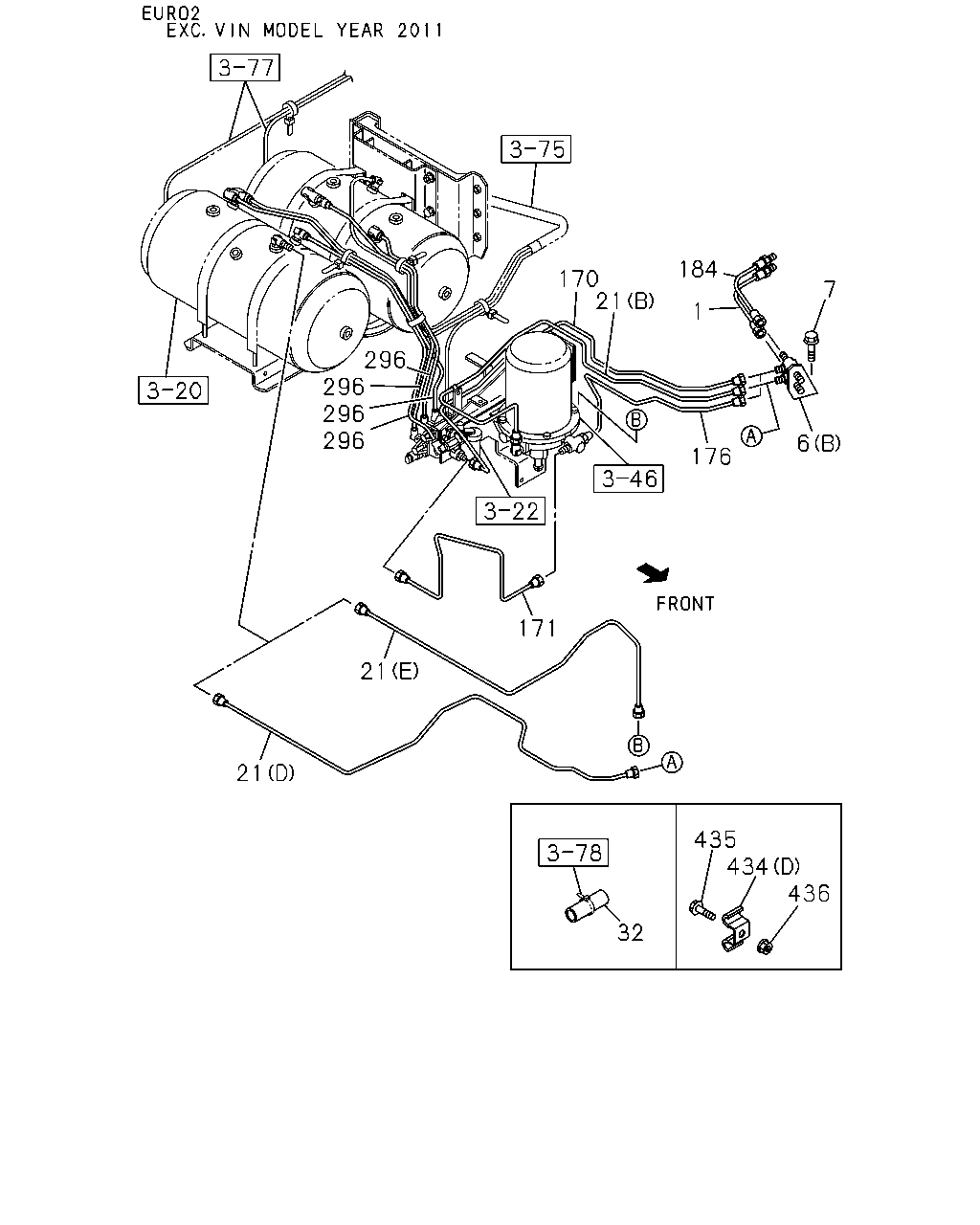

184 170 21 7 1 296 296 296 296 6 176 171 21 21 435 434 436 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1012-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98117-117-0	01	1	0809-1011
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1011
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1011
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1012-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-1011
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1012-1110
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1012-1110
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1012-
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1012-1110
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-1011
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1012-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1012-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

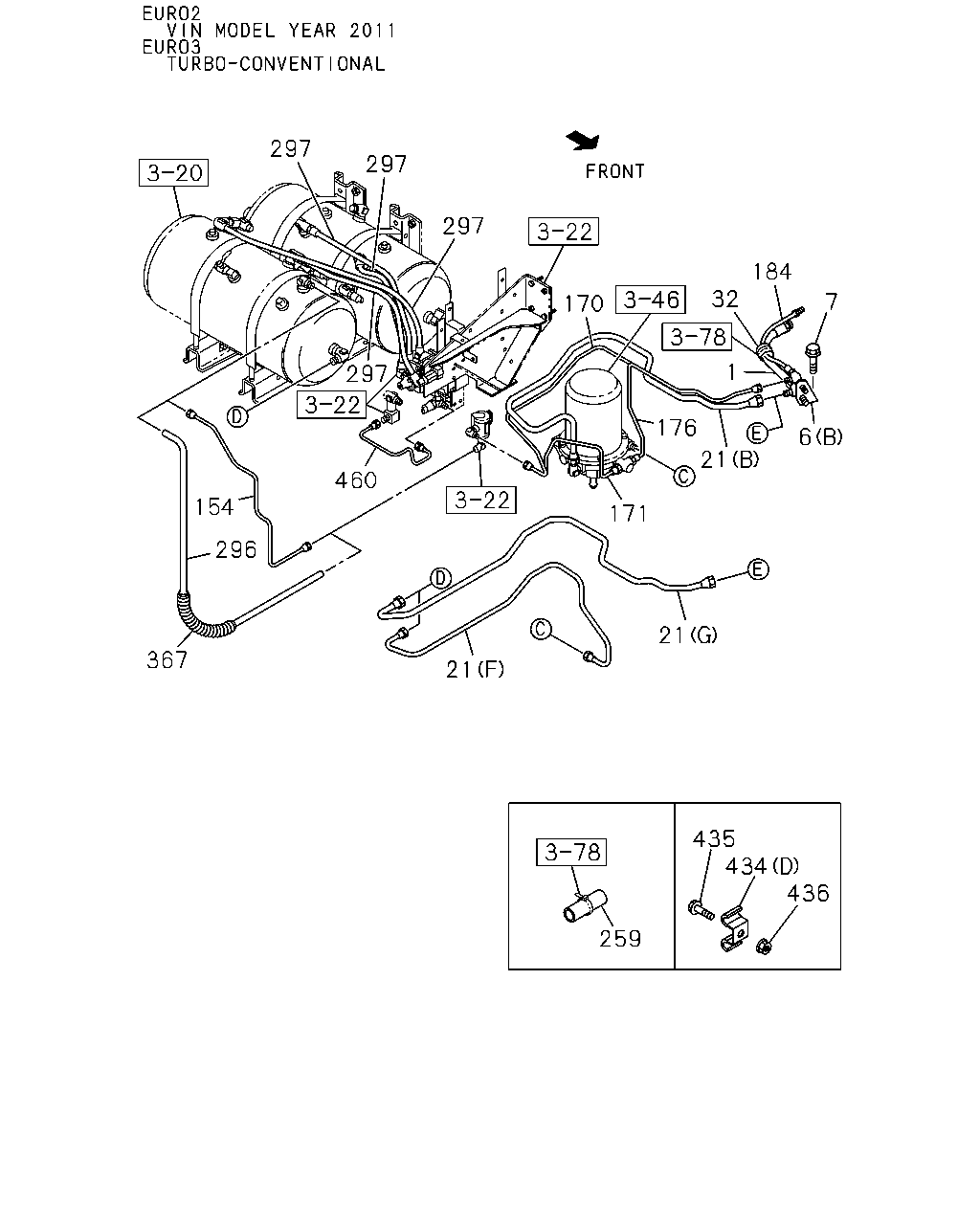

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 296 21 367 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1012-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98117-117-0	01	1	0809-1011
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1011
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98127-306-0	01	1	0809-0904
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98145-853-0	01	1	0905-1008
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98167-337-0	01	1	1009-1011
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98167-337-0	01	1	1012-1110
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-337-0	01	1	1111-
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1011
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1012-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-1011
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1012-1110
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1012-1110
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1012-
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1012-1110
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-1011
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1012-
259	SLEEVE; RUBBER,NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1012-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
460	PIPE; AIR,PROTECTION VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012
460	PIPE; AIR,PROTECTION VALVE BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-

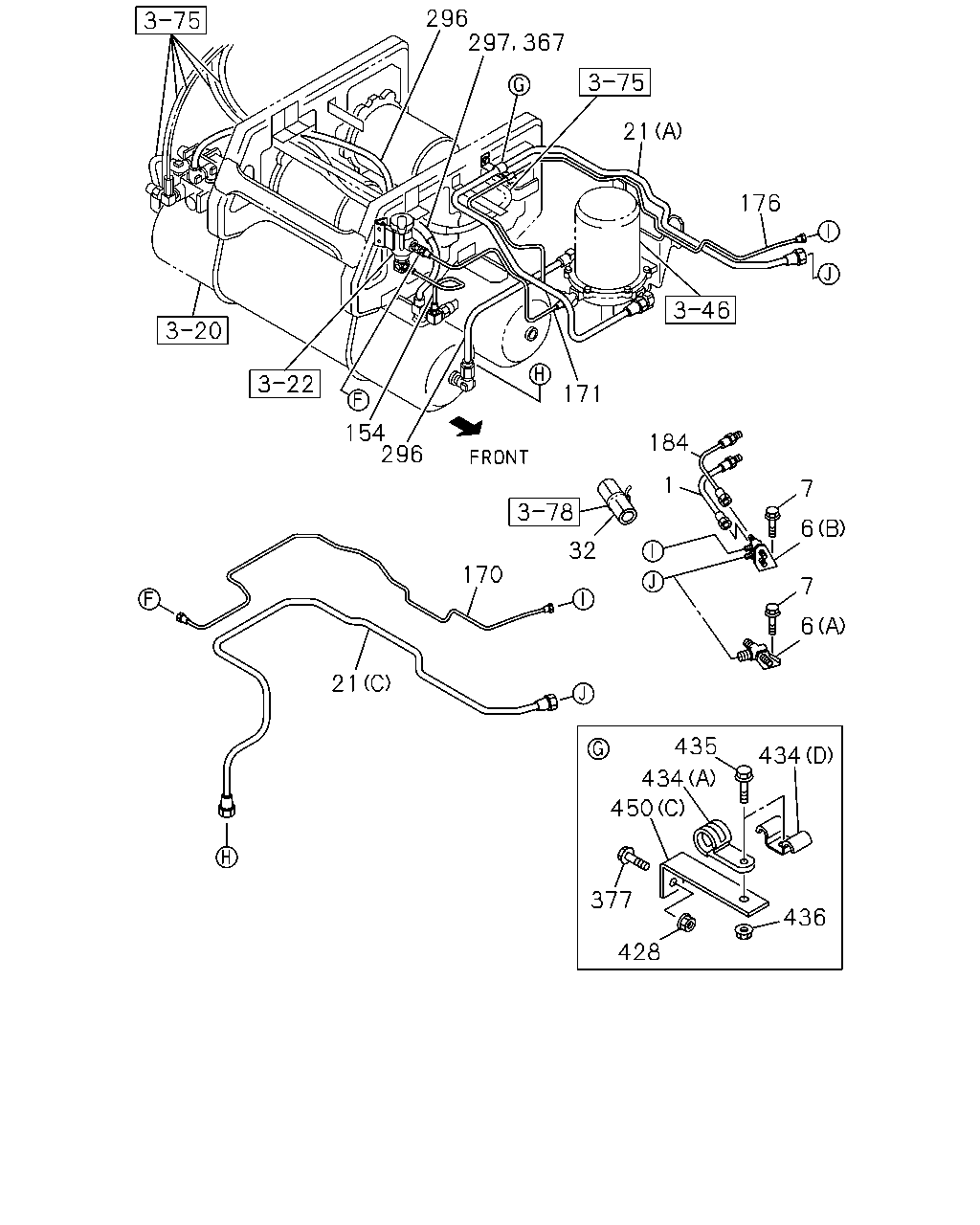

296 21 176 171 154 296 184 1 7 6 32 170 7 6 21 435 434 434 450 377 436 428 297 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-1011
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1012-
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK (B)	8-98117-117-0	01	1	0809-1011
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98117-819-0	01	1	0809-0904
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (E)	8-98147-087-0	01	1	0905-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1009
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (A) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1011
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (B) L=1715	8-98095-083-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1011
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98127-306-0	01	1	0809-0904
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98145-853-0	01	1	0905-1008
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98167-337-0	01	1	1009-1011
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98167-337-0	01	1	1012-1110
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-337-0	01	1	1111-
154	PIPE; AIR,AIR TANK TO AIR GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1011
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1012-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-1011
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1012-1110
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1012-1110
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1011
171	PIPE; AIR,GOV TO AIR DRYER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1012-
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1012-1110
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1011
176	PIPE; AIR,AIR DRYER TO UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1012-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-1011
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1012-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
377	BOLT; BRKT FIX BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
377	BOLT; BRKT FIX BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0809-
377	BOLT; BRKT FIX BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0809-
428	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0810-
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1012-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=65	1-47477-713-0	01	1	0809-0809
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98106-046-0	01	1	0809-0912
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98158-602-0	01	1	1001-
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) L=90 B=25	1-47475-530-0	01	1	0809-

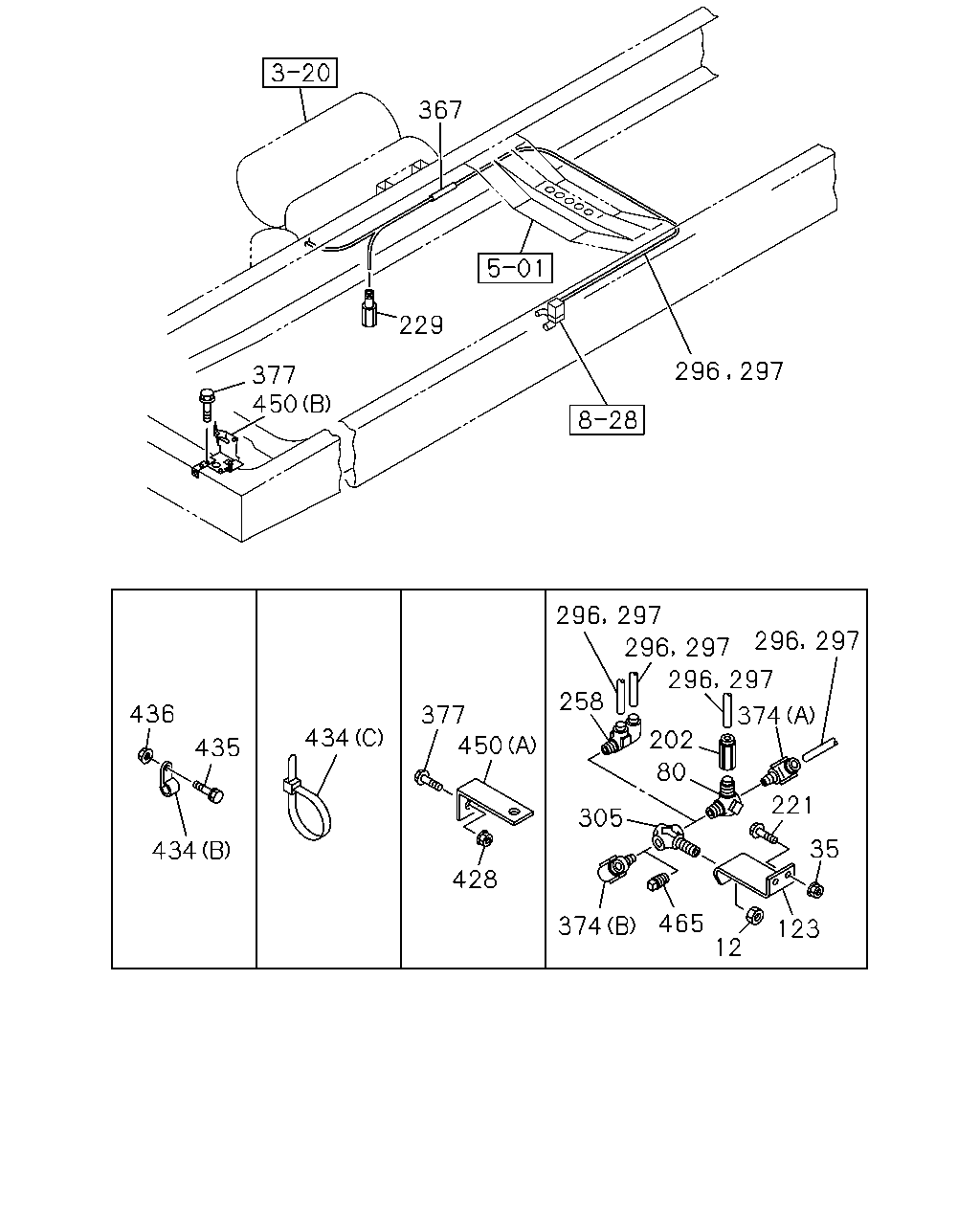

367 229 377 450 258 436 377 450 374 434 202 435 80 221 305 35 434 428 465 374 123 12 296 297 296 297 296 297 296 297 296 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0809-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-
80	UNION; 3 WAY EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1111
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-1111
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-
229	ADAPTER; NYLON TUBE FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-0811
229	ADAPTER; NYLON TUBE MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0812-0906
229	ADAPTER; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0907-
258	CONNECTOR; NYLON TUBE EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1112-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
374	CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906
374	CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906
374	CONNECTOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906
374	CONNECTOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-0906
374	CONNECTOR H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-1011
374	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0907-1011
374	CONNECTOR H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-
374	CONNECTOR EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1012-
374	CONNECTOR EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1111
377	BOLT; BRKT FIX BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
377	BOLT; BRKT FIX BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0809-
377	BOLT; BRKT FIX BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0809-
428	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0810-
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1011
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1012-1110
434	CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1011
434	CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1012-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=65	1-47477-713-0	01	1	0809-0809
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98106-046-0	01	1	0809-0912
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98158-602-0	01	1	1001-
450	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) L=90 B=25	1-47475-530-0	01	1	0809-
465	PLUG MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-0906
465	PLUG BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-0906
465	PLUG RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
