◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#3686) — 69 parça

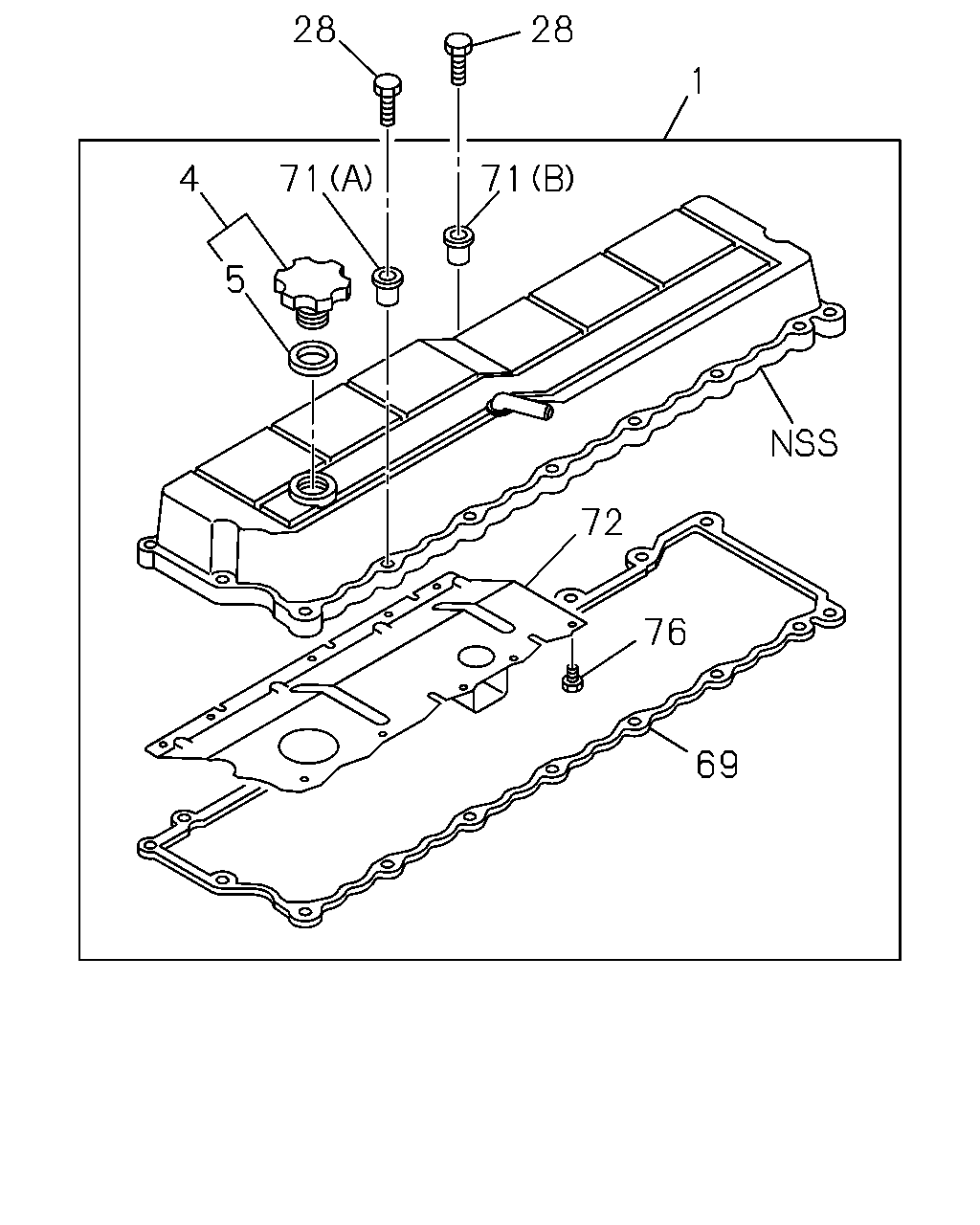

çizim 36736
28 28 1 71 71 4 5 72 76 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-11171-360-0 01 1 9311-9401 ●
1 COVER; CYL HD
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-11171-248-1 01 1 9402-9504 ●
1 COVER; CYL HD 1-11171-249-1 01 1 9101-9310 ● ● ●
1 COVER; CYL HD
RIGHT HAND DRIVE(LTR5FB) 		1-11171-249-1 01 1 9311-9504 ●
1 COVER; CYL HD
LEFT HAND DRIVE(LTR6FB) EXC. ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSION REGULATION<TAL> 		1-11171-249-1 01 1 9311-9504 ●
1 COVER; CYL HD 1-11171-249-1 01 1 9311-9504 ● ●
1 COVER; CYL HD 8-94394-862-1 01 1 9505-9702 ●
1 COVER; CYL HD 8-94394-862-1 01 1 9703-9709 ● ●
1 COVER; CYL HD 8-94394-862-2 01 1 9710- ● ● ●
4 CAP; OIL FILLER 1-11750-020-0 01 1 9101-9504 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9505-9702 ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9703-9709 ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9710- ● ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9505-9702 ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9703-9709 ● ●
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 9710- ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9505-9702 ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9703-9709 ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28280-835-0 19 1 9710-9812 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28680-835-0 19 1 9901-0512 ● ● ●
28 BOLT; HD COVER
M8X35 FLANGE 		0-28650-835-0 19 1 0601- ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-055-0 01 1 9101-9504 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9505-9702 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9703-9709 ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9710- ● ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9505-9702 ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9703-9709 ● ●
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 9710- ● ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9505-9702 ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9703-9709 ● ●
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 9710- ● ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9505-9702 ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9703-9709 ● ●
72 PLATE; INNER HD COVER 8-94393-609-1 01 1 9710- ● ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9505-9702 ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9703-9709 ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71180-412-0 07 1 9710-0603 ● ● ●
76 SCREW; INNER PLATE
M4X12 TAPPING 		0-71240-412-0 07 1 0604- ● ● ●

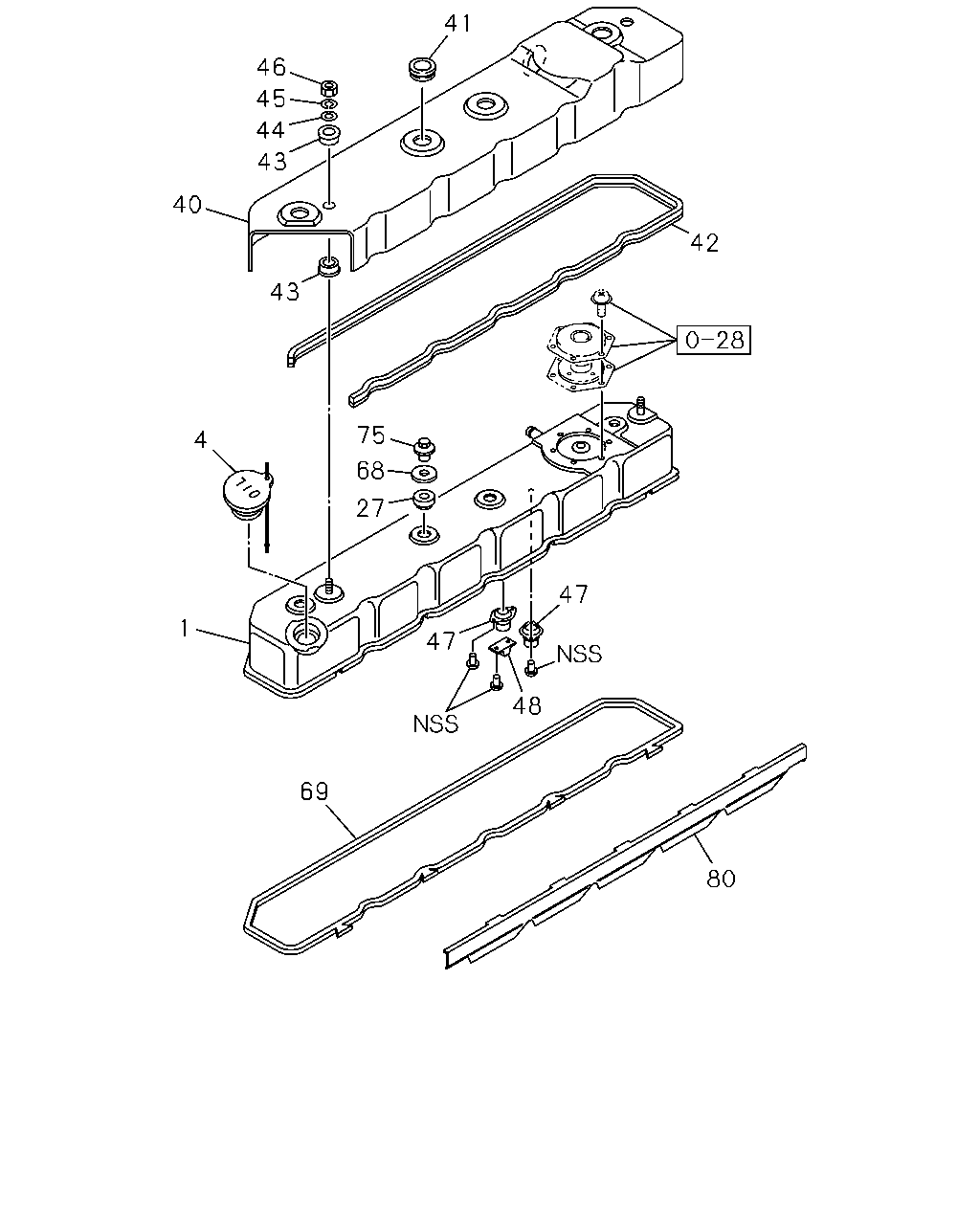

çizim 36801
41 46 45 44 43 40 42 43 75 4 68 27 47 1 47 48 69 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COVER; CYL HD
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-11171-360-0 01 1 9311-9401 ●
1 COVER; CYL HD
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-11171-248-1 01 1 9402-9504 ●
1 COVER; CYL HD 1-11171-249-1 01 1 9101-9310 ● ● ●
1 COVER; CYL HD
RIGHT HAND DRIVE(LTR5FB) 		1-11171-249-1 01 1 9311-9504 ●
1 COVER; CYL HD
LEFT HAND DRIVE(LTR6FB) EXC. ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSION REGULATION<TAL> 		1-11171-249-1 01 1 9311-9504 ●
1 COVER; CYL HD 1-11171-249-1 01 1 9311-9504 ● ●
1 COVER; CYL HD 8-94394-862-1 01 1 9505-9702 ●
1 COVER; CYL HD 8-94394-862-1 01 1 9703-9709 ● ●
1 COVER; CYL HD 8-94394-862-2 01 1 9710- ● ● ●
4 CAP; OIL FILLER 1-11750-020-0 01 1 9101-9504 ● ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9505-9702 ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9703-9709 ● ●
4 CAP; OIL FILLER 8-94399-723-0 01 1 9710- ● ● ●
27 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		9-11179-030-0 04 1 9101-9504 ● ● ●
40 COVER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-19381-174-2 01 1 9311-9401 ●
40 COVER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-19381-177-2 01 1 9402-9504 ●
41 GROMMET; HD COVER,OUTER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-19389-004-0 04 1 9311-9504 ●
42 SEAL; RUBBER,HD COVER,OUTER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> L=1820 		1-19387-007-0 01 1 9311-9504 ●
43 RUBBER; MTG,HD COVER,OUTER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-09337-027-0 04 1 9311-9504 ●
44 WASHER; PL,HD COVER,OUTER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> ID=8.4 OD=18 		9-09160-608-0 02 1 9402-9504 ●
45 WASHER; LK,HD COVER,OUTER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> ID=8.2 		9-09150-508-0 02 1 9311-9504 ●
46 NUT; HD COVER,OUTER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> M8 		9-09110-408-0 02 1 9311-9504 ●
47 FLOAT; HD COVER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-11179-094-0 02 1 9311-9401 ●
48 PLATE; BAFFLE,CYL HD COVER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-11179-099-0 01 1 9311-9401 ●
68 WASHER; CAP NUT,HD COVER 9-11179-105-0 04 1 9101-9504 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11173-055-0 01 1 9101-9504 ● ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9505-9702 ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9703-9709 ● ●
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 9710- ● ● ●
75 NUT; CAP,HD COVER
M8 CAP NUT OD=22 		8-94340-192-0 04 1 9101-9504 ● ● ●
80 PROTECTOR; HEAT,SEAL RUBBER
LEFT HAND DRIVE(LTR6FB) ANTI NOISE EQUIPMENT VAR2<TAK>,TAIWAN EMISSIONREGULATION<TAL> 		1-14181-142-0 01 1 9311-9504 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
