3-55 — BRAKE PIPING; OIL,REAR (#36858) — 24 parça

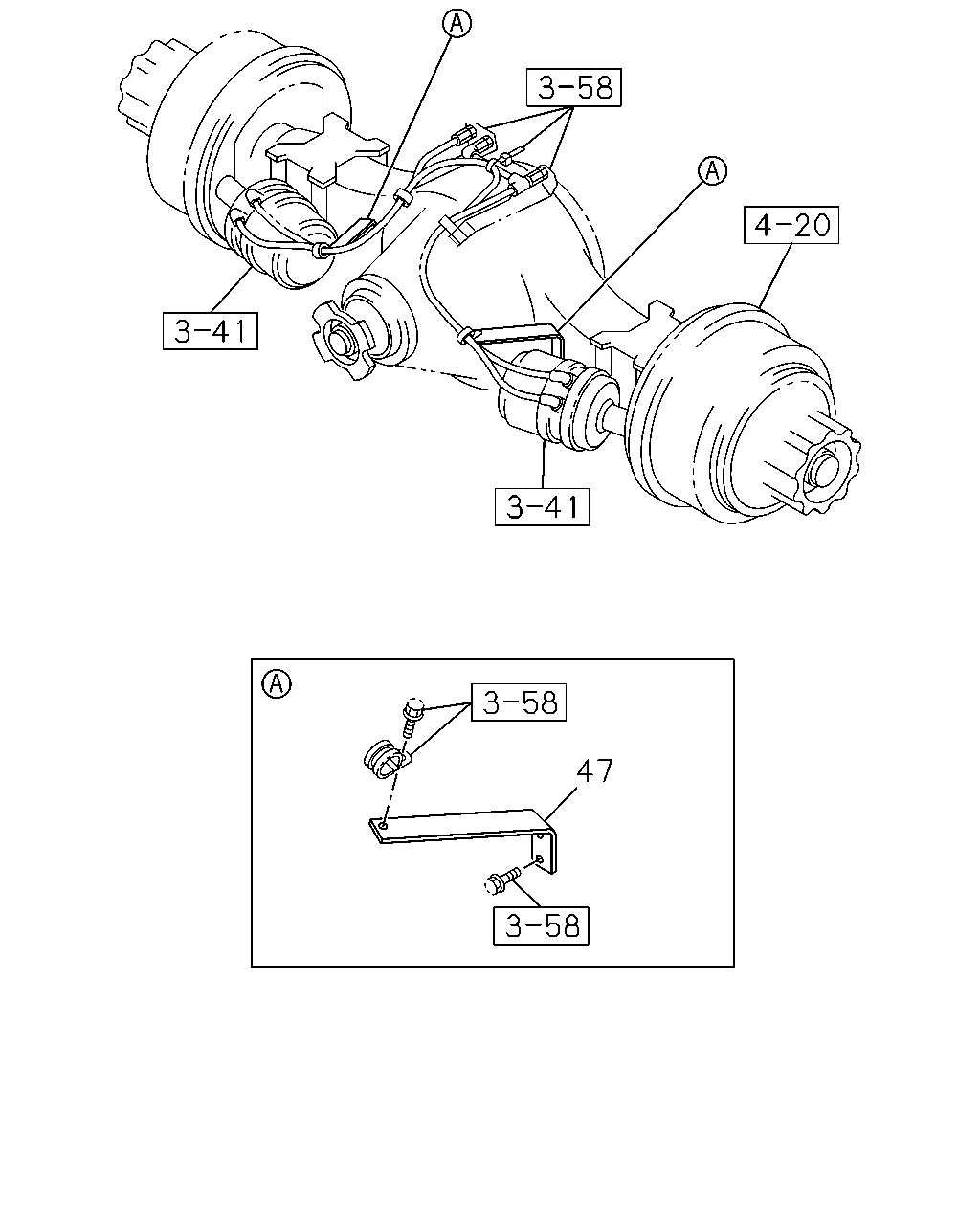

çizim 111359
47
BalonParca AdiParca NoAdetTipApplied Date
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-515-2 01 1 0809-
47 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-42129-516-2 01 1 0809-

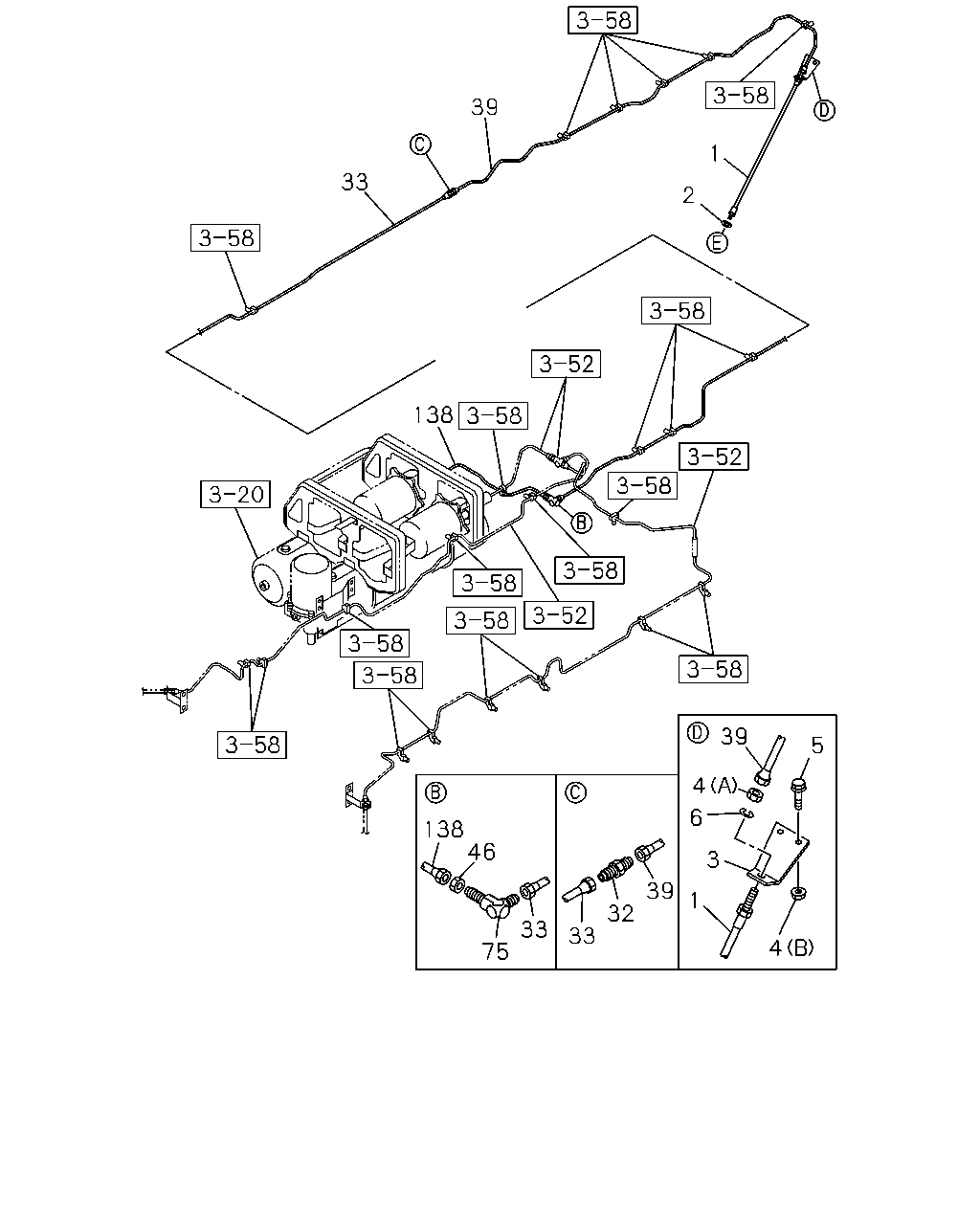

çizim 111365
39 1 33 2 138 39 5 4 6 138 46 3 39 1 32 33 33 4 75
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=700 		0-05312-700-0 01 1 0809-0907
1 HOSE; FLEX,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=700 		0-05212-700-0 01 1 0908-
2 GASKET; FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=9 OD=17 		9-09920-472-0 01 1 0905-
3 BRACKET; FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-47465-251-0 01 1 0809-
4 NUT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8 FLANGE 		0-91180-108-0 02 1 0809-
4 NUT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M12 		9-09840-280-0 01 1 0809-
5 BOLT; BRKT,FLEX HOSE,RR BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
6 WASHER; LK,FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=12.2 		0-91510-512-0 01 1 0809-
32 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 L=40 		0-92113-006-0 01 1 0809-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2644 SERVICED BY L=2650 		1-47428-743-0 01 1 0809-0809
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2649 SERVICED BY L=2650 		1-47428-743-0 01 1 0809-0812
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2650 SERVICED BY L=2650 		1-47428-743-0 01 1 0901-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1341 SERVICED BY L=1370 		1-47428-734-0 01 1 0809-0812
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=1342 SERVICED BY L=1370 		1-47428-734-0 01 1 0901-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2140 SERVICED BY L=2200 		1-47428-740-0 01 1 0809-0812
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2141 SERVICED BY L=2200 		1-47428-740-0 01 1 0901-
39 PIPE; OIL,UNION TO RR FLEX HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2138 SERVICED BY L=2200 		1-47428-740-0 01 1 0809-
46 NUT; UNION,OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 		9-09840-280-0 01 1 0809-
75 UNION; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 ELBOW 		0-92125-206-0 01 1 0809-
138 PIPE; HYDRAULIC UNIT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=504 SERVICED BY L=550 		1-47428-724-0 01 1 0809-

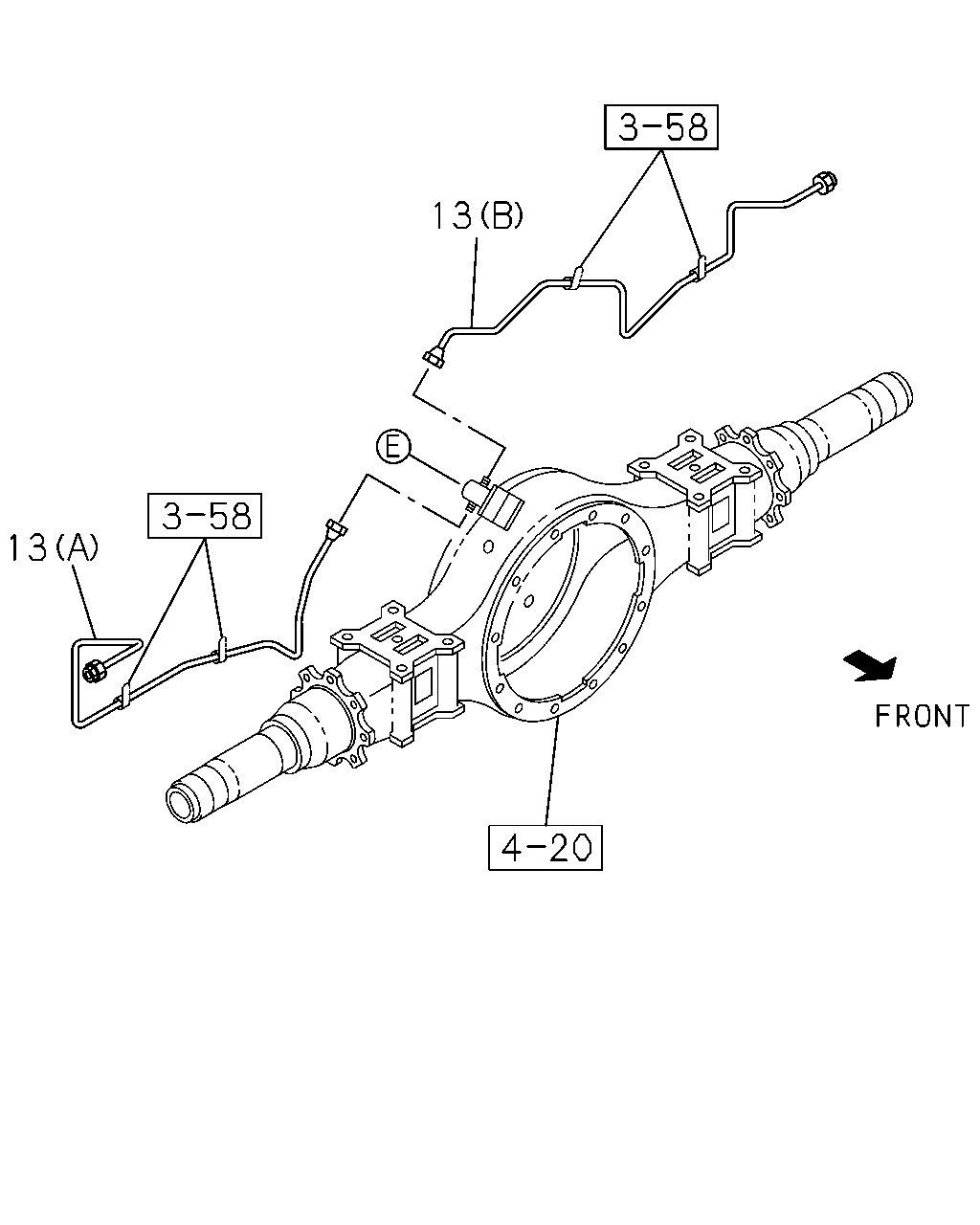

çizim 111377
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; BRK,RR AXLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=935 		8-98003-970-0 01 1 0809-
13 PIPE; BRK,RR AXLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=1212 		8-98003-971-0 01 1 0809-
