3-41 — REAR BRAKE POWER CHAMBER (#36854) — 17 parça

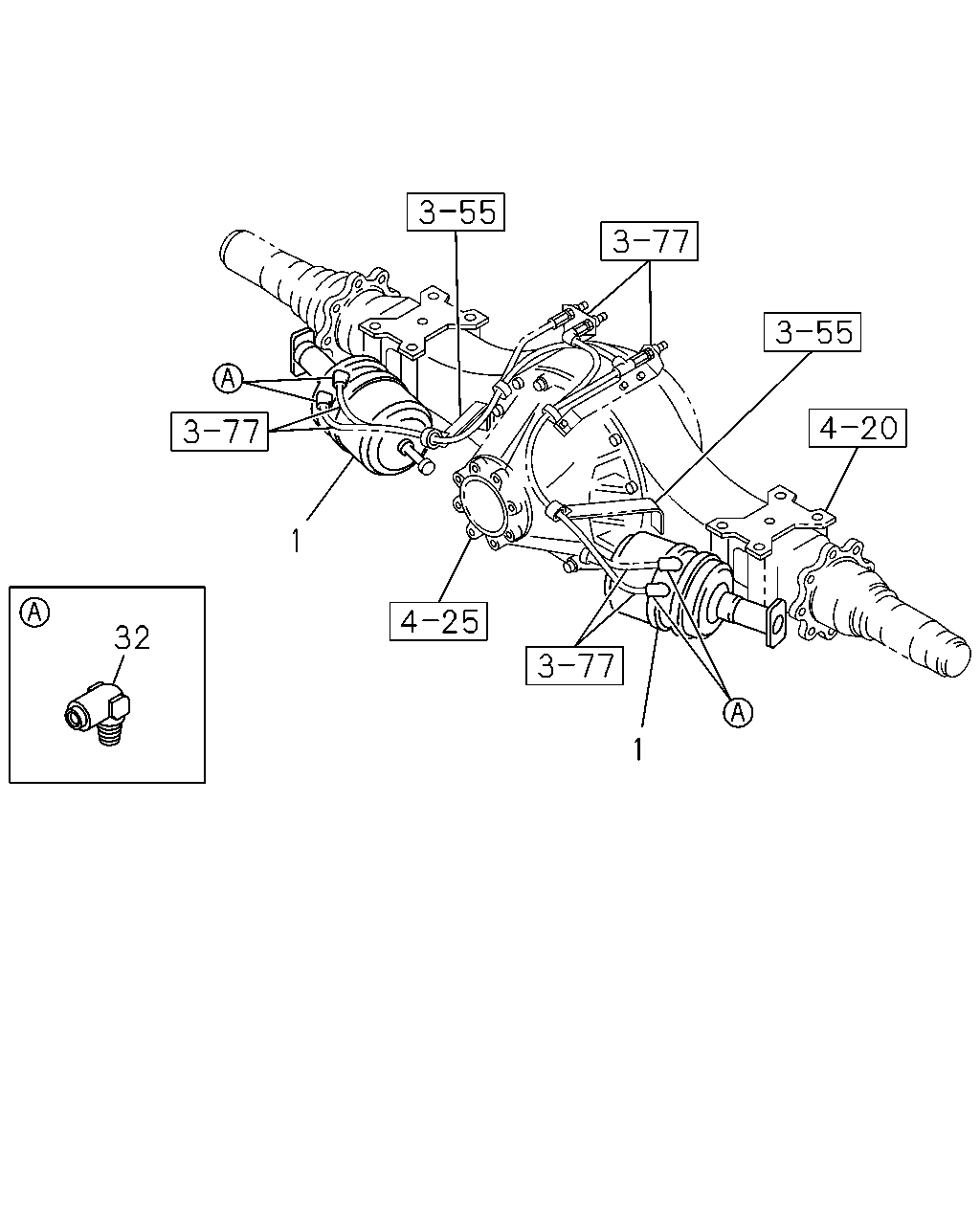

1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48250-877-4	01	1	0809-
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48250-878-4	01	1	0809-
32	CONNECTOR; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0809-

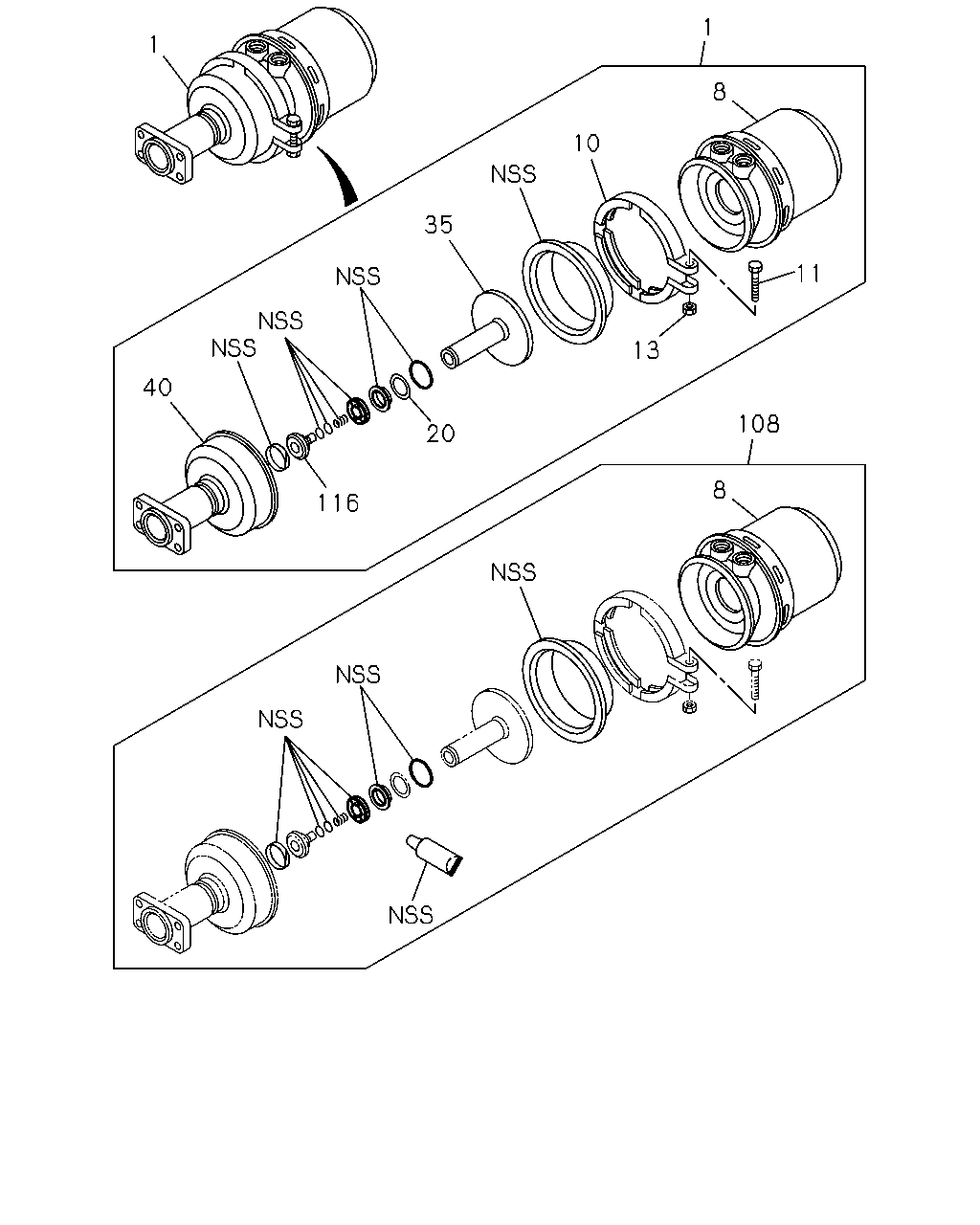

1 1 8 10 35 11 13 40 108 20 8 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48250-877-4	01	1	0809-
1	CHAMBER ASM; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48250-878-4	01	1	0809-
8	SHELL; CYL,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-173-2	01	1	0809-
8	SHELL; CYL,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-174-2	01	1	0809-
10	RING; CLAMP,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-231-0	02	1	0809-
11	BOLT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-232-0	02	1	0809-
13	NUT; CLAMP RING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-233-0	02	1	0809-
20	RING; RET BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-236-0	02	1	0809-
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48262-031-0	02	1	0809-0809
35	PLATE; ROD END,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-253-0	02	1	0810-
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-179-0	01	1	0809-
40	COVER ASM; LWR,SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48251-180-0	01	1	0809-
108	REPAIR KIT; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-407-1	02	1	0809-
116	GUIDE; SPR CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48269-237-0	02	1	0809-
