◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#36849) — 539 parça
çizim 111331
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0809-1011
240 REPAIR KIT; AIR CONT GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> 		1-85576-467-0 01 1 1012-1110
240 REPAIR KIT; AIR CONT GOV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1012-1110
240 REPAIR KIT; AIR CONT GOV
TURBO - CONVENTIONAL<Q5T> 		1-85576-467-0 01 1 1111-

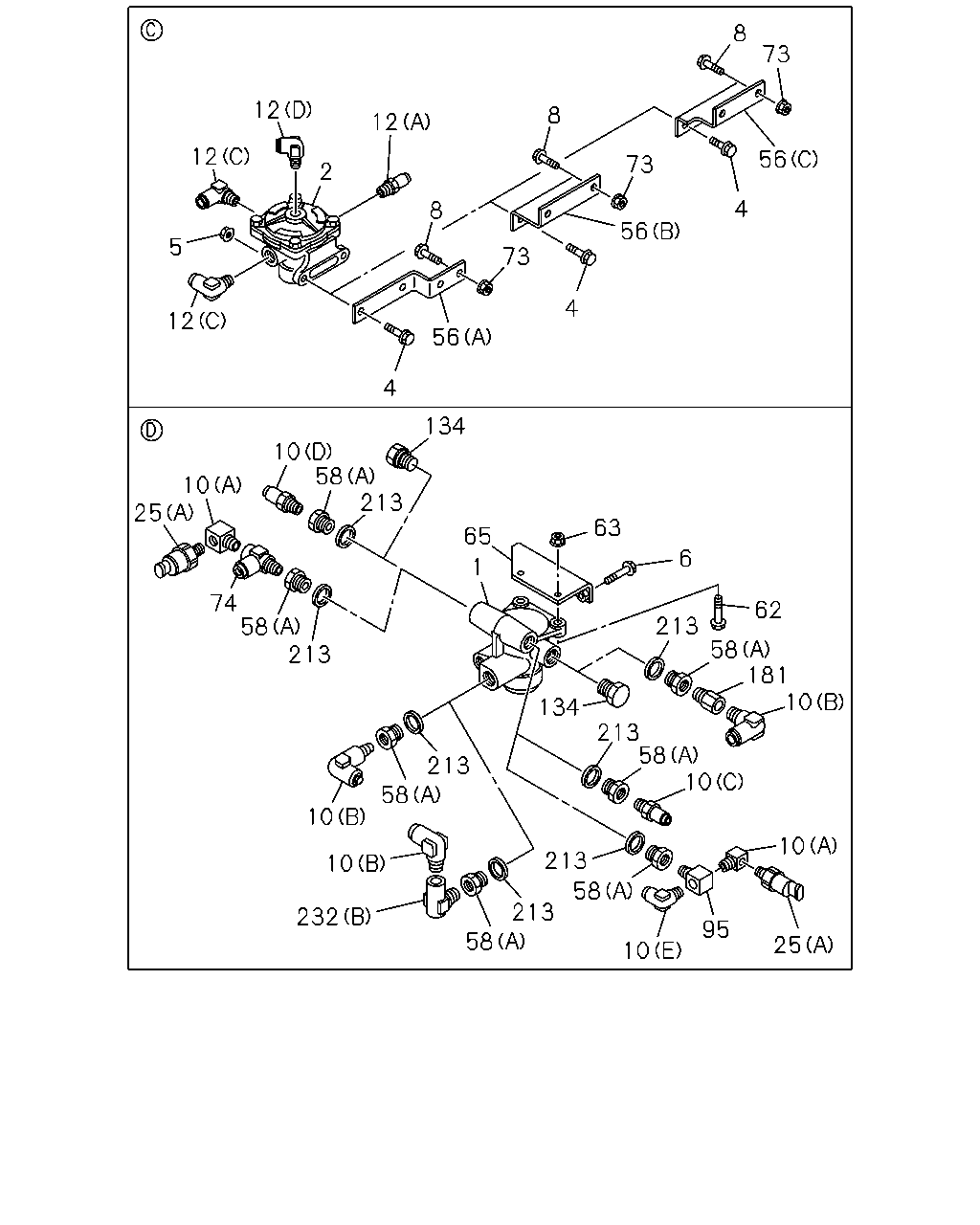

çizim 111336
8 73 12 8 12 12 56 73 2 4 8 56 5 73 4 12 56 4 134 10 58 213 10 25 63 65 6 1 74 58 213 62 213 58 181 10 134 213 58 10 213 58 10 10 213 10 58 213 232 95 58 25 10
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48240-354-1 01 1 0809-1011
1 VALVE; RELAY RWD RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48240-354-1 01 1 1012-1110
1 VALVE; RELAY RWD RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> 		1-48240-354-1 01 1 1012-1110
1 VALVE; RELAY RWD RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48240-354-1 01 1 1111-
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 0809-1011
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 0809-1011
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1108-
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1108-
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 0809-1011
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 0809-1011
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 1012-1107
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 1012-1107
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 1012-1107
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 1108-
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 1108-
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-1011
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-1011
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1012-1107
5 NUT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1012-1107
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 1012-1107
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 1108-
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 1108-
6 BOLT; VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X35 FLANGE 		0-28650-835-0 02 1 0809-
8 BOLT; BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT1/4 2WAY 		1-09660-693-0 01 1 0809-1011
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) PT1/4 2WAY 		1-09660-693-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1111-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0809-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809-1011
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1111-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-
10 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1110
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 0809-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1107
12 CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108-
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 0809-1011
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-2 01 1 1111-
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0809-
56 BRACKET; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-98126-366-0 01 1 0809-1011
56 BRACKET; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (C) 		8-98126-366-0 01 1 1012-1107
56 BRACKET; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		8-98126-366-0 01 1 1108-
56 BRACKET; RELAY VLV
WHEEL BASE 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (B) 		1-47478-233-0 01 1 1012-1107
56 BRACKET; RELAY VLV
WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		8-98031-257-0 01 1 1012-1107
58 ADAPTER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-1011
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1111-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012-
62 BOLT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0809-1011
62 BOLT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 1012-1110
62 BOLT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> M8X30 FLANGE 		0-28650-830-0 02 1 1012-1110
62 BOLT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 1111-
63 NUT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE 		0-91180-108-0 02 1 0809-1011
63 NUT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE 		0-91180-108-0 02 1 1012-1110
63 NUT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> M8 FLANGE 		0-91180-108-0 02 1 1012-1110
63 NUT; BRKT FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE 		0-91180-108-0 02 1 1111-
65 BRACKET; RELAY VLV RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47471-032-0 01 1 0809-1011
65 BRACKET; RELAY VLV RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47471-032-0 01 1 1012-1110
65 BRACKET; RELAY VLV RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> 		1-47471-032-0 01 1 1012-1110
65 BRACKET; RELAY VLV RR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47471-032-0 01 1 1111-
73 NUT; BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-
74 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 0809-
95 UNION; AIR VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> 		1-09656-708-0 01 1 1012-1101
95 UNION; AIR VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1102-1110
134 PLUG; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22 		1-09661-502-0 01 1 0809-1011
134 PLUG; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22 		1-09661-502-0 01 1 1012-1110
134 PLUG; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> M22 		1-09661-502-0 01 1 1012-1110
134 PLUG; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M22 		1-09661-502-0 01 1 1111-
181 ADAPTER; PRESSURE SW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> PT3/8 		1-09664-210-0 01 1 1012-1110
213 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=22.5 		9-09571-422-0 04 1 0809-1011
213 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=22.5 		9-09571-422-0 04 1 1012-1110
213 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> ID=22.5 		9-09571-422-0 04 1 1012-1110
213 GASKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=22.5 		9-09571-422-0 04 1 1111-
232 VALVE; CHECK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-
232 VALVE; CHECK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) 		1-48320-031-1 01 1 1012-1110

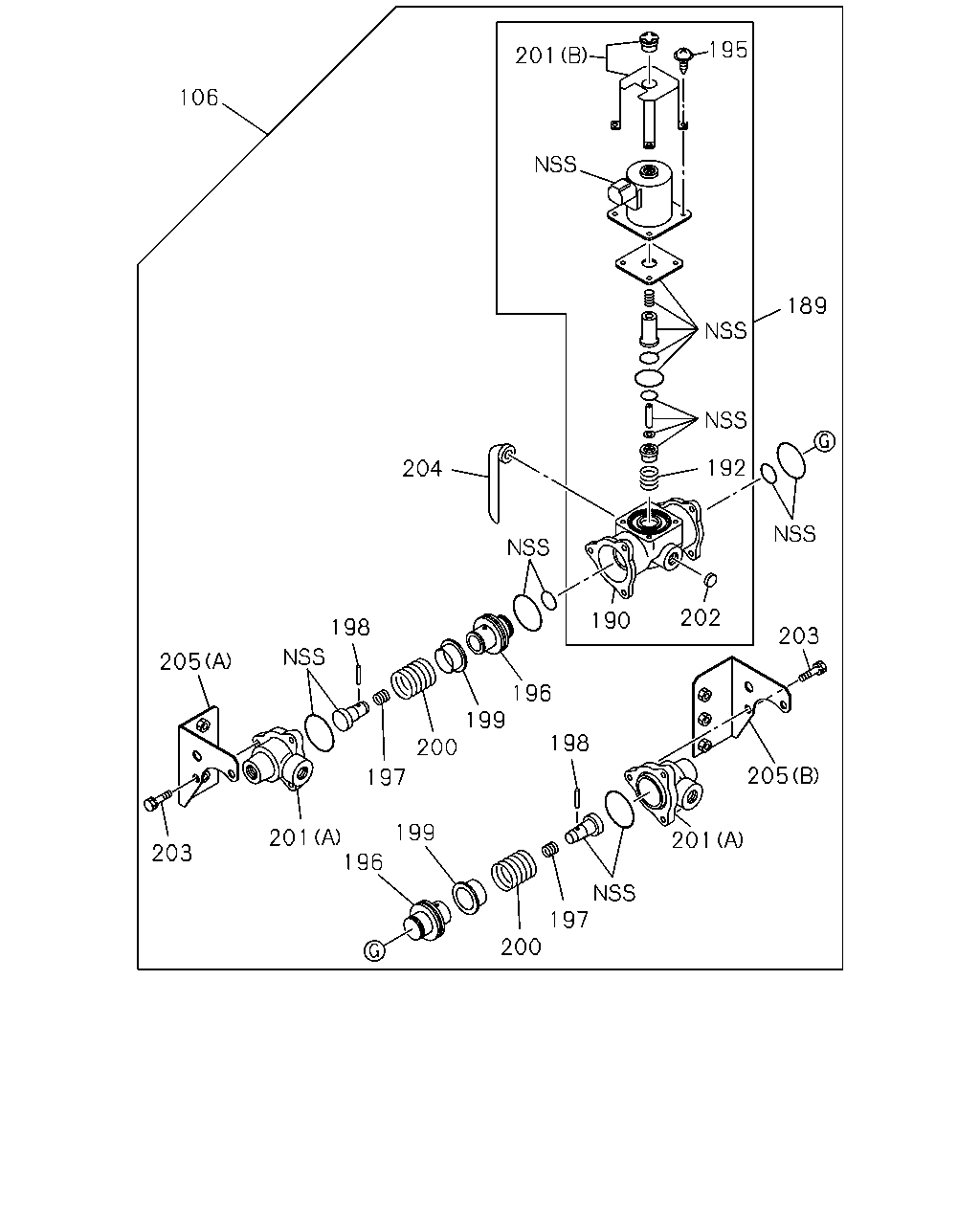

çizim 111338
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0809-
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0809-
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0809-
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0809-
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0809-
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0809-
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0809-
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0809-
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0809-
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0809-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0809-
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0809-
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0809-
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0809-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0809-
205 BRACKET; HSA VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> (C) 		8-98122-351-0 01 1 0809-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0809-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0809-

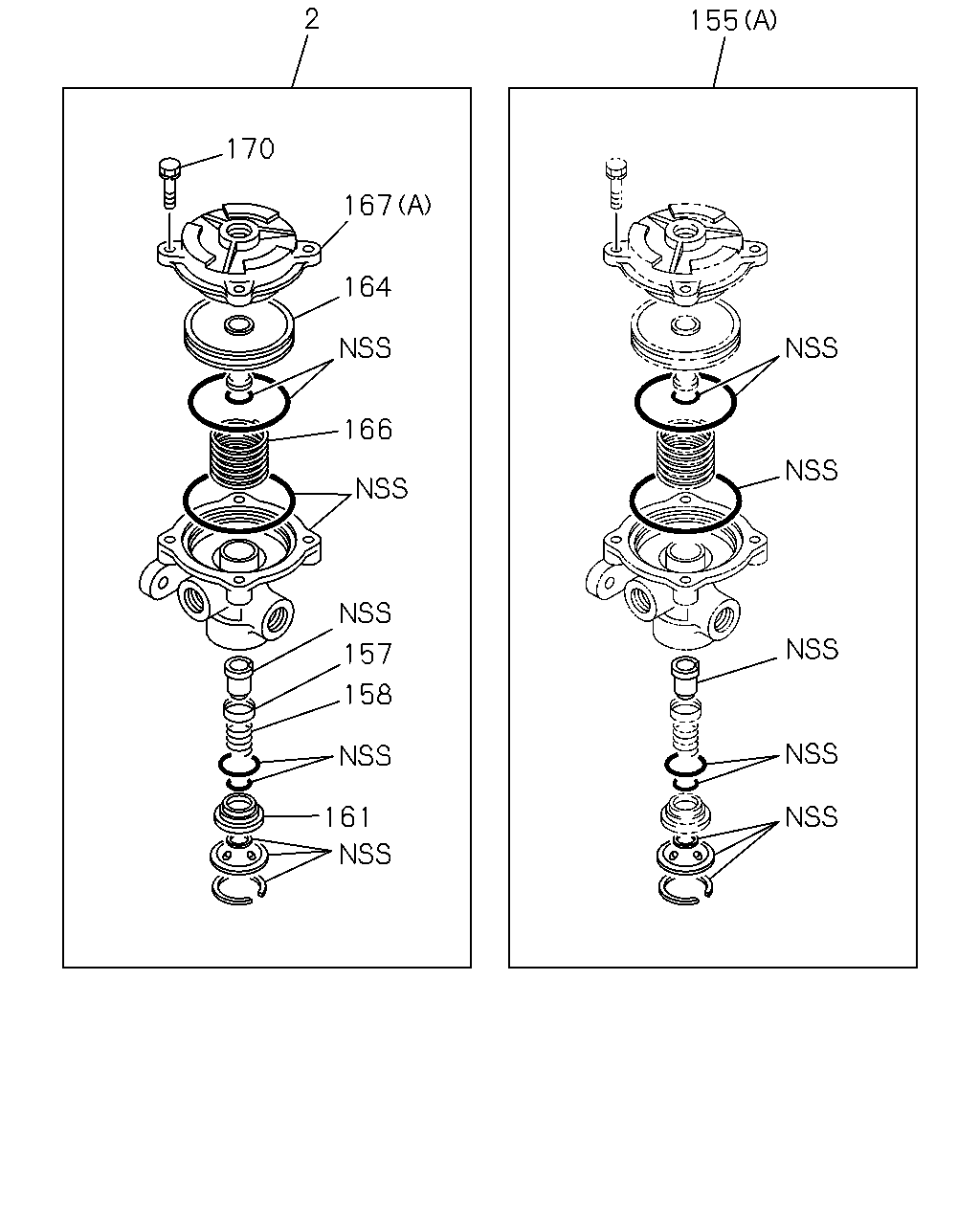

çizim 111339
2 170 167 164 166 157 158 161 155
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 0809-1011
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 0809-1011
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1108-
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1108-
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-85576-408-0 01 1 0809-1011
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-85576-408-0 01 1 1012-1110
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) 		1-85576-408-0 01 1 1012-1110
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-85576-408-0 01 1 1111-
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 0809-1011
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 0809-1011
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) 		1-85576-033-0 01 1 1012-1107
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		1-85576-033-0 01 1 1012-1107
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 1012-1107
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 1108-
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 1108-
157 RETAINER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48213-002-0 01 1 0809-1011
157 RETAINER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48213-002-0 01 1 0809-1011
157 RETAINER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48213-002-0 01 1 1012-1107
157 RETAINER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48213-002-0 01 1 1012-1107
157 RETAINER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48213-002-0 01 1 1012-1107
157 RETAINER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48213-002-0 01 1 1108-
157 RETAINER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48213-002-0 01 1 1108-
158 SPRING; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-089-0 01 1 0809-1011
158 SPRING; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-089-0 01 1 0809-1011
158 SPRING; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-47819-089-0 01 1 1012-1107
158 SPRING; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-47819-089-0 01 1 1012-1107
158 SPRING; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-089-0 01 1 1012-1107
158 SPRING; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-089-0 01 1 1108-
158 SPRING; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-089-0 01 1 1108-
161 GUIDE; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48129-014-0 01 1 0809-1011
161 GUIDE; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48129-014-0 01 1 0809-1011
161 GUIDE; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48129-014-0 01 1 1012-1107
161 GUIDE; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48129-014-0 01 1 1012-1107
161 GUIDE; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48129-014-0 01 1 1012-1107
161 GUIDE; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48129-014-0 01 1 1108-
161 GUIDE; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48129-014-0 01 1 1108-
164 PISTON; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-071-0 01 1 0809-1011
164 PISTON; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-071-0 01 1 0809-1011
164 PISTON; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48219-071-0 01 1 1012-1107
164 PISTON; RELAY VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48219-071-0 01 1 1012-1107
164 PISTON; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-071-0 01 1 1012-1107
164 PISTON; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-071-0 01 1 1108-
164 PISTON; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-071-0 01 1 1108-
166 SPRING; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-090-0 01 1 0809-1011
166 SPRING; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-090-0 01 1 0809-1011
166 SPRING; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-47819-090-0 01 1 1012-1107
166 SPRING; PISTON
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-47819-090-0 01 1 1012-1107
166 SPRING; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-090-0 01 1 1012-1107
166 SPRING; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-090-0 01 1 1108-
166 SPRING; PISTON
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-47819-090-0 01 1 1108-
167 COVER; VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48119-625-0 03 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
170 SCREW; COVER TO BODY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-039-0 04 1 0809-1011
170 SCREW; COVER TO BODY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-039-0 04 1 0809-1011
170 SCREW; COVER TO BODY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48219-039-0 04 1 1012-1107
170 SCREW; COVER TO BODY
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48219-039-0 04 1 1012-1107
170 SCREW; COVER TO BODY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-039-0 04 1 1012-1107
170 SCREW; COVER TO BODY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-039-0 04 1 1108-
170 SCREW; COVER TO BODY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48219-039-0 04 1 1108-
çizim 111341
188 204
BalonParca AdiParca NoAdetTipApplied Date
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0809-
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0809-

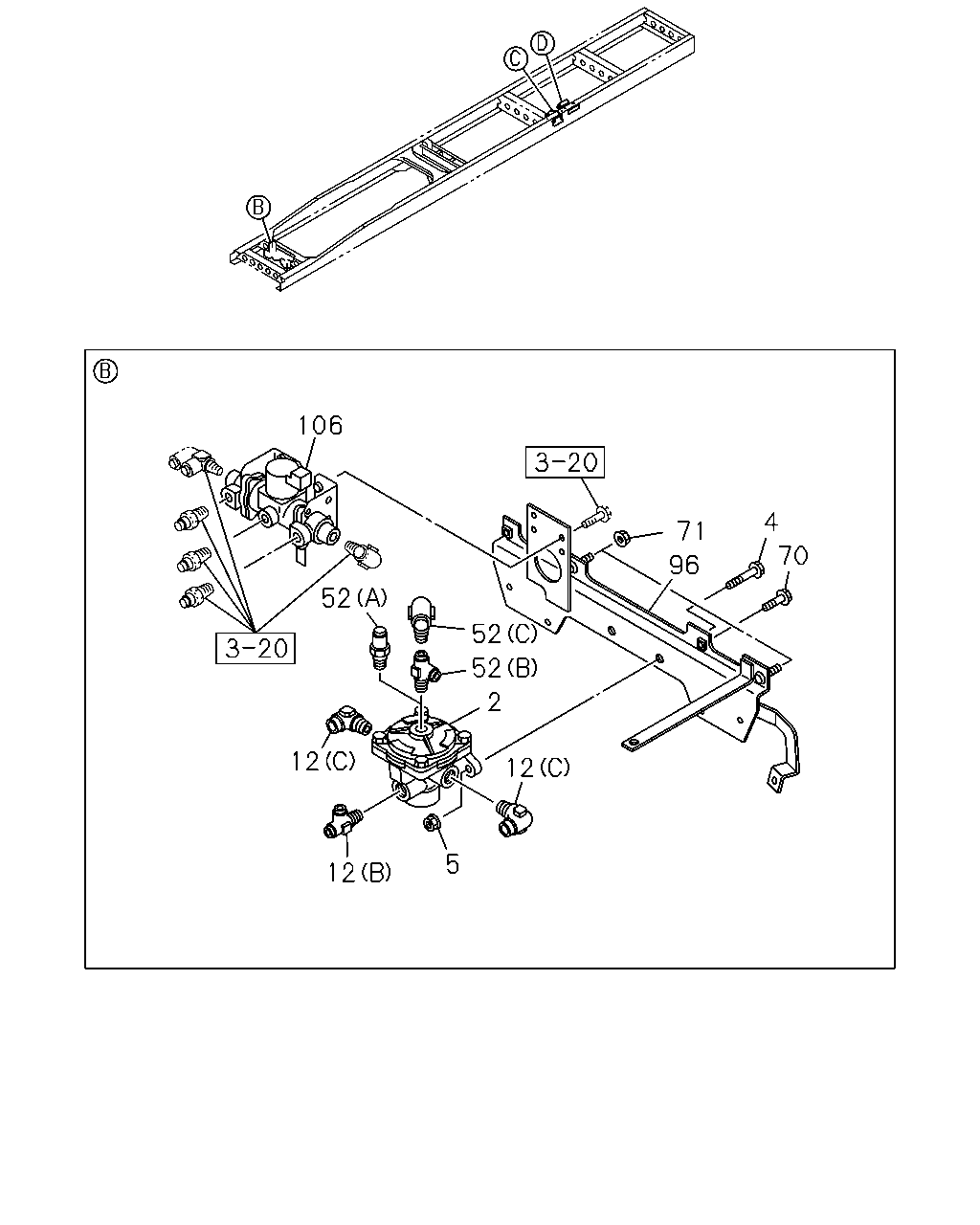

çizim 111342
106 4 71 70 96 52 52 52 2 12 12 5 12
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 0809-1011
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 0809-1011
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1012-1107
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1108-
2 VALVE; RELAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-48210-875-0 01 1 1108-
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 0809-1011
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 0809-1011
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 1012-1107
4 BOLT; RELAY VLV TO BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> M10X35 FLANGE 		0-28651-035-0 02 1 1012-1107
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 1012-1107
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 1108-
4 BOLT; RELAY VLV TO BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X35 FLANGE 		0-28651-035-0 02 1 1108-
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-1011
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-1011
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1012-1107
5 NUT
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> M10 FLANGE 		0-91180-210-0 02 1 1012-1107
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 1012-1107
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 1108-
5 NUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 0809-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-1011
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1107
12 CONNECTOR; RELAY VLV
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1107
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108-
12 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108-
52 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809-
52 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0809-
52 CONNECTOR; RELAY VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0809-
70 BOLT; AIR VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 0809-
71 NUT; AIR VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE 		0-91180-108-0 02 1 0809-
96 BRACKET
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98094-851-2 01 1 0809-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0809-

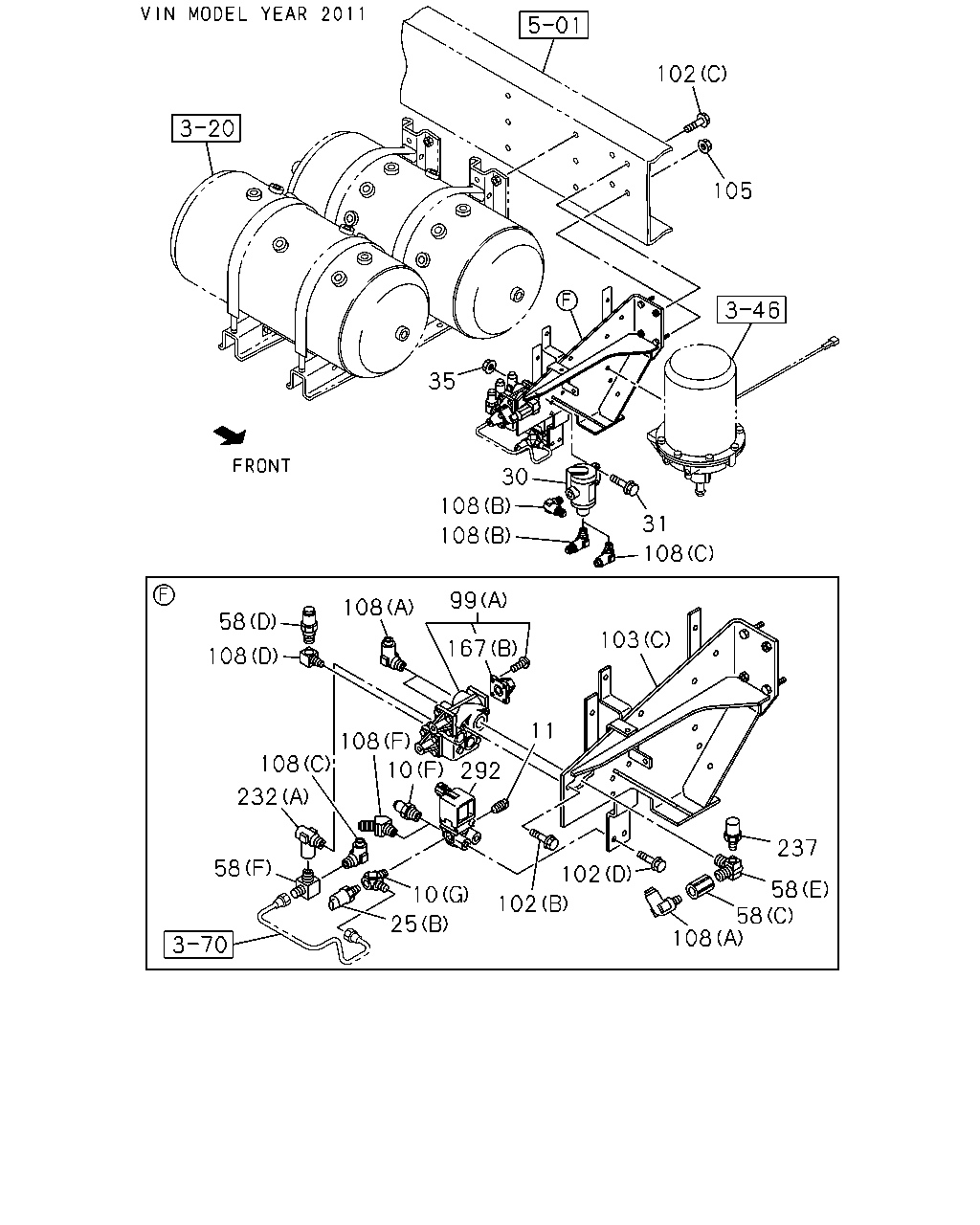

çizim 111343
105 102 108 31 30 35 108 108 108 99 167 11 103 102 108 237 58 58 102 10 25 292 10 108 108 232 58 108 58
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT1/4 2WAY 		1-09660-693-0 01 1 0809-1011
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) PT1/4 2WAY 		1-09660-693-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT1/4 2WAY 		1-09660-693-0 01 1 1111-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0809-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0809-1011
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1111-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-
10 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (G) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1012-1110
10 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1012-1110
11 PLUG
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 0809-1011
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-2 01 1 1111-
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-1011
30 GOVERNOR; AIR CONT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 1012-1110
30 GOVERNOR; AIR CONT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1012-1110
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1111-
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> M8X20 FLANGE 		0-28650-820-0 02 1 1012-1110
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1111-
31 BOLT; GOV TO FRAME
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0809-1011
31 BOLT; GOV TO FRAME
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 02 1 1012-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0809-1011
35 NUT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1012-
58 ADAPTER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-1011
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1111-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012-
99 VALVE; PROTECTION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48110-287-3 01 1 0809-
99 VALVE; PROTECTION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48110-288-3 01 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
103 BRACKET; PROTECTION VALVE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98177-510-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-98098-183-0 01 1 0809-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-98116-826-0 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98116-826-0 01 1 1012-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1012-1110
103 BRACKET; PROTECTION VALVE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98119-704-0 01 1 1012-
105 NUT; BRKT,VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE 		0-91180-210-0 02 1 0809-0905
105 NUT; BRKT,VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-0905
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0906-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1110
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1110
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1111-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1111-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1503
108 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
167 COVER; VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48119-625-0 03 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
232 VALVE; CHECK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-
232 VALVE; CHECK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) 		1-48320-031-1 01 1 1012-1110
237 VALVE; SAFETY 1-48320-012-2 01 1 0809-
292 VALVE ASM; MAGNETIC
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> 		1-82563-871-2 01 1 1012-

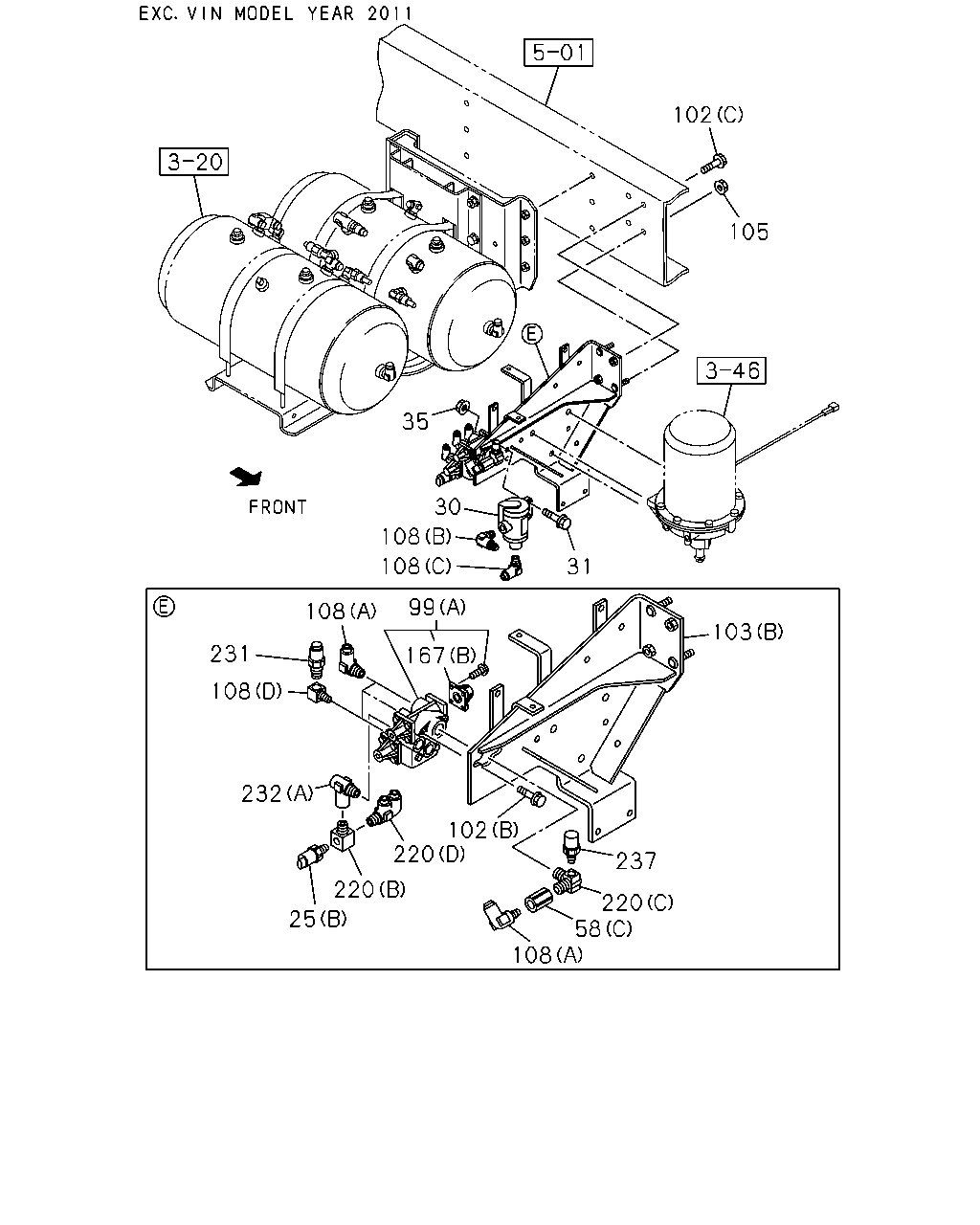

çizim 111347
105 102 31 30 35 108 108 99 103 237 220 58 108 102 220 220 25 232 108 231 167 108
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 0809-1011
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-2 01 1 1111-
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-1011
30 GOVERNOR; AIR CONT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 1012-1110
30 GOVERNOR; AIR CONT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1012-1110
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1111-
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> M8X20 FLANGE 		0-28650-820-0 02 1 1012-1110
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1111-
31 BOLT; GOV TO FRAME
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0809-1011
31 BOLT; GOV TO FRAME
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 02 1 1012-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0809-1011
35 NUT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1012-
58 ADAPTER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-1011
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1111-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012-
99 VALVE; PROTECTION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48110-287-3 01 1 0809-
99 VALVE; PROTECTION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48110-288-3 01 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
103 BRACKET; PROTECTION VALVE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98177-510-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-98098-183-0 01 1 0809-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-98116-826-0 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98116-826-0 01 1 1012-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1012-1110
103 BRACKET; PROTECTION VALVE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98119-704-0 01 1 1012-
105 NUT; BRKT,VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE 		0-91180-210-0 02 1 0809-0905
105 NUT; BRKT,VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-0905
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0906-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1110
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1110
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1111-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1111-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1503
108 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
167 COVER; VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48119-625-0 03 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 0809-
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1012-1110
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1111-
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-09656-708-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-09656-708-0 01 1 1012-1101
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1102-
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1012-
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-
231 CONNECTOR; NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0809-1011
231 CONNECTOR; NYLON TUBE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-
232 VALVE; CHECK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 0809-
232 VALVE; CHECK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) 		1-48320-031-1 01 1 1012-1110
237 VALVE; SAFETY 1-48320-012-2 01 1 0809-

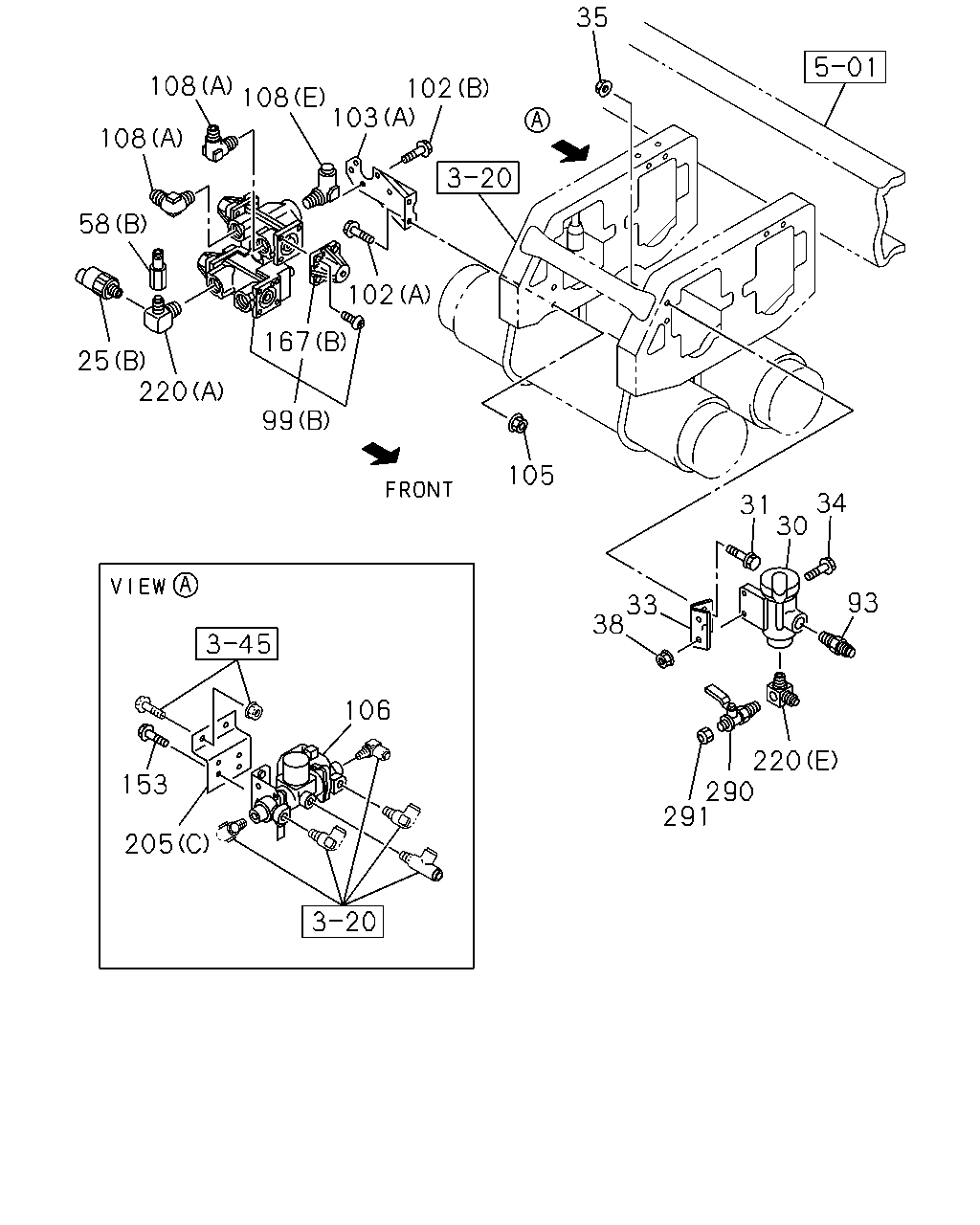

çizim 111362
108 108 58 25 99 220 167 102 102 103 108 35 105 34 31 93 30 33 38 220 290 291 205 106 153
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 0809-1011
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) STAMP 2.0 		8-98010-856-1 01 1 1012-1110
25 SWITCH; PRESSURE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) STAMP 2.0 		8-98010-856-2 01 1 1111-
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0809-
30 GOVERNOR; AIR CONT 1-48350-093-2 01 1 0809-1011
30 GOVERNOR; AIR CONT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> 		1-48350-093-2 01 1 1012-1110
30 GOVERNOR; AIR CONT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1012-1110
30 GOVERNOR; AIR CONT
TURBO - CONVENTIONAL<Q5T> 		1-48350-093-2 01 1 1111-
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> M8X20 FLANGE 		0-28650-820-0 02 1 1012-1110
31 BOLT; GOV TO FRAME
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE 		0-28650-820-0 02 1 1111-
31 BOLT; GOV TO FRAME
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X30 FLANGE 		0-28650-830-0 02 1 0809-1011
31 BOLT; GOV TO FRAME
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE 		0-28650-830-0 02 1 1012-
33 BRACKET; GOV,AIR CONT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98120-459-1 01 1 0809-1011
33 BRACKET; GOV,AIR CONT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> 		8-98120-459-1 01 1 1012-1110
33 BRACKET; GOV,AIR CONT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> 		8-98120-459-1 01 1 1111-
34 BOLT; BRKT,GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X25 FLANGE 		0-28650-825-0 02 1 0809-1011
34 BOLT; BRKT,GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> M8X25 FLANGE 		0-28650-825-0 02 1 1012-1110
34 BOLT; BRKT,GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE 		0-28650-825-0 02 1 1111-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0809-1011
35 NUT; GOV TO FRAME
TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1012-
38 NUT; BRKT,GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91180-108-0 02 1 0809-1011
38 NUT; BRKT,GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 02 1 1012-1110
38 NUT; BRKT,GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> M8 FLANGE 		0-91180-108-0 02 1 1111-
58 ADAPTER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0809-1011
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1012-1110
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1111-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0809-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (E) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-
58 ADAPTER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) 		8-98148-475-0 01 1 1012-
93 CONNECTOR; GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-1011
93 CONNECTOR; GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-1110
93 CONNECTOR; GOV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1111-
99 VALVE; PROTECTION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48110-287-3 01 1 0809-
99 VALVE; PROTECTION
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48110-288-3 01 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10X25 FLANGE 		0-28651-025-0 02 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-
102 BOLT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
103 BRACKET; PROTECTION VALVE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98177-510-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-98098-183-0 01 1 0809-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-98116-826-0 01 1 0809-1011
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98116-826-0 01 1 1012-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1012-1110
103 BRACKET; PROTECTION VALVE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) 		8-98173-454-0 01 1 1111-
103 BRACKET; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98119-704-0 01 1 1012-
105 NUT; BRKT,VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE 		0-91180-210-0 02 1 0809-0905
105 NUT; BRKT,VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10 FLANGE 		0-91180-210-0 02 1 0809-0905
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0906-
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1110
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-1110
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1111-
108 CONNECTOR; ELBOW
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1111-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-1011
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1012
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0809-
108 CONNECTOR; ELBOW
BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1012
108 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1012-1503
108 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504-
153 BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> M8X25 FLANGE 		0-28650-825-0 04 1 0809-
167 COVER; VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-48119-625-0 03 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-48119-625-0 04 1 0809-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 0809-1011
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1012-1107
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
167 COVER; VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-48219-070-0 01 1 1108-
205 BRACKET; HSA VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> (C) 		8-98122-351-0 01 1 0809-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0809-
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0809-
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN6 & PT1/4 & M12 3WAY 		1-09656-698-0 01 1 0809-
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1012-1110
220 CONNECTOR; 3WAY
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (E) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 1111-
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-09656-708-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) 		1-09656-708-0 01 1 1012-1101
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1102-
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1012-
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 0809-1011
220 CONNECTOR; 3WAY
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1012-
290 COCK; AIR,INFLATOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0809-1011
290 COCK; AIR,INFLATOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1012-1110
290 COCK; AIR,INFLATOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1111-
291 CAP; AIR COCK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0809-1011
291 CAP; AIR COCK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1012-1110
291 CAP; AIR COCK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1111-
çizim 111364
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-85576-408-0 01 1 0809-1011
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-85576-408-0 01 1 1012-1110
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> (B) 		1-85576-408-0 01 1 1012-1110
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		1-85576-408-0 01 1 1111-
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 0809-1011
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 0809-1011
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (A) 		1-85576-033-0 01 1 1012-1107
155 REPAIR KIT; RELAY VALVE
WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. EURO2 SPECIFICATION<NT2> (A) 		1-85576-033-0 01 1 1012-1107
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 1012-1107
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 1108-
155 REPAIR KIT; RELAY VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-85576-033-0 01 1 1108-
279 REPAIR KIT; SILENCER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-409-0 01 1 0809-1011
279 REPAIR KIT; SILENCER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-409-0 01 1 1012-1110
279 REPAIR KIT; SILENCER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> 		1-85576-409-0 01 1 1012-1110
279 REPAIR KIT; SILENCER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-409-0 01 1 1111-
çizim 426191
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-85576-452-2 01 1 0809-
241 REPAIR KIT; PROTECTION VALVE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-85576-451-2 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
