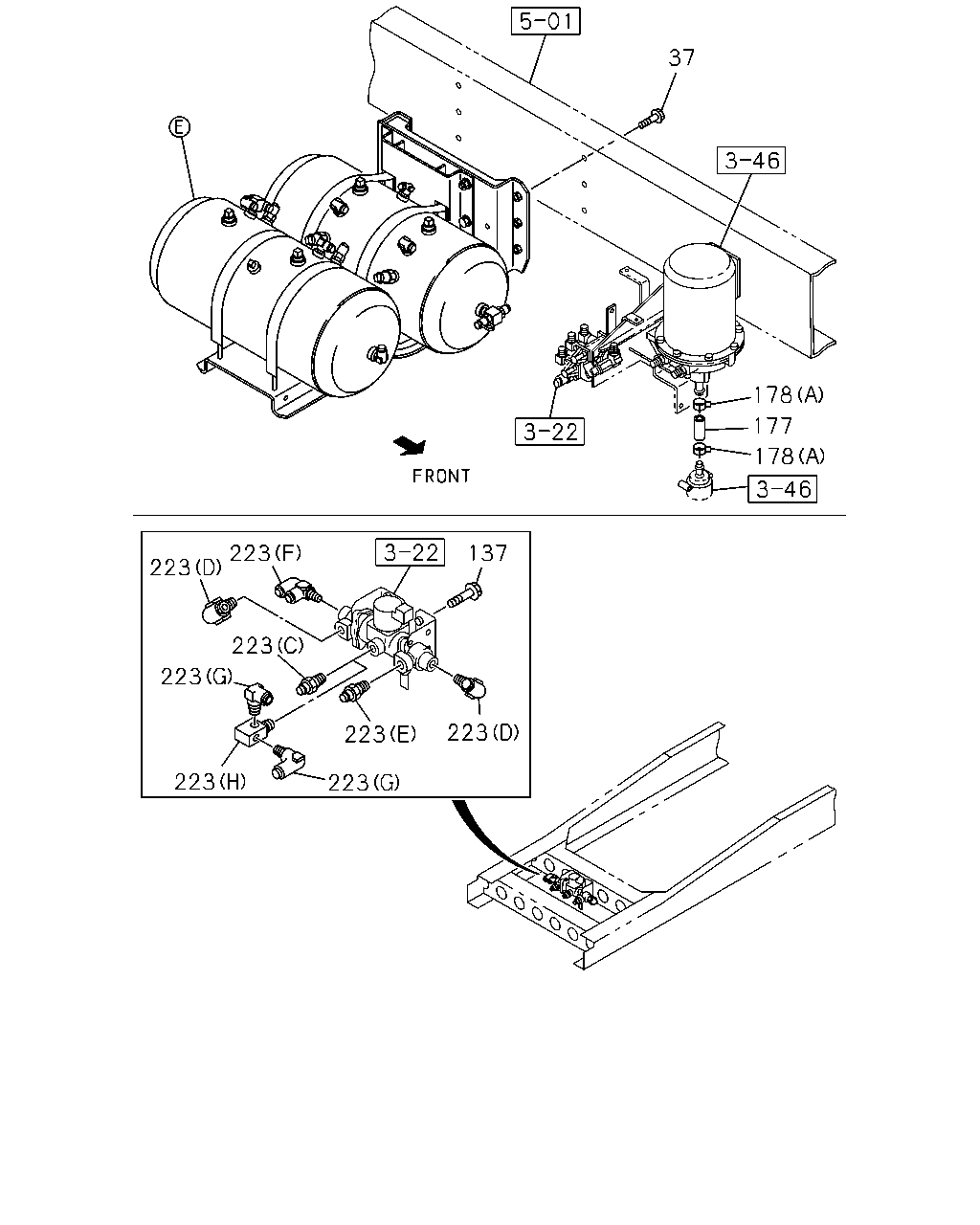

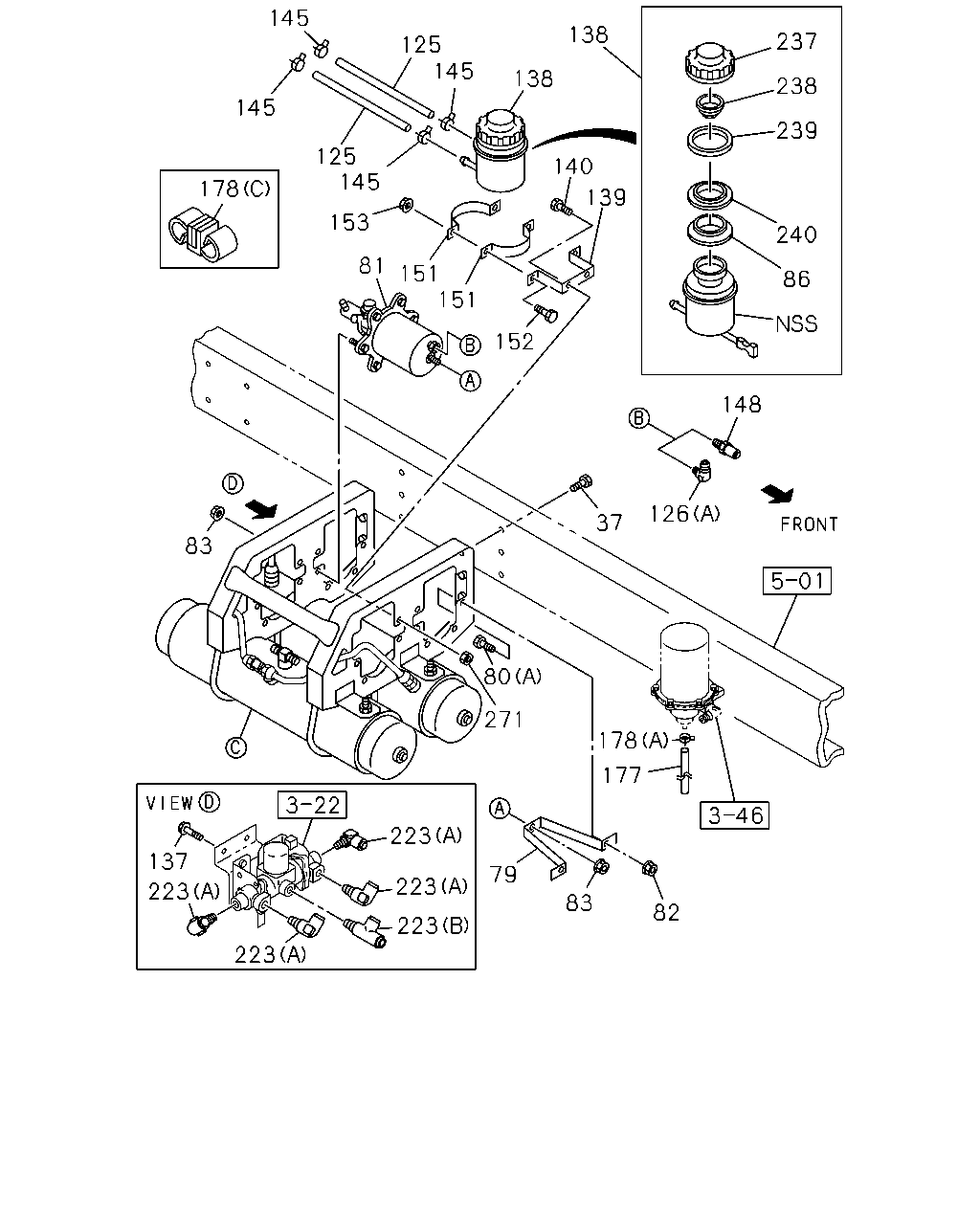

3-20 — AIR TANK (#36848) — 701 parça

366 10 38 3 366 366 38 28 80 366 9 5 126 45 45 41 366 104 185 5 126 1 7 9 104 6 366 369 366 10 42 80 28 38 9 38 5 126 366 10 3 5 126 9 366 10 45 45 1 366 7 175 174 126 366 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-48370-500-0	01	1	0809-
1	TANK ASM; AIR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-48370-501-0	01	1	0809-

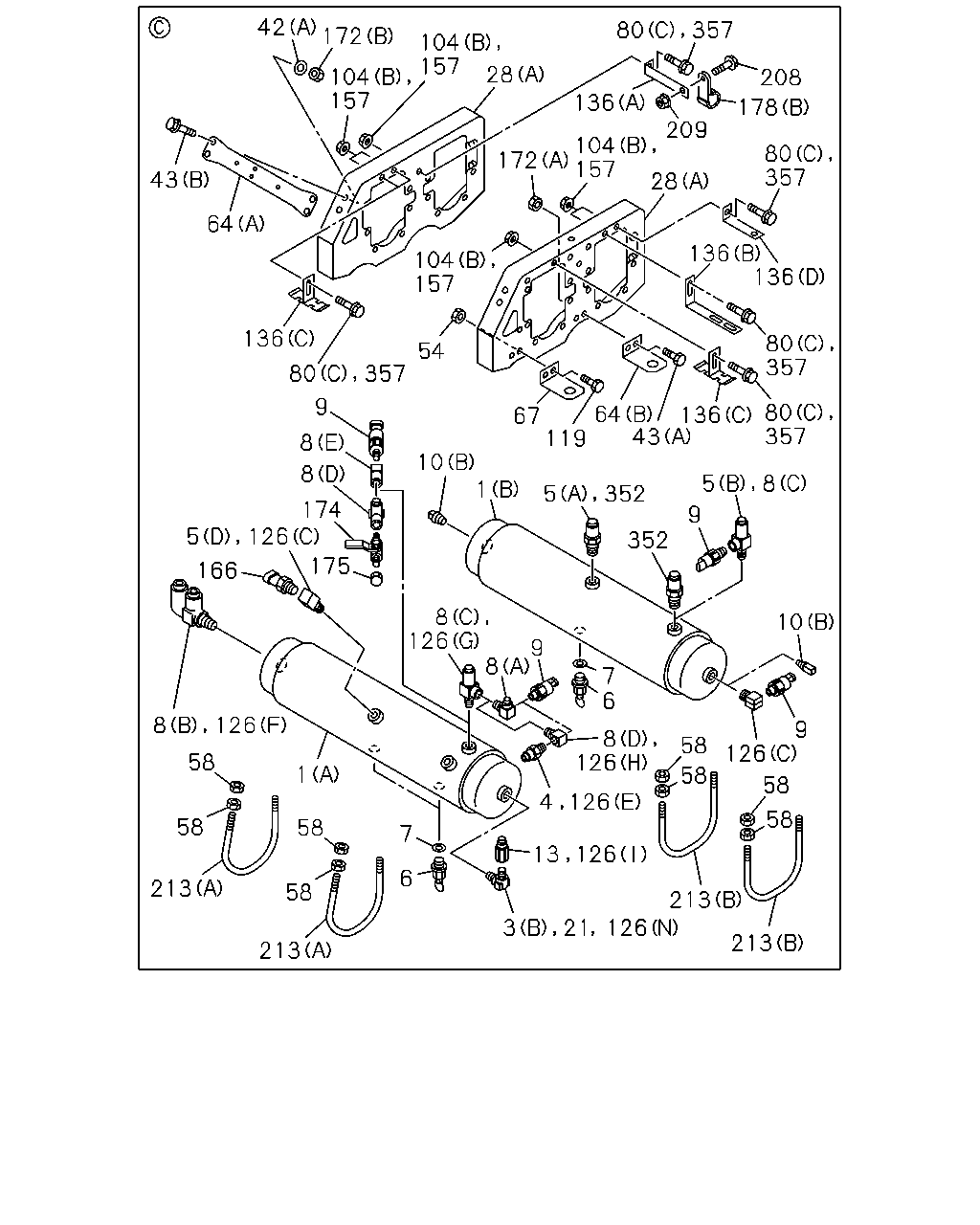

1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	1-48370-181-1	02	1	0809-1011

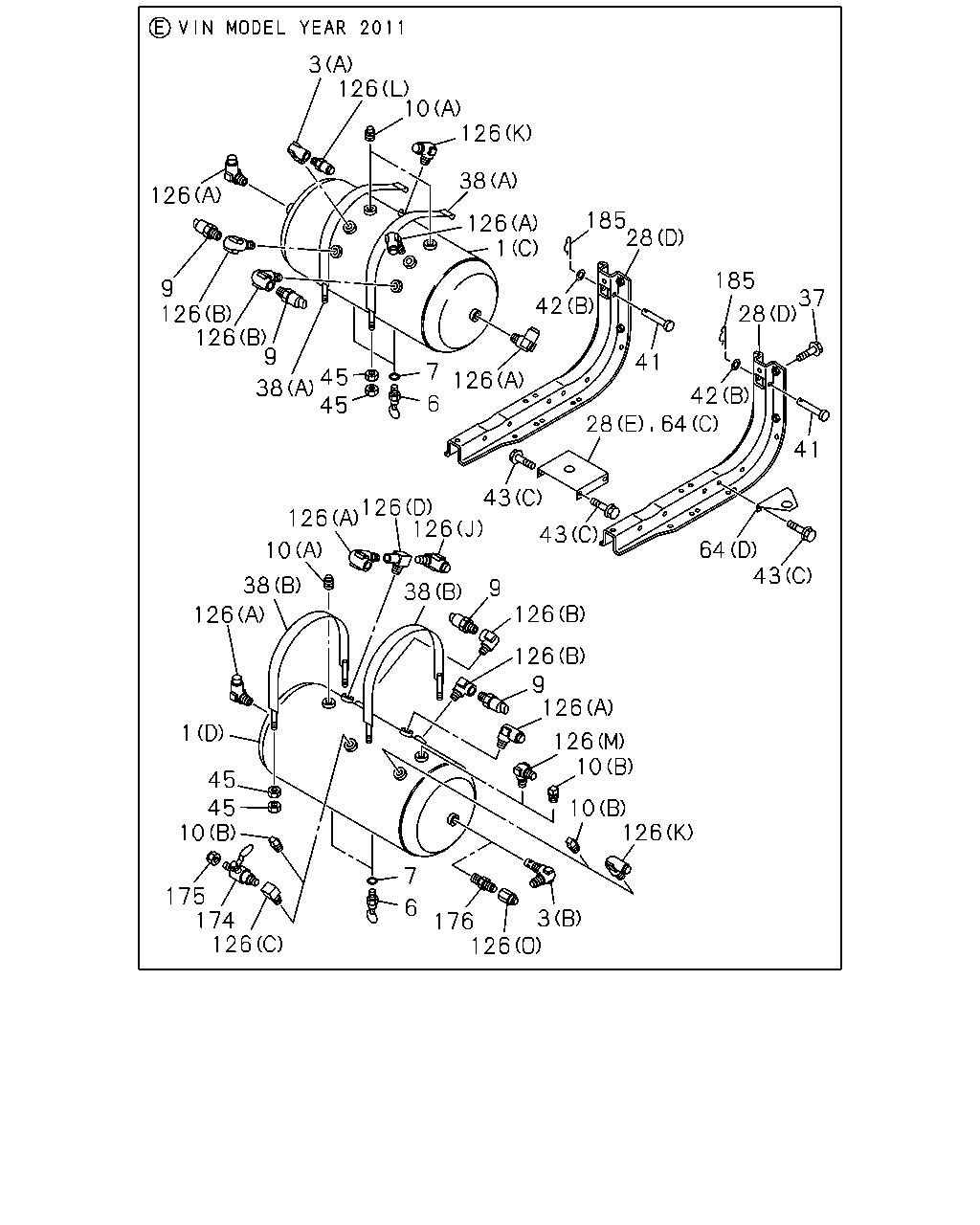

1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1012-1110
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48370-181-1	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1111-

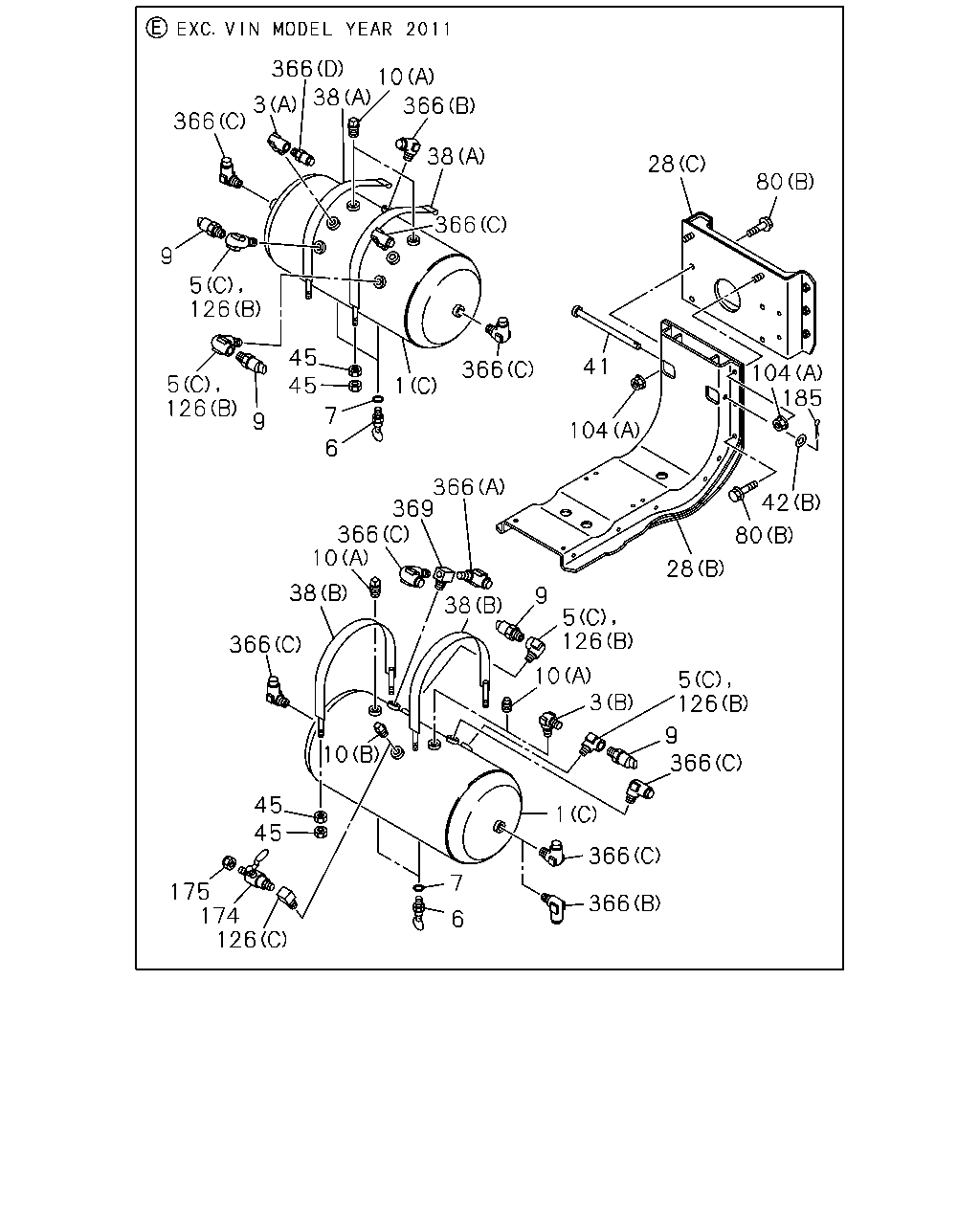

1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	02	1	1012-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1012-1110
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98184-783-0	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1008
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1009-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1009-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48320-031-1	01	1	0901-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A)	1-48320-031-1	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48320-031-1	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-1110
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1110
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 2WAY	1-09660-693-0	04	1	1012-
6	COCK; DRAIN,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48312-015-0	04	1	0809-1011
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1110
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-
7	GASKET; DRAIN COCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=14	1-09630-145-0	04	1	0809-1011
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1110
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1111-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1111-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) STAMP 5.5	8-97609-249-0	02	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) STAMP 5.5	8-97609-249-0	04	1	0809-1110
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1111-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1111-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1111-
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	0809-1011
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT3/4	9-09204-526-0	03	1	0809-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0809-1011
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	04	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-53318-338-6	02	1	0809-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98048-199-0	01	1	0809-1011
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-199-0	01	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98048-200-2	01	1	0809-1011
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98048-200-2	01	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (E)	1-48317-607-0	01	1	1012-1012
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1110
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-601-5	02	1	1111-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48317-108-2	02	1	0809-1110
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48317-108-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A)	1-48317-108-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48317-108-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48317-109-2	02	1	0809-1110
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48317-109-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B)	1-48317-109-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-48317-109-2	02	1	1111-
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09744-068-0	01	1	0809-1011
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1110
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> OD=10 L=60	0-82254-060-0	02	1	1111-
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1111-
42	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	0809-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=10.5	9-09164-510-0	01	1	0809-1011
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	01	1	1102-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1012-1110
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1111-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1111-
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8	0-91110-508-0	12	1	0809-1110
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> M8	0-91110-508-0	12	1	1111-
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> M8	0-91110-508-0	12	1	1111-
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8	0-91110-508-0	12	1	1111-
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	0809-
80	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12X35 FLANGE	0-28651-235-0	04	1	0809-1011
80	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) M12X35 FLANGE	0-28651-235-0	04	1	1012-
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M8X20 FLANGE	0-28650-820-0	06	1	1009-1110
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) M8X20 FLANGE	0-28650-820-0	06	1	1111-
104	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M12 FLANGE	0-91180-212-0	02	1	0809-1011
104	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M12 FLANGE	0-91180-212-0	02	1	1012-
104	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8 FLANGE	0-91180-108-0	06	1	1009-1110
104	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (O) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (N) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (M) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-1110
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-1110
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=32.6	8-98062-280-0	01	1	0809-1011
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1110
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> L=32.6	8-98062-280-0	02	1	1111-
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1111-
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	0809-0812
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0901-1011
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1011
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-1011
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0901-1011
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-
366	CONNECTOR; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	07	1	1012-
369	CONNECTOR; 3WAY BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09656-708-0	01	1	0809-1011
369	CONNECTOR; 3WAY BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-09656-708-0	01	1	1012-1101
369	CONNECTOR; 3WAY BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1102-

3 126 10 126 38 126 185 28 126 1 185 9 126 126 9 37 28 42 41 7 45 45 126 42 38 6 41 43 126 126 126 43 64 43 10 38 9 38 126 126 126 9 126 1 126 10 45 45 10 10 126 7 175 174 126 6 176 3 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-48370-500-0	01	1	0809-
1	TANK ASM; AIR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-48370-501-0	01	1	0809-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	1-48370-181-1	02	1	0809-1011
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1012-1110
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48370-181-1	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	02	1	1012-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1012-1110
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98184-783-0	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1008
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1009-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1009-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48320-031-1	01	1	0901-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A)	1-48320-031-1	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48320-031-1	01	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48312-015-0	04	1	0809-1011
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1110
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-
7	GASKET; DRAIN COCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=14	1-09630-145-0	04	1	0809-1011
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1110
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1111-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1111-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) STAMP 5.5	8-97609-249-0	02	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) STAMP 5.5	8-97609-249-0	04	1	0809-1110
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1111-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1111-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1111-
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	0809-1011
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT3/4	9-09204-526-0	03	1	0809-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0809-1011
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	04	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-53318-338-6	02	1	0809-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98048-199-0	01	1	0809-1011
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-199-0	01	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98048-200-2	01	1	0809-1011
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98048-200-2	01	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (E)	1-48317-607-0	01	1	1012-1012
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1110
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-601-5	02	1	1111-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1111-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1012-
37	BOLT; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	06	1	1012-
37	BOLT; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1012-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48317-108-2	02	1	0809-1110
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48317-108-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A)	1-48317-108-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48317-108-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-48317-109-2	02	1	0809-1110
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48317-109-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B)	1-48317-109-2	02	1	1111-
38	BAND; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-48317-109-2	02	1	1111-
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-09744-068-0	01	1	0809-1011
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1012-
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1012-1110
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> OD=10 L=60	0-82254-060-0	02	1	1111-
41	PIN; BAND FIX BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1111-
42	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	0809-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=10.5	9-09164-510-0	01	1	0809-1011
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	01	1	1102-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1012-1110
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1111-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1111-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1012-1110
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 FLANGE	0-28650-825-0	06	1	1111-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1111-
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8	0-91110-508-0	12	1	0809-1110
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> M8	0-91110-508-0	12	1	1111-
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> M8	0-91110-508-0	12	1	1111-
45	NUT; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8	0-91110-508-0	12	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-48317-349-0	01	1	0809-
64	STAY; AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-53318-293-1	01	1	0809-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1012-1110
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-691-0	01	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (C)	1-48317-607-0	01	1	1012-1012
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1012-1110
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48317-607-0	01	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (O) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (N) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (M) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-1110
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-1110
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-
176	ADAPTER BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1111-
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=32.6	8-98062-280-0	01	1	0809-1011
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1012-1110
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> L=32.6	8-98062-280-0	02	1	1111-
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1111-
185	PIN; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1012-

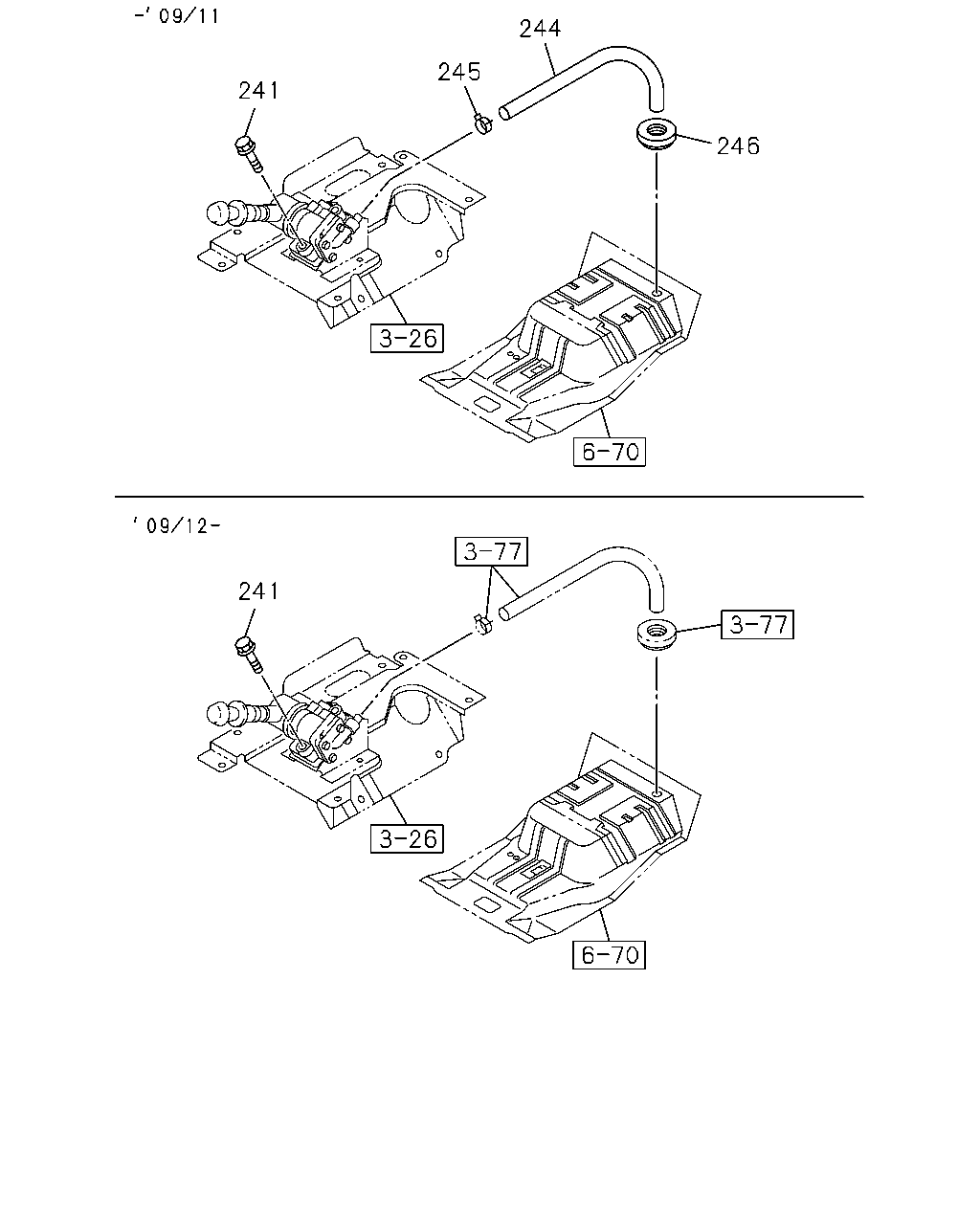

244 245 241 246 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0809-
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0809-0911
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0809-0911
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0809-0911

145 138 237 125 145 138 238 145 239 125 145 140 178 139 153 240 81 151 151 86 152 148 126 37 83 80 271 178 177 223 137 79 223 223 83 82 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1012-
37	BOLT; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	06	1	1012-
37	BOLT; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1012-
79	STAY; AIR MASTER TO BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98120-254-0	02	1	0809-
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	0809-
80	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12X35 FLANGE	0-28651-235-0	04	1	0809-1011
80	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) M12X35 FLANGE	0-28651-235-0	04	1	1012-
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M8X20 FLANGE	0-28650-820-0	06	1	1009-1110
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) M8X20 FLANGE	0-28650-820-0	06	1	1111-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47800-663-1	02	1	0809-
82	NUT; STAY,AIR MASTER BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE	0-91180-210-0	04	1	0809-
83	NUT; AIR MASTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE	0-91180-210-0	10	1	0809-
86	SEAL; DUST BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47529-019-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0809-
125	HOSE; OIL TANK TO AIR MASTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98098-558-0	01	1	0809-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (O) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (N) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (M) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1111-
137	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	0809-
137	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	0809-
138	TANK ASM; OIL,AIR MASTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47530-185-1	01	1	0809-
139	BRACKET; OIL TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47537-081-2	01	1	0809-
140	BOLT; OIL TANK TO BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X25 FLANGE	0-28651-025-0	02	1	0809-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=14	1-09704-102-0	04	1	0809-
148	CONNECTOR; AIR MASTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-
151	BAND; OIL TANK,AIR MASTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47537-056-2	02	1	0809-
152	BOLT; OIL TANK TO BAND BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	02	1	0809-
153	NUT; OIL TANK TO BAND BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	02	1	0809-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1011
177	HOSE; RUBBER,DRAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1110
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1111-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1011
178	CLIP; HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1012-1110
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-1110
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1111-
178	CLIP; HOSE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1111-
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	0809-
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	9-09917-171-0	01	1	0809-
178	CLIP; HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
223	UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0809-
223	UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (G) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (H) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0809-
237	CAP; OIL TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47525-030-0	01	1	0809-
238	PLATE; BAFFLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47529-022-0	01	1	0809-
239	FILTER; DUST BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47529-017-0	01	1	0809-
240	HOLDER; FILTER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47529-018-0	01	1	0809-
271	NUT; BRKT,HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10 FLANGE	0-91180-210-0	02	1	0809-

37 178 177 178 223 223 137 223 223 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0809-1011
37	BOLT; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1012-
37	BOLT; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	06	1	1012-
37	BOLT; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1012-
137	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	0809-
137	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	0809-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0809-1011
177	HOSE; RUBBER,DRAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1012-1107
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1108-1110
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1111-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1011
178	CLIP; HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1012-1110
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-1110
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1111-
178	CLIP; HOSE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1111-
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	0809-
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	9-09917-171-0	01	1	0809-
178	CLIP; HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
223	UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0809-
223	UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> (F) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (C) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (G) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0809-
223	UNION BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (H) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	0809-

42 172 104 157 28 104 157 208 136 178 209 104 157 80 357 172 43 28 64 136 136 104 157 136 80 357 54 9 80 357 67 64 119 43 136 8 10 1 8 5 352 174 126 9 5 352 175 166 8 126 8 10 7 6 9 8 126 9 126 8 126 58 58 1 58 58 58 58 58 7 6 213 58 213 126 213 213 4 13 126 126 3 21 80 357 80 357 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-48370-500-0	01	1	0809-
1	TANK ASM; AIR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-48370-501-0	01	1	0809-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	1-48370-181-1	02	1	0809-1011
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1012-1110
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48370-181-1	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	1-48370-181-1	02	1	1012-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98174-384-0	01	1	1012-1012
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1012-1110
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98184-783-0	01	1	1111-
1	TANK ASM; AIR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-783-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1008
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1009-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1009-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-1111
3	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0809-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-48320-031-1	01	1	0901-1110
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A)	1-48320-031-1	01	1	1111-
3	VALVE; CHECK,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A)	1-48320-031-1	01	1	1111-
4	CONNECTOR; FLARE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0905-1008
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (D) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-1110
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1110
5	UNION; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
5	UNION; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 2WAY	1-09660-693-0	04	1	1012-
6	COCK; DRAIN,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-48312-015-0	03	1	0809-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48312-015-0	04	1	0809-1011
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1012-1110
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1111-
6	COCK; DRAIN,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1012-
7	GASKET; DRAIN COCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=14	1-09630-145-0	03	1	0809-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=14	1-09630-145-0	04	1	0809-1011
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1012-1110
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1111-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1111-
7	GASKET; DRAIN COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1012-
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (D) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1111-
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (E) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1111-
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	1111-
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-1008
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	02	1	0809-1008
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0809-0904
8	CONNECTOR; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D)	1-09660-363-0	01	1	0905-1008
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) STAMP 5.5	8-97609-249-0	02	1	0809-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) STAMP 5.5	8-97609-249-0	04	1	0809-1110
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1111-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1111-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> STAMP 5.5	8-97609-249-0	04	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1111-
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	0809-1011
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) PT3/8	9-09204-517-0	02	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) PT3/4	9-09204-526-0	03	1	0809-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	0809-1011
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1012-1110
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1111-
10	PLUG; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) PT3/4	9-09204-526-0	04	1	1012-
13	ADAPTER; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1111-
13	ADAPTER; NYLON TUBE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0809-1008
21	VALVE; CHECK,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0809-1008
28	BRACKET; AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-53318-338-6	02	1	0809-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	8-98048-199-0	01	1	0809-1011
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-199-0	01	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-98048-200-2	01	1	0809-1011
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98048-200-2	01	1	1012-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (E)	1-48317-607-0	01	1	1012-1012
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1012-1110
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-601-5	02	1	1111-
28	BRACKET; AIR TANK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	1-48317-601-5	02	1	1111-
42	WASHER; PL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	0809-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=10.5	9-09164-510-0	01	1	0809-1011
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) ID=10.5	9-09164-510-0	01	1	1012-1101
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	01	1	1102-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1012-1110
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1111-
42	WASHER; PL BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) ID=10.5	0-91614-510-0	02	1	1111-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	0809-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1012-1110
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 FLANGE	0-28650-825-0	06	1	1111-
43	BOLT; STAY,AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C) M8X25 FLANGE	0-28650-825-0	06	1	1111-
54	NUT; STAY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	02	1	0809-
58	NUT; BAND,AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8	0-91110-508-0	16	1	0809-
64	STAY; AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-48317-349-0	01	1	0809-
64	STAY; AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-53318-293-1	01	1	0809-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1012-1110
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-691-0	01	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	1-48317-691-0	01	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (C)	1-48317-607-0	01	1	1012-1012
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1012-1110
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48317-607-0	01	1	1111-
64	STAY; AIR TANK,MAIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (C)	1-48317-607-0	01	1	1111-
67	STAY; SUB TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-48317-349-0	01	1	0809-
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	0809-
80	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12X35 FLANGE	0-28651-235-0	04	1	0809-1011
80	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) M12X35 FLANGE	0-28651-235-0	04	1	1012-
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M8X20 FLANGE	0-28650-820-0	06	1	1009-1110
80	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) M8X20 FLANGE	0-28650-820-0	06	1	1111-
104	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M12 FLANGE	0-91180-212-0	02	1	0809-1011
104	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M12 FLANGE	0-91180-212-0	02	1	1012-
104	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M8 FLANGE	0-91180-108-0	06	1	1009-1110
104	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	06	1	1111-
119	BOLT; STAY BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	02	1	0809-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (O) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (N) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-1111
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	0809-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (B) PT1/4 2WAY	1-09660-693-0	04	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (G) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TURBO - CONVENTIONAL<Q5T> (H) R1/4 & RC1/4X2 3WAY	8-98166-517-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1009-1110
126	CONNECTOR; ELBOW BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (M) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1111-
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1012-1012
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1012-1110
126	CONNECTOR; ELBOW BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1111-
136	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=90 B=25	1-47475-530-0	01	1	0809-
136	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=112	1-47475-694-1	01	1	0809-
136	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=150 H=30	1-47477-629-2	01	1	0809-
136	BRACKET; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-47479-693-0	03	1	0809-
157	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	06	1	1111-
157	NUT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	06	1	0809-1008
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) STAMP 5.5	8-97609-249-0	01	1	0809-
172	NUT; STAY,AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	0809-
172	NUT; STAY,AIR TANK,MAIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10 FLANGE	0-91180-210-0	04	1	0809-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0809-1110
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-1111
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	1-09680-099-0	01	1	1111-
174	COCK; AIR,INFLATOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0809-1110
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-1111
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) TIRE INFLATOR DEVICE<SG4> EXC. VIN MODEL YEAR 2011<VZB>	9-48319-102-0	01	1	1111-
175	CAP; AIR COCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1111-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	0809-1011
178	CLIP; HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1012-1110
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1012-1110
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1111-
178	CLIP; HOSE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1111-
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	0809-
178	CLIP; HOSE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	9-09917-171-0	01	1	0809-
178	CLIP; HOSE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	02	1	1108-
208	BOLT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	01	1	0809-
209	NUT; CLIP BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	0809-
213	BOLT; U AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=97.5	1-48317-323-1	02	1	0809-
213	BOLT; U AIR TANK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=195	1-48317-367-2	02	1	0809-
352	CONNECTOR; STRAIGHT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1111-
352	CONNECTOR; STRAIGHT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0809-1008
357	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	06	1	1111-
357	BOLT; BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE	0-28650-820-0	06	1	0809-1008

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
