Sayfa 3-05 - Isuzu EPC

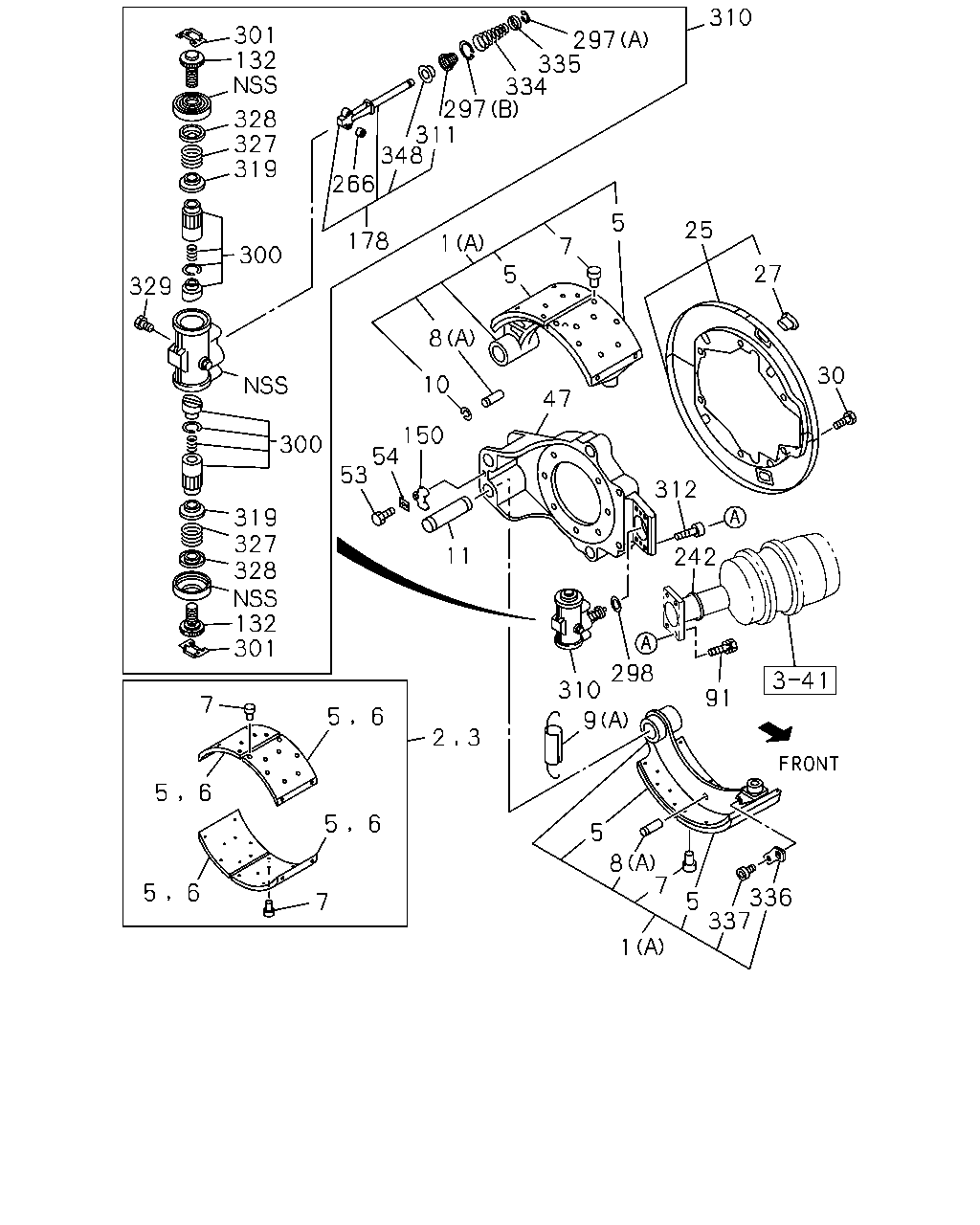

3-05 — REAR WHEEL BRAKE (#36844) — 330 parça

310 301 132 297 335 334 297 311 348 266 328 327 319 5 25 178 1 7 300 27 5 329 8 30 10 47 150 54 53 300 312 19 327 328 132 301 11 242 298 310 91 7 5 6 9 5 6 5 6 5 8 7 5 336 337 6 5 7 1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-520-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-522-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-521-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-523-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-1	02	1	0809-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-396-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-398-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-1	02	1	0809-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-397-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-399-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-814-0	08	1	0809-0905
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-815-0	08	1	0809-0905
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	0809-
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0809-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=18.5	1-09732-034-0	68	1	0809-0905
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=15.5	1-09732-053-0	68	1	0809-0905
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	0809-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-135-0	02	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-136-0	02	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	0809-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-09583-361-0	04	1	0809-0905
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	0906-
10	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	04	1	0809-
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10	0-91805-510-0	02	1	0809-0905
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0906-
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	0809-
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-015-0	04	1	0809-0905
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	0809-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0809-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0809-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-472-0	02	1	0809-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-579-0	02	1	0809-0905
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0809-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0809-
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45 W/LK WASHER	0-50051-045-0	08	1	0809-0906
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-1306
91	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X45	1-47139-174-0	08	1	1307-
132	SCREW; ADJ,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47623-035-2	04	1	0809-
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	0809-
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47133-005-0	02	1	0809-0905
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-
178	WEDGE; RR WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47640-012-0	02	1	0809-
242	SEAL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47159-186-0	04	1	0809-
266	ROLLER; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47643-007-0	04	1	0809-
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	0809-
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	0809-
298	GASKET BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48259-231-0	02	1	0809-
300	SLEEVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-247-1	04	1	0809-
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0809-
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0809-0905
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
310	EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47601-087-0	02	1	0809-
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0809-
312	BOLT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0809-
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0809-
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-120-0	04	1	0809-0905
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-543-0	04	1	0809-0905
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0809-
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0809-
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	0809-
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0809-
336	PLATE; PIVOT BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-152-0	04	1	0809-
337	BOLT; PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-153-0	04	1	0809-
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0809-

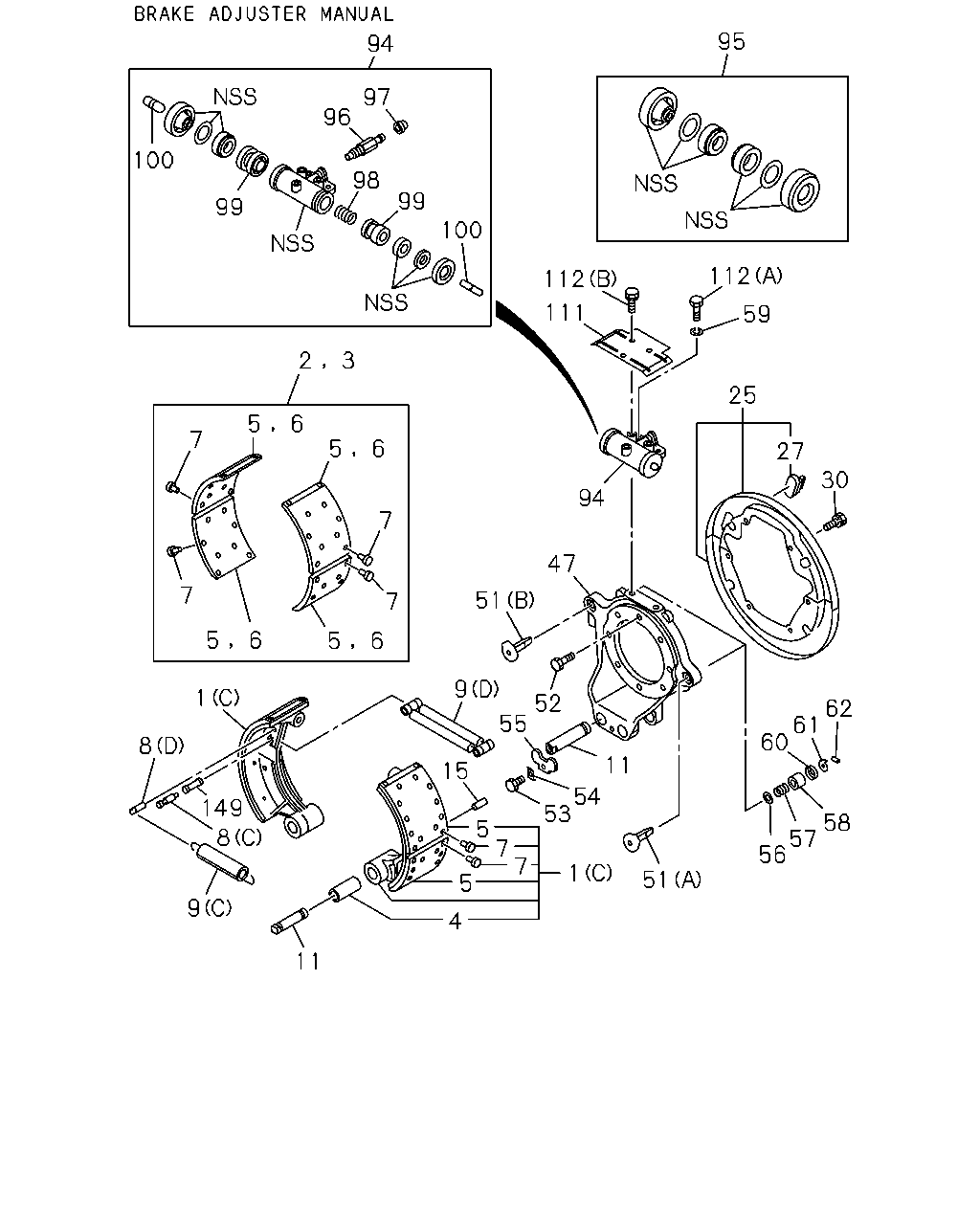

95 94 97 96 100 98 99 99 100 112 112 111 59 2 3 25 5 6 7 5 6 27 30 94 7 47 7 51 7 5 6 5 6 9 1 52 55 62 61 60 8 11 15 54 53 149 58 57 56 5 7 7 8 1 51 5 9 4 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-520-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-522-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-521-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-523-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-1	02	1	0809-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-396-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-398-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-1	02	1	0809-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-397-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-399-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-
4	BUSHING; BRK SHOE,RR WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-012-0	04	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-814-0	08	1	0809-0905
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-815-0	08	1	0809-0905
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-092-0	08	1	0809-
6	LINING; RR BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0809-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=18.5	1-09732-034-0	68	1	0809-0905
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=15.5	1-09732-053-0	68	1	0809-0905
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	0809-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-135-0	02	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-136-0	02	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	0809-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-09583-361-0	04	1	0809-0905
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	0906-
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	0809-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	0809-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0809-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0809-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-472-0	02	1	0809-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-579-0	02	1	0809-0905
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-
52	BOLT; ANCHOR BRKT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	0906-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0809-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0809-
55	PLATE; LK,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-
56	WASHER; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-
57	SPRING; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-
58	BOOT; ADJ CAM,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-
59	WASHER; LK,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	0906-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-
61	INDICATOR; WEAR,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-068-0	02	1	0809-0905
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-987-0	02	1	0809-0905
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	0906-
96	SCREW; BLEEDER,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-
97	CAP; BLEEDER,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	0809-
98	SPRING; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	0906-
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-372-0	04	1	0809-0905
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	0906-
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	0906-
100	ROD; PUSH,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-
111	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	0906-
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M14X35	0-20851-435-0	04	1	0809-
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-
149	PIN; GUIDE RETURN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	0906-

95 19 319 317 245 301 245 327 318 309 99 19 309 97 246 99 318 327 301 245 94 317 319 245 243 2 3 2 3 175 5 7 186 5 7 5 5 7 7 25 112 156 27 5 5 5 5 5 1 8 174 30 9 9 8 7 47 10 5 5 4 53 11 150 7 5 4 1 54

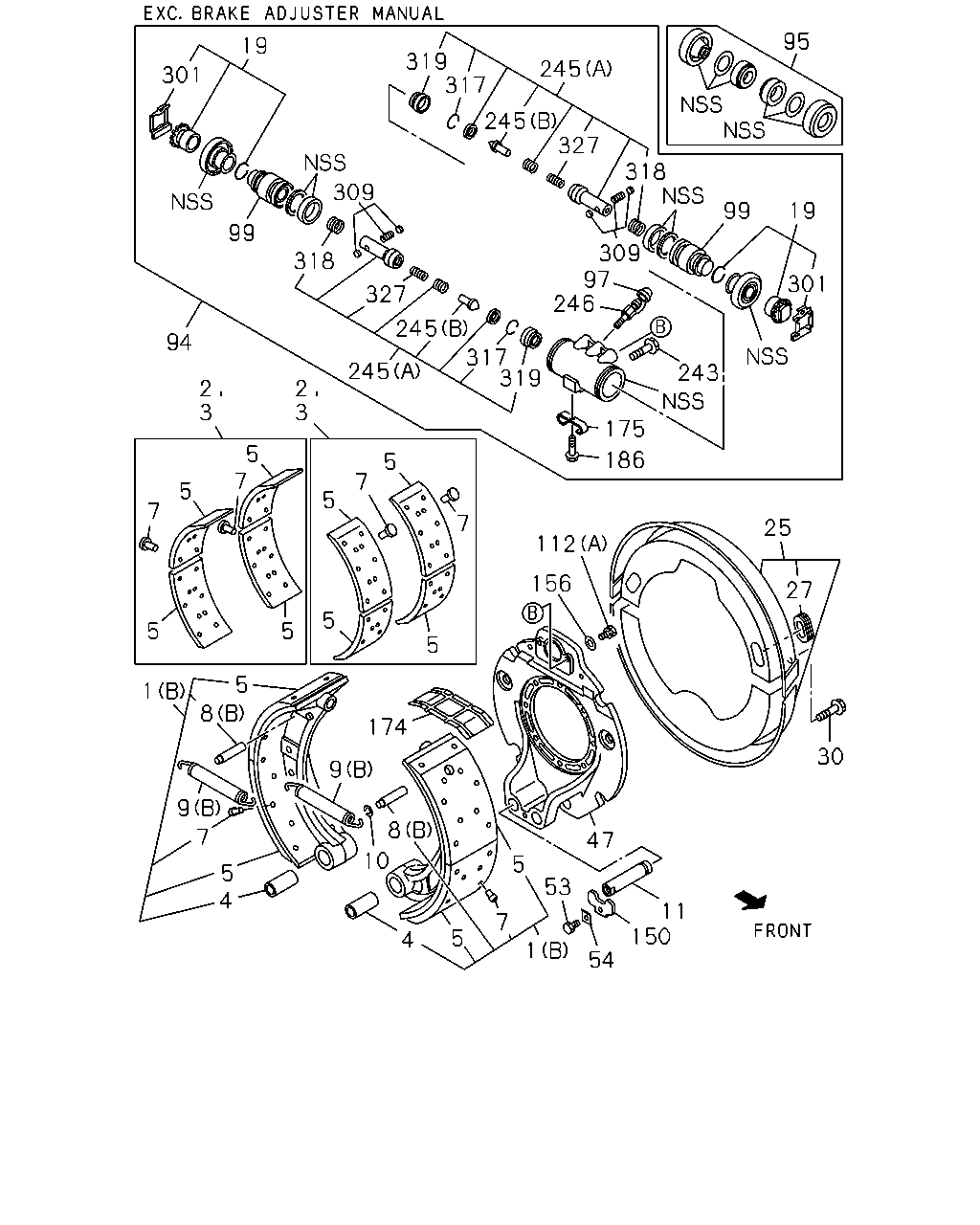

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-504-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) LEADING	1-47170-506-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-505-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) TRAILING	1-47170-507-0	01	1	0809-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-520-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) LEADING	1-47170-522-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-521-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) TRAILING	1-47170-523-0	01	1	0809-0905
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	0906-
1	SHOE; BRK,RR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-773-1	02	1	0809-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-396-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-398-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88310-774-1	02	1	0809-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-397-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-88311-399-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	0906-
4	BUSHING; BRK SHOE,RR WHEEL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-012-0	04	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-091-0	08	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-814-0	08	1	0809-0905
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=15.5	1-09732-053-0	AR	1	0809-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=18.5	1-09732-034-0	68	1	0809-0905
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=15.5	1-09732-053-0	68	1	0809-0905
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	0906-
7	RIVET; LINING,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-175-0	04	1	0809-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-135-0	02	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47119-136-0	02	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-376-0	02	1	0809-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-09583-361-0	04	1	0809-0905
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	0906-
9	SPRING; RETURN,BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	0906-
10	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	04	1	0809-
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=10	0-91805-510-0	02	1	0809-0905
10	RING; SNAP,SPR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	0906-
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=138.5	1-47131-045-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=121.5	1-47131-039-0	04	1	0809-
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-015-0	04	1	0809-0905
19	ADJUSTER; RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-806-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47151-807-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47151-461-1	02	1	0809-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0809-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0809-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47137-472-0	02	1	0809-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47137-579-0	02	1	0809-0905
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	0906-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0809-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0809-
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-068-0	02	1	0809-0905
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-987-0	02	1	0809-0905
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	0906-
97	CAP; BLEEDER,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	0809-
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-372-0	04	1	0809-0905
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	0906-
99	PISTON; RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M14X35	0-20851-435-0	04	1	0809-
112	BOLT; WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-
150	PLATE; LK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47133-010-0	02	1	0809-
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47133-005-0	02	1	0809-0905
150	PLATE; LK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-
156	WASHER; LK,WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=14.2	0-91510-514-0	04	1	0809-0905
156	WASHER; LK,WHEEL CYL SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	0906-
174	COVER; CYL,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-081-0	02	1	0809-0905
174	COVER; CYL,RR WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	0906-
175	HANGER; RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47619-146-0	02	1	0809-0905
175	HANGER; RR WHEEL BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	0906-
186	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0809-0905
186	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-
243	BOLT; WHEEL CYL COVER SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X16 W/LK WASHER	0-50540-816-0	06	1	0809-0905
243	BOLT; WHEEL CYL COVER SETTING BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	0906-
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-47623-027-1	04	1	0809-0905
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	0906-
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47629-121-0	04	1	0809-0905
245	SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	0906-
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47615-002-0	02	1	0809-0905
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0809-
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0809-0905
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
309	SPRING; ADJUSTER SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-544-0	04	1	0809-0905
309	SPRING; ADJUSTER SHAFT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-
317	RING; RETAINER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-119-0	04	1	0809-0905
317	RING; RETAINER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	0906-
318	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-542-0	04	1	0809-0905
318	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	0906-
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0809-
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-120-0	04	1	0809-0905
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-543-0	04	1	0809-0905
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47649-031-0	02	1	0809-
297	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-034-1	02	1	0809-
301	CLIP; ANTI LOTATION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0809-
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0809-0905
301	CLIP; ANTI LOTATION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
311	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0809-
319	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0809-
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47629-120-0	04	1	0809-0905
319	RING; DRIVE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	0906-
327	SPRING; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-543-0	04	1	0809-0905
327	SPRING; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	0906-
328	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0809-
329	SCREW; LOCATING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0809-
334	SPRING; ROD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-041-0	02	1	0809-
335	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0809-
346	REPAIR KIT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-403-0	02	1	0809-
347	REPAIR KIT; BOOT,EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-404-0	02	1	0809-
348	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
