Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#36843) — 317 parça

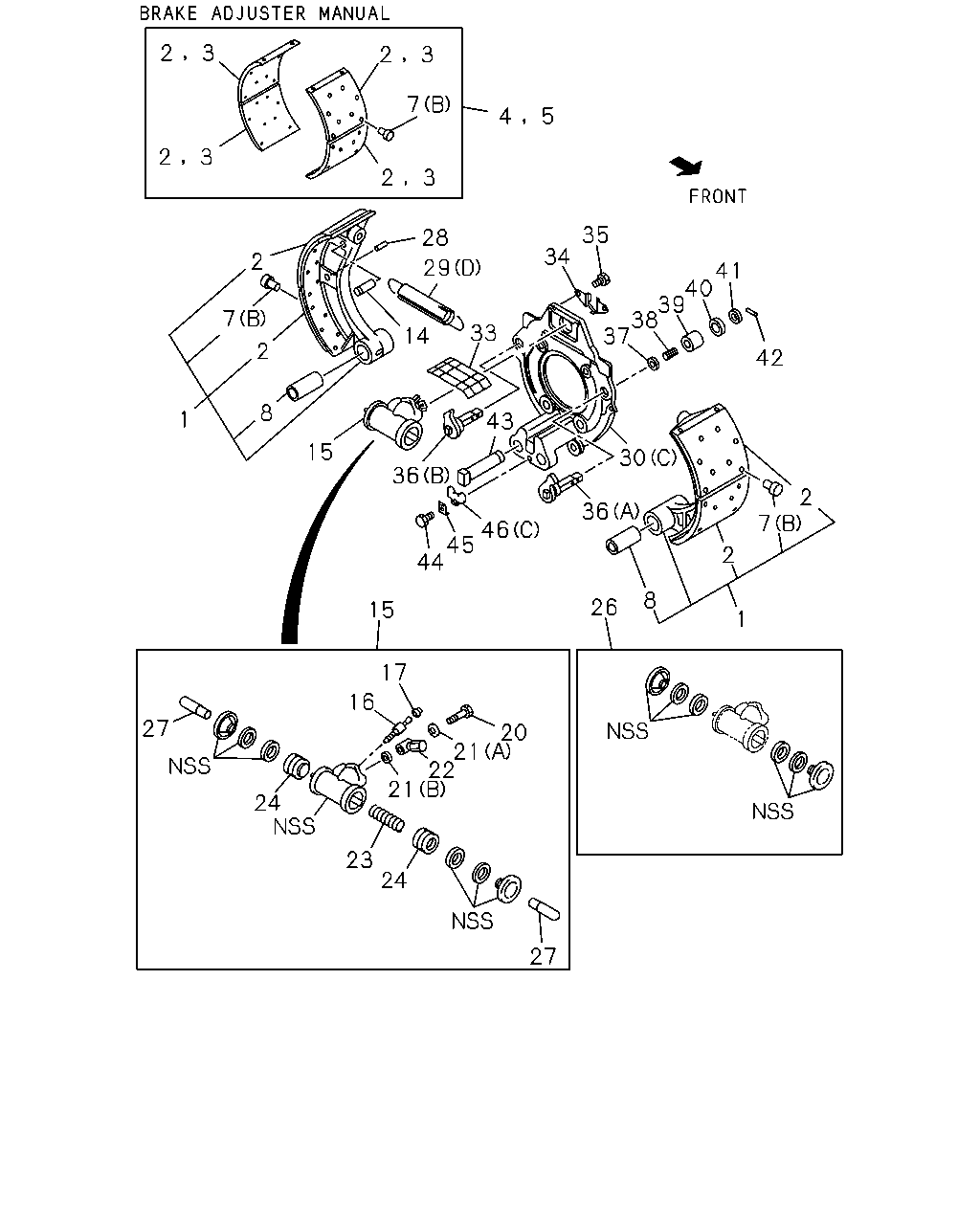

2 3 2 3 7 5 4 2 3 3 2 35 28 34 2 29 41 40 39 38 37 7 33 14 2 42 8 1 43 15 30 36 2 7 36 46 45 44 2 8 26 15 1 17 16 27 20 21 22 21 24 23 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-47170-496-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-47170-497-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-47170-498-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-47170-499-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING	1-47170-316-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING	1-47170-317-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING	1-47170-318-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING	1-47170-319-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	0906-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-812-0	08	1	0809-0905
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	0906-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-698-0	08	1	0809-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	0906-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-813-0	08	1	0809-0905
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	0906-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-699-0	08	1	0809-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	0809-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-88311-390-0	01	1	0809-0905
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-88311-394-0	01	1	0809-0905
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88311-314-0	02	1	0809-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-88311-391-0	01	1	0809-0905
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-88311-395-0	01	1	0809-0905
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88311-315-0	02	1	0809-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=18.5	1-09732-034-0	40	1	0809-0905
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=15.5	1-09732-053-0	40	1	0809-0905
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	0906-
7	RIVET; LINING,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5	1-09732-053-0	80	1	0809-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	0906-
8	BUSHING; BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47112-020-0	04	1	0809-
8	BUSHING; BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-011-0	04	1	0809-
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47119-134-0	04	1	0809-0905
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-
14	PIN; SHOE RETURN SPR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-177-1	04	1	0809-
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-041-1	01	1	0809-0905
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-042-1	01	1	0809-0905
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	0906-
16	SCREW; BLEEDER,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	0906-
17	CAP; BLEEDER,FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	0809-
20	BOLT; JOINT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	0809-
21	GASKET; UNION BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=15.2	1-09630-019-0	02	1	0809-
21	GASKET; UNION BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.2	1-09630-020-0	02	1	0809-
22	JOINT; PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47631-057-1	02	1	0809-
23	SPRING; COIL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
23	SPRING; COIL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-370-0	04	1	0809-0905
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	0906-
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	0906-
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-931-0	02	1	0809-0905
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	0906-
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	0906-
27	ROD; PUSH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-
28	PIN; SHOE ADJ CAM GUIDE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-09583-359-0	04	1	0809-0905
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-365-1	04	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-041-0	02	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47137-519-0	02	1	0809-0905
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	0906-
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47137-512-0	02	1	0809-1005
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98091-252-0	02	1	1006-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	0906-
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-197-0	02	1	0809-0905
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	0906-
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	0906-
34	PLATE; DIRECTION,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-094-0	02	1	0809-
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	0809-0905
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50051-235-0	04	1	0906-0906
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50551-235-0	04	1	0906-0906
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-
36	CAM ASM; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-
36	CAM ASM; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-
37	WASHER; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-
38	SPRING; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-
39	BOOT; ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-
40	COVER; BOOT,ADJ CAM BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-
41	INDICATOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-
42	PIN; SPINDLE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-
43	PIN; ANCHOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5	1-47131-044-0	04	1	0809-
43	PIN; ANCHOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=106.5	1-47131-038-0	04	1	0809-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0809-0910
44	BOLT; LOCK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	0911-
44	BOLT; LOCK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16	1-47139-173-0	02	1	0911-
45	WASHER; LK	1-47133-011-0	02	1	0809-
46	PLATE; LOCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-152-0	04	1	0809-
46	PLATE; LOCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47133-010-0	02	1	0809-
46	PLATE; LOCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-47133-005-0	02	1	0809-

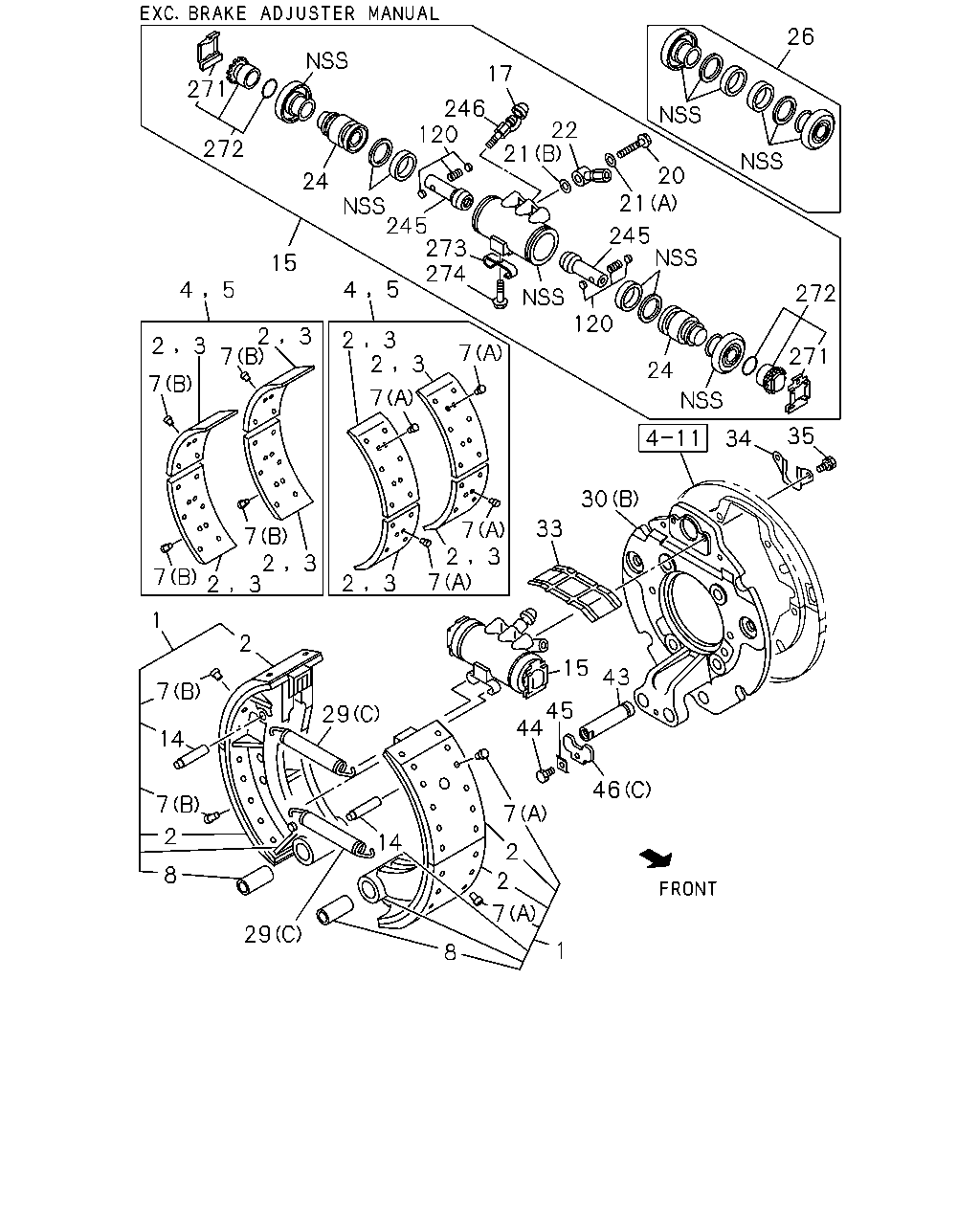

26 17 271 246 120 22 21 272 20 21 24 245 273 274 245 15 5 4 5 4 272 120 2 7 3 2 3 2 2 3 7 271 3 24 7 7 35 34 7 23 7 30 33 7 2 3 3 7 2 2 3 1 2 15 43 7 45 44 29 14 46 7 7 2 14 2 8 2 7 29 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-47170-496-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-47170-497-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-47170-498-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-47170-499-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING	1-47170-316-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING	1-47170-317-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING	1-47170-318-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING	1-47170-319-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	0906-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-812-0	08	1	0809-0905
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	0906-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-698-0	08	1	0809-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	0906-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-813-0	08	1	0809-0905
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	0906-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-699-0	08	1	0809-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	0809-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-88311-390-0	01	1	0809-0905
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-88311-394-0	01	1	0809-0905
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88311-314-0	02	1	0809-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-88311-391-0	01	1	0809-0905
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-88311-395-0	01	1	0809-0905
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88311-315-0	02	1	0809-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=18.5	1-09732-034-0	40	1	0809-0905
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=15.5	1-09732-053-0	40	1	0809-0905
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	0906-
7	RIVET; LINING,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5	1-09732-053-0	80	1	0809-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	0906-
8	BUSHING; BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47112-020-0	04	1	0809-
8	BUSHING; BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-011-0	04	1	0809-
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47119-134-0	04	1	0809-0905
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-
14	PIN; SHOE RETURN SPR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-177-1	04	1	0809-
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-041-1	01	1	0809-0905
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47601-042-1	01	1	0809-0905
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	0906-
15	CYLINDER; WHEEL,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	0906-
17	CAP; BLEEDER,FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) OD=12	1-47619-011-0	02	1	0809-
20	BOLT; JOINT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	0809-
21	GASKET; UNION BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=15.2	1-09630-019-0	02	1	0809-
21	GASKET; UNION BOLT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=12.2	1-09630-020-0	02	1	0809-
22	JOINT; PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47631-057-1	02	1	0809-
23	SPRING; COIL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
23	SPRING; COIL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47624-370-0	04	1	0809-0905
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	0906-
24	PISTON; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	0906-
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-87830-931-0	02	1	0809-0905
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	0906-
26	CUP SET; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-09583-359-0	04	1	0809-0905
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-365-1	04	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-041-0	02	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47137-519-0	02	1	0809-0905
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	0906-
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47137-512-0	02	1	0809-1005
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98091-252-0	02	1	1006-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	0906-
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-197-0	02	1	0809-0905
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	0906-
33	COVER; WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	0906-
34	PLATE; DIRECTION,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47159-094-0	02	1	0809-
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	0809-0905
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50051-235-0	04	1	0906-0906
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X35 W/LK WASHER	0-50551-235-0	04	1	0906-0906
35	BOLT; FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-
43	PIN; ANCHOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5	1-47131-044-0	04	1	0809-
43	PIN; ANCHOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=106.5	1-47131-038-0	04	1	0809-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0809-0910
44	BOLT; LOCK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	0911-
44	BOLT; LOCK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16	1-47139-173-0	02	1	0911-
45	WASHER; LK	1-47133-011-0	02	1	0809-
46	PLATE; LOCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-152-0	04	1	0809-
46	PLATE; LOCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47133-010-0	02	1	0809-
46	PLATE; LOCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-47133-005-0	02	1	0809-
120	SPRING; LK,ADJ,FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-09580-544-0	04	1	0809-0905
120	SPRING; LK,ADJ,FRT WHEEL CYL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-
245	SHAFT; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47623-027-1	04	1	0809-0905
245	SHAFT; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	0906-
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47615-002-0	02	1	0809-0905
246	BLEEDER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-
271	CLIP; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0809-0905
271	CLIP; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
271	CLIP; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0809-
272	ADJUSTER; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-015-0	04	1	0809-0905
272	ADJUSTER; MANUAL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-
273	HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47619-145-0	02	1	0809-0905
273	HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	0906-
274	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0809-0905
274	BOLT; HANGER BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-

304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SPRING; COIL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
23	SPRING; COIL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-09583-359-0	04	1	0809-0905
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-365-1	04	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-041-0	02	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-
121	SCREW; LK SPR FRT WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0809-
264	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-034-1	02	1	0809-
271	CLIP; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0809-0905
271	CLIP; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
271	CLIP; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0809-
275	RING; RETAINER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-031-0	02	1	0809-
278	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0809-
279	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0809-
282	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0809-
294	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0809-
304	REPAIR KIT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-403-0	02	1	0809-
305	REPAIR KIT; BOOT,EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-85576-404-0	02	1	0809-
306	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0809-

278 294 306 23 282 280 275 29 264 276 121 271 25 279 281 282 277 291 25 271 281 5 4 23 279 2 3 7 7 292 3 2 292 30 2 3 30 2 3 287 2 43 14 1 46 7 29 78 2 8 46 45 44 14 2 2 7 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-47170-496-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-496-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-47170-497-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-497-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-47170-498-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-498-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-47170-499-0	01	1	0809-0905
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-499-0	01	1	0906-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING	1-47170-316-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING	1-47170-317-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) LEADING	1-47170-318-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) TRAILING	1-47170-319-0	01	1	0809-
1	SHOE; BRK,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47170-441-0	04	1	0906-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-812-0	08	1	0809-0905
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	0906-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-698-0	08	1	0809-
2	LINING; FRT BRK SHOE,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	0906-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47126-813-0	08	1	0809-0905
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	0906-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47126-699-0	08	1	0809-
3	LINING; FRT BRK SHOE,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06) BEST VALUE PARTS	1-87610-128-0	01	1	0809-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-353-1	02	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-88311-390-0	01	1	0809-0905
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-390-0	01	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-88311-394-0	01	1	0809-0905
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-394-0	01	1	0906-
4	LINING SET; FRT BRK,STANDARD BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88311-314-0	02	1	0809-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-88311-354-1	02	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) LEADING	1-88311-391-0	01	1	0809-0905
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-88311-391-0	01	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) TRAILING	1-88311-395-0	01	1	0809-0905
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-88311-395-0	01	1	0906-
5	LINING SET; FRT BRK,OVER SIZE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-88311-315-0	02	1	0809-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) L=18.5	1-09732-034-0	40	1	0809-0905
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	0906-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) L=15.5	1-09732-053-0	40	1	0809-0905
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	0906-
7	RIVET; LINING,FRT BRK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) L=15.5	1-09732-053-0	80	1	0809-
7	RIVET; LINING,FRT BRK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	0906-
8	BUSHING; BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47112-020-0	04	1	0809-
8	BUSHING; BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47112-011-0	04	1	0809-
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47119-134-0	04	1	0809-0905
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-
14	PIN; SHOE RETURN SPR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-177-1	04	1	0809-
14	PIN; SHOE RETURN SPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-
23	SPRING; COIL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-196-0	04	1	0809-
23	SPRING; COIL BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	0906-
25	SCREW; ADJ,FRT WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47623-035-2	04	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-09583-359-0	04	1	0809-0905
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	0906-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-09583-365-1	04	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47649-041-0	02	1	0809-
29	SPRING; RETURN,FRT BRK SHOE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	0906-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B)	1-47137-519-0	02	1	0809-0905
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	0906-
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47137-512-0	02	1	0809-1005
30	BRACKET; ANCHOR,FRT BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D)	8-98091-252-0	02	1	1006-
30	BRACKET; ANCHOR,FRT BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	0906-
43	PIN; ANCHOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=115.5	1-47131-044-0	04	1	0809-
43	PIN; ANCHOR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=106.5	1-47131-038-0	04	1	0809-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0809-0910
44	BOLT; LOCK,ANCHOR PIN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X16	0-20851-016-0	02	1	0911-
44	BOLT; LOCK,ANCHOR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X16	1-47139-173-0	02	1	0911-
45	WASHER; LK	1-47133-011-0	02	1	0809-
46	PLATE; LOCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A)	1-47119-152-0	04	1	0809-
46	PLATE; LOCK BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B)	1-47133-010-0	02	1	0809-
46	PLATE; LOCK BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	1-47133-005-0	02	1	0809-
78	BOLT; LK,PLATE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47119-153-0	04	1	0809-
121	SCREW; LK SPR FRT WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47619-149-1	04	1	0809-
264	RING; SNAP,SPR PIN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-034-1	02	1	0809-
271	CLIP; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	1-47621-016-0	04	1	0809-0905
271	CLIP; ADJ BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
271	CLIP; ADJ BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47621-017-0	04	1	0809-
275	RING; RETAINER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-031-0	02	1	0809-
276	BOLT; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X42.5	1-47139-163-0	08	1	0809-
277	RING; CHAMBER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-48259-231-0	02	1	0809-
278	RETAINER; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-020-0	02	1	0809-
279	CAGE; SPRING BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-192-0	04	1	0809-
280	WEDGE; FRT WHEEL CYL BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47640-012-0	02	1	0809-
281	SLEEVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-247-1	04	1	0809-
282	RING; DRIVE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47629-200-0	04	1	0809-
287	RING; SNAP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=10	0-91805-510-0	08	1	0809-
291	EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47601-087-0	02	1	0809-
292	BOLT; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0809-
294	BOOT; WEDGE BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-042-0	02	1	0809-
306	CAP; EXPANDER BRK SYSTEM FULL AIR DUAL CIRC(Z06)	1-47649-044-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
