◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#3684) — 11 parça

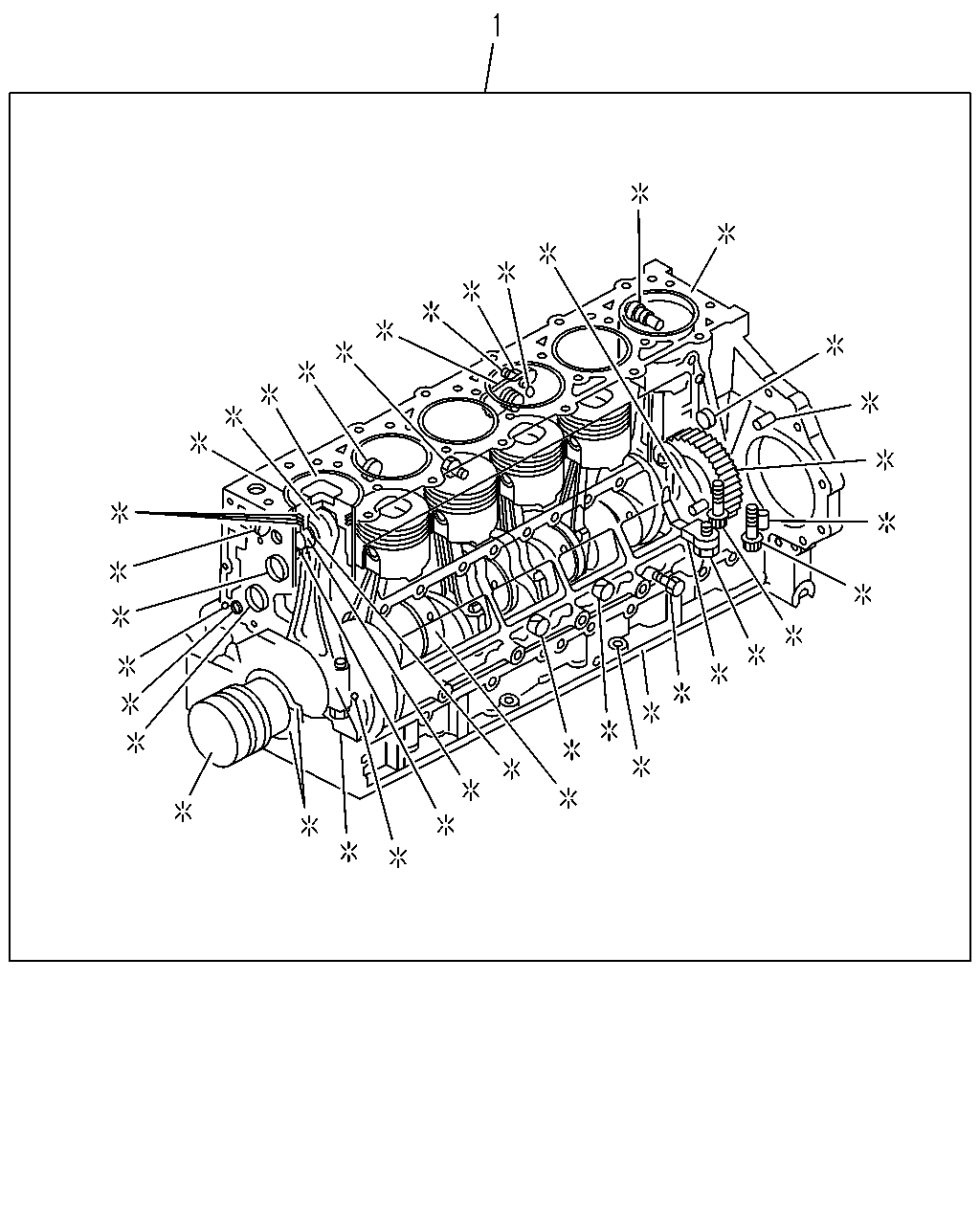

çizim 6269
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ENGINE ASM; PARTIAL 1-87310-606-0 01 1 0204-0504 ●
1 ENGINE ASM; PARTIAL 1-87310-611-2 01 1 0505-1012 ●
1 ENGINE ASM; PARTIAL 1-87310-668-1 01 1 1101-1208 ●
1 ENGINE ASM; PARTIAL 1-87310-829-0 01 1 1209- ●
1 ENGINE ASM; PARTIAL 1-87310-498-0 01 1 9703-9802 ● ●
1 ENGINE ASM; PARTIAL 1-87310-498-0 01 1 9803-0105 ●
1 ENGINE ASM; PARTIAL
EURO2 SPECIFICATION<THN> 		1-87310-498-0 01 1 9803-0105 ●
1 ENGINE ASM; PARTIAL
EMISSION PARTS<TCA> 		1-87310-535-0 01 1 9803-0105 ●
1 ENGINE ASM; PARTIAL 1-87310-498-1 01 1 0106-1012 ● ●
1 ENGINE ASM; PARTIAL 1-87310-664-0 01 1 1101-1208 ● ●
1 ENGINE ASM; PARTIAL 1-87310-808-0 01 1 1209- ● ●
