◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11424 - FVR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#36838) — 173 parça

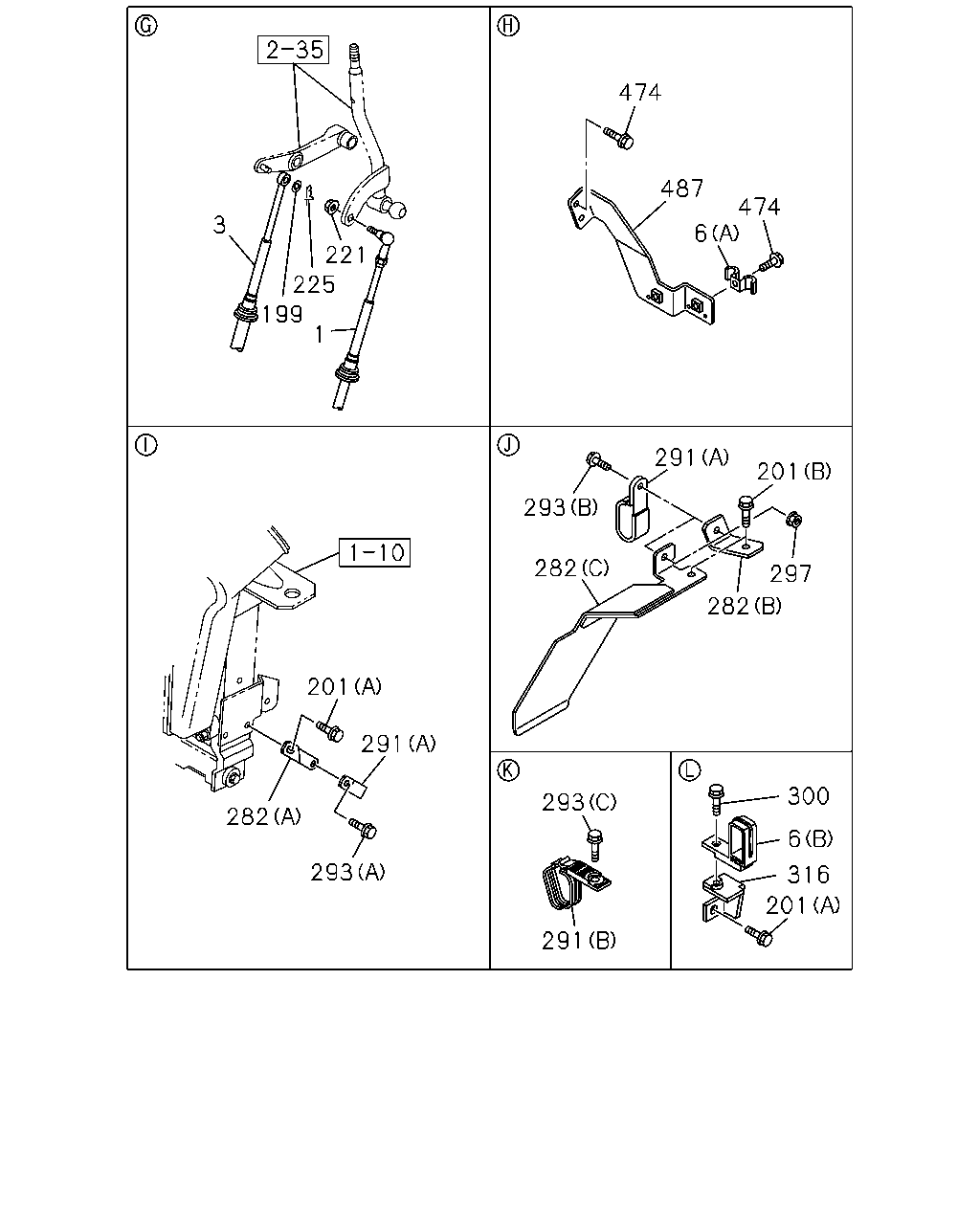

çizim 111324
474 487 474 3 6 221 225 199 1 291 201 293 282 297 282 201 291 300 293 282 6 293 316 201 291
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3420 		8-98047-806-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3595 		8-98047-820-5 01 1 0809-
6 CLIP; CABLE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (C) M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
282 BRACKET; TRANS SIDE
(A) 		8-98010-418-0 01 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0907-
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0907-
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 0809-0906
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 0907-
316 BRACKET; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 0809-
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V) 		8-98086-439-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-0906
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0907-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-0906
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0907-

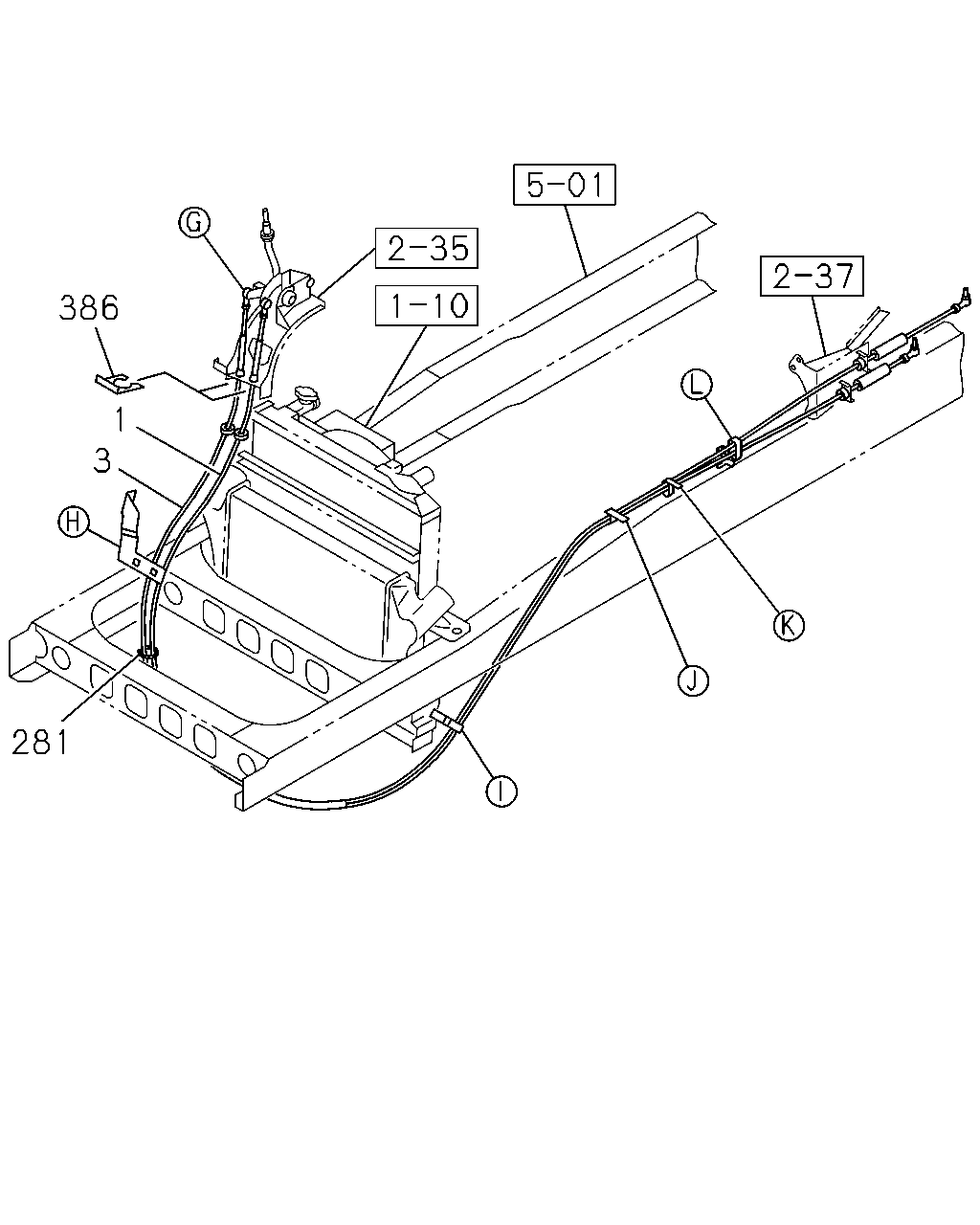

çizim 111690
386 1 3 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3420 		8-98047-806-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3595 		8-98047-820-5 01 1 0809-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-

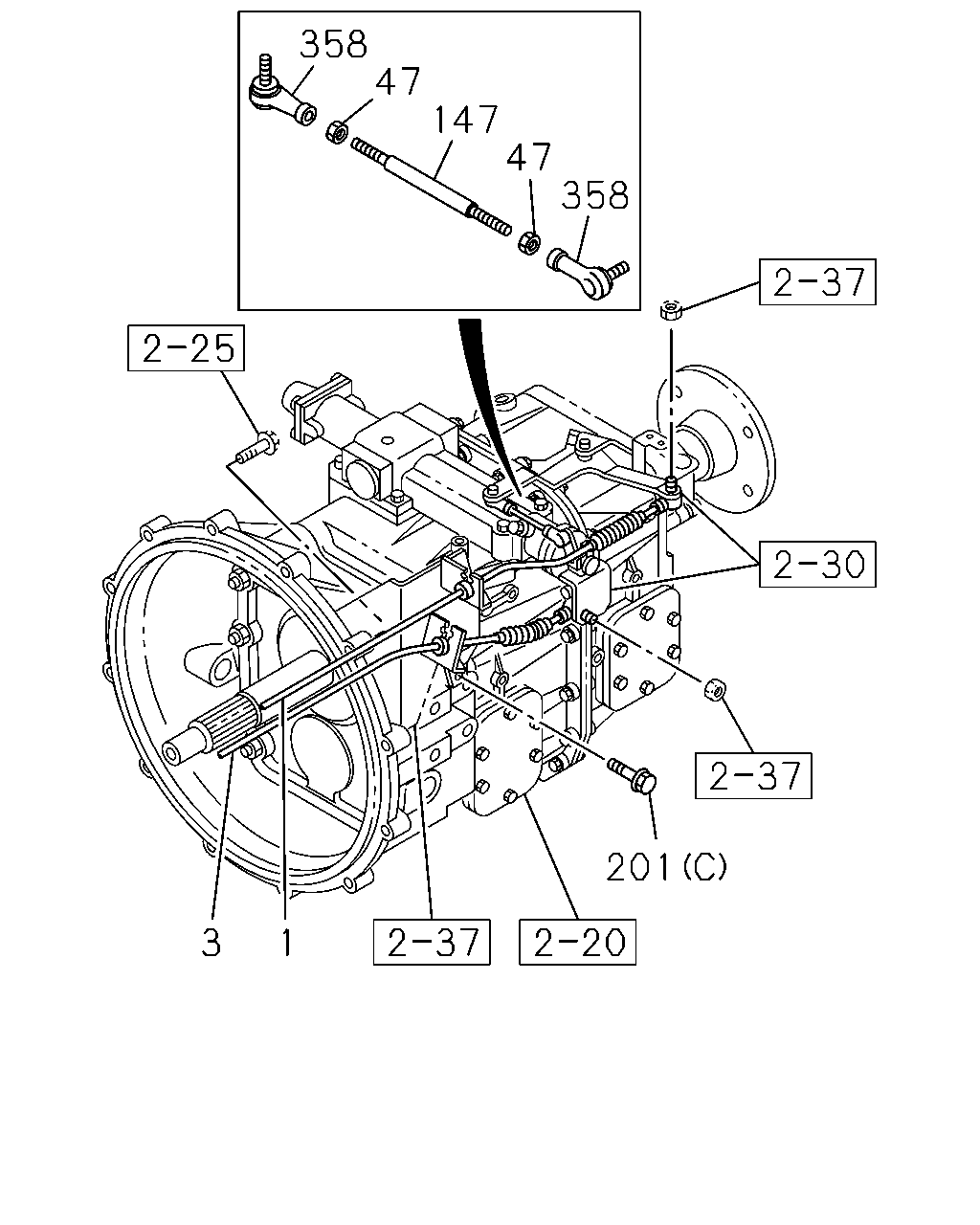

çizim 111698
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3420 		8-98047-806-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3595 		8-98047-820-5 01 1 0809-
47 NUT; LK,LINK ROD
FULLER FSO5206B OD M/T(Y4V) M8 		0-91111-508-0 02 1 0809-
147 ROD; LINK
FULLER FSO5206B OD M/T(Y4V) 		0-84000-808-0 01 1 0809-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (C) M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
358 ROD END; SCREW
FULLER FSO5206B OD M/T(Y4V) L=45.5 		1-09760-118-1 02 1 0809-

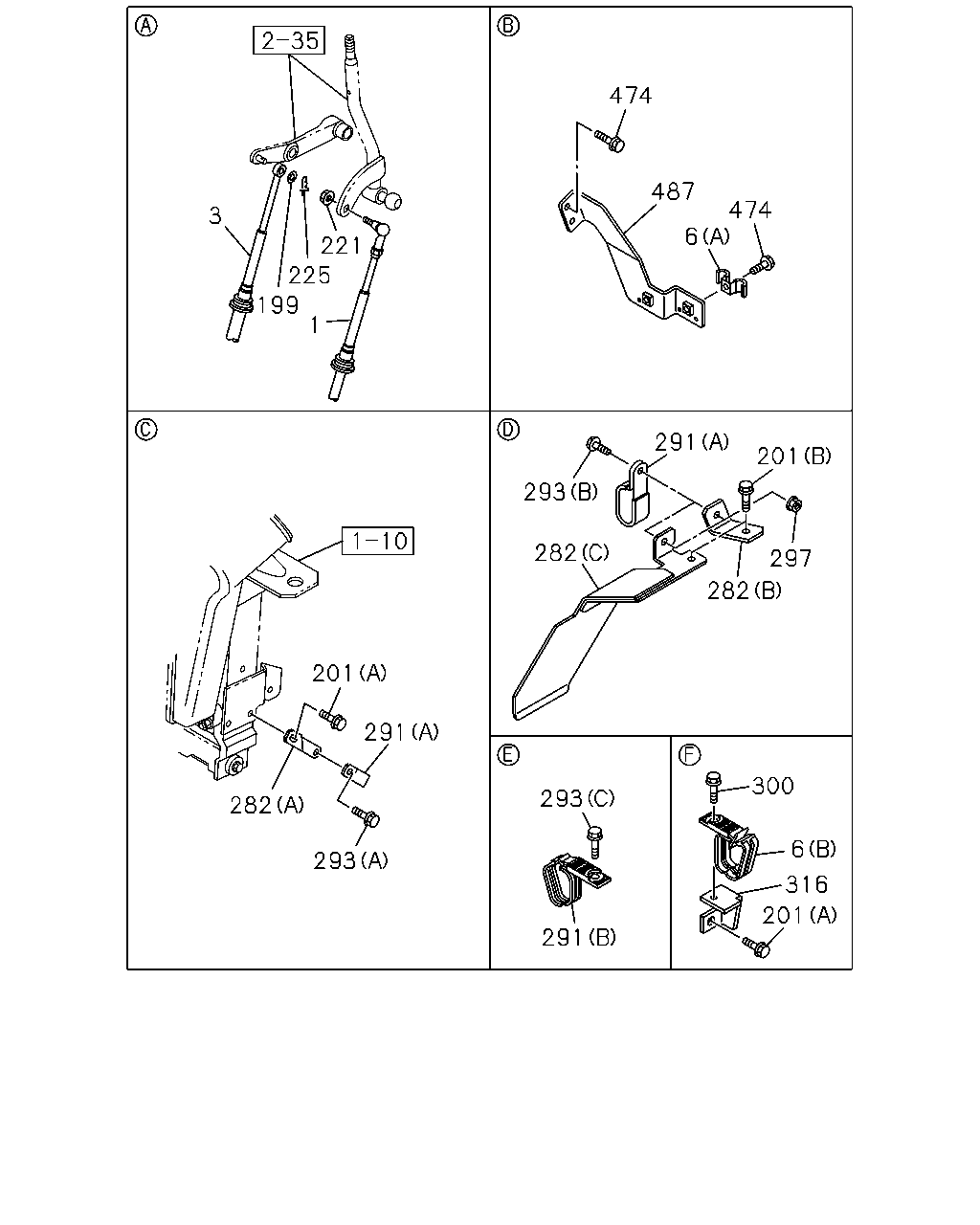

çizim 111702
474 487 474 3 6 221 225 199 1 291 201 293 282 297 282 201 291 300 293 282 6 293 316 201 291
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3420 		8-98047-806-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3595 		8-98047-820-5 01 1 0809-
6 CLIP; CABLE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (C) M12X35 FLANGE 		0-28151-235-0 01 1 0809-
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
282 BRACKET; TRANS SIDE
(A) 		8-98010-418-0 01 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0907-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0907-
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0907-
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 0809-0906
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 0907-
316 BRACKET; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 0809-
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V) 		8-98086-439-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-0906
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0907-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-0906
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0907-

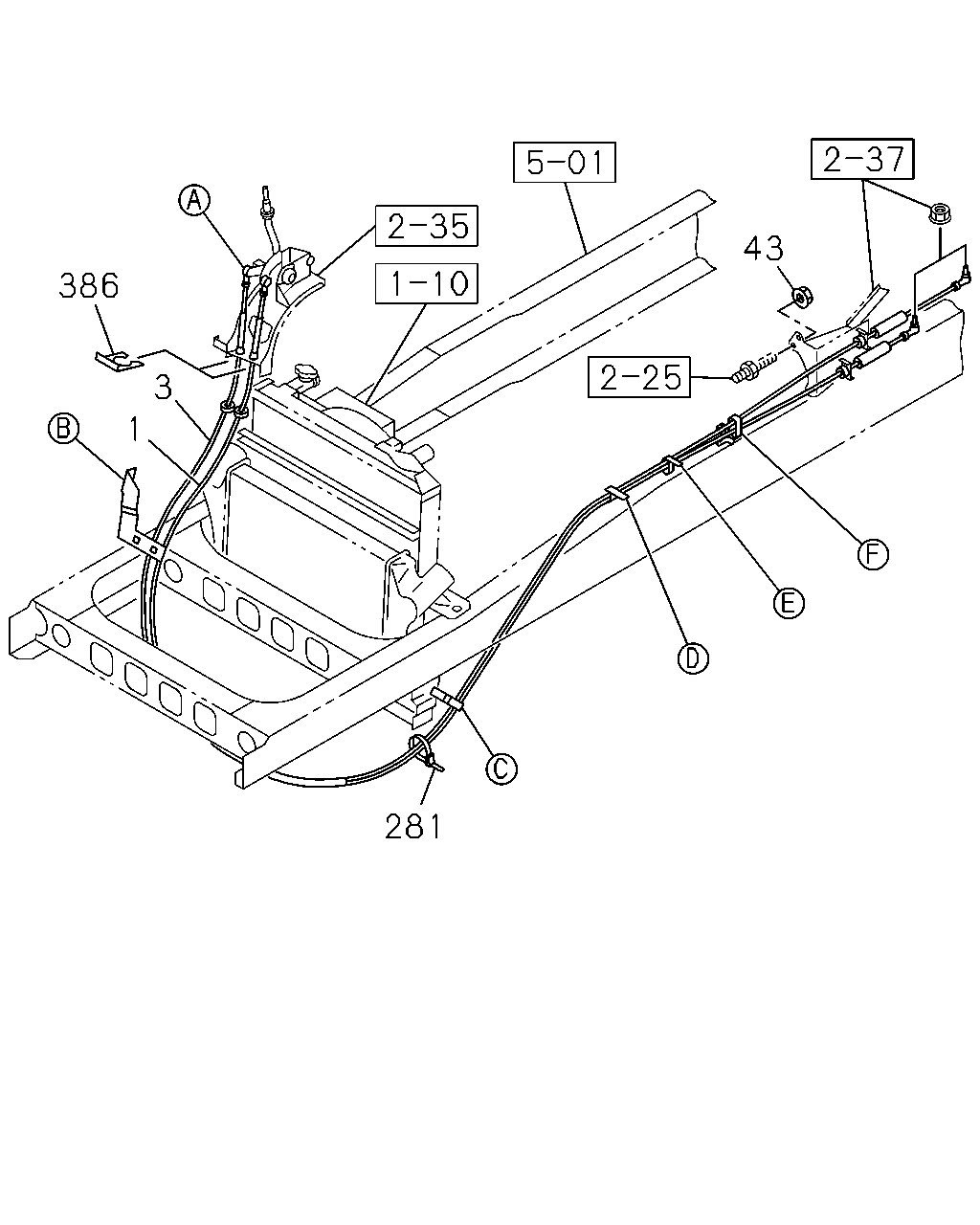

çizim 111711
43 386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3420 		8-98047-806-6 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3595 		8-98047-820-5 01 1 0809-
43 NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) M10 FLANGE 		0-91180-210-0 02 1 0809-0906
43 NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE 		0-91180-210-0 02 1 0907-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
