9-01 — TOOLS (#3683) — 199 parça

177 141 146 106 163 135 56 106 146 146 153 151 152 156 158 166 167 154 189 169 232 178 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	TOOL; SETTING TOP GEAR MAIN L=350	9-85221-310-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (B)	9-85221-247-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (C)	9-85221-249-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85221-057-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (D)	9-85241-409-0	01	1	9002-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9002-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9002-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=19 L=400	9-85114-306-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9002-
146	REPLACER KIT; LEAF SPR (A)	1-85237-003-0	01	1	9002-9307
146	REPLACER KIT; LEAF SPR (A)	1-85237-016-0	01	1	9308-
146	REPLACER KIT; LEAF SPR (B)	1-85237-007-0	01	1	9002-9307
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9308-
146	REPLACER KIT; LEAF SPR (C)	9-85231-556-0	01	1	9002-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	9002-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9002-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9002-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9002-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	9002-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9002-
163	TOOL; SETTING L=150	9-85221-248-0	01	1	9002-
166	ALIGNER; CLU RELEASE LEVER EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) L=550 H=17.5	1-85253-010-0	01	1	9002-
167	ALIGNER; CLU PILOT 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=36.5	1-85253-021-0	01	1	9002-
167	ALIGNER; CLU PILOT EXC. 14INCH TWO PLATE SPICER CLUTCH(M07) L=300 OD=41.1	1-85253-020-0	01	1	9002-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9002-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9002-
177	SETTING TOOL KIT	1-85220-004-0	01	1	9002-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9002-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9002-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9002-

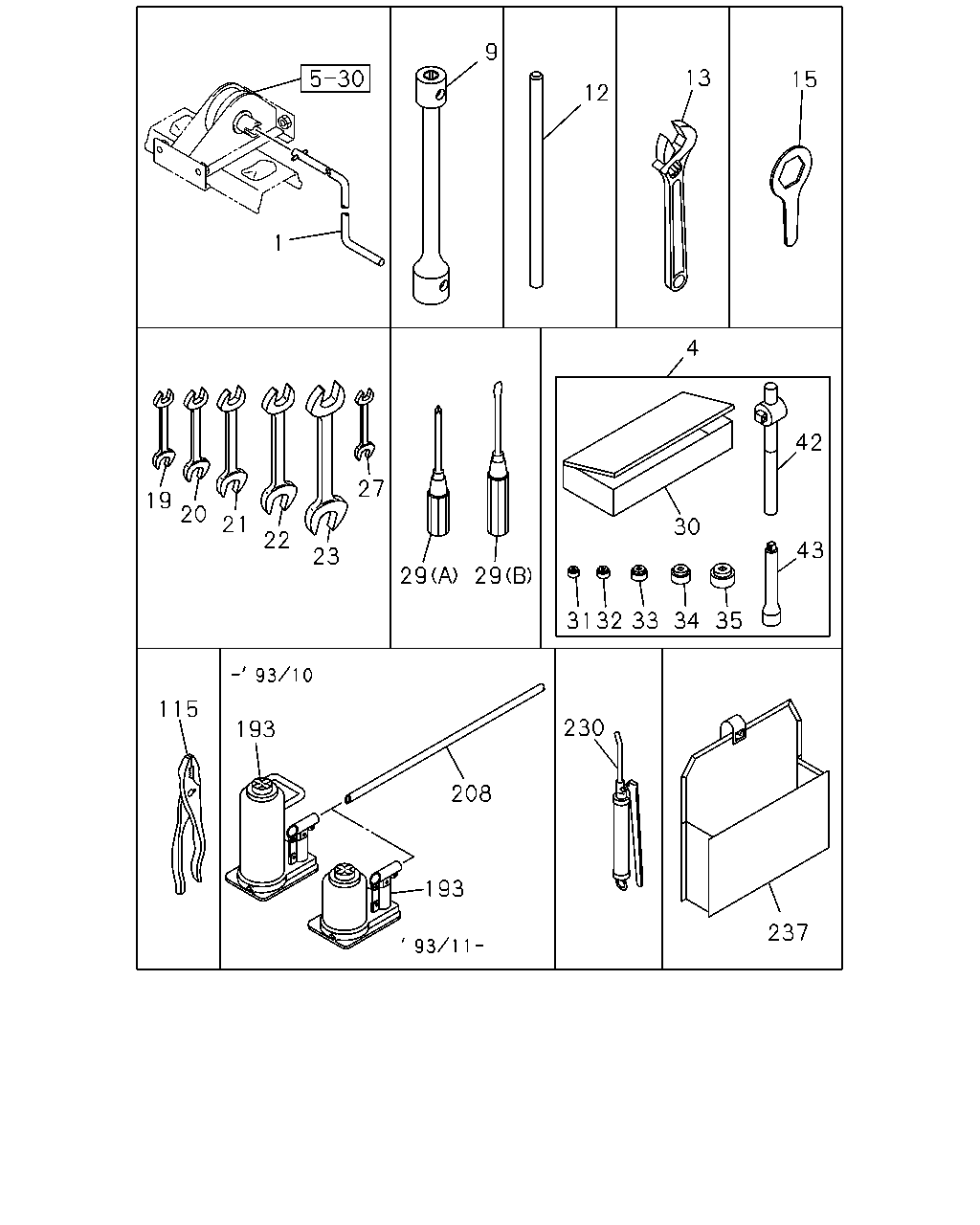

9 13 15 12 1 4 42 27 19 20 21 30 22 43 23 29 29 34 35 115 230 193 208 193 237 31 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	9002-
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9002-
9	WRENCH; WHEEL PIN WHEEL 8STUD 7.50VX20 165-13<Q62> L=445	1-85113-015-1	01	1	9002-
9	WRENCH; WHEEL PIN EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> L=450	1-85111-032-0	01	1	9002-9111
9	WRENCH; WHEEL PIN EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> L=450	1-85111-033-1	01	1	9112-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9002-
13	WRENCH; MONKEY	1-85117-003-1	01	1	9002-9304
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9305-
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	9002-
19	WRENCH; 7X8 7X8	9-09592-107-0	01	1	9002-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9002-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9002-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9002-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9002-
27	WRENCH; OPEN END 5.5X7 5.5X7	9-09592-105-0	01	1	9002-
29	DRIVER; SCREW (A) <+> L=205	9-09595-022-0	01	1	9002-
29	DRIVER; SCREW (A) <+> L=275	9-09595-023-0	01	1	9002-
29	DRIVER; SCREW (B) <-> L=205	9-09595-126-0	01	1	9002-
29	DRIVER; SCREW (B) <-> L=325	9-09595-129-0	01	1	9002-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9002-
31	WRENCH; 12	9-09590-012-0	01	1	9002-
32	WRENCH; 14	9-09590-014-0	01	1	9002-
33	WRENCH; 17	9-09590-017-0	01	1	9002-
34	WRENCH; 19	9-09590-019-0	01	1	9002-
35	WRENCH; 22	9-09590-022-0	01	1	9002-
42	HANDLE; SLIDING	9-09590-512-0	01	1	9002-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9002-
115	PLIER	5-85171-001-0	01	1	9002-
193	JACK ASM 15TON	1-85510-004-2	01	1	9002-9310
193	JACK ASM 15TON	1-85510-019-0	01	1	9311-
208	HANDLE; JACK L=680	1-85515-004-0	01	1	9002-9405
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9406-
230	PUMP; GREASE	1-85556-007-2	01	1	9002-
237	BAG; TOOL	8-94367-102-0	01	1	9002-9509
237	BAG; TOOL	8-97130-902-0	01	1	9510-

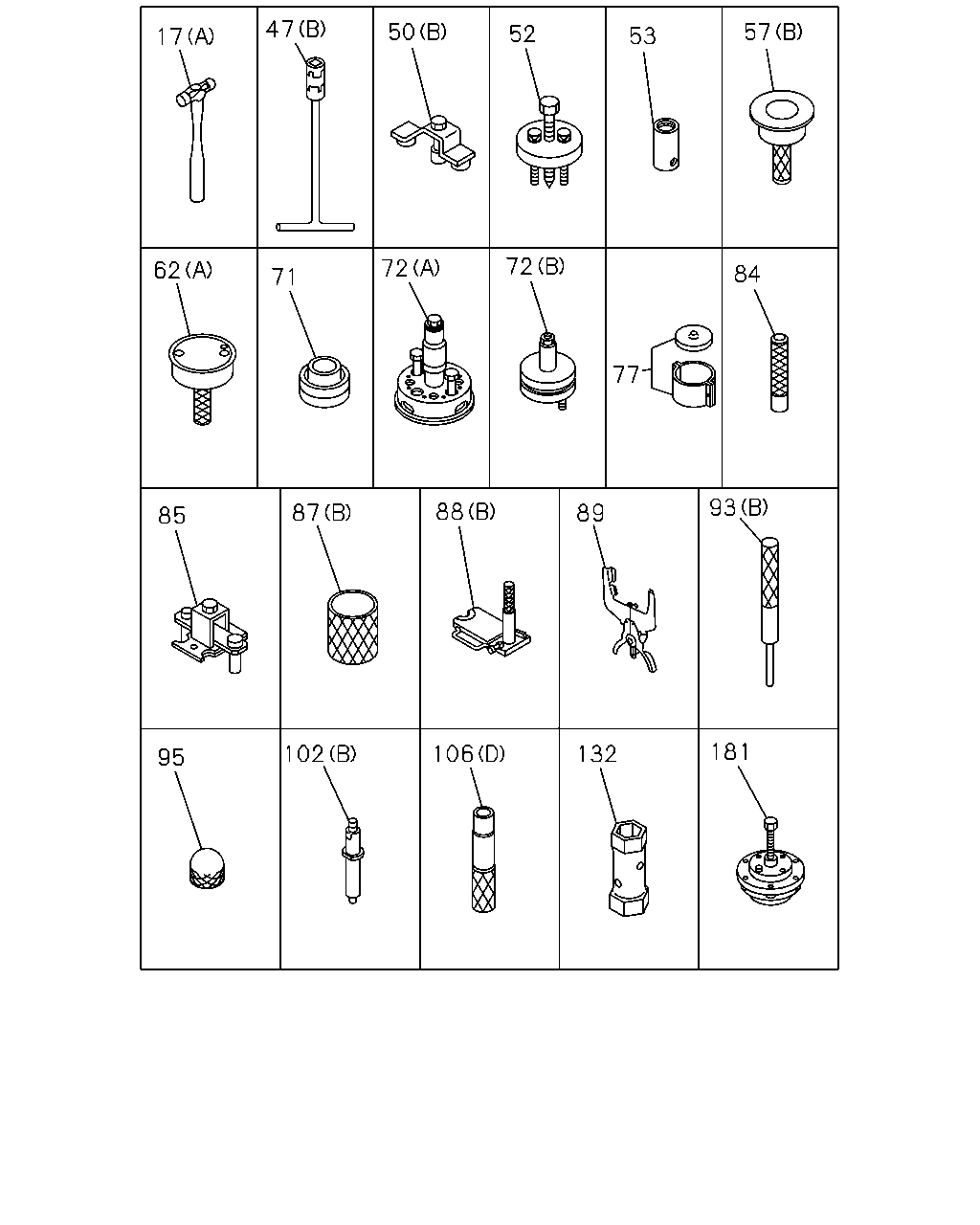

47 50 57 52 53 17 72 72 62 84 71 77 93 88 87 89 85 181 102 106 132 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HAMMER (A)	9-85121-406-0	01	1	9002-
17	HAMMER 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	1-85220-021-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-018-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85113-901-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=500	1-85230-007-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85232-001-0	01	1	9002-
52	REMOVER; WATER PUMP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85210-097-0	01	1	9002-
53	PULLER; TAPER BUSHING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85210-123-0	01	1	9002-
57	TOOL; SETTING CRANK GEAR 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) OD=175	1-85221-028-0	01	1	9002-
57	TOOL; SETTING CRANK GEAR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) OD=153	9-85220-025-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	1-85221-008-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (A)	1-85220-014-0	01	1	9002-
71	TOOL; SETTING,OIL SEAL,FRT 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-85220-015-0	01	1	9002-
72	TOOL; SETTING,OIL SEAL,RR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	1-85220-013-0	01	1	9002-
72	TOOL; SETTING,OIL SEAL,RR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (A)	1-85220-035-0	01	1	9002-
77	TOOL; SETTING,CYL LINER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85220-043-0	01	1	9002-
84	REPLACER; VALVE SEAL 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85221-289-0	01	1	9002-
85	REPLACER ASM; VALVE SPR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85231-436-0	01	1	9002-
87	TOOL; PISTON 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-017-0	01	1	9002-
87	TOOL; PISTON 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85221-319-0	01	1	9002-
88	TOOL; CONNROD BUSHING 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-002-0	01	1	9002-
88	TOOL; CONNROD BUSHING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85220-042-0	01	1	9002-
89	TOOL; PISTON RING 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85221-029-0	01	1	9002-
89	TOOL; PISTON RING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-85221-025-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=260	9-85231-202-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85231-222-0	01	1	9002-
95	SETTING TOOL; BRIDGE GUIDE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85221-324-0	01	1	9002-
102	ADAPTER; COMP GAGE 12PD1 C ENG(43L) (A)	1-85317-002-0	01	1	9307-
102	ADAPTER; COMP GAGE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85431-505-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (B)	9-85221-247-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (C)	9-85221-249-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85221-057-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (D)	9-85241-409-0	01	1	9002-
132	WRENCH; NUT CR/SHF 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) B=46 & 54 L=165	9-85112-320-0	01	1	9002-
181	PULLER ASM; AIR CMPR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-85210-036-0	01	1	9002-

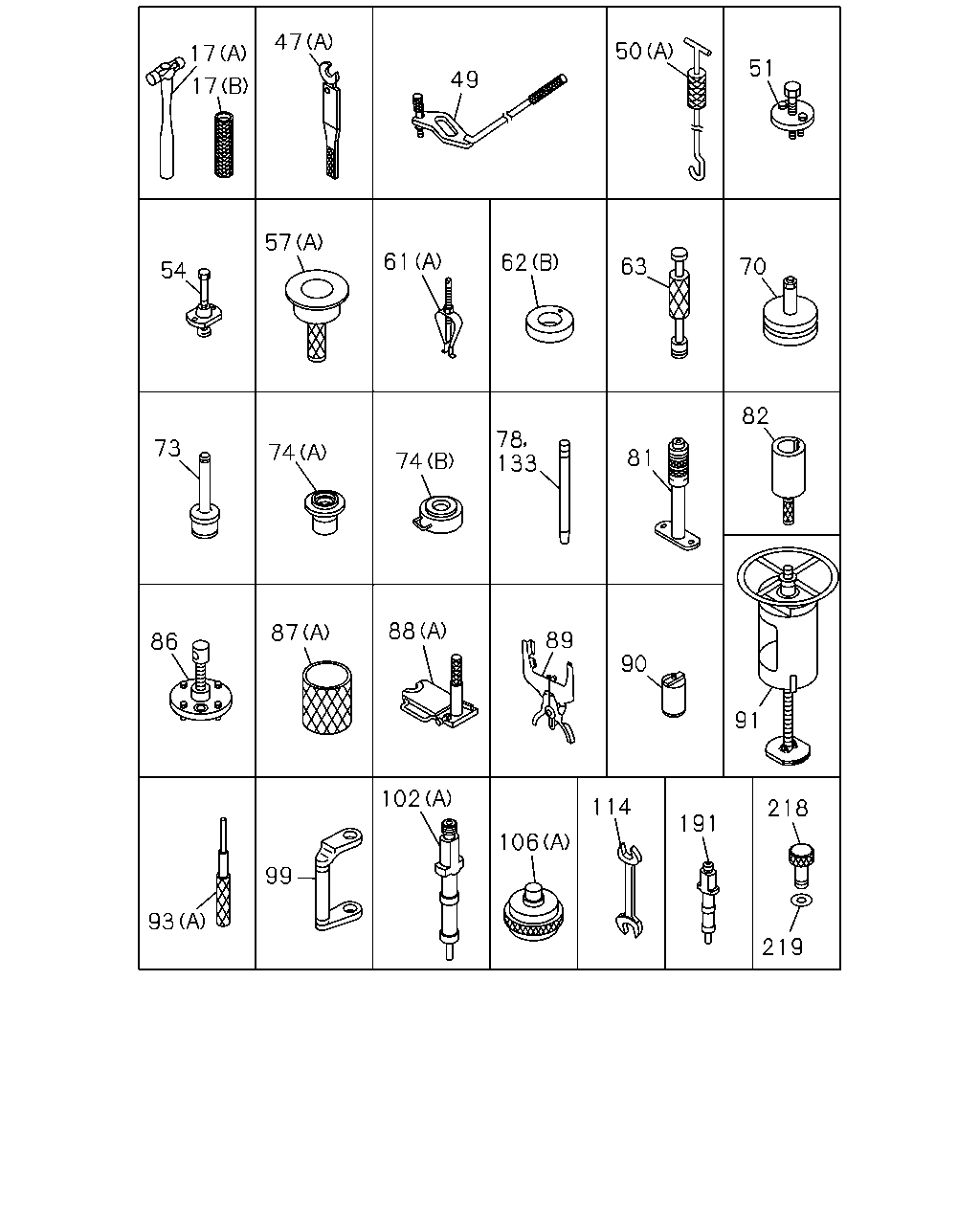

47 50 17 51 49 17 57 61 62 63 70 54 82 78 133 73 74 81 74 88 87 89 86 90 91 102 114 218 191 106 99 93 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HAMMER (A)	9-85121-406-0	01	1	9002-
17	HAMMER 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	1-85220-021-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-018-0	01	1	9002-
47	WRENCH ASM; UNIVERSAL,INJ PUMP 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85113-901-0	01	1	9002-
49	REPLACER ASM; VALVE 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85235-001-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=500	1-85230-007-0	01	1	9002-
50	REPLACER; NOZZLE HOLDER 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85232-001-0	01	1	9002-
51	PULLER ASM; WATER PUMP 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85210-028-0	01	1	9002-
54	PULLER; THERMOSTAT SEAL 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85210-029-0	01	1	9002-
57	TOOL; SETTING CRANK GEAR 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) OD=175	1-85221-028-0	01	1	9002-
57	TOOL; SETTING CRANK GEAR 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B) OD=153	9-85220-025-0	01	1	9002-
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	9002-
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	9002-9306
61	PULLER ASM; PILOT BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	9-85210-157-0	01	1	9307-
62	TOOL ASM; SETTING WEAR RING 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	1-85221-008-0	01	1	9002-
62	TOOL ASM; SETTING WEAR RING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (A)	1-85220-014-0	01	1	9002-
63	PULLER; NOZZLE SLEEVE 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85210-026-0	01	1	9002-
70	TOOL; SETTING,OIL SEAL 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85220-008-0	01	1	9002-
73	TOOL; SETTING,THERMOSTAT SEAL 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85221-034-0	01	1	9002-
74	TOOL; SETTING,INJ PUMP BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-019-0	01	1	9002-
74	TOOL; SETTING,INJ PUMP BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (B)	1-85220-020-1	01	1	9002-
78	TOOL; SETTING,CYL HD TO BODY 12PD1 C ENG(43L)	1-85221-030-0	02	1	9307-
81	PULLER; BRG CAP 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85210-015-0	01	1	9002-
82	PULLER ASM; CR/SHF GEAR 10PD1 STD ENG(40L),12PD1 C ENG(43L)	9-85211-139-0	01	1	9002-
86	REPLACER; FLYWHEEL 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85230-006-0	01	1	9002-
87	TOOL; PISTON 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-017-0	01	1	9002-
87	TOOL; PISTON 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85221-319-0	01	1	9002-
88	TOOL; CONNROD BUSHING 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85220-002-0	01	1	9002-
88	TOOL; CONNROD BUSHING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85220-042-0	01	1	9002-
89	TOOL; PISTON RING 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85221-029-0	01	1	9002-
89	TOOL; PISTON RING 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-85221-025-0	01	1	9002-
90	PULLER; INJ PUMP BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85210-039-0	01	1	9002-
91	REPLACER ASM; CYL LINER 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85230-004-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A) L=260	9-85231-202-0	01	1	9002-
93	SETTING KIT; VALVE GUIDE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85231-222-0	01	1	9002-
99	WRENCH; CYL HD BOLT 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-85115-013-0	01	1	9002-
102	ADAPTER; COMP GAGE 12PD1 C ENG(43L) (A)	1-85317-002-0	01	1	9307-
102	ADAPTER; COMP GAGE 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (B)	9-85431-505-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (B)	9-85221-247-0	01	1	9002-
106	TOOL; SETTING PILOT BRG (C)	9-85221-249-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	1-85221-057-0	01	1	9002-
106	TOOL; SETTING PILOT BRG 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) (D)	9-85241-409-0	01	1	9002-
114	WRENCH; INJ PUMP 10PD1 STD ENG(40L)	1-85220-027-0	01	1	9002-
133	WRENCH; NUT STARTER 10PD1 STD ENG(40L)	1-85221-030-0	02	1	9002-
191	ADAPTER 10PD1 STD ENG(40L)	1-85317-002-0	01	1	9002-
218	PLUG 10PD1 STD ENG(40L),12PD1 C ENG(43L)	1-15629-043-0	01	1	9002-
219	GASKET 10PD1 STD ENG(40L),12PD1 C ENG(43L)	9-09720-555-0	01	1	9002-

171 172 173 227 192 180 180 246 248 250 246 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9002-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9002-
173	WRENCH; COUPLING DRIVER	9-85111-944-0	01	1	9002-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9002-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9002-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9002-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9002-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9002-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	9002-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	9002-
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	9002-
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	9002-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	9002-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	9002-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	9002-

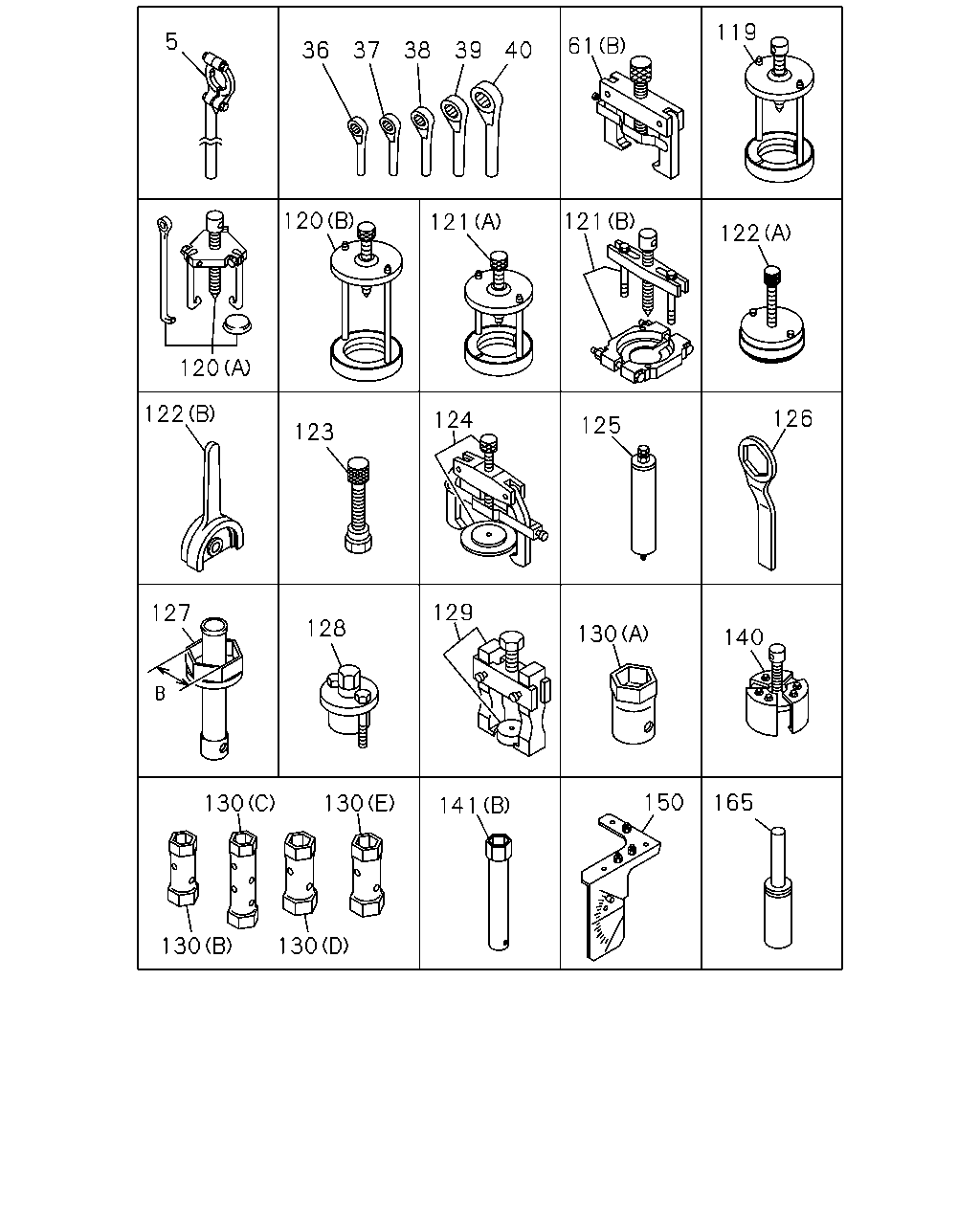

119 5 61 36 37 38 39 40 120 121 121 122 120 122 126 124 125 123 129 127 128 130 140 150 165 130 130 141 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9002-
36	WRENCH; 24	9-85111-377-0	01	1	9002-
37	WRENCH; 27	9-85111-375-0	01	1	9002-
38	WRENCH; 32	9-85111-358-0	01	1	9002-
39	WRENCH; 36	9-85111-374-0	01	1	9002-
40	WRENCH; 41	9-85111-356-0	01	1	9002-
61	PULLER ASM; PILOT BRG (B)	1-85210-050-0	01	1	9002-
61	PULLER ASM; PILOT BRG (A)	9-85210-157-0	01	1	9002-9306
61	PULLER ASM; PILOT BRG 10PD1 STD ENG(40L),12PD1 C ENG(43L) (A)	9-85210-157-0	01	1	9307-
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	9002-
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-148-0	01	1	9002-
120	PULLER ASM; MAIN REAR BRG (B)	9-85210-184-0	01	1	9002-
121	PULLER ASM; COUNTER REAR (A)	9-85210-185-0	01	1	9002-
121	PULLER ASM; COUNTER REAR (B)	9-85210-195-0	01	1	9002-
122	PULLER ASM; COUNTER FRT (A)	1-85210-010-0	01	1	9002-
122	PULLER ASM; COUNTER FRT (B)	9-85210-129-1	01	1	9002-
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	9002-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9002-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9002-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	9002-
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	9002-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	9002-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9002-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9002-
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9002-
130	WRENCH; BOX (E) B=46 & 54 L=165	9-85112-320-0	01	1	9002-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9002-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	9002-
130	WRENCH; BOX (D) B=41 & 46 L=165	9-85113-401-0	01	1	9002-
140	REMOVER; WEAR RING	1-85210-027-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9002-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=19 L=400	9-85114-306-0	01	1	9002-
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9002-
150	TOOL; SETTING,LSPV	1-85220-005-0	01	1	9002-
165	SETTING TOOL; PTO 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	9-85241-702-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
