2-05 — CLUTCH PIPING (#36824) — 180 parça

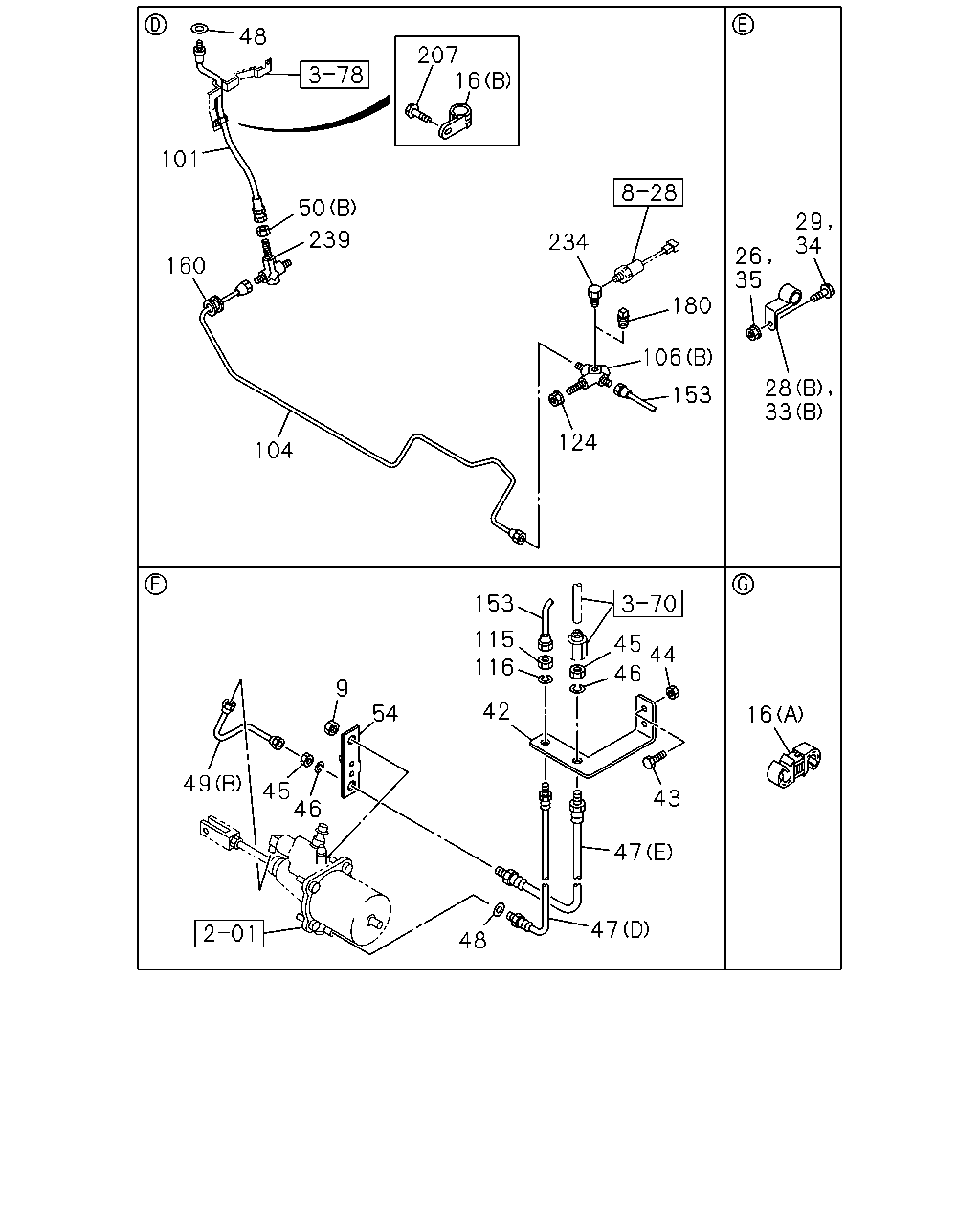

çizim 111660
48 207 16 101 50 29 34 239 234 26 35 160 180 106 28 33 153 124 104 153 115 116 45 44 46 9 42 54 16 49 45 46 43 47 47 48
BalonParca AdiParca NoAdetTipApplied Date
9 NUT; BRKT,FLEX HOSE
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		0-91180-208-0 02 1 0809-
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 0809-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 0809-
26 NUT; CLIP,OIL PIPE
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		0-91180-108-0 01 1 0809-
28 CLIP; OIL PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=6.35 		1-09701-247-1 01 1 0809-0906
28 CLIP; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35 		1-09701-247-1 01 1 0907-
28 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 0809-
29 BOLT; CLIP,OIL PIPE
FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE 		0-28650-825-0 01 1 0809-
33 CLIP; OIL PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35 		1-09701-247-1 05 1 0809-0906
33 CLIP; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35 		1-09701-247-1 05 1 0907-
33 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 05 1 0809-
33 CLIP; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35 		1-09701-247-1 03 1 0809-
34 BOLT; PIPE CLIP
FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE 		0-28650-830-0 05 1 0809-
35 NUT; PIPE CLIP
FULLER FSO5206B OD M/T(Y4V) M8 FLANGE 		0-91180-108-0 05 1 0809-
42 BRACKET; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98105-654-0 01 1 0809-0906
42 BRACKET; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98105-654-0 01 1 0907-
42 BRACKET; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) 		8-98100-603-0 01 1 0809-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0809-
45 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0809-0906
45 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0907-
45 NUT; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) M12 		9-09840-280-0 02 1 0809-
46 WASHER; LK,FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0809-0906
46 WASHER; LK,FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0907-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-812-0 01 1 1010-1011
46 WASHER; LK,FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) ID=12.2 		0-91510-512-0 02 1 0809-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) ID=12.2 		0-91510-812-0 02 1 1010-1011
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) L=375 		1-09364-407-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) L=375 		1-09364-407-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (E) L=430 		1-09363-726-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (D) L=330 		1-09364-607-0 01 1 0809-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0809-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) L=239 		1-49117-401-0 01 1 0809-0906
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239 		1-49117-401-0 01 1 0907-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FULLER FSO5206B OD M/T(Y4V) (B) 		1-49116-838-0 01 1 0809-
50 NUT; UNION
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 		9-09840-280-0 01 1 0809-0906
50 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 		9-09840-280-0 01 1 0907-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0809-
54 BRACKET; AIR,FLEX HOSE
FULLER FSO5206B OD M/T(Y4V) 		1-47475-372-0 01 1 0809-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 0809-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 0809-0906
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 0907-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250 		1-47428-764-0 01 1 0809-0907
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250 		1-47428-764-0 01 1 0908-
106 UNION; OIL PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 3WAY 		8-98051-113-0 01 1 0809-0906
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 3WAY 		8-98051-113-0 01 1 0907-0910
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY 		8-98051-113-0 01 1 0911-
106 UNION; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 0809-
115 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0809-0906
115 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0907-
115 NUT; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) M14 		0-91111-514-0 01 1 0809-
116 WASHER; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) ID=14.2 		0-91510-814-0 01 1 0809-1011
116 WASHER; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0809-0906
116 WASHER; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0907-1009
116 WASHER; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-812-0 01 1 1010-1011
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0809-
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676 		8-98126-919-0 01 1 0809-0906
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676 		8-98126-919-0 01 1 0907-1101
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686 		8-98185-616-0 01 1 1102-
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0809-0906
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0907-0907
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2749 		8-98152-243-0 01 1 0908-1011
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749 		8-98152-243-0 01 1 1012-
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000 		1-47428-773-0 01 1 0809-0907
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) L=2743 		8-98152-245-0 01 1 0908-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809-
180 PLUG; PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP> 		9-09204-510-0 01 1 0809-0906
180 PLUG; PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP> 		9-09204-510-0 01 1 0907-0910
180 PLUG; PIPE
FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
234 CONNECTOR; ELBOW
MZX6P M/T(RSW),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW 		8-94338-418-1 01 1 0809-0906
234 CONNECTOR; ELBOW
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW 		8-94338-418-1 01 1 0907-
234 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 0809-
239 UNION; CLU HOSE
MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 2WAY 		1-09654-059-2 01 1 0809-0906
239 UNION; CLU HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY 		1-09654-059-2 01 1 0907-
239 UNION; CLU HOSE
FULLER FSO5206B OD M/T(Y4V) M12 & M14 2WAY 		1-09654-141-2 01 1 0809-

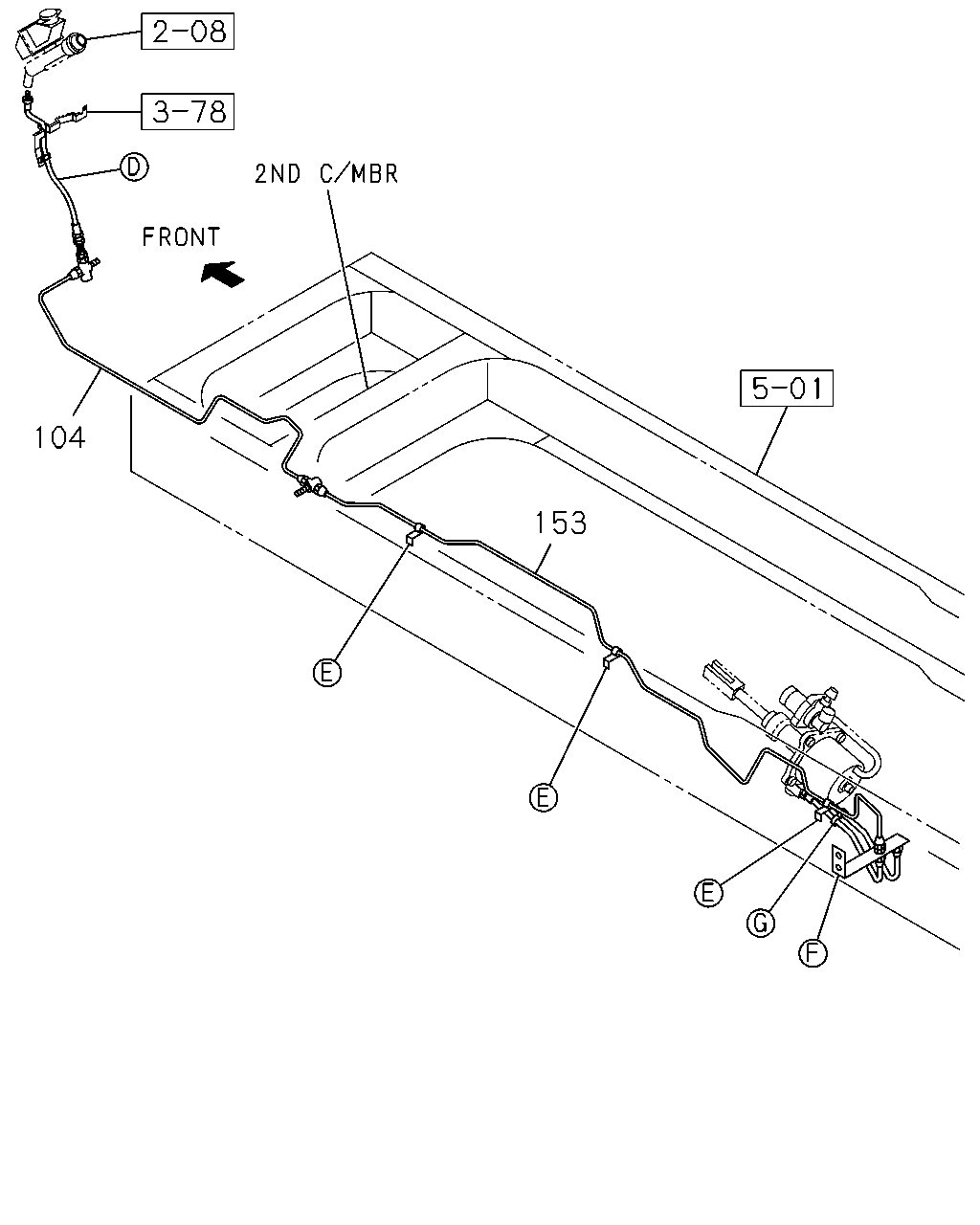

çizim 111663
104 153
BalonParca AdiParca NoAdetTipApplied Date
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 0809-0906
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 0907-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250 		1-47428-764-0 01 1 0809-0907
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250 		1-47428-764-0 01 1 0908-
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676 		8-98126-919-0 01 1 0809-0906
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676 		8-98126-919-0 01 1 0907-1101
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686 		8-98185-616-0 01 1 1102-
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0809-0906
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0907-0907
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2749 		8-98152-243-0 01 1 0908-1011
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749 		8-98152-243-0 01 1 1012-
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000 		1-47428-773-0 01 1 0809-0907
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) L=2743 		8-98152-245-0 01 1 0908-

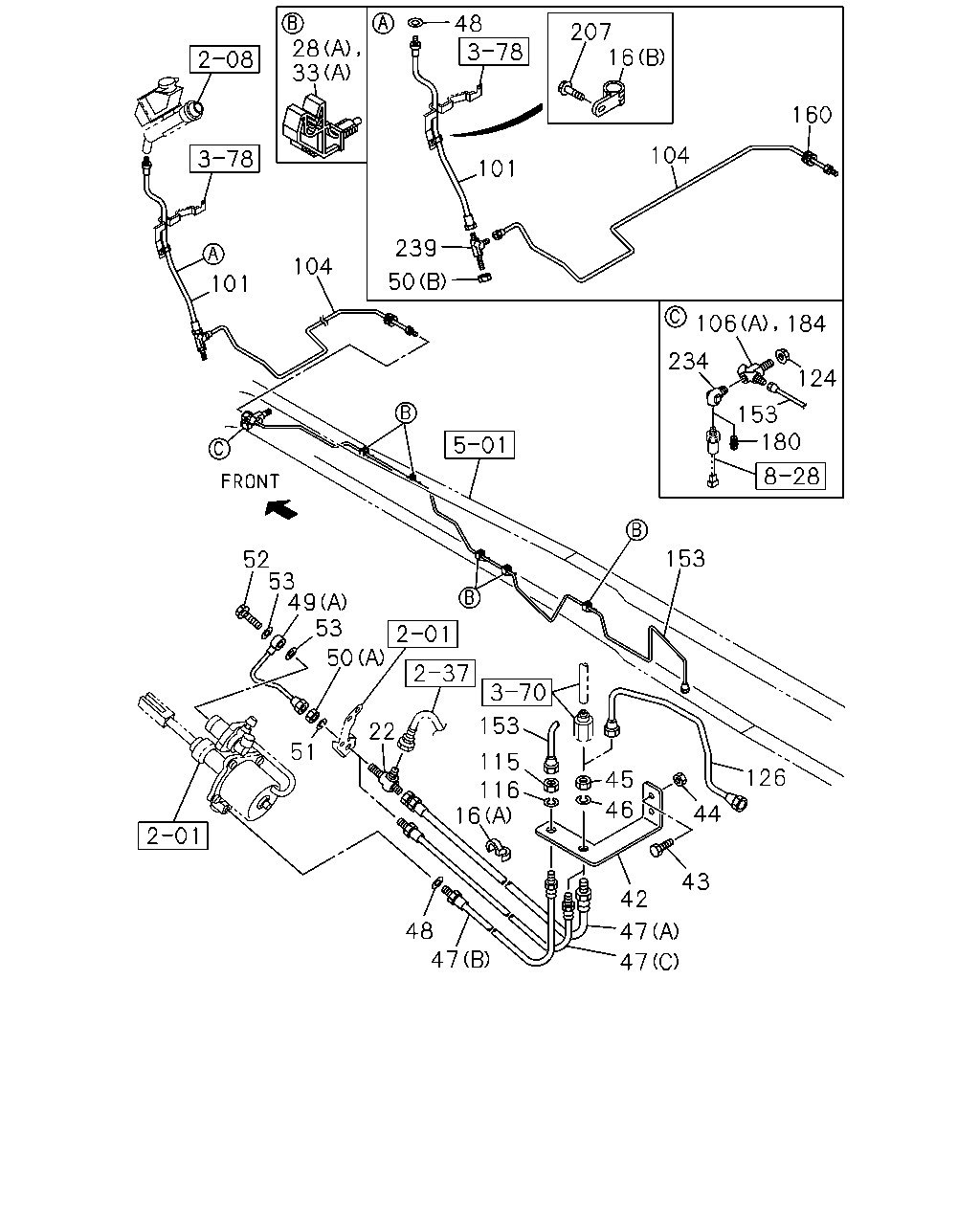

çizim 111664
48 28 33 207 16 160 104 101 239 104 50 101 106 184 234 124 153 180 153 52 53 49 53 50 22 153 51 115 116 16 126 45 46 44 43 42 48 47 47 47
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 0809-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 0809-
22 UNION; CLU PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0809-0906
22 UNION; CLU PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0907-
28 CLIP; OIL PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=6.35 		1-09701-247-1 01 1 0809-0906
28 CLIP; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35 		1-09701-247-1 01 1 0907-
28 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 0809-
33 CLIP; OIL PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35 		1-09701-247-1 05 1 0809-0906
33 CLIP; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35 		1-09701-247-1 05 1 0907-
33 CLIP; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20 		1-09700-604-0 05 1 0809-
33 CLIP; OIL PIPE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35 		1-09701-247-1 03 1 0809-
42 BRACKET; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) 		8-98105-654-0 01 1 0809-0906
42 BRACKET; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98105-654-0 01 1 0907-
42 BRACKET; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) 		8-98100-603-0 01 1 0809-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0809-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0809-
45 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0809-0906
45 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0907-
45 NUT; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) M12 		9-09840-280-0 02 1 0809-
46 WASHER; LK,FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0809-0906
46 WASHER; LK,FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0907-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-812-0 01 1 1010-1011
46 WASHER; LK,FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) ID=12.2 		0-91510-512-0 02 1 0809-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) ID=12.2 		0-91510-812-0 02 1 1010-1011
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) L=375 		1-09364-407-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) L=375 		1-09364-407-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 0809-0906
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 0907-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (E) L=430 		1-09363-726-0 01 1 0809-
47 HOSE; FLEX,CLU CONT
FULLER FSO5206B OD M/T(Y4V) (D) L=330 		1-09364-607-0 01 1 0809-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0809-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) L=239 		1-49117-401-0 01 1 0809-0906
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239 		1-49117-401-0 01 1 0907-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
FULLER FSO5206B OD M/T(Y4V) (B) 		1-49116-838-0 01 1 0809-
50 NUT; UNION
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 		9-09840-280-0 01 1 0809-0906
50 NUT; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 		9-09840-280-0 01 1 0907-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0809-
51 WASHER; LK
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0809-0906
51 WASHER; LK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0907-1009
51 WASHER; LK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-812-0 01 1 1010-1011
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1012-
52 BOLT; EYE,AIR PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) M14X27 FLANGE 		1-09675-086-0 01 1 0809-0906
52 BOLT; EYE,AIR PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M14X27 FLANGE 		1-09675-086-0 01 1 0907-
53 GASKET; JOINT BOLT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0809-0906
53 GASKET; JOINT BOLT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0907-1312
53 GASKET; JOINT BOLT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 0809-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 0809-0906
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 0907-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250 		1-47428-764-0 01 1 0809-0907
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250 		1-47428-764-0 01 1 0908-
106 UNION; OIL PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 3WAY 		8-98051-113-0 01 1 0809-0906
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 3WAY 		8-98051-113-0 01 1 0907-0910
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY 		8-98051-113-0 01 1 0911-
106 UNION; OIL PIPE
FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 0809-
115 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0809-0906
115 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 		9-09840-280-0 01 1 0907-
115 NUT; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) M14 		0-91111-514-0 01 1 0809-
116 WASHER; FLEX HOSE,CLU CONT
FULLER FSO5206B OD M/T(Y4V) ID=14.2 		0-91510-814-0 01 1 0809-1011
116 WASHER; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0809-0906
116 WASHER; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-512-0 01 1 0907-1009
116 WASHER; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2 		0-91510-812-0 01 1 1010-1011
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 0809-
126 PIPE; AIR,UNION TO UNION
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350 		8-98110-637-0 01 1 0809-
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676 		8-98126-919-0 01 1 0809-0906
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676 		8-98126-919-0 01 1 0907-1101
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686 		8-98185-616-0 01 1 1102-
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0809-0906
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900 		1-47428-744-0 01 1 0907-0907
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2749 		8-98152-243-0 01 1 0908-1011
153 PIPE ASM; CLU,UNION TO FLEX
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749 		8-98152-243-0 01 1 1012-
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000 		1-47428-773-0 01 1 0809-0907
153 PIPE ASM; CLU,UNION TO FLEX
FULLER FSO5206B OD M/T(Y4V) L=2743 		8-98152-245-0 01 1 0908-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0809-
180 PLUG; PIPE
MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP> 		9-09204-510-0 01 1 0809-0906
180 PLUG; PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP> 		9-09204-510-0 01 1 0907-0910
180 PLUG; PIPE
FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0809-
184 UNION; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 0911-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0809-
234 CONNECTOR; ELBOW
MZX6P M/T(RSW),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW 		8-94338-418-1 01 1 0809-0906
234 CONNECTOR; ELBOW
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW 		8-94338-418-1 01 1 0907-
234 CONNECTOR; ELBOW
FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 0809-
239 UNION; CLU HOSE
MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 2WAY 		1-09654-059-2 01 1 0809-0906
239 UNION; CLU HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY 		1-09654-059-2 01 1 0907-
239 UNION; CLU HOSE
FULLER FSO5206B OD M/T(Y4V) M12 & M14 2WAY 		1-09654-141-2 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
