2-03 — CLUTCH PEDAL AND CONTROL (#36823) — 42 parça

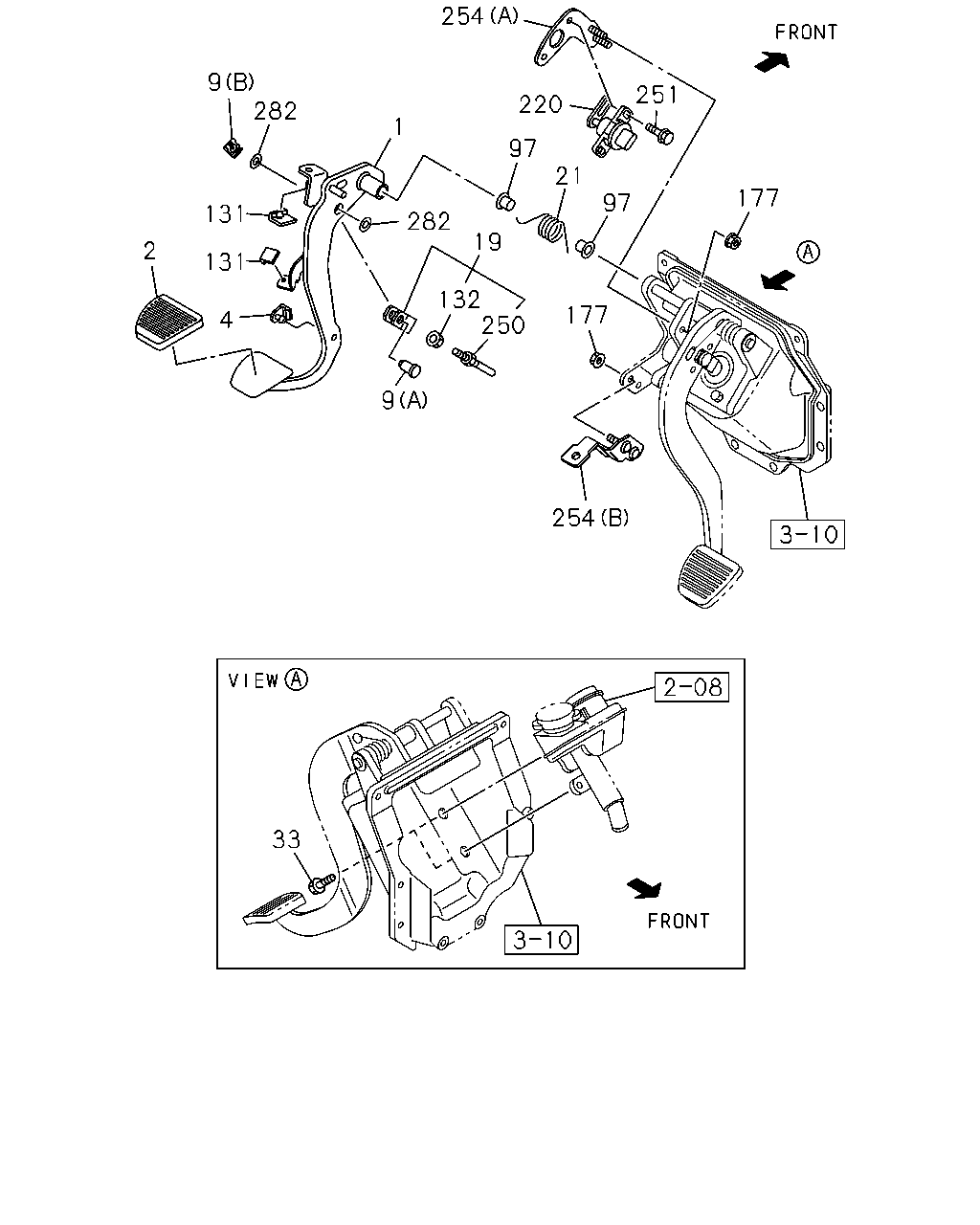

çizim 111665
254 9 282 251 220 1 97 21 177 97 131 282 19 2 131 132 250 177 4 9 254 33
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> 		8-98064-605-1 01 1 0809-0906
1 PEDAL; CLU
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> 		8-98064-605-1 01 1 0809-0906
1 PEDAL; CLU
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> 		8-98064-605-1 01 1 0907-
1 PEDAL; CLU
BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> 		8-98064-605-1 01 1 0907-
1 PEDAL; CLU
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		8-98064-603-1 01 1 0809-0906
1 PEDAL; CLU
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		8-98064-603-1 01 1 0809-0906
1 PEDAL; CLU
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		8-98064-603-1 01 1 0907-
1 PEDAL; CLU
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		8-98064-603-1 01 1 0907-
2 COVER; CLU PEDAL 8-98056-865-0 01 1 0809-
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 0809-
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 0809-1007
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008-
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 0809-
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 0809-
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 0809-
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 0809-
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 0809-
131 STOPPER; CLU SW 8-97302-305-0 01 1 0809-
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0809-
177 NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 0809-0906
177 NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 0809-0906
177 NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 0907-
177 NUT; BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 0907-
177 NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 04 1 0809-0906
177 NUT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 04 1 0809-0906
177 NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 04 1 0907-
177 NUT; BRKT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 04 1 0907-
220 SENSOR; CLUTCH
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		1-80250-014-0 01 1 0809-0906
220 SENSOR; CLUTCH
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		1-80250-014-0 01 1 0809-0906
220 SENSOR; CLUTCH
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		1-80250-014-0 01 1 0907-
220 SENSOR; CLUTCH
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> 		1-80250-014-0 01 1 0907-
250 ROD; PUSH,CLU 8-97615-589-0 01 1 0809-
251 BOLT; SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 		0-52000-616-0 02 1 0809-0906
251 BOLT; SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 		0-52000-616-0 02 1 0809-0906
251 BOLT; SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 		0-52000-616-0 02 1 0907-
251 BOLT; SENSOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> M6X16 		0-52000-616-0 02 1 0907-
254 BRACKET; CLU SENSOR
(B) 		8-98021-377-1 01 1 0809-
254 BRACKET; CLU SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> (A) 		8-98021-376-1 01 1 0809-0906
254 BRACKET; CLU SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> (A) 		8-98021-376-1 01 1 0809-0906
254 BRACKET; CLU SENSOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> (A) 		8-98021-376-1 01 1 0907-
254 BRACKET; CLU SENSOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) H.S.A SYSTEM<6EP> MANUAL TRANSMISSION<X9C> (A) 		8-98021-376-1 01 1 0907-
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 0809-
