1-56 — EXHAUST BRAKE SYSTEM (#36820) — 86 parça

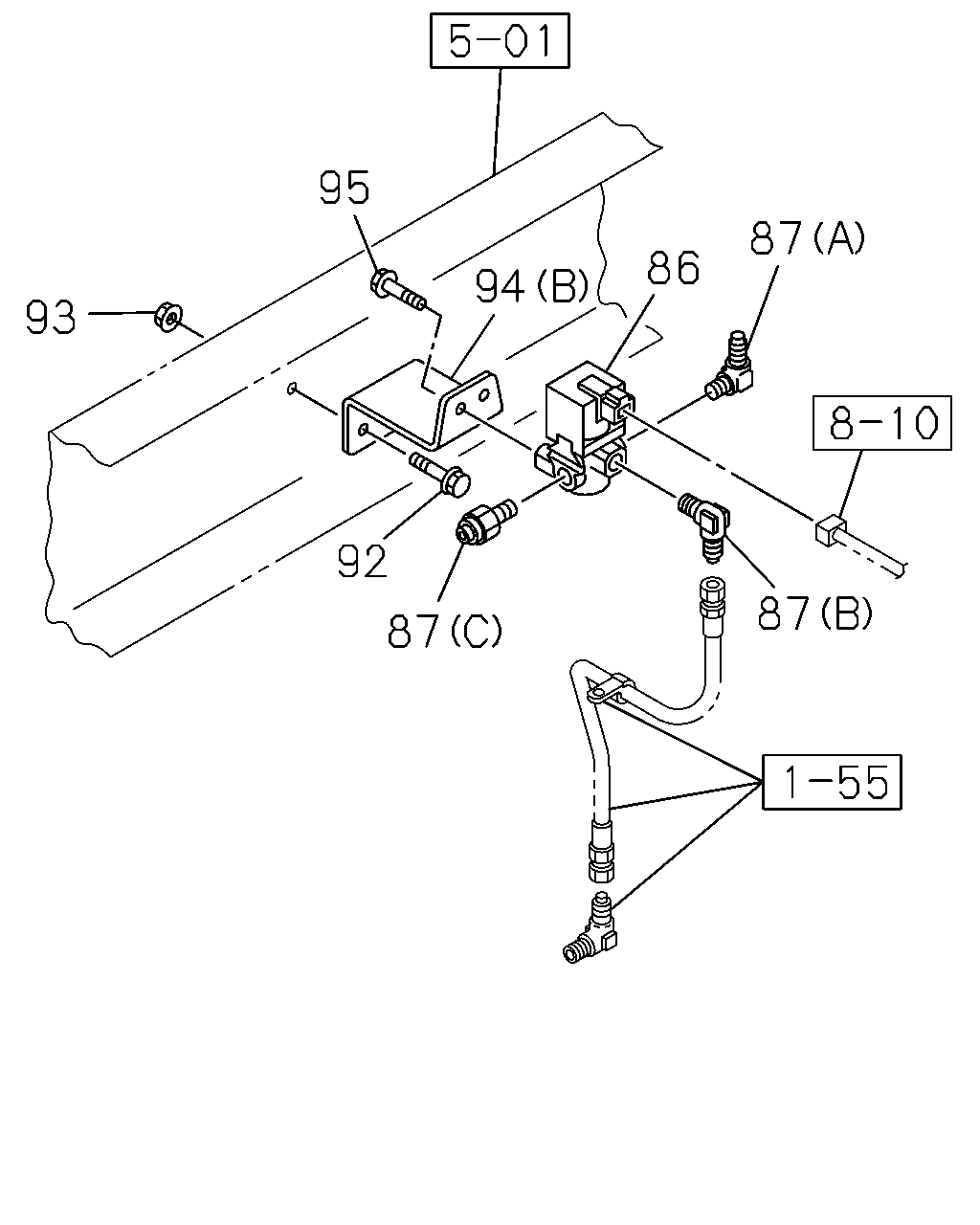

çizim 111651
95 87 86 94 93 92 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-82563-871-2 01 1 0809-0902
86 VALVE; MAG,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-82563-871-2 01 1 0809-0902
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-82563-871-2 01 1 0903-0906
86 VALVE; MAG,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-82563-871-2 01 1 0903-0906
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0907-1011
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-82563-871-2 01 1 1012-
86 VALVE; MAG,EXH BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		1-82563-871-2 01 1 1012-
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0902
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0902
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0903-0906
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0903-0906
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1011
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
87 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0902
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0902
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-1011
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
87 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
92 BOLT; MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0809-1011
92 BOLT; MAG VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8X35 FLANGE 		0-28650-835-0 02 1 1012-
92 BOLT; MAG VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X35 FLANGE 		0-28650-835-0 02 1 1012-
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0809-1011
93 NUT; MAG VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE 		0-91180-108-0 02 1 1012-
93 NUT; MAG VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91180-108-0 02 1 1012-
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0809-0902
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0903-0906
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0907-1011
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98057-863-0 01 1 1012-
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47471-374-1 01 1 0809-1004
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-98154-633-0 01 1 1005-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0902
95 BOLT; BRKT,MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0902
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0903-0906
95 BOLT; BRKT,MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 0903-0906
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0907-1011
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 02 1 1012-

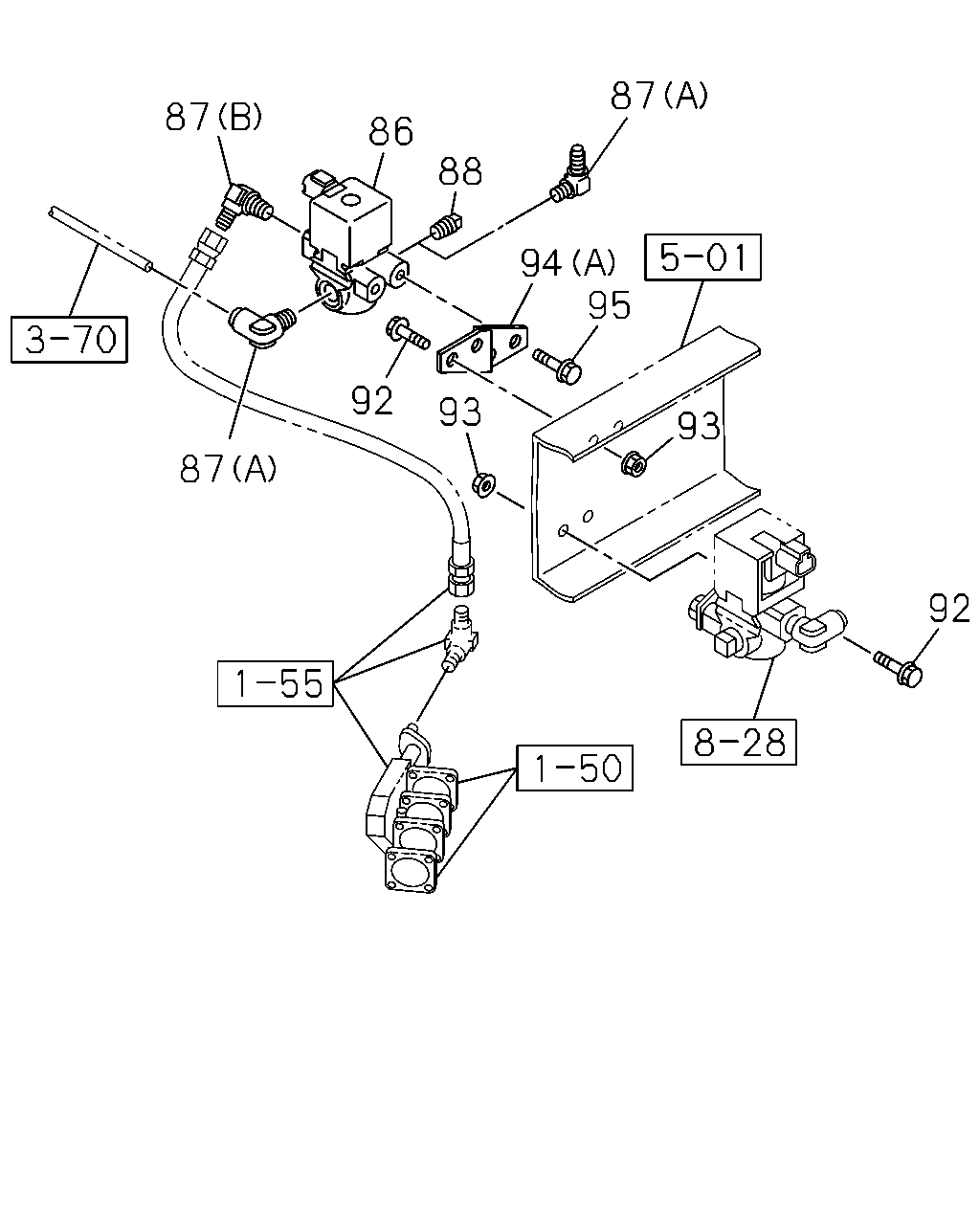

çizim 111658
87 87 86 88 94 95 92 93 93 87 92
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-82563-871-2 01 1 0809-0902
86 VALVE; MAG,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-82563-871-2 01 1 0809-0902
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-82563-871-2 01 1 0903-0906
86 VALVE; MAG,EXH BRK
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-82563-871-2 01 1 0903-0906
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0907-1011
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-82563-871-2 01 1 1012-
86 VALVE; MAG,EXH BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		1-82563-871-2 01 1 1012-
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0809-
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0902
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0902
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0903-0906
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0903-0906
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1011
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
87 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0902
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0902
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906
87 CONNECTOR
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-1011
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
87 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-
88 PLUG
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) PT1/4 		9-99204-513-0 01 1 0809-0902
88 PLUG
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) PT1/4 		9-99204-513-0 01 1 0903-0906
88 PLUG
BRK SYSTEM FULL AIR DUAL CIRC(Z06) PT1/4 		9-99204-513-0 01 1 0907-1011
88 PLUG
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-
92 BOLT; MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0809-1011
92 BOLT; MAG VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8X35 FLANGE 		0-28650-835-0 02 1 1012-
92 BOLT; MAG VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X35 FLANGE 		0-28650-835-0 02 1 1012-
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0809-1011
93 NUT; MAG VLV
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE 		0-91180-108-0 02 1 1012-
93 NUT; MAG VLV
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE 		0-91180-108-0 02 1 1012-
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0809-0902
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0903-0906
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0907-1011
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98057-863-0 01 1 1012-
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47471-374-1 01 1 0809-1004
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-98154-633-0 01 1 1005-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0902
95 BOLT; BRKT,MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 0809-0902
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 0903-0906
95 BOLT; BRKT,MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 0903-0906
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0907-1011
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1012-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 02 1 1012-
